JBL Flip Essential Manual

Quick Start Guide

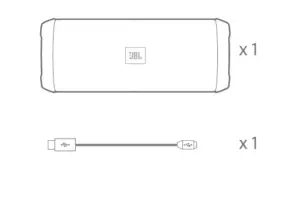

What’s in the box

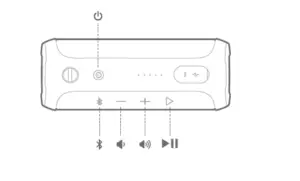

Buttons

Quick Start Guide

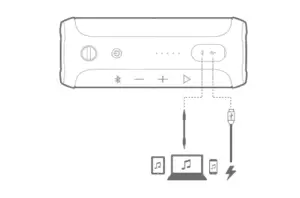

Connections

Music control / Bluetooth®

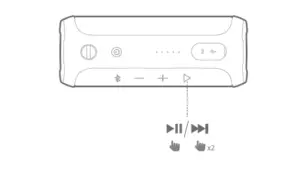

1. Music control

Quick Start Guide

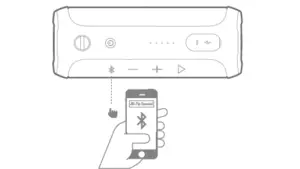

2. Bluetooth connection

For Windows 7 or Windows 8 Bluetooth setup, please visit our online FAQs.

Quick Start Guide

LED Behavior

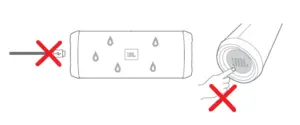

Warning

Flip Essential is IPX7 waterproof.

IMPORTANT: To ensure that the JBL Flip Essential is waterproof, please remove all cable connections
and tightly close the cap; exposing the JBL Flip Essential to liquids without doing so may result in
permanent damage to the speaker. And do not expose JBL Flip Essential to water while charging, as
doing so may result in permanent damage to the speaker or power source.
IPX7 waterproof is defined as the speaker can be immersed in water up to 1m for up to 30 minutes.
If the speaker will not be used for a long period of time, please recharge the battery at least once every
3 months. Battery life will vary due to usage patterns and environmental conditions.
The JBL Flip Essential is NOT JBL Connect or JBL Connect+ enabled.

Quick Start Guide
EN

• Model No.: Flip Essential
• Bluetooth version: 4.1
• Support: A2DP V1.2, AVRCP V1.5
• Transducer: 2 x 40mm
• Output power: 2 x 8WRMS
• Frequency response:
  80Hz-20kHz
• Signal-to-noise ratio: ≥80dB
• Battery type: Lithium-ion polymer
  (3.7V, 3000mAh)
• Battery charge time:
  3.5 hour @ 5V1A
• Music playing time: up to 10 hours
  (varies by volume level and
  audio content)
• Bluetooth transmitter power:
  <7dBm (EIRP)
• Bluetooth transmitter frequency
  range: 2.402 – 2.480GHz
• Bluetooth transmitter modulation:
  GFSK, π/4-DQPSK, 8DPSK
• Dimensions (H x W x D):
  64 x 169 x 64 (mm)
• Weight: 470g

Quick Start Guide

VOICELOGIC

Voice Logic is a leading-edge voice-enhancement technology that significantly
improves the clarity of voice communications by minimizing a wide variety of
background noises.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by the
Bluetooth SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Other trademarks and trade names
are those of their respective owners.
