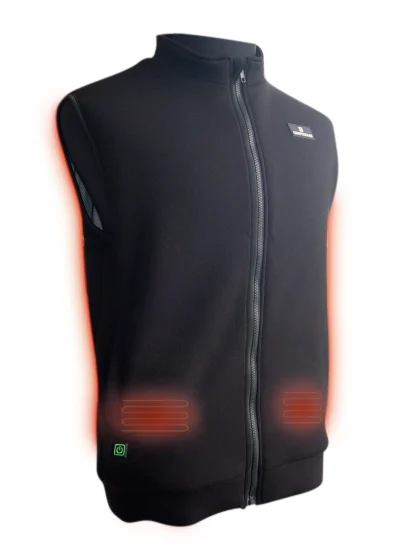

COMPCOOLER GHV-7450 Graphene Heating Garment
COMPCOOLER Introduction
Compcooler Technology specializes in working for personal cooling & heating systems for harsh conditions. Compcooler has established its resume as a manufacturer for Military, Electronic, Medical cooling equipment. The employees at Compcooler’s state of the art manufacturing facility have been producing liquid heating & cooling systems over 15 years. Quality system: ISO9001 and AS9100 registered facility. Certifications for major items: CE, FCC, UL, PSE, CB, FDA.
Product Categories
- ICE Water Circulation Systems
- Micro Refrigeration Chiller Units
- Liquid Heating Systems
- Liquid Cooling & Heating Garment and Pad
- Customized Cooling Systems
- Industrial Chiller or Cooling Module
Certifications for major items
Quality System for facility

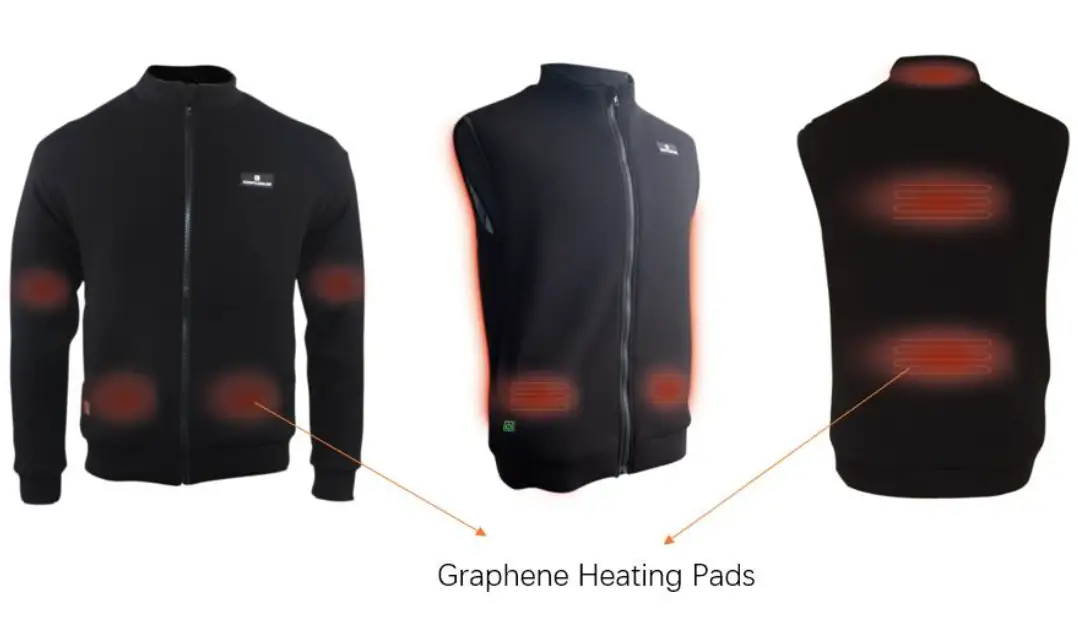

Graphene Heating Garment Description:
Compcooler Graphene Heating Garment used high efficiency graphene heating pads to warm the body. Graphene heating vest used 5pcs heating pads with 3 levels temperature controller, two pcs for front pockets, two pcs for back, and one pc for collar. Graphene heating jacket added two extra pads for arm warming. One touch intelligent controller automatically reduces the power once it reaches its operating temperature, 7.4V 5A rechargeable battery provides 4-8 hours body warming. Front zipper design with Modal cotton scuba stretch material, soft mesh liner, easy don and comfortable warm feeling, 15W and 25W heating capacity, ergonomics vest design, free your body movements.
Key features
High efficiency Graphene Heating pads generate more heat One touch intelligent temperature 3 levels controller Modal Cotton scuba stretch fabric with soft mesh liner Ergonomics design, easy don and comfort to wear 35W rechargeable battery provides long heating time

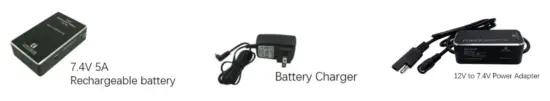

Model-GHV-7450 Components List:
| Item | Part number | Description | Quantity |
| 1 | COMP-GHV-XX | Graphene Heating Vest | 1 |
| 2 | COMP-RB7450 | Rechargeable battery 7.4V 5.0A | 1 |
| 3 | COMP-BC-74 | Battery Charger for 7.4V battery | 1 |
| 4 | COMP-PA-1274 | Power Adapter 12V to 7.4V | Optional |
| 5 | Operation Manual | 1 |
Model: COMP-GHV-1274 Components List:
| Item | Part number | Description | Quantity |
| 1 | COMP-GHV-XX | Graphene Heating Vest | 1 |
| 2 | COMP-RB7450 | Rechargeable battery 7.4V 5.0A | Optional |
| 3 | COMP-BC-74 | Battery Charger for 7.4V battery | Optional |
| 4 | COMP-PA-1274 | Power Adapter 12V to 7.4V | 1 |
| 5 | Operation Manual | 1 |
Technical Datasheet for Graphene Heating Garment
| Item | Graphene Heating Vest | Graphene Heating Jacket |
| COMP-GHV-7450 | COMP-GHJ-7450 | |
| Heating Capacity | 20W | 28W |
| Heating Pads | 5pcs | 7pcs |
| Voltage Range | 5-12V | 5-12V |
| Rated Voltage | 7.4V | 7.4V |
| Temp Controller | 3 Levels | 3 Levels |
| Battery | 7.4V 5A | 7.4V 5A |
| Heating Temp Range | 38-70℃ (100-158℉) | 38-70℃(100-158℉) |
| Working time | 4-8 hours | 3-7 hours |
| Operation Ambient | -20 to 50℃ | -20 to 50℃ |
| Storage | -40 to 60℃ | -40 to 60℃ |
| Color | Black | Black |
| Weight | 1kg | 1.2kg |
Specification
Graphene Heating Garment
- Fabric Material: Modal Cotton wrinkle free Scuba 85% Poly 15%Spandex
- Color: Black
- Liner: stretch mesh
- Zipper: YKK Nylon zipper
- Heating Unit: water proof Graphene heating pads Power connection: 4017 male
- Controller: 3 levels temperature
- Weight:1kg
- Size: XS/S, M/L, XL/2XL, 3XL/4XL
- Garment Size:
Item XS/S M/L XL/XXL 3XL/4XL Chest 84 100 108 126 Waist 76 92 100 118 Length 64 68 70 73 Sleeve Length 58 59 60 61 Collar Length 46 48 50 52 Collar Height 4.5 4.5 4.5 4.5
Preparation

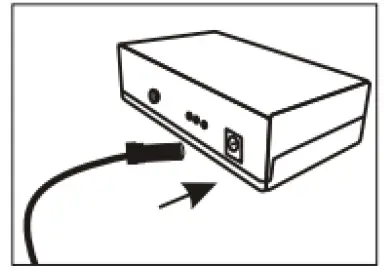

- Battery Charging:
Connect battery with charger plug, red light means charging, green light mean charge completed.

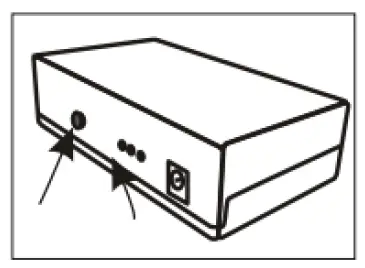

- Battery Capacity Checking:
Press the button “battery capacity remaining”, 3 lights mean 80-100%, 2 lights mean 50-70%, 1 light means 40% or less.
Operation Processes

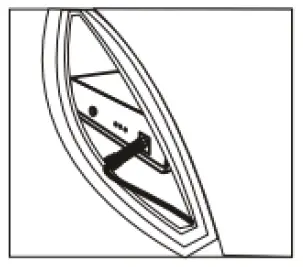

- Battery connection:
plug the power cord (right pocket) into battery
- Start Heating:

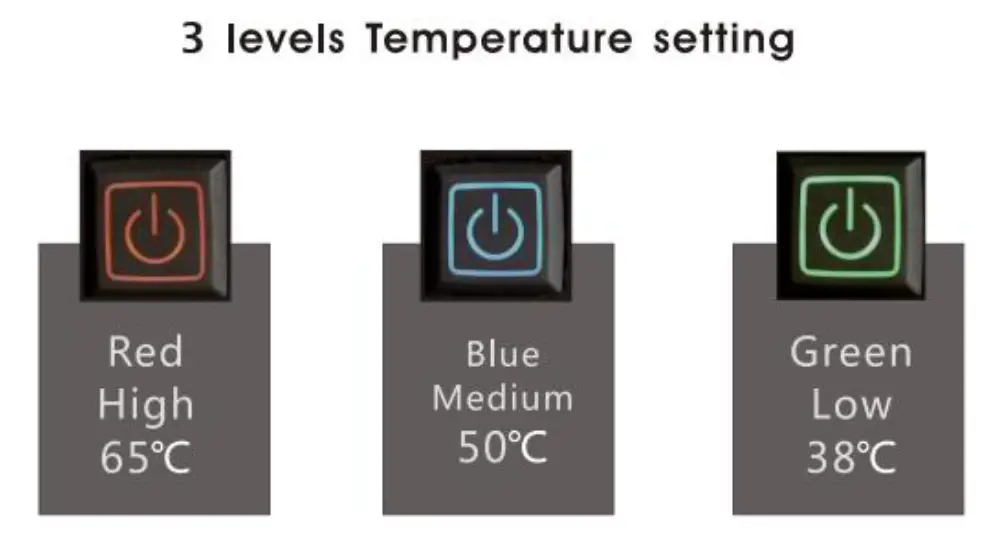

press the ON/OFF switch over 2 seconds to start heating. - Temp level setting:
Short press switch, temp levels changes with 3 colors Low level: Green color, 38℃ 100℉ - Medium level:
Blue color，50℃ 122℉ - High Level:
Red color,65℃ 150℉ - Stop heating:
Press power switch over 2 seconds, unit turns off.
Clean and Maintenance
Liquid Heating Garment:
Prefer to clean by hand wash then hang dry. Machine wash with laundry bag, using a front-loading wash machine with cold water on a gentle/delicate cycle, laundry bag to minimize risk of damaging heating pads connection.
Note: DO NOT BLEACH, NO IRON, NO DRYER, TUMBLE DRY ON LOW
Garment Storage:
Disconnect the battery, clean the garment, pack the unit for storage.
Battery Storage
- Shall be in the clean and dry ventilation room at temperature 0℃-35℃ (32℉-95℉)
- Shall keep out of fire or heat and avoid touching corrosion elements
- Shall be charged every 6 months during storage
- Keep the battery out of children’s reach
Please STOP using the battery if any abnormal be found!
Safety
It is important to become thoroughly familiar with the manual and operating characteristics of the unit. It is the owner’s responsibility to assure proper operator training, installation, operation and maintenance of the unit. Observe all warning can result in injury to the operator and severe mechanical damage to the unit.
Warranty
Compcooler Warrants to the original Purchaser that products sold shall be free from defects material and workmanship for warranty period not exceed one year from the date of shipment. Compcooler agrees to correct for the original user of this product, either by repair, or at the manufacturer’s election by replacement. This warranty shall not apply if the defect or malfunction was caused by accident, neglect, unreasonable use, improper service, or other causes not arising out of defects in material or workmanship. The manufacturer’s sole obligation under this warranty is limited to the repair or replacement of a defective product and shall not in any event be liable for any incidental or consequential damages of any kind resulting from use or possession of this product.
