Miller Welds Dynasty 300 Series TIG Welders

Industrial Applications

• Aerospace
• Heavy fabrication
• Precision fabrication
• Aluminum ship repair
• Pipe and tube fabrication
• Anodized aluminum fabrication

Processes
AC/DC TIG (GTAW) Pulsed TIG (GTAW-P) Stick (SMAW)
Air carbon arc (CAC-A)

• Input Power 208–600 V, 3-phase or 1-phase power
• Amperage Range 1–300 A (DC) 2–300 A (AC)
• Rated Output 250 A at 20 V, 60% duty cycle
• Net Weight 55 lb. (25 kg)

Reimagined for Your Pursuit of Perfection.
Experience unfailing precision arc performance paired with a state-of-the-art, user-friendly interface that puts advanced capabilities at your fingertips. Dynasty TIG power sources help minimize error and achieve high-precision welds every time, making the best welders even better.

Easy-to-understand interface with 4.5-inch LCD display.

• Ensures proper machine setup and parameter selection
• Informative on-screen explanations and dynamic images enhance the parameter selection process

Program memory allows easy naming, saving and recalling of favorite weld settings.

• Deliver more productivity by eliminating the need to manually set the parameters
• Deliver consistent quality by welders of all skills

Pro-Set™ eliminates the guesswork when setting weld parameters.
Locks and limits. Provides control of weld parameter ranges minimizing deviation from the welding procedure specification (WPS).

Allows for any input voltage hookup (208–600 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.
Blue Lightning™ provides more consistent high-frequency (HF) arc starts and greater reliability compared to traditional arc starters.

USB. Front panel port provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
Visit MillerWelds.com/TIGSoftware for the latest software updates and expansions.

Cooler Power Supply (CPS)
is an integrated 120-volt dedicated-use receptacle for the Coolmate™ 1.3.

Cooler-On-Demand™
feature operates the auxiliary cooling system only when needed, reducing noise, energy use, and airborne contaminants pulled through the cooler.

Power source is warrantied for three years, parts and labor.

Weld Process Features

AC TIG
Balance control provides adjustable oxide removal which is essential for creating the highest quality aluminum welds.
Frequency controls the width of the arc cone and can improve directional control of the arc.

AC Waveforms

Advanced square provides a fast freezing puddle, deep penetration and fast travel speeds.
Soft square for a soft buttery arc with maximum puddle control and good wetting action.
Sine for customers that like a traditional arc. Quiet with good wetting.
Triangular reduces the heat input and is good on thin aluminum. Fast travel speeds.

Independent amplitude/amperage control allows EP and EN amperages to be set independently to precisely control heat input to the work and electrode.

DC TIG
Exceptionally smooth and precise arc for welding exotic materials. Pulse Waveforms

• Square provides a fast freezing puddle for ultimate arc control.
• Sine produces a reduced audible sound and provides a more fluid puddle that is good for overlaying applications.
• Triangular provides a quick-forming puddle while further reducing heat for thin materials.

AC/DC Stick
DIG control allows the arc charac teristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and increase the DIG setting for stiffer, more penetrating electrodes like E6010.
Hot Start™ adaptive control provides positive arc starts without sticking.
AC frequency control adds stability for smoother welds when AC stick welding.
Stick-Stuck™ detects if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode. Menu selectable.

Specifications

(Subject to change without notice.)

Refer to owner’s manual for complete ratings. **Sense voltage for low OCV stick and Lift-Arc™ TIG.
IP23 rating — This equipment is designed for outdoor use. It may be stored, but is not intended to be used outside during precipitation unless sheltered.
Operating temperature range is 14 to 104°F (-10 to 40°C). Storage temperature range is -22 to 149°F (-30 to 65°C). Portions of the preceding text are contained in EN 60974-1: “Welding power sources for arc welding equipment.”

Certified by Canadian Standards Association to both the Canadian and U.S. Standards. All CE models conform to the applicable parts of the IEC 60974 series of standards.

Performance Data

Coolmate™ 1.3 Cooler

• Dynasty® 300 models turn Coolmate 1.3 on and off
• Power indicator light
• Fluid level sight window
• Rustproof polyethylene-molded coolant tank and filler spout
• 1/4 hp motor is thermally protected to guard against overheating
• Efficient fin and tube heat exchanger
• Factory-set pressure relief valve (55 psi) maintains consistent pressure during operation
• Filter and coolant filling spout are conveniently located
• Brass-body, positive displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy

Weldcraft™ W-280 (WP-280) TIG Torch

• Two-piece torch head and exclusive Super Cool™ Technology provides additional surface area to increase cooling efficiency and capacity
• Torch body includes an anti-rotation feature and multi-position locking to prevent handle movement during welding and improve operator control
• Secure mechanical fittings and connections minimize leakage

Dynasty® 300 Control Panel

1. Color LCD Display
2. Soft Keys
   (Multiple functions depending on  screen displayed.)
3. Control Knob
   (Adjusts amperage or parameter values depending on mode.)
4. Home Button
5. Program Button
6. USB Port

Amperage

• TIG AC 2–300 A
• TIG DC 1–300 A
• Stick 5–300 A

Process

• AC TIG HF, DC TIG HF,
• AC TIG Lift-Arc™, DC TIG Lift-Arc™,
• AC Stick, DC Stick, Carbon Arc Gouge

Tungsten (inch)

• .020, .040, 1/16, 3/32, 1/8 inch, General
• (.05, 1.0, 1.6, 2.4, 3.2 mm)

Trigger

Remote Standard:

• Foot, Finger, Pushbutton Sequencer: Pushbutton Hold (2T), 3T 4T, 4TE, 4TL, 4TM
• Pulse Pulses per Second DC: 0.1–500 pps AC: 0.1–500 pps Peak Time 5–95% Background Amps 5–95% DC Pulse Waveshape: Square, Sine, Triangular

AC Waveshape

• Balance Ball: 30–99% EN
• Frequency 20–400 Hz
• Waveshape Advanced Square, Soft Square, Sine, Triangular
• Independent
  • EN Amperage: 2–300 A**
  • EP Amperage: 2–300 A**
  • EN Waveshape: Advanced Square, Soft Square, Sine, Triangular
  • EP Waveshape: Advanced Square, Soft Square, Sine, Triangular
• Commutation Low, High

Pro-Set parameter selectable. **Amperage range is tungsten size dependent.

Sequencer Control

• Initial Amps AC: 2–300 A** DC: 1–300 A**
• Initial Time 0.0–25.0 seconds
• Initial Slope 0.0–50.0 seconds
• Weld Time 0.0–999 seconds
• Final Slope 0.0–50.0 seconds
• Final Amps AC: 2–300 A** DC: 1–300 A**
• Final Time 0.0–25.0 seconds
• Preflow 0.0–25.0 seconds
• Postflow Auto/Off–50 seconds
• DIG* Off–100%
• Hot Start™ On, Off
• Stick-Stuck™ On, Off
• OCV Normal, Low
• Programs 1–99 (user defined program names)
• Locks and Limits Individual Parameters
• Languages English, Spanish, French, German, Italian, Dutch, Swedish, Polish

Dynasty® 300 Models/Packages

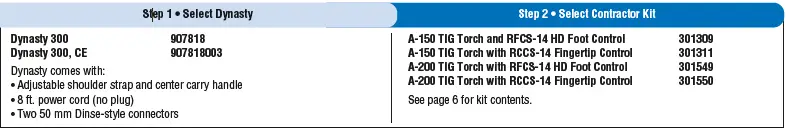

Build an Air-Cooled Package
Select desired stock number for each step.

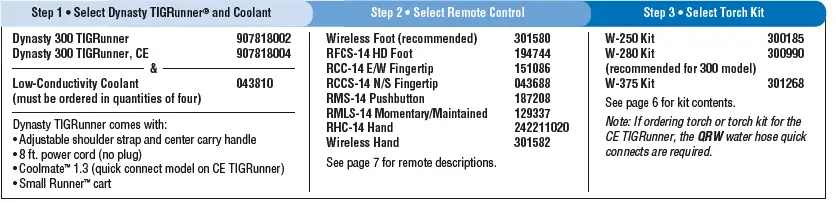

Build a Water-Cooled Package
Select desired stock number for each step.

Water-Cooled Packages
Use a single stock number to order a complete preconfigured system.

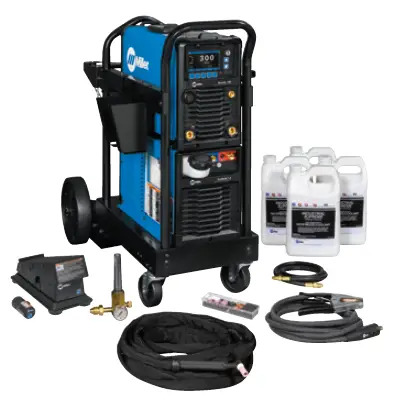

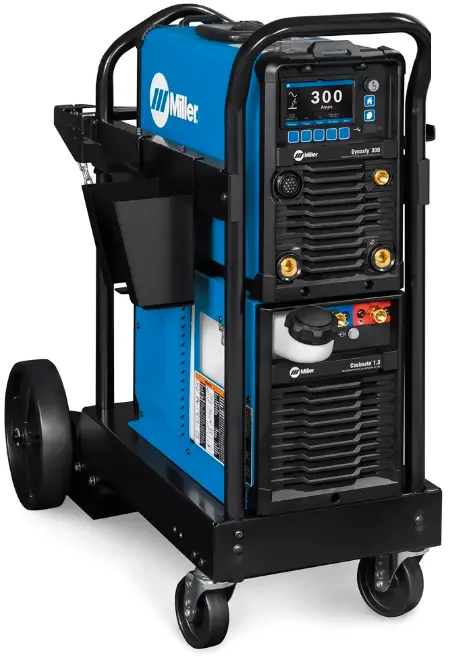

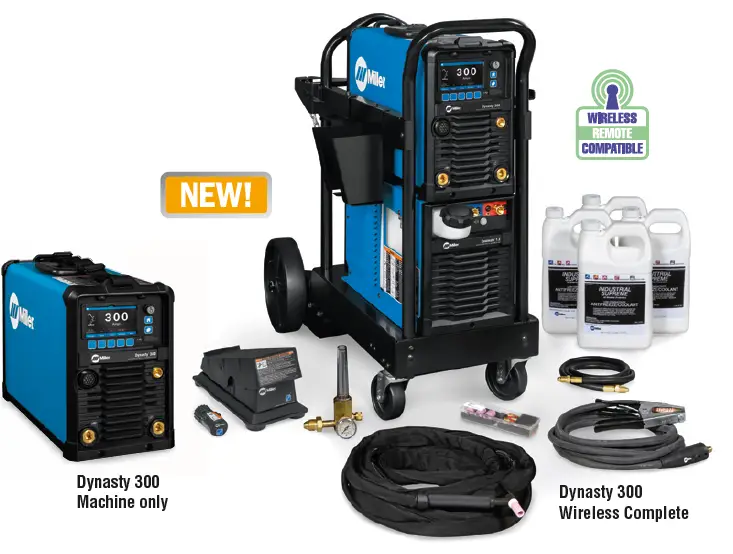

Water-Cooled Complete Package
Dynasty 300 Complete with Wireless Foot Control 951937
Water-cooled complete package comes with:

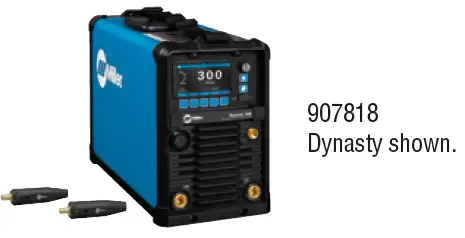

• Dynasty 300 (907818)
• Coolmate™ 1.3 • Coolant (4 one-gallon bottles) • Small Runner™ cart • Wireless foot control
• W-280 torch kit (see page 6 for contents)

Genuine Miller® Accessories

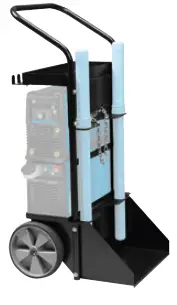

2-Wheel Trolley Cart 300971
For Dynasty® 210/300 and Maxstar® 210/280 with or without Coolmate 1.3 cooler. Easy-to-maneuver two-wheel cart features single-cylinder rack, chain for cylinder, cable holders, torch holder, storage area, and filler rod storage area.

Small Runner™ Cart 301615
For Dynasty® 210/300 and Maxstar® 210/280 with Coolmate 1.3 cooler. Cart features single-cylinder rack, foot pedal holder, two cable/torch holders, and two TIG filler rod holders.

Coolmate™ 1.3 301616 CE 301617
CE, quick connect 120 V, 50/60 Hz 1.3-gallon cooler designed to cool torches up to 280 amps.

Low-Conductivity Coolant 043810Must be ordered in quantities of four. One-gallon recyclable plastic bottle. Miller coolants contain a base of ethylene glycol and deionized water to protect against freezing to -37 degrees Fahrenheit (-38°C) or boiling to 227 degrees Fahrenheit (108°C). Also contains a compound that resists algae growth.

Protective Cover 301382 Fits Dynasty® 210/300 and Maxstar® 280.

Performance TIG Gloves

• 263346 Small
• 263347 Medium
• 263348 Large
• 263349 X-Large

Completely unlined, goat grain leather with triple-padded palm.

TIG Torches, Kits and Connectors

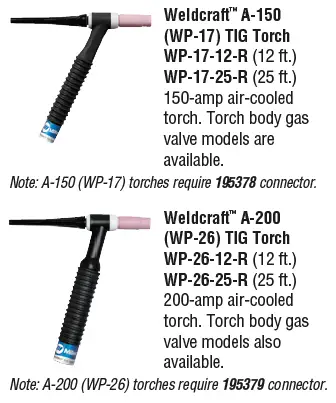

• 301309 A-150 with RFCS-14 HD
• 301311 A-150 with RCCS-14
• 301549 A-200 with RFCS-14 HD

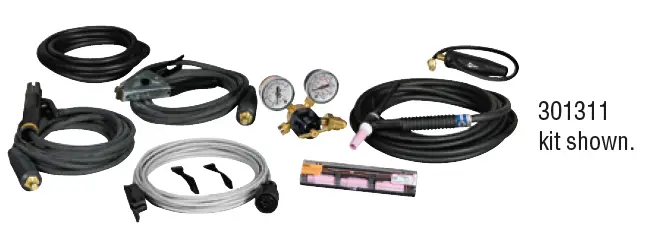

• 301550 A-200 with RCCS-14 All-in-one TIG/stick welding kit comes with either a Weldcraft™ A-150 OR A-200 TIG torch, RFCS-14 HD foot control OR RCCS-14 fingertip control, 200-amp stick electrode holder and 300-amp work clamp with 15-foot (4.6 m) cables, flow gauge regulator with 12-foot (3.7 m) gas hose, gas hose coupler, AK2C torch accessory kit and TIG torch connector.

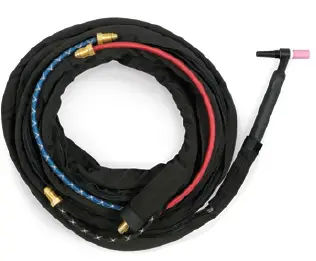

Water-Cooled Torch Kits

• 300185 W-250
• 300990 W-280 (recommended)
• 301268 W-375
• Kit comes with Weldcraft™ 25-foot (7.6 m) TIG torch with Dinse-style connector, torch cable cover, work clamp with 15-foot (4.6 m) cable, flowmeter regulator with gas hose and AK4GL gas lens torch accessory kit.

Water-Cooled TIG Torch Connector 195377 50 mm Dinse-style with water return line. For use with all Weldcraft™ water-cooled torches.

Weldcraft™ Gas Hose Quick Connect QRG Sold individually. Allows for quick connection and removal of torch shielding gas hoses.

Weldcraft™ Water Hose Quick Connect QRW Sold individually. Allows for quick connection and removal of torch coolant hoses.

Genuine Miller® Accessories

Remote Controls and Switches
Wireless Remote Foot Control 301580
For remote current and contactor control. Receiver plugs directly into the 14-pin receptacle of Miller machine. 90-foot (27.4 m) operating range.

RFCS-14 HD Foot Control 194744
Maximum flexibility is accomplished with a reconfigurable cord that can exit the front, back or either side of the pedal. Foot pedal provides remote current and contactor control. Includes 20-foot (6 m) cord and 14-pin plug.

RCC-14 Remote Contactor and Current Control 151086
East/west rotary-motion finger tip control attaches to TIG torch using two hook-and-loop fasteners. Includes 26.5-foot (8 m) cord and 14-pin plug.

RCCS-14 Remote Contactor and Current Control 043688
North/south rotary-motion fingertip control attaches to TIG torch using two hook-and-loop fasteners. Includes 26.5-foot (8 m) cord and 14-pin plug.

RMS-14 On/Off Control 187208
Momentary-contact switch for contactor control. Rubber-covered pushbutton dome switch ideal for repetitive on-off applications. Includes 26.5-foot (8 m) cord and 14-pin plug.

RMLS-14 Switch 129337
Momentary- and maintained-contact rocker switch for contactor control. Push forward for maintained contact and backward for momentary contact. Includes 26.5-foot (8 m) cord and 14-pin plug.

RHC-14 Hand Control 242211020
Miniature hand control for remote current and con tactor control. Dimensions: 4 x 4 x 3.25 inches (102 x 102 x 83 mm). Includes 20-foot (6 m) cord and 14-pin plug.

Wireless Remote Hand Control 301582
For remote current and contactor control. Receiver plugs directly into the 14-pin receptacle of Miller machine. 300-foot (91.4 m) operating range.

Tungsten

Ordering Information

Equipment and Options          Stock No.     Description                                                         Qty.    Price
