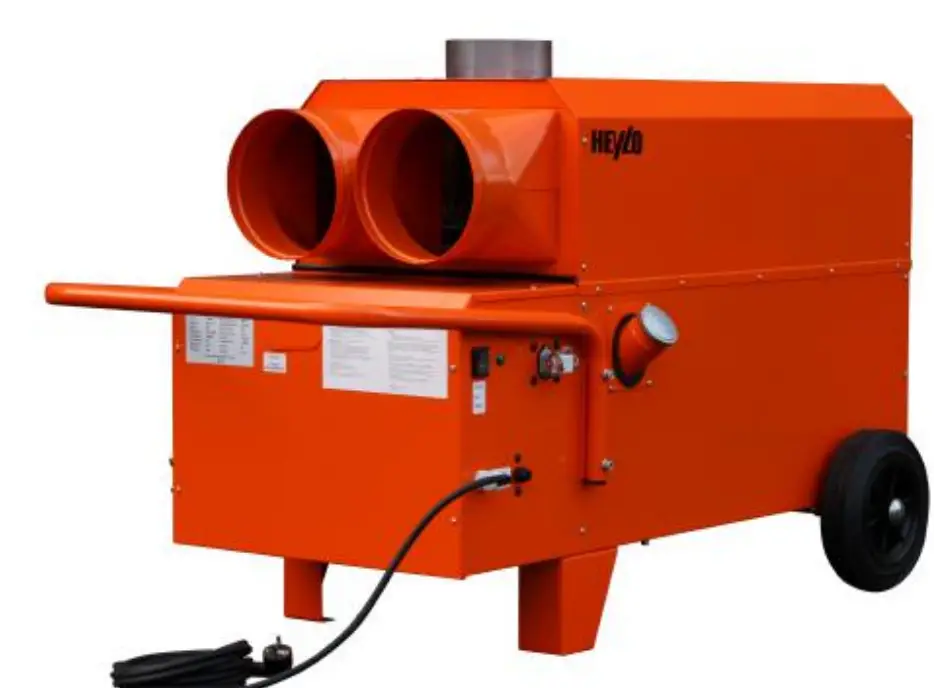

HEYLO K 50 54kW Indirect Oil Fired Space Heater

General information

CAUTION: Read carefully before starting up!
Please observe the notes in the operating instructions carefully. In case of non-observation, the warranty claims will become void. The manufacturer shall not be liable for any damage and/or consequential damage resulting.
Equipment description
The K 30 T lit with heating oil EL, is a compact fan-assisted air heater (WLE) that can be used in many ways and is easy to transport for heating and drying. It functions equally well with and without a chimney and, with its high heat capacity, it is compact and light, but still built as a robust device. The WLE can only be used commercially.
Fan-assisted air heaters are intended for spot heating of repair areas in the open and in closed rooms, for thawing and heating of machines, devices and pipelines and for drying of rooms, hay and crops as well as auxiliary heating in emergency cases.
A tested oil burner has been installed in accordance with DIN EN 267. The current operating instructions for the WLE will definitely be supplemented by the operating instructions of the burner manufacturer for the burner.

Safety instructions

The equipment can only be operated by sufficiently trained persons.
Mobile fuel containers can only be installed and operated under observation of the Technical Regulations for Combustible Fluids (TRbF 20).
Do not install and operate the equipment in oily, sulphurous or salty environments.
The equipment should not be exposed to sprayed water (e.g. high pressure cleaners).
Only WLE models of blower oil burners in accordance with DIN EN 230 and DIN EN 267 can be used.
On no account can the safety facilities be blocked or bridged over.
The equipment can only be operated unsupervised with a thermostatic regulator.
Strictly speaking, the equipment should only be disconnected from the mains supply in a cooled off state.
Equipment must be installed on level surfaces, ensuring that they are stable.

Equipment construction

A ventilator and chromium-titanium combustion chamber with a heat exchanger and exhaust gas nozzle fitted in the housing.
The oil burner is installed in the switch cabinet with its control units within the casing and above the air suction unit.
The tuyere connection with the flame pipe is fitted on the vertically placed combustion chamber.
Both functional units are connected to each other by means of supply lines for air, fuel as well as ignition and monitoring bodies.
Since the flame reverses within the combustion chamber, it has to be long and slender.
Capillary tube thermostats are installed in the device.
The temperature regulator ensures that heating times are short when heating up by delayed switching on of the ventilator.
When switching off, the temperature regulator allows the ventilator to run for some more time to remove the remaining heat from the device.
The combustion chamber is thus protected from overheating due to subsequent heat at the same time.
Efficient oil pre-heating has been installed in the devices for operation during cold external temperatures. It heats up a specific amount of heating oil until the burner can start up.
The room thermostat connection permits room temperature dependent control of the device using a room thermostat.
An operating hour counter has been fitted into the device. It indicates running times of the device in [h] during heating operation. The running times can be read after opening the door of the switch cabinet.

Mode of operation

During operation, the heating oil EL is sucked in by the combustion pump through the suction pipe from the supplied tank or from a firmly installed oil supply unit. The amount of oil required for the heating performance is introduced into the burner nozzle through the pressure pipe, sprayed into the combustion chamber and ignited. A flame lights up, which, together with its combustion gases, heats the combustion chamber and the heat exchanger. Excess heating oil conveyed from the pump flows back into the container.
After a short heating up time, the temperature regulator switches on the ventilator. A very short heating up time is achieved in this way. The ventilator blows the sucked in air through the combustion chamber and the heat exchanger. It is heated up in this way. The heated up air exits on the opposite side through the blow-out nozzle.

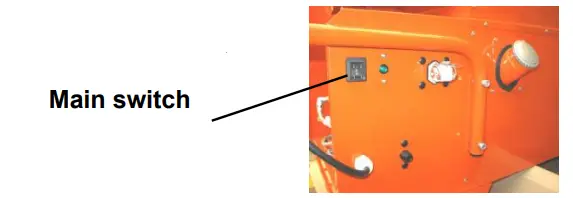

The main switch is switched on to position -II- “heating” for heating up. First, the burner starts up and after heating up the combustion chamber and heat exchanger, the ventilator is also switched on and conveys hot air.
A room thermostat that is possibly attached later on has to be set higher than the ambient temperature, otherwise the device will not start up, since there will be no electricity supply.
The main switch is switched on to position –I- “ventilate” on the switch cabinet for ventilation. Only the ventilator is running now. The device is now functioning as
a ventilation device.
The main switch is set to position -0- to switch off the device.

Connections

Power supply connection
The device is operated with 230V alternating current, 50 Hz. The K 30 T is operated through a 2.5 m long cable with a three-pin plug. Power supply connection should only take place on networks that are secured with a fuse of a minimum of 10 A. Longer supply lines should have a cross section of at least
3 x 2.5 mm² or. 5 x 2.5 mm² to avoid a drop in voltage in the device that is too high. In the case of low voltage of up to 195 V the device still functions flawlessly, so check the device’s voltage if there are disruptions.

Operation with room thermostat

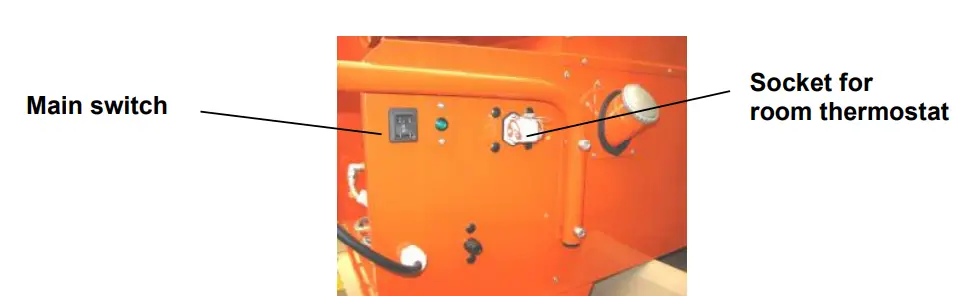

If the device is to keep the temperature in closed rooms constant, a 230 V room thermostat is connected to it. The cap on the connector must be removed for this purpose.
The thermostat plug can now be plugged into the connector socket.

Oil pre-heating

Heating oil secretes paraffin at low temperatures. It blocks the oil filter and stops it from pumping. The devices do not start up and are therefore equipped with electrical heating elements. Oil pre-heating enables the oil to flow. It is controlled by a thermostat, independent of the device switch. However, the mains supply plug must be connected to a functioning and secured power supply source.
Chimney connection
Although the devices do burn without a smoke tube in the open and in open rooms, we recommend 1 m of tubing with a 150 mm diameter and a rain hood to stop penetration of rain and dirt as far as possible and to produce less of a draught.
In case of temporary operation in closed rooms, e.g. winter construction projects, the combustion gases must be discharged into the open. The exhaust gas pipe must be laid out in such a way, that at least 10 Pa draught is ensured in it and no counter pressure whatsoever is possible in the pipe. For this reason, please take care that the exhaust gas pipe is inclining and that it runs vertically upwards towards the end. It should at least be led above eaves height, even better above ridge height, to prevent counter pressure from the wind and thus emission of swirling soot from the burner. The exhaust gas pipes must be located at a minimum distance of 0.5 m from the combustible parts and be firmly attached. Their diameter should not be smaller than that of the exhaust gas nozzle of the fan-assisted air heater.
According to construction regulations, connection to a chimney with a 200 mm diameter that has to be led at least 0.40 m above the ridge, is prescribed for permanent operation in closed rooms.

Commissioning/start up

Heating

Connect the device to the oil supply lines through the flow connection and return port.
Plug in the mains plug in the appropriate mains supply socket.
If prescribed by the construction regulations, connect the chimney, else 1 m smoke tube with rain hood.
Turn on the main switch to position -II- “heating.” The burner will start up in the pre-ventilation mode. After approx. 45 sec. the flame will ignite.
If the device and/or oil are cooled off, you will have to wait for 15 – 20 minutes depending on the temperature until the oil pre-heating has pre-heated sufficiently. Only turn the main switch on to the heating mode after this and, if it is being used, set the connected room thermostat above ambient temperature.
Switching off: Turn off the main switch on the switch cabinet – do not pull out the mains plug -since the ventilator must keep running for a short while after switching off to cool. The temperature regulator will switch the ventilator off automatically with a delay of 2 -3 minutes. This process can repeat itself a few times. Do not, therefore, pull out the mains plug to switch the device off for any reason. If the device is turned off by pulling its plug or by pulling at the main switch, the device cannot cool off afterwards and this can lead to damages to the combustion chamber and to flame monitoring.

In certain circumstances, the safety temperature limiter can switch itself off and lock automatically. The device will then only start up again after unlocking the safety temperature switch.

Ventilation

Turn the main switch on to position –I- “ventilate.”
To switch off ventilation: Set main switch to position -0- “Off.”

Installation guidelines

Regulations for installation
When installing mobile WLEs with closed combustion chambers, the respective local construction and fire protection regulations as well as regulations prescribed by professional associations must be adhered to, in principle.
Installation locations
The devices cannot be operated in places where ignitable air-gas or dust-air mixtures could occur (e.g. petrol pumps, painting workshops, etc.)
Floors and ceilings must be fireproof. Suctioning-in and blow-out nozzles should not be narrowed.
Installation rooms/spaces

Installation of the WLE in closed, well ventilated rooms with a chimney connection:

The minimum size of a room must correspond to an average heat requirement in the room where the device is installed of 0.058 kW/m³.
Fresh air supply required for flawless combustion must be guaranteed in any case (windows, doors or other openings).

Heating capacity	Room size	Required amount of
(kW)	(m³)	fresh air (m³/h )
25 kW	500 m³	50 m³/h
50 kW	1000 m³	80 m³/h
80 kW	1400 m³	130 m³/h
110 kW	1900 m³	180 m³/h
140 kW	2500 m³	220 m³/h
160 kW	2800 m³	240 m³/h

Installation of the WLE in closed, well ventilated rooms without chimney connection:

The minimum size of the room must correspond to an average heat requirement of the room where the device is going to be installed of 0.058 KW/m³.
On principle, a natural regeneration of air to 2.5 times that of the room content/h must be ensured (removal of the combustion gases and introduction of fresh air).
The following openings are required for this amount of fresh air and outgoing air:
Fresh air: 2.8 m³
Outgoing air: 2.8 m³

Heating capacity (kW)	Amount of fresh air (m³/h)	Natural air regeneration (m³/h )
25 kW	500 m³	1250 m³/h
50 kW	1000 m³	2500 m³/h
80 kW	1400 m³	3500 m³/h
110 kW	1900 m³	4750 m³/h
140 kW	2500 m³	6250 m³/h
160 kW	2800 m³	7000 m³/h

Safety clearance

On the sides of combustible parts: 0.60 m
Blow-out side of combustible parts: 2.00 m
Suctioning-in side for free in-flow of air: 0.60 m
upwards: 3.00 m

Legal regulations

The following regulations must be observed during installation and start-up:
Arbeitsstättenverordnung (Health and Safety at Work Act) §§ 5 and 14
Arbeitsstättenrichtlinie ASR 5 (Health and Safety at Work directive)
Unfallverhütungsvorschriften VBG 43, VBG 21(Accident Prevention Regulations)
Feuerungsanlagenverordnung (FeuVo) (Ordinance for Combustion Equipment) of the individual German states.
Available at: Deutsches Informationszentrum für technische Regeln (DITR) (German Information Centre for Technical Regulations) at DIN, Burggrafenstraße 6, 10787 Berlin

Technical Data for the Model Series K

Type	K 30 T	K 50	K 80	K 120 Oil/Gas*	K160 eco 1st //2nd level	K 170	K 220 1st / 2nd level
Item No.	1101610	1101584	1101600	1101625	1101670	1101683	1101684

Nominal heat load (kW)	32	54	83	120	141 / 161	168	155 / 234
Nominal heat output (kW)	29	50	76	110	133 / 151	153	148 / 219
Nominal volumetric air flow at 20°C	1800	3600	5700	7900	10500	10130	11400 / 14100
Hot air flow at ∆t (m³/h)	2050	4200	6500	8900	12600	11000	11650 / 16100
Temperature increase ∆t (K)	46	45	45	42	45	48	43 / 42
Max .available internal static pressure (Pa)	50	100	100	150	190	250	360 / 625
Sound volume at 5 m distance dB(A)	58	59	59	72	67	52	59/68,1
Connection for power supply (V/Hz)	230/50	230/50	230/50	230/50	230/50	400/50	400/50
Power input (A)	2,2	2,8	2,45	4,9	7,7	6,5	7,2 / 10,2
Power consumption (kW)	0,50	0,65	0,56	1,13	1,77	2,65	2,50 / 3,58
Protection class (IP)	44	44	44	44	44	44	44
Fuel consumption (kg/h) Heating oil EL	2,5	4,7	6,8	10,1	11,9/13,1	14,0	13,1 / 19,0
Fuel consumption Natural Gas G20 (Nm³/h)				12
Exhaust gas loss %	9,1	9,0	8,0	7,0	5	8,7	4,9 / 6,4
Required chimney draught (Pa)	0	0	0	0	0	0	0
Mass flow of exhaust gas max. (kg/s)	0,015	0,025	0,038	0,054	0,09	0,099	0,072 / 0,069
Equipment dimensions:
Length / Width / Height (mm)	1447/690/ 822	1623/795/ 1082	1674/875/ 1300	1878/971/ 1410	2000/1020/ 1510	2191/1002/ 1510	2298/1294/ 1709
Weight with burner (kg)	85	140	190	225	290	340	480
Exhaust gas pipe – diameter (mm)	150	150	150	200	200	200	200
Blow-out nozzle – diameter (mm)	2 x 205	420	520	550	550	550	2 x 550
Thermostat settings:
Ventilator thermostat TR (°C)	35	35	35	35	35	35	35
Temperature monitor TW (°C)	80	80	80	80	80/70	80	80
Safety temperature limiter STB (°C)	100 (fixed)	100 (fixed)	100 (fixed)	100 (fixed)	100 (fixed)	100 (fixed)	100 (fixed)

Troubleshooting

Problem

Possible cause

Solution

Burner is not running

No power supply

Room thermostat (if being used) has been set too low

Room thermostat is defective

Automatic oil lighting device indicates disturbance (Lamp indicating disturbances lights up).

The safety temperature limiter has interrupted the power supply, blow-out temperature is too high, air input and air output have been

narrowed down or device could not cool off afterwards: device was

switched off by pulling out the plug, instead of by switching off.

Check with a voltage tester or lamp, turn on the main switch, change the fuse, check the supply line for loose contacts.

If device is being operated without room thermostat: check whether the cap of the room thermostat connection is on, since the heater will not start up without the cap, if necessary, place the cap on (the cap contains a power supply bridge).

Set room thermostat above room temperature

Examine room thermostat (can only be carried out by an expert). Change it or bridge it over at the fastening clamp on the device in emergency cases and switch it on manually.

Unscrew the switch cabinet covering. After waiting for approx. 1 minute, activate the lit up button for removing disturbances on the control unit of the burner. The indication of a disturbance on the control unit and signal should go off. The burner then attempts to start up again.

When starting up initially, it is possible that the button for removing disturbances has to be pressed so often, until the burner has sucked in oil that is free of air. Check that the oil in the reverse flow pipe is free of bubbles. Heating up will only be possible after this.

Further details on burner malfunctioning (LED code) can be found in the enclosed burner operating instructions.

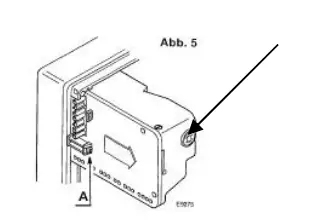

Turn the black protective cap to the left and remove it. Press the button for removing disturbances on the STB. This can be found above the entry point for the device cable. Get rid of the cause for overheating (resistance to suctioning-in or blowing out).

Problem	Possible cause	Solution
Burner starts up, but then indicates malfunctioning	Oil tank is empty Oil pipe is not connected or main tap is closed Oil filter is dirty Oil suctioning pipe is not hermetically sealed, pump sucks in air with it Oil pump is not producing any pressure	Fill up with oil Check pipeline and/or main tap Clean nozzle filter, pump filter, pre-filter, if necessary, change nozzle Seal off oil suctioning pipe. The oil in the reverse flow pipe should be free of bubbles. Set the pressure correctly. Change the coupling or pump (can only be carried out by an expert). Activate button for removing disturbances on the control unit (see section describing burner not starting up)
Burner starts up but does not ignite, indicates malfunctioning	No ignition spark. Carbon deposits on ignition electrodes or they are displaced. Burner nozzle is blocked	Check the tuyere connection. Pull out the mains plug or switch off the power supply and check the tuyere connection. Unscrew the burner nozzle. Change the nozzle for a new one. Do not attempt to clean the nozzle! Keep changing the nozzle, opened, cleaned nozzles never burn flawlessly.
Flame goes out after starting up or burns intermittently	The photo conductive cell is dirty Oil filter is dirty Oil suctioning pipe is not hermetically sealed, pump sucks in air with it: air bubbles in the oil in the reverse flow pipe. Burner nozzle blocked Combustion air is not properly set	Pull out the photo conductive cell and wipe it with a clean cloth. This cleaning should take place often in very dusty rooms. Check and clean all oil filters: pre-filters, pump filters, nozzle filters. Seal off the oil suctioning pipe, tighten all screws. Let the oil in the reverse flow pipe flow into a pot of oil. It must be free of bubbles. Set the pump pressure correctly (can only be done by an expert). As in “Burner starts up, but does not ignite”, dismantle the burner nozzle and exchange for a new one (do not clean). Adjust combustion air (can only be done by an expert).
Burner does not switch off	Room thermostat has been fitted in an inappropriate place. Defective room thermostat	Fit the room thermostat at another place. It is important, for proper controlling, that the room thermostat if fitted in the room to be heated, should be fitted in such a way that no flow of cold air from windows, doors etc. comes into contact with it. If appropriate, move the room thermostat to another place. Examine the room thermostat (can only be done by an expert), change it in emergency cases.

Problem	Possible cause	Solution
Room thermostat	The room thermostat has been fitted to a place where it comes into contact with hot air or rays of heat, e.g. from the sun, machines, hot water or steam pipes.	Move the thermostat to another place
switches burner off
before the desired room
temperature has been
reached
Ventilator does not start up	Temperature regulator -1S3.1 (see wiring diagram) is not functioning	Check, whether the temperature regulator -1S3.1 is functioning, if necessary it has to be exchanged.
	No power supply
		Check the terminal strip X1 with a voltage tester (see wiring diagram) to see whether the ventilator drive is being supplied with electricity. Terminal 5 and 7N (see wiring diagram).

If the device is being supplied with power through the mains cable, work on the electrical unit can only be carried out by specialist electricians and/or a person trained in this area in accordance with VBG 4.
Please only get repair work to the electrical, gas and oil connections for fan-assisted air heaters done by HEYLO service partners.
Placing the device out of operation and disposal
The device is designed for long term operation.
If it is to be disposed of, this must be done in accordance with the current relevant legal regulations in an environment friendly manner.

Maintenance

The device has to be maintained and cleaned at regular intervals to ensure operational safety and maintenance of prescribed ecological limits as well as economic viability.
Maintenance work can only be carried out by competent experts. A fan-assisted air heater that is always kept clean ensures good combustion with undisturbed operation and a long life.
PLEASE NOTE !!! Pull out the mains plug first before doing any maintenance work!

The oil filter must be cleaned after every heating period or sooner.
The internal parts must be cleaned thoroughly to remove dust and dirt after every heating period or sooner, depending on how much dirt there is at the place of use.
Soot must be removed from the combustion chamber after every heating period and the burners must be checked for flawless values (can only be carried out by a specialist).
Only use original spare parts.
There are 3 openings on the K 30 T to clean the heat exchanger. One is on the exhaust gas nozzle and can be opened by removing the hood and loosening the screws on the flange. The second and third openings for cleaning are on the blow-out and suctioning-in sides of the heat exchanger. Please remove the maintenance covering for this purpose.

Wiring

Parts list for K 30 T (Item No. 1101610)

Pos.	HEYLO Item No.	Description
1	1220125	Heat exchanger
2	1380653	Burner flange gasket
3	1230605	Ventilator Axial
4	1260151	Tank K30T
5	1301038	Front handle
6	1301037	Rear handle
7	1340013	Axle
8	1305959	Axle clamp
9	1300446	Device pedestal
10	1650014	Wheel + axle sleeve 25×2,5×66
11	1650021	Starlock cap Ø 25 mm
12	1660237	Ventilated tank lid
13	1630630	Single strand oil filter
14	1630644	Filter insert for single strand oil filter
15	1263008	Cu double spiral K 25 T
16	1430035	Bi-metal thermostat with clip
17	1400509	Heating cartridge, type 31,5 x 130
18	1430121	Temperature monitor 20 – 90°C
19	1430121	Temperature regulator 20 – 90°C
20	1400312	Capacitor 8 µF, 400V, 50 Hz
21	1660087	Thermostat STB 100°C fest
22	1660980	Toggle switch, I / 0 / II
23	1440743	Green operating lamp
24	1450916	Cap for RT connection with bridge
25	1450912	Attached housing for RT
26	1451002	Screw connection/socket insert
27	1450276	Mains cable with plug 230V
28	1560224	Sealing profile
	1230103	Oil blower burner, Riello RG 1RK
	1630013	Oil nozzle, nozzle 0.75/45° – B – Delavan

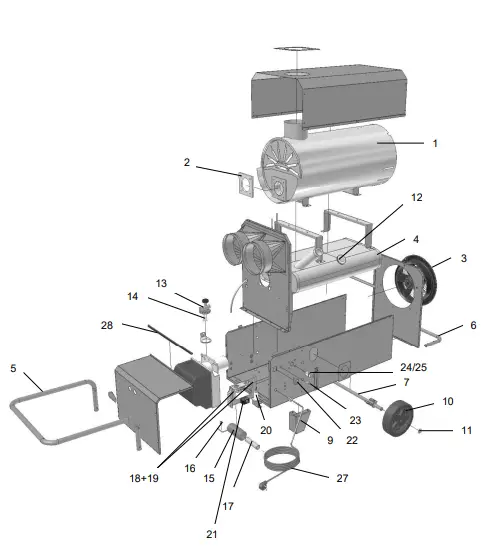

Diagram – View K 30 T

Burner adjustment

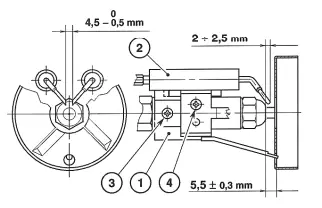

Please note: To set the system to stop the baffle plate (1), loosen the screw (3). To set the electrode system, loosen the screw (4).

Device	Heating output	Nozzle	Pump pressur e	Air valve setting	Burner head setting	Burner type
K 30 T	29 kW	0.75 Gph 45°B Delavan Item No. 1630013	11.0 bar	1.0	3.0	RG 1 RK

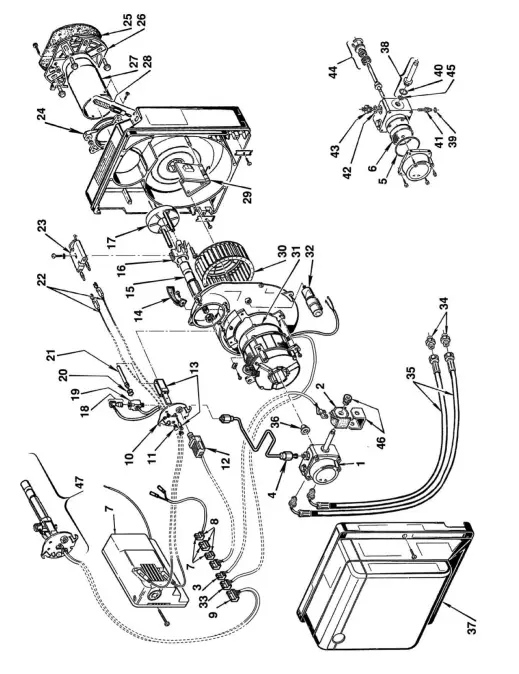

Parts list for the oil burner RG 1 RK (Item No. 1230103)

Parts list for the oil burner

Pos.	HEYLO Item No.	Description
1	1630549	R.B.L. Pump
2	1400612	Coil
3	1400616	Needle valve lead
4	1655026	Tube
5	1560212	O-Ring gasket
6	1630654	Filter
7	1420016	Control Box M0550
8	1400656	Assembly connection
9	1450947	Socket (Thermostat/PTC)
10	1655027	Cover
11	1655003	Viewing port
12	1420124	P.E. Cell
13	1630402	Bracket an screw
14	1655030	Suction duct
15	1630417	Nozzle holder
16	1630418	Support
17	1630419	Diffuser disc
18	1430106	Thermostat
19	1430111	Connector
20	1560215	O-Ring gasket
21	1430108	Heater PTC
22	1630336	High voltage lead
23	1630337	Electrode assembly
24	1630423	Collar
25	1655031	Gasket
26	1560301	Flange
27	1655032	Blast tube
28	1655033	Air damper Regulator
29	1655034	Air damper
30	1651747	Fan
31	1400217	Motor
32	1400326	Capacitor 4µF
33	1440761	Motor socket
34	1655019	Connector
35	1631884	Flexible oil line
36	1650517	Joint
37	1655037	Cover
38	1655038	Needle valve
39	1655020	O-Ring gasket
40	1560216	O-Ring gasket
41	1262353	Regulator
42	1560217	Seal
43	1560219	Connector
44	1560213	Pump seal
45	1560218	O-Ring gasket
46	1400657	Shell and knob
47	1655042	Nozzle holder assembly Incl. Codes: 9-10-11-13-15-18-19-20-21

SIE HABEN FRAGEN? WIR HELFEN IHNEN GERN!
Do you have any questions? We are happy to help you!
HEYLO Kundendienst – Technischer Support und Service
HEYLO Customer Service – Technical Support and Service
Tel. +49 (0) 42 02 – 97 55 15 Fax +49 (0) 42 02 – 97 55 97 E-Mail: [email protected]
Kaufmännische Beratung
Commercial advice
Tel. +49 (0) 42 02 – 97 55 – 0
Fax +49 (0) 42 02 – 97 55 97
E-Mail: [email protected]
Mieten Sie HEYLO-Produkte
Hire HEYLO products
Für Ihre Baustelle, Produktion oder Event über das HEYLO-Miet-Netzwerk:
For your construction site, production facility or event via the HEYLO rental network:
www.heylo-mietservice.de
HEYLO GmbH
Im Finigen 9 28832 Achim [email protected]
www.heylo.de

EU Declaration of Conformity

In accordance with the EU Machinery Directive (98 / 37 / EC) Annex ll A
For equipment construction series: Fan-assisted air heaters with heat exchangers
Type: K 30 T, K 50, K 80, K 120, K 160 eco, K 170, K 220
HEYLO GmbH, Im Finigen 9, 28832 Achim, declares that the machines described correspond to the EU
Machinery Directive as far as safety and health requirements are concerned, in their design and in the construction type brought into use by us.
The declaration will lose its validity if unauthorised changes are made to the machines.
Applicable EC Directives: Machinery Directive 98 /37 /EC
Low Voltage Directive 2006 / 95 / EC
EMC Directive 2004 / 108 / EC
Harmonised standards used:
DIN EN 12100-1 01 : 2003 Safety of machinery – Basic concepts, general principles for design
Part 1: Basic terminology and methodology
DIN EN 12100-2 02 : 2003 Safety of machinery – Basic concepts, general principles for design
Part 2: Technical principles and specifications
DIN EN 60204-1 06 : 2007 Safety of machines and electrical equipment of machines
DIN EN 50081-2 03 : 1993 Electromagnetic compatibility – generic emission standard, industrial environment
National standards as well as technical specifications used:
DIN 4794-1 12 : 1980 Stationary fan-assisted air heaters with and without interchange of heat
DIN 4794-2 12 : 1980 Stationary fan-assisted air heaters with interchange of heat
The devices are type-tested in conformity with German standard DIN VDE 0700, part 1 and part 30 EN 60335-1 and EN 60335-2-30 and bear a CE mark. Achim, 18-10-2011
