Instruction Manual
UNDER THE DESK POWER MODULE ULM
KM686563 UDM Under Desk Power Module

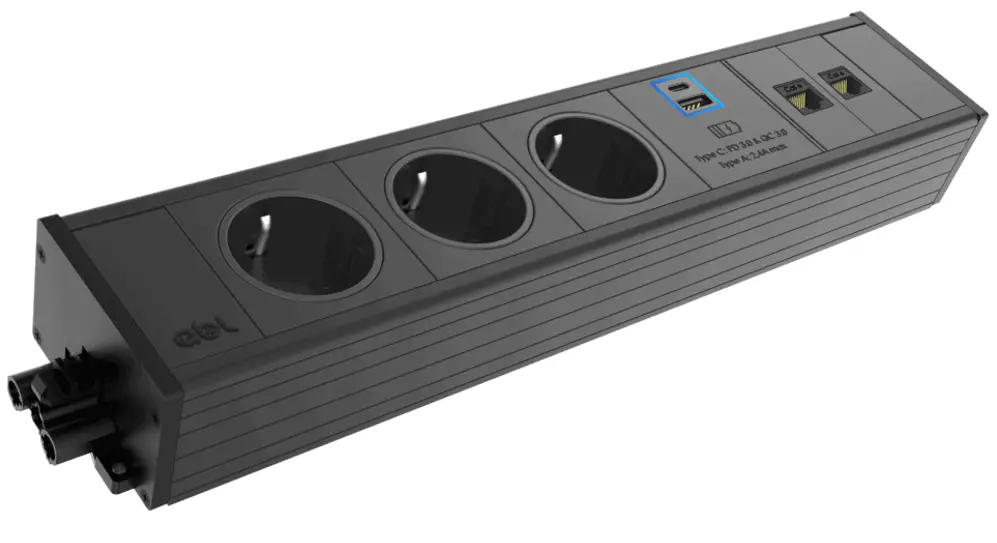

UDM is an easily installed, under-desk power module. It is custom-made, allowing the choice of different socket types, USB charge sockets, and RJ45 media connections. The integrated 3 Pole Connector allows daisy chaining with multiple UDM modules or other similar devices, up to six sockets max.
FEATURES
- The unit complies with IEC 60884-1:2002 + A1:2006 + A2:2013
- The module is available in Black, with Black aluminum profile

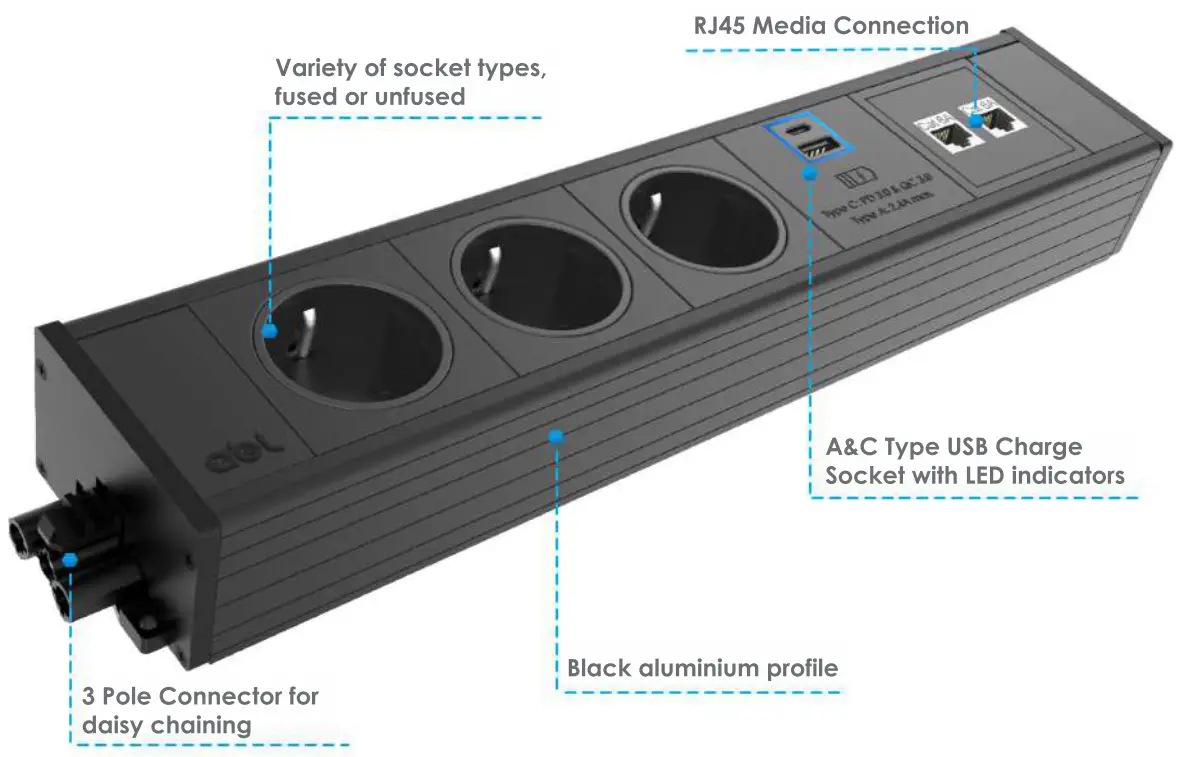

- Available in variations of sockets, USB charge sockets, and RJ45 media connections
- Integrated 3 Pole Connector enables daisy chaining with other compatible products
- When used with ABL Conference Top Access, it is perfectly suitable for meeting rooms
- It is easily installed and fits perfectly into the ABL wire basket. Alternatively secured under the desk

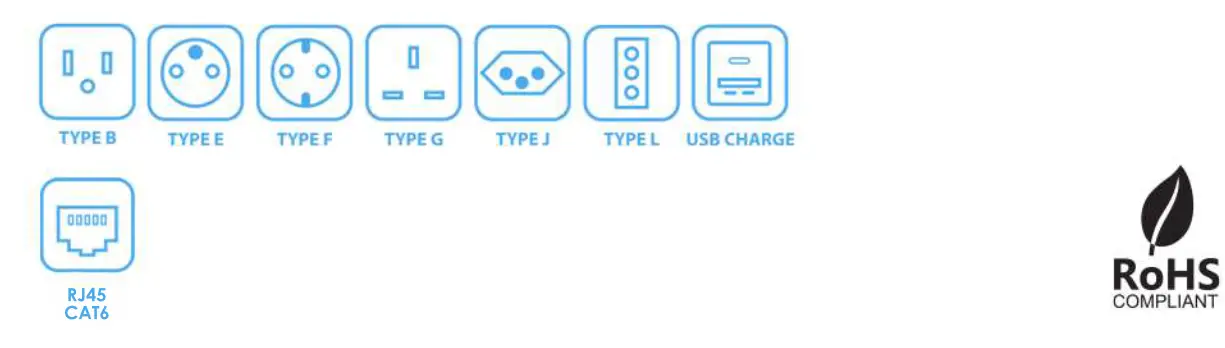

AVAILABLE SOCKET TYPES AND MEDIA CONNECTIONS
CONNECT UP TO SIX SOCKETS

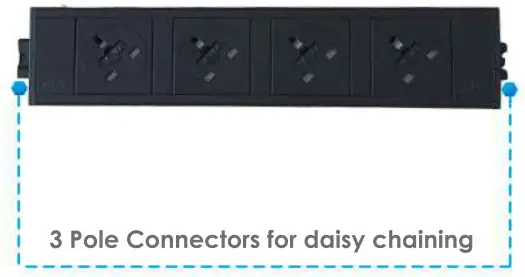

ABL’s UDM features 3 Pole Connectors which enable daisy chaining with other UDM modules or similar products, with up to six UK Sockets.

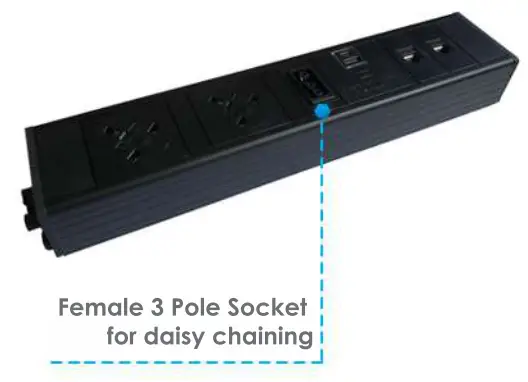

If the module has an RJ45 media connecton, a Female 3 Pole Socket is required for daisy chaining to take place.
INSTALLATION INSTRUCTIONS

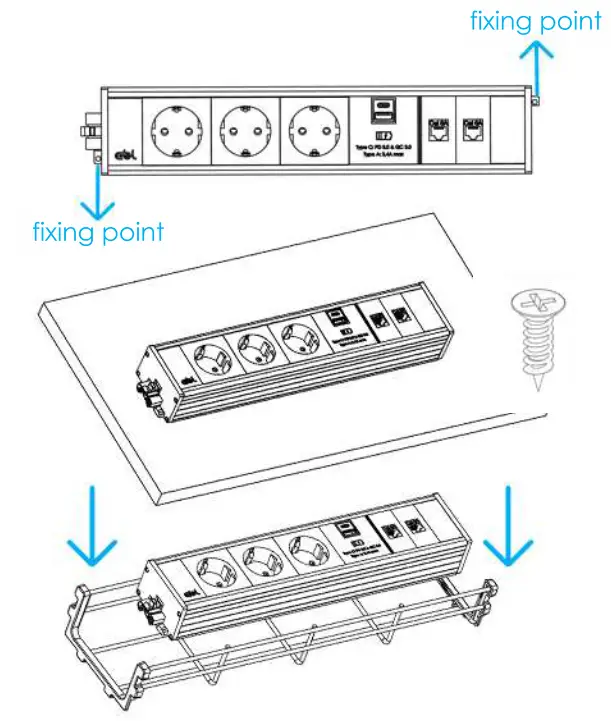

OPTION 1 – Fix the module onto a flat surface
- Check the screw fixing points on the module
- Fixate using the provided screws according to the designated positions on the fixators
OPTION 2 – Fix the module into a wire basket
Simply place the module into the wire basket
DIMENSIONS

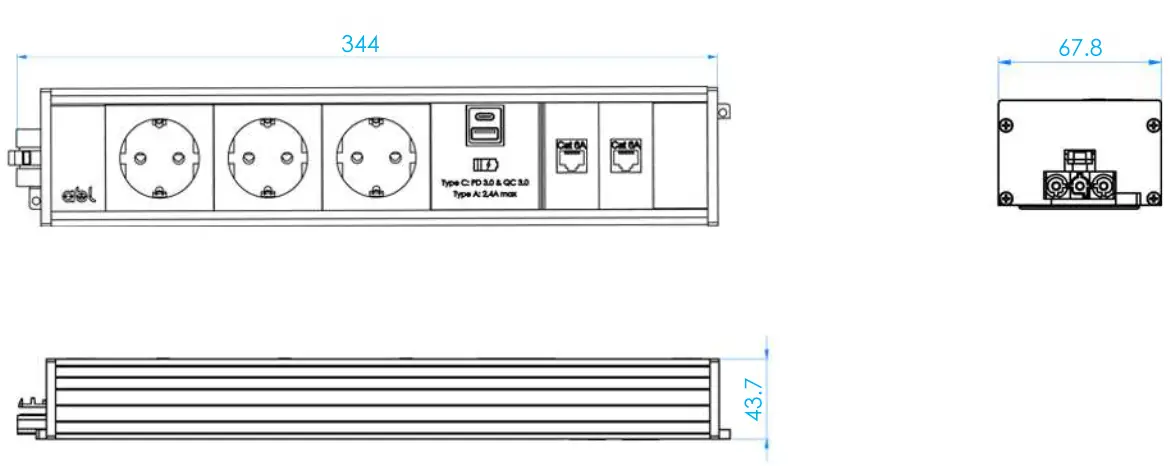

*NOTE – The module length depends on the required configuration
Status: Approved
