NiMH 50 V Emergency Light LED Driver EM ConverterLED

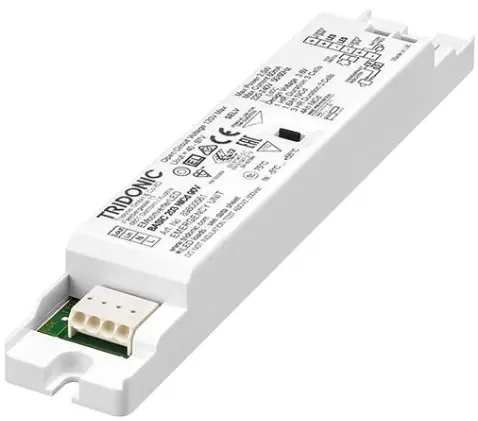

EM converterLED BASIC NiCd/NiMH 50 V
BASIC version
Product Description
- Emergency lighting LED Driver for manual testing
- For self-contained emergency lighting
- For LED modules with a forward voltage of 10 – 54 V
- SELV for output voltage < 60 V DC
- Low profile casing (21 x 30 mm cross-section)
- For luminaire installation
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Properties
- Non maintained operation
- 1 or 3 h rated duration
- Operating time selectable with plug (duration link)
- Compatible with all dimmable and non-dimmable constant current LED Driver (see data sheet, LED Driver compatibility)
- 3-pole technology: 2-pole LED module changeover and delayed power switching for the LED Driver
- Automatic shutdown of output if LED load is out of range
- Constant power output
- Maximum light output for all LED modules
- Electronic charge system
- Deep discharge protection
- Short-circuit-proof battery connection
- Polarity reversal protection for battery
Batteries
- High-temperature cells
- NiCd or NiMH batteries
- D, Cs, or LA cells
- 4-year design life
- 1-year guarantee
- For battery, compatibility refer to the datasheet
Website
http://www.tridonic.com/qr/89800559
The complete data sheet for this product is available in the Downloads section.
Note: Supply of control gear with duration link in 3 hours position. Remove the duration link for a duration of 1 h. Duration link must be set before battery and mains connection.
Ordering data
| Type 3 | Article number | Rated duration | Number of cells | Packaging, carton | Packaging, pallet | Weight per pc. | Dimensions L x W x H |
| EM converterLED BASIC 203 NiCd/NiMH 50V | 89800559 | 1/3 h | 3 | 10 pc(s). | 1,600 pc(s). | 0.065 kg | 179 x 30 x 21 mm |
Technical data
| Rated supply voltage | 220 – 240 V |
| AC voltage range | 198 – 264 V |
| Mains frequency | 50 / 60 Hz |
| Typ. λ (at 230 V, 50 Hz) | 0.6C |
| Forward voltage range LED module | 10 – 54 V |
| Output current | See datasheet |
| Starting time | < 0.25 s from detection of emergency event |
| Overvoltage protection | 320 V (for 48 h) |
| U-OUT (including open- / short-circuit and double load) | 60 V |
| Max. open circuit voltage | 60 V |
| Battery charging time ①② | 24 h |
| Ambient temperature ta | -5 … +55 °C |
| Max. casing temperature tc | 75 °C |
| Mains voltage changeover threshold | According to EN 60598-2-22 |
| Mains surge capability (between L – N) | 1 kV |
| Mains surge capability (between L/N – PE) | 2 kV |
| Type of protection | IP20 |
| Lifetime | up to 100,000 h |
| Guarantee | 5 Year(s) |
| Dimensions L x W x H | 179 x 30 x 21 mm |
Approval marks
Standards
according to EN 50172, according to EN 60598-2-22, EN 61347-1, EN 61347-2-13, EN 61347-2-7, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60068-2-64, EN 60068-2-29, EN 60068-2-30, EN 62384
Specific technical data
| Type | Battery technology | Rated duration | Typ. output power P emergency | Mains current in charging operation | Mains power in charging operation | ||||
| Initial charge | Fast recharge | Trickle charge | Initial charge | Fast recharge | Trickle charge | ||||
| EM converterLED BASIC 203 NiCd/NiMH 50V | NiCd | 1 / -1 h | 2.4 W | 17 mA | 17 mA | 16 mA | 2.3 W | 2.3 W | 1.7 W |
| EM converterLED BASIC 203 NiCd/NiMH 50V | NiCd | 3 / -1 h | 2.4 W | 22 mA | 22 mA | 18 mA | 3.4 W | 3.4 W | 2.3 W |
- 16 h battery charging time for 2 h emergency lighting function according to AS 2293.
- 12 h battery charging time for 2 h emergency lighting function when used with NiCd and NiMH batteries.
- EM = Emergency
Article information 06/21
Subject to change without notice.
