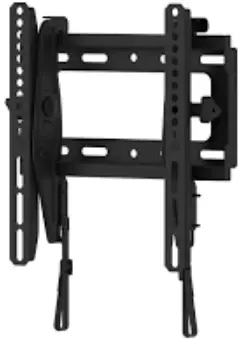

ERGOAV ERMTS1-01B Tilt Mount for TVs up to 32 Inch
THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!
At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us. ErgoAV Customer Care
Phone (877) 419-7832 M-F 8am to 8pm CST
email: [email protected]
website: www.ergoav.com
address: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445
IMPORTANT SAFETY INFORMATION
DANGER: Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at (877) 419-7832 or customer service at [email protected].
CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.
- Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
- This product is designed for use in wood stud, and solid concrete walls. – DO NOT install into drywall alone.
- The wall must be capable of supporting four times the weight of the TV and mount combined.
- Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
- Do not use outdoors.
- Route cords and cables properly to avoid mechanical damage.
- SAVE THESE INSTRUCTIONS
Weight Restrictions
If your TV weighs more, do not use this product.
WARNING
DO NOT exceed the maximum weight indicated. This mounting system is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the mount and its accessories, causing damage and or injury.

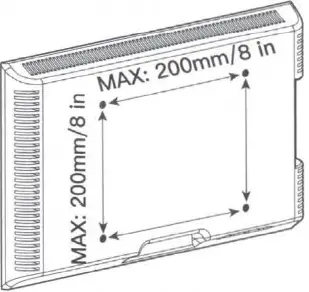

Check the VESA Pattern of Your TV before the Installation
75 mm 3 in
100 mm 4 in
200 mm 7 7 /8 in
Minimum VESA pattern: 75mm/3 in (W) x 75mm/3 in (H) If your TV VESA is greater than 200×200 mm/8×8 in or less than VESA 75x75mm/3×3 in , this mount is NOT compatible.
If this mount is NOT compatible, please contact our Technical Support line at (877) 419-7832 or customer service at [email protected] to find a compatible mount.

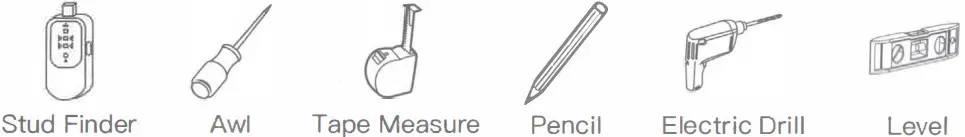

Tools Needed (Not Included)
Verify Your Wall Construction
CAUTION
DO NOT install into drywall alone
If you are not sure of the wall construction, please contact our Technical Support line at (877) 419-7832 or customer service at [email protected].

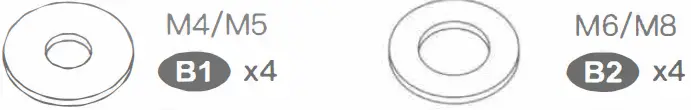

Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at (877) 419-7832 or customer service at [email protected].
PLEASE NOTE: Not all hardware included in this package will be used.
Supplied Parts and Hardware for Step 1
Spacers
NOTE: The spacers are shown in actual size. :.

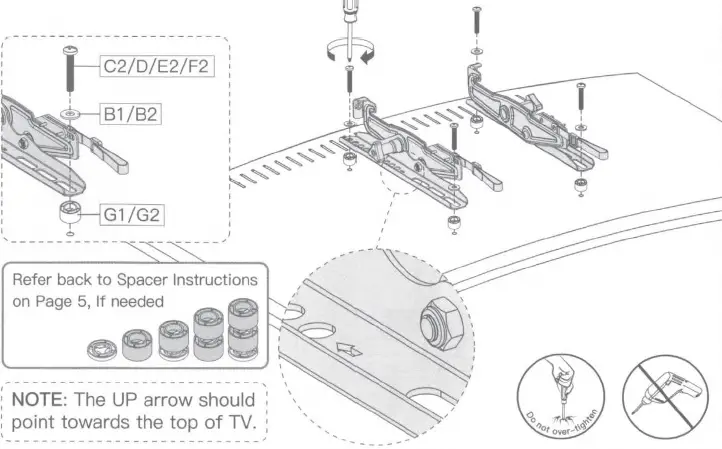

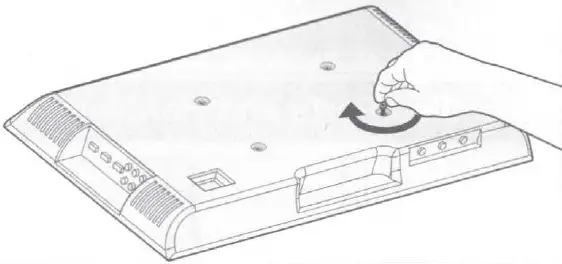

Step 1 Secure the TV Brackets to the TV

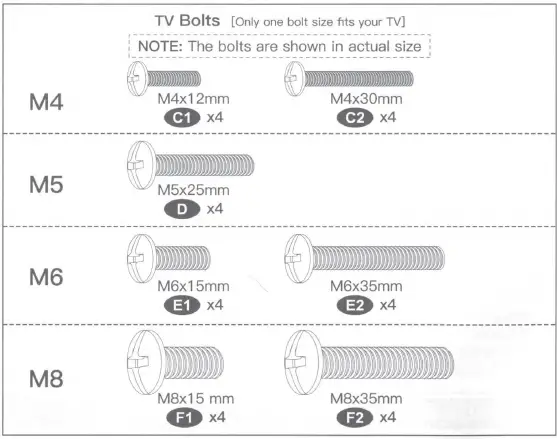

Select TV Bolts

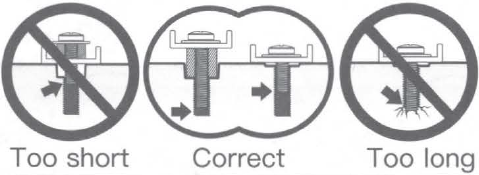

Only one bolt size fits your TV
Bolt combination. length: Verify We adequate recommend thread thread engagement engagement with by at bolts least or 5 turns. bolts/spacers
- Too short will not hold the TV.
- Too long will damage the TV.
NOTE: Please do not over tighten the TV bolts to avoid damaging your TV.
PLEASE NOTE: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at (877) 419-7832 or customer service at [email protected].
Parts Needed if You Have a TV as Shown Below

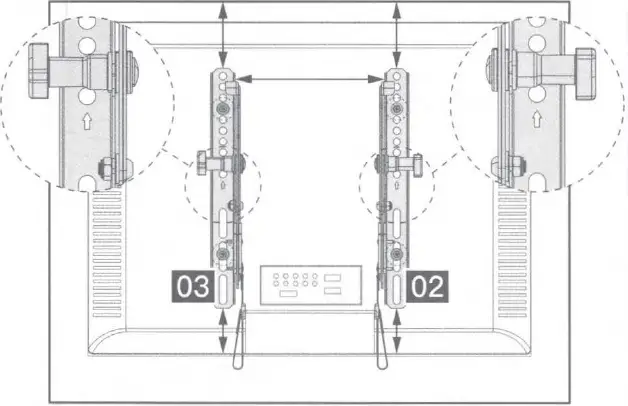

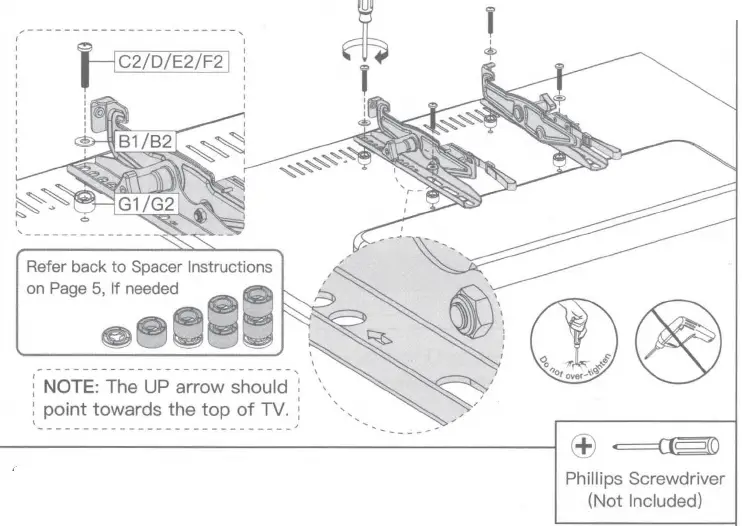

CAUTION: When attaching ‘ the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV , and are equally centered on the back of the TV.
PLEASE NOTE: The bolt hole locations on your TV may vary in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

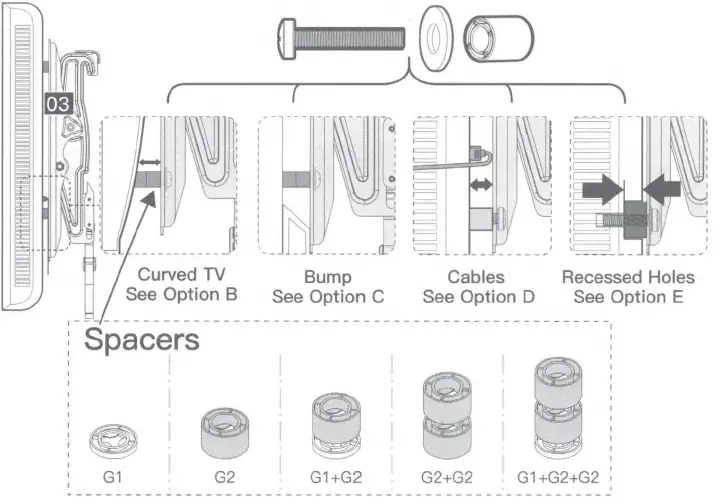

Option A (For Flat Back TV)
Option B (For Round Back TV)
Option C (For TV with A “Bump”)
Spacers must be tall enough so there is no gap between TV bracket and bump on the back of the TV.

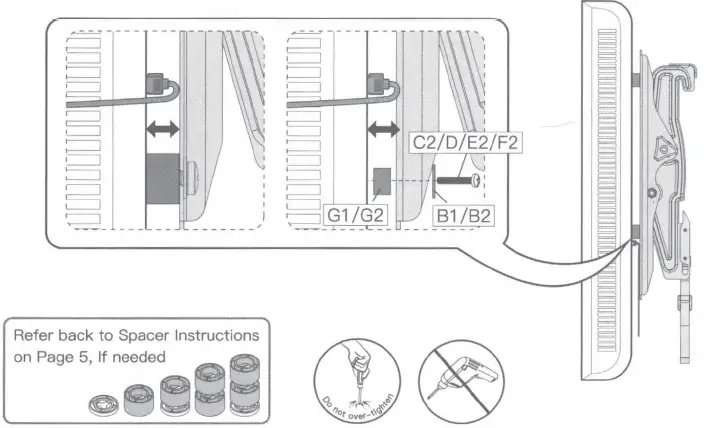

Option D (for TV with Cable Interference)
For cable interference, use spacers [ G 1 ] and [ G2] to create extra space between the TV and TV brackets.

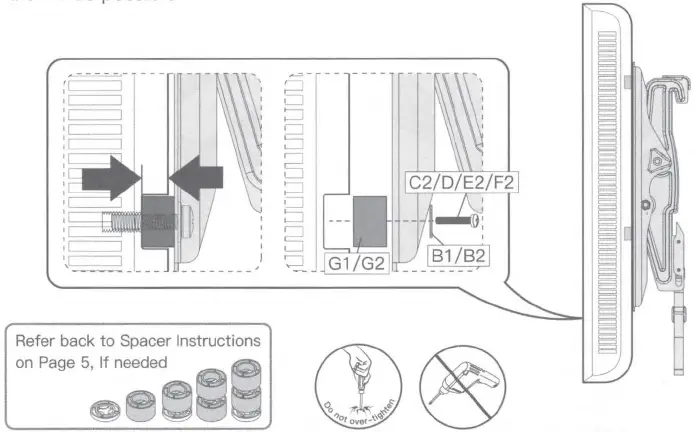

Option E (For Recessed Holes)
The spacer needs to fill in the recessed holes on the back of the TV so that the TV brackets are as close to the TV as possible.
Supplied Parts and Hardware for Step 2
Wall Plate DD x1
NOTE: The lag screw is shown in actual size !

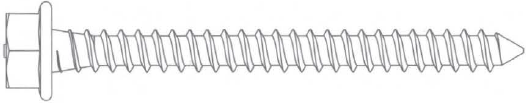

Lag Screw x3 5/16X23/4in

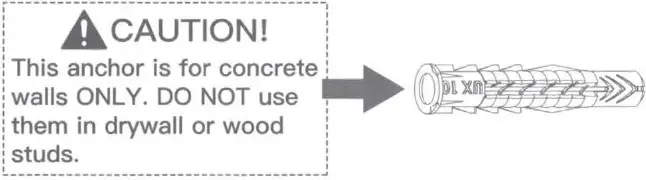

Wall Anchor 10X60mm
Step 2 Attach the Wall Plate [01] to the Wall
For wood stud installation, follow STEP 2A For concrete installation, follow STEP 28
Step 2A Wood Stud Option
WARNING:
Do not use a drill for tightening the lag screws! Only use a socket wrench. Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A 1]. Tighten the lag screws [A 1] only until they are pulled firmly against the wall plate [01 ].

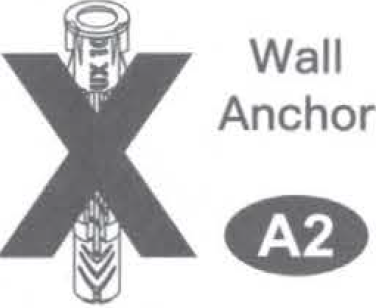

DO NOT USE ANCHOR [A2] FOR THIS STEP.
Ensure the wall plate is securely fastened to the wall before continuing to the next step.
- Nominal wood stud size: common 2 x 4 in (51 x 102 mm)
- Stud center must be verified.
Use a stud finder (not included) to locate wood studs or use an awl (not included) to verify the edges. Mark the edge and center locations.

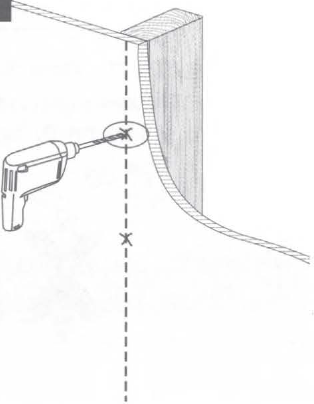

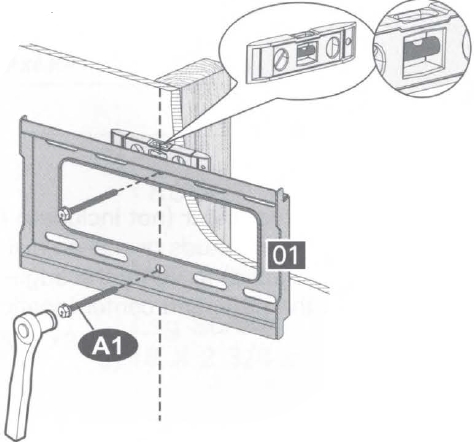

Position the wall plate [01] at your desired height and line up the holes with your stud center line. Level the wall plate [01] and mark the holes.

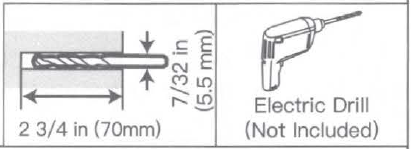

Drill pilot holes using a 7 /32 in (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/ 4 in (70mm).
NOTE: Do not use a drill to tighten the lag screws. Only use a socket wrench.

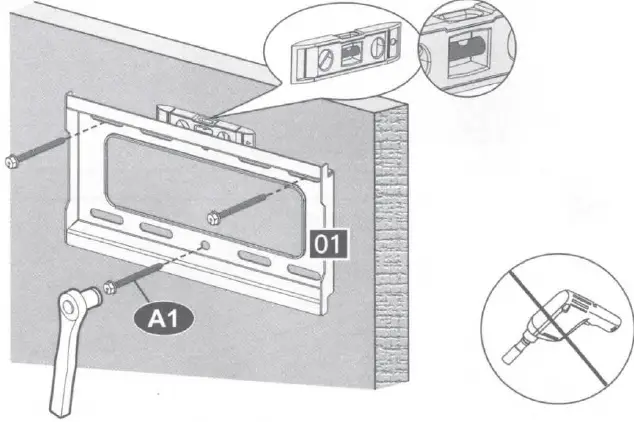

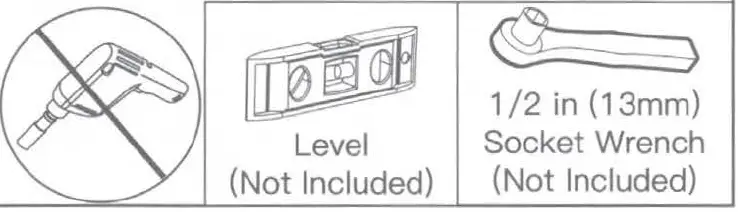

Install the wall plate using lag screws [A 1]. Tighten the lag screws [A 1] is pulled firmly against the wall plate. DO NOT over-tighten the lag screws [A 1].
Step 28 Solid Concrete Wall Option
WARNING:
Do not use a drill for tightening the lag screws! Only use a socket wrench.
- Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A 1]. Tighten the lag screws [A 1] is pulled firmly against the wall plate.
- Ensure the wall plate is securely fastened to the wall before continuing to the next step.
- Mount the wall plate directly onto the concrete surface without any covering.
- The thickness of the concrete wall must exceed 5.5 in (140 mm).

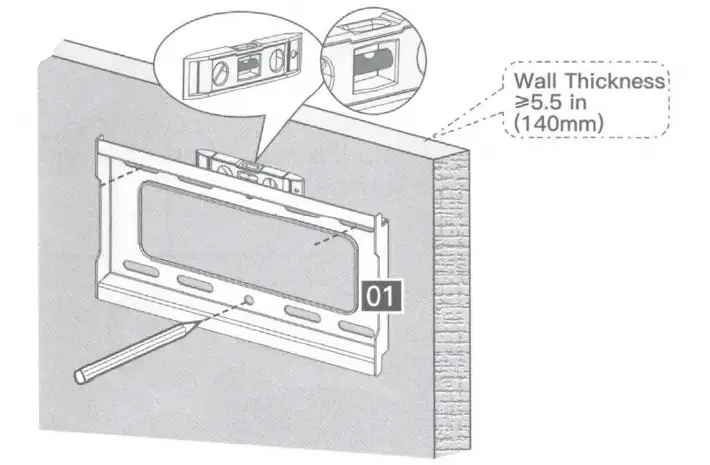

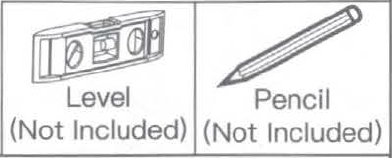

Position the wall plate [01] at your desired height. Level the wall plate [01] and mark the pilot hole locations.

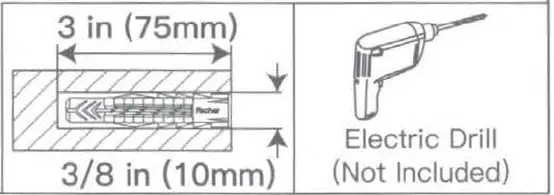

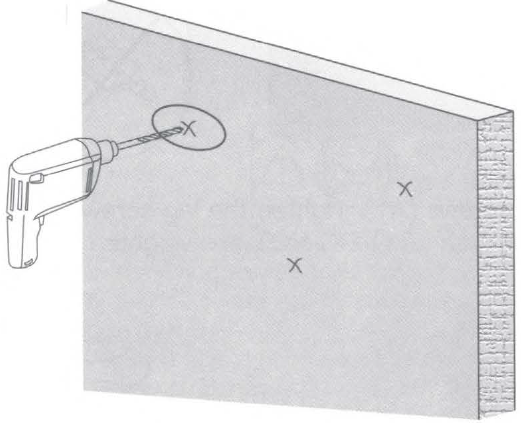

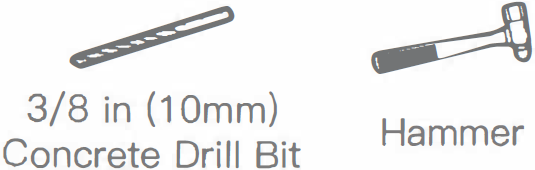

Drill 3 pilot holes using a 3/8 in (10mm) diameter drill bit. Make sure the depth is not less than 3 in (75mm).

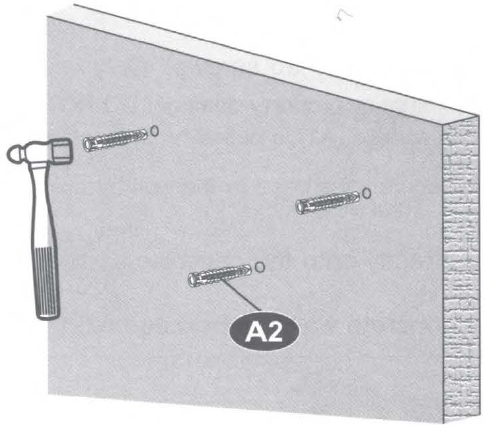

Use the hammer to knock anchors [A2] into the wall. Be sure the anchors [A2] are seated flush with the concrete surface.

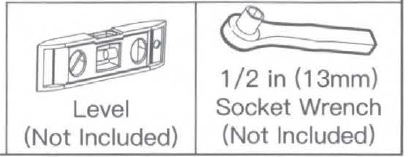

Install the wall plate [01] using lag screws [A 1]. Tighten the lag screws [A 1] is pulled firmly against the wall plate [01]. DO NOT over-tighten the lag screws [A 1 ].
NOTE: Do not use a drill to tighten the: : lag screws. Only use a socket wrench.
Step 3 Secure the TV onto the Wall Plate
To Hang TV onto the Wall Plate

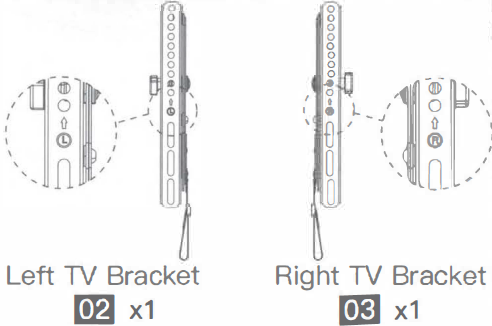

- Hang the TV with brackets [02] and [03] onto the wall plate.

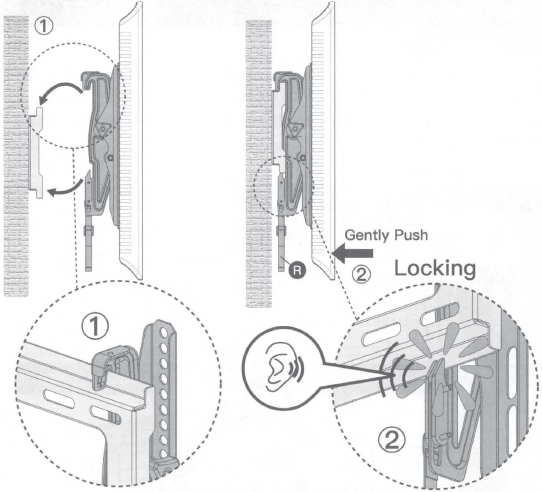

- Gently press the bottom of the TV towards the wall until you hear the safety locks “click” into place on both sides of the mount.
HEAVY! You may need assistance with this step.
CAUTION: to avoid potential injury and person property damage, two people should ‘: assist in removing the TV from the mount.
- Verify that all cables are disconnected from the back of the TV and the TV is unplugged from wall.
- While gently applying pressure to the front of the TV towards the wall, pull down on the safety straps until they are full disengaged.
- While keeping the straps in the disengaged position, move the bottom of the TV away from the wall and lift the TV off the wall plate.
Supplied Hardware for Step 4
Step 4 Adjustment
Tilt Adjustment
- Tilt the TV to your desired angle (if it is difficult to adjust the TV, you can slightly loosen the side tension knobs [K] by hand or using the allen key).
- Re-tighten the side tension knobs [K] to hold the TV in place and prevent unwanted movement.
CAUTION!
Please do not over-tighten i ; or over-loosen the knobs.
At ErgoAV, we strive to provide the highest valued products. We want to support your purchase. If you have questions, concerns, or feedback please let us know!
ErgoAV Customer Care
Phone (877) 41 9-7832 M-F 8am to 8pm CST
[email protected]
9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445
WWW.ERGOAV.COM
ErgoAV
