QUICK REFERENCE GUIDE > HP24ILTX1
Insert Range Hood, 24″
Series 5 | Integrated
Stainless Steel

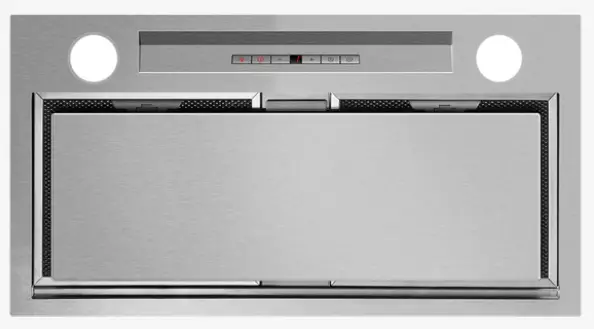

HP24ILTX1 Insert Range Hood, 24 Inch
With edge-to-edge extraction, this efficient, stylish range hood is perfectly hidden away in your cabinetry.
- With four fan speeds, select the perfect extraction rate for your cooking
- Perimeter extraction creates a stylish look with efficient removal of steam and odors
- Powerful 600CFM maximum airflow

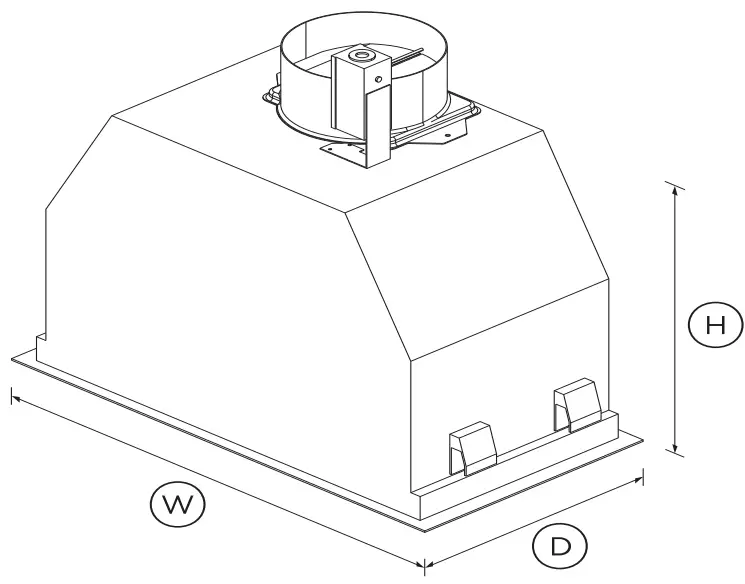

DIMENSIONS
| Height | 13 3/4″ |
| Width | 20 7/8″ |
| Depth | 11″ |
FEATURES & BENEFITS
QUIET AND EFFECTIVE
This vent hood features four fan speeds providing powerful extraction to quickly remove odours and steam. As odors can linger in the kitchen well after cooking is finished, the timer keeps the vent hood working for up to 15 minutes before automatically turning off.
SIMPLE CONTROLS
This Fisher & Paykel vent hood features a sleek and easy to use soft-touch control panel. Lights provide superb illumination over the entire cooking surface.
EASY CLEANING
The stainless steel finish is easily wiped clean. Multi-layered, dishwasher safe filters trap grease effectively and can easily be removed for cleaning.
COMPLEMENTARY DESIGN
This vent hood can be built into your cabinetry for a seamless look. Its stainless steel finish is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
| Light bulb | 791961 |
Fan ratings
| Maximum air movement | 600CFM |
| Maximum sound rating | 67dBA |
| Speed 3 sound rating | 63dBA |
Installation and cleaning
| Air outlet size | 6″ |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
Performance
| Extraction type | Perimeter |
| Fan speeds | 4 |
| Filter type | Mesh |
| Number of filters | 2 |
Power requirements
| Lighting power | 50W |
| Motor power | 530W |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Total Power | 630W |
Product dimensions
| Depth | 11″ |
| Height | 13 3/4″ |
| Width | 20 7/8″ |
Product information
| Control type | soft-touch button |
Ventilation features
| Light type | LED |
| Timer function | • |
Warranty
| Parts and labour | 2 years |
| SKU | 50085 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
