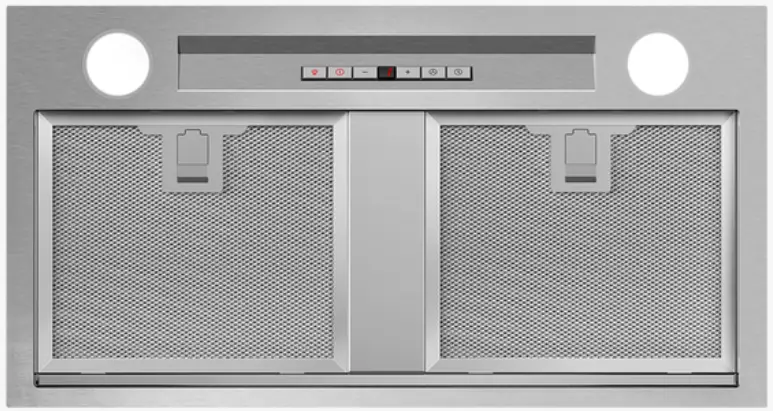

HP24ILTX2 24 Inch Insert Range Hood
User Guide
Series 5 | Integrated
Stainless Steel
With efficient extraction, this stylish range hood is perfectly hidden away in your cabinetry.
- With four fan speeds, select the perfect extraction rate for your cooking
- LED lighting beautifully illuminates your cooktop
- Powerful 600CFM maximum airflow
- Compliant with California Title 24 regulations
DIMENSIONS
| Height | 13 3/4″ |
| Width | 20 7/8″ |
| Depth | 11″ |
FEATURES & BENEFITS
Quiet and effective
<>
<<Missing Feature Title>>
This Fisher & Paykel vent hood features a sleek and easy-to-use soft-touch control panel. Lights provide superb illumination over the cooking surface.
Easy cleaning
The stainless steel finish is easily wiped clean. Multi-layered, dishwasher-safe filters trap grease effectively and can easily be removed for cleaning.
Complementary design
<>
SPECIFICATIONS
Accessories
| Aluminum filter | 792606 |
| Light bulb | 791961 |
| Recirculation carbon filter | 791772 |
| Installation and cleaning | |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 2 |
| Power requirements | |
| Lighting power | 5.5W |
| Lighting power zone 2 | 5.5W |
| Motor power | 530W |
| Supply frequency | 60Hz |
| Total Power | 630W |
| Product dimensions | |
| Depth | 11″ |
| Height | 13 3/4″ |
| Width | 20 7/8″ |
| Product information | |
| Control type | soft-touch button |
| Ventilation features | |
| Light type | LED |
| Timer function | • |
| SKU | 50173 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Service & Warranty |
| Installation Guide |
