RB12A3006

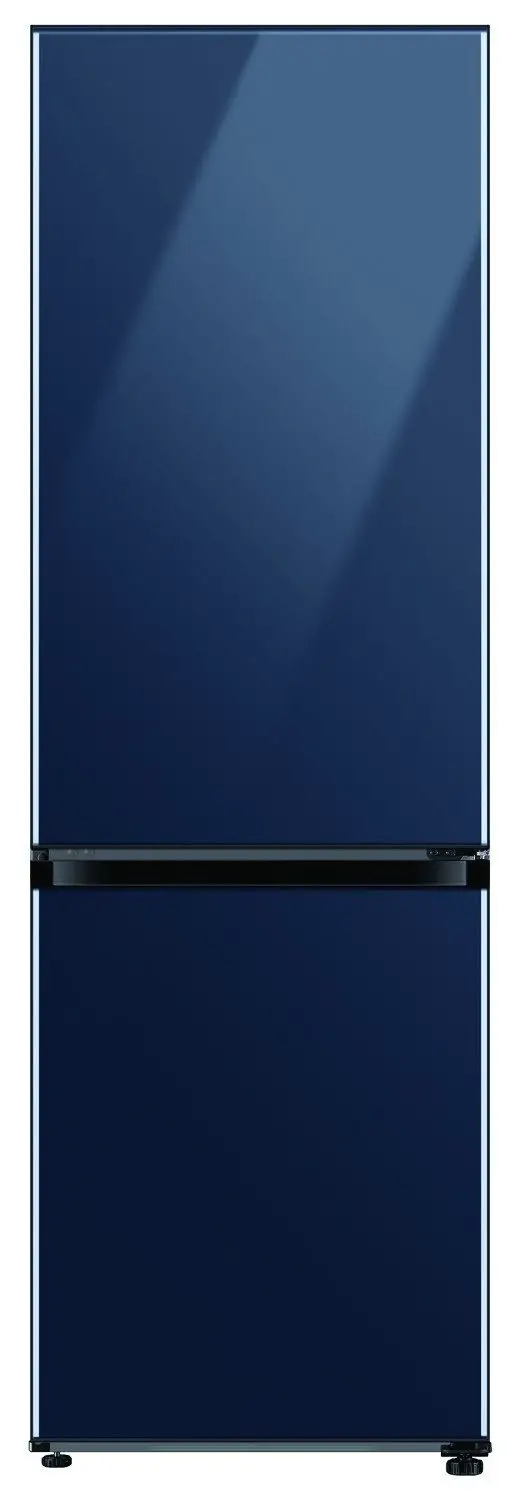

12 cu. ft. BESPOKE Bottom Freezer Refrigerator with Customizable Colors and Flexible Design
Signature Features
Color Customization
Customize the color of your refrigerator. Choose from three colors to create a space that fits your style.

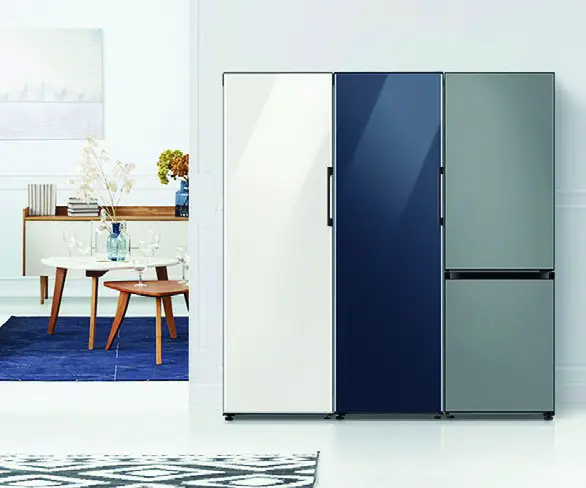

Modularization
Design your ideal refrigerator space – use it as a standalone or seamlessly combine it with another BESPOKE Bottom Freezer Refrigerator or Flex Column.

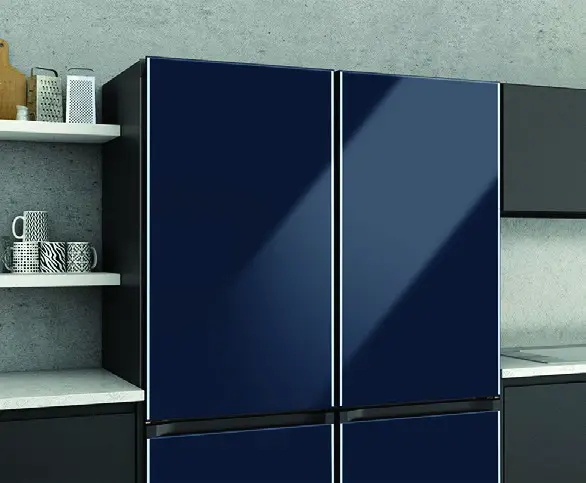

Slim, Modern Design
Elevate the look of your space with a slim, modern design.

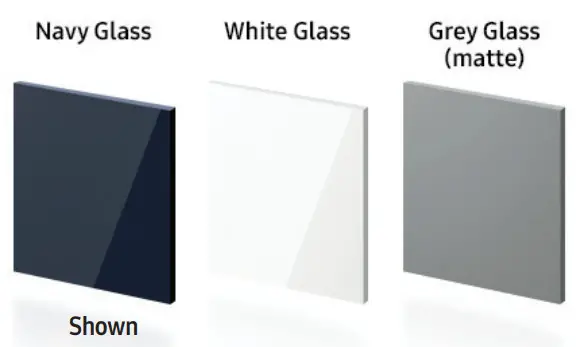

BESPOKE Panel Color Selection
Modularization
Slim, Modern Design
Design
- 24″ Width
- Recessed Handles
- High-Efficiency LED Lighting
- Full Open Box Freezer
- Easy-Slide Shelf
Performance
- All-Around Cooling
Rating
ENERGY STAR®Rated: 403 kWh/yr
Installation Specifications

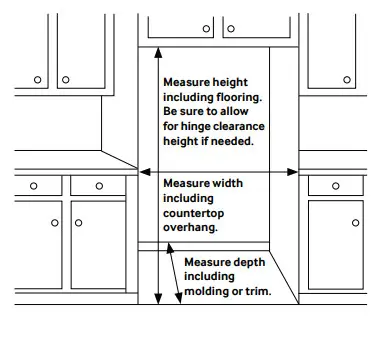

- Measure the height, width, and depth of the opening, making sure to include baseboards,
molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring). - Refer to the illustration below to determine dimensions.
- Allow 2.5″ of clearance on the hinge side of the refrigerator when installing next to a wall where the handle may make contact.
- Allow 1″ minimum clearance at rear for proper air circulation and water/electrical
connections. Allow a 3/8″ minimum clearance at sides and top for ease of installation. - Ensure each door and entryway in the home is wide enough for the refrigerator to be moved through easily.
For optimal usage and the ability to open refrigerator doors completely, do not install next to a wall.
Please note: The following dimension and cutout information is for planning purposes only.
For complete installation details, consult manual packed with product or download manual online at samsung.com.

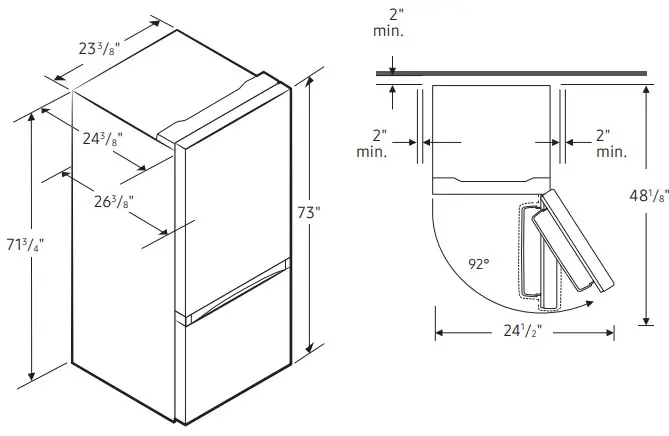

Dimensions
Total Capacity: 12.0 cu. ft.
Refrigerator: 8.2 cu. ft.
- 4 Tempered Glass Spill-Proof Shelves
- 1 Humidity-Controlled Crisper
- 4 Door Bins
– 1 Gallon Bin, 3 Regular Bins - High-Efficiency LED Lighting
Freezer: 3.8 cu. ft.
- 3 Drawers
- High-Efficiency LED Lighting
Warranty
One (1) Year Parts and Labor on Refrigerator
Five (5) Years Parts and Labor on
Sealed Refrigeration System Only*
Ten (10) Years Parts and Five (5) Years
Labor on Digital Inverter Compressor
*Compressor, evaporator, condenser, drier, and connecting tubing.
Product Dimensions & Weight
Dimensions (WxHxD with hinges and doors):
23 3/8″ x 73″ x 26 3/8″
Dimensions (WxHxD without hinges and door):
23 3/8″ x 71 3/4″ x 24 3/8″
Weight: 168 lbs
Shipping Dimensions & Weight (WxHxD)
Dimensions: 25 3/4″ x 76 5/8″ x 27 5/8″
Weight: 179 lbs
| Color | Model # | UPC Code |
| Navy Glass | RB12A300641 | 887276534930 |
| White Glass | RB12A300635 | 887276536873 |
| Grey Glass (matte) | RB12A300631 | 887276536972 |
Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
