Fulgor Milano Fclh 9008 Induction Hob 90 User Manual

Fulgor Milano Fclh 9008 Induction Hob 90 User Manual

FULGOR-MILANO-FCLH-9008-INDUCFULGOR MILANO FCLH 9008 INDUCTION HOB 90

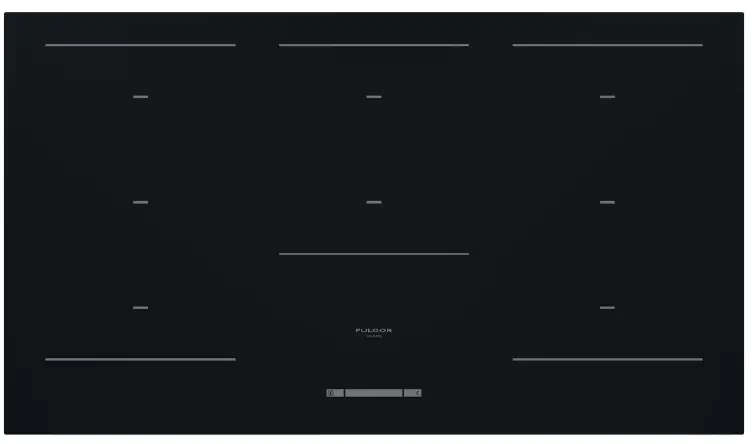

FULGOR-MILANO-FCLH-9008-INDUCTION-HOB-90-User-Manual-product

FCLH 9008 ID WT BKFULGOR-MILANO-FCLH-9008-INDUC

INDUCTION HOB
Cera Black ceramic surface

PERFORMANCE
Chef Function 8 cooking areas Flexi combination for extra-large pots Booster for rapid heating Automatic heating “Pause and Recall” function Keep warm function
End-of-cooking timer

FEATURES
3.5” central Wave-Touch display Direct interactivity Slider touch controls

SAFETY
Pans detection sensor Safety switch (accidental use prevention) Residual heat indicator Automatic shutdown with temperature sensor

INCLUDED ACCESSORIES
Scraper for surface cleaningFULGOR-MILANO-FCLH-9008-INDUC

FCLH 9008 ID WT BK
Type8 cooking zone
FinishingCeraBlack
INDUCTION PERFORMANCES
Octa Ø 290 / 180 DUAL1400 / 2100 ( x8 ) W
Zone flexi
Max absorbed power (W)11040 W
Preloaded temperatures 42 ° C Melting
70 ° C Slow cooking4000 W
90 ° C Simmer1750 W
INDUCTION COMMANDS
ProgrammingWave Touch
AUTO cooking
Timer
Residual Heat Indication ( H )
Warning indicator sound / Pan detector– / •
Lock safety key
Power levels n.9 + P
Visual digit display
HOOD FEATURES
Energy efficiency class
Levels of aspiration
Delayed auto shut-off
Grease filter saturation indicator
HP filter replacement light
Grease filters with oil / type collection
Dishwasher safe grease filters
Minimum Ø air discharge
Air flow non-return FLAP
HP filter for filter (optional)
AUTO opening (2 steps)
Commands
Extractive capacity up to m3 / h
Noise emissions (dBA)
Estimated annual consumption (kWH)
BRHM Motor (W)
ACCESSORIES
Scraper
Cord
DIMENSIONS
Width mm914
Height mm48
Depth mm522
Cut-out ( W x D ) mm902 x 500



Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
