Steelseries 38261521 Arctis Nova Pro Wireless Headphone User Manual

38261521 Arctis Nova Pro Wireless Headphone
User Manual

ARCTIS NOVA PRO WIRELESS
PRODUCT INFORMATION GUIDE

GENERAL

PACKAGE CONTENTS

• Arctis Nova Pro Wireless Headset
• Wireless Base Station
• Second Battery
• USB-C to USB-A Cable (×2)
• 3 .5 mm Audio Cable
• Microphone Pop Filter
• Product Information Guide

SYSTEM COMPATIBILITY

• Xbox Series X|S, Xbox One
• PC
• PlayStation 5, PlayStation 4
• Nintendo Switch (TV Mode)
• Mobile (with USB-C)
• Mac

SOFTWARE

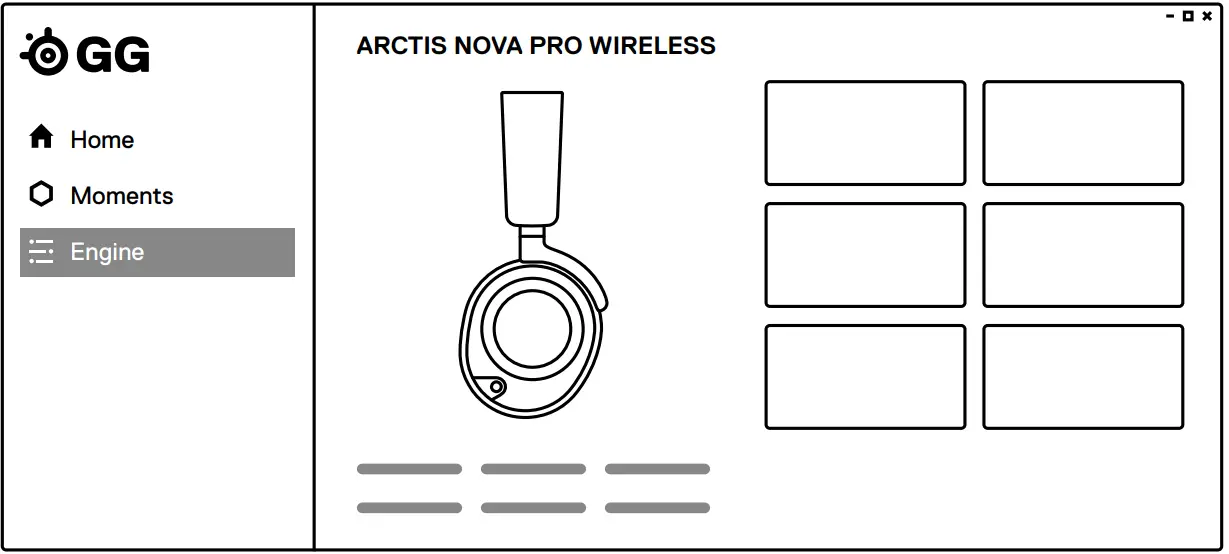

Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic.
GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools.
DOWNLOAD NOW steelseri.es/gg

PRODUCT OVERVIEW

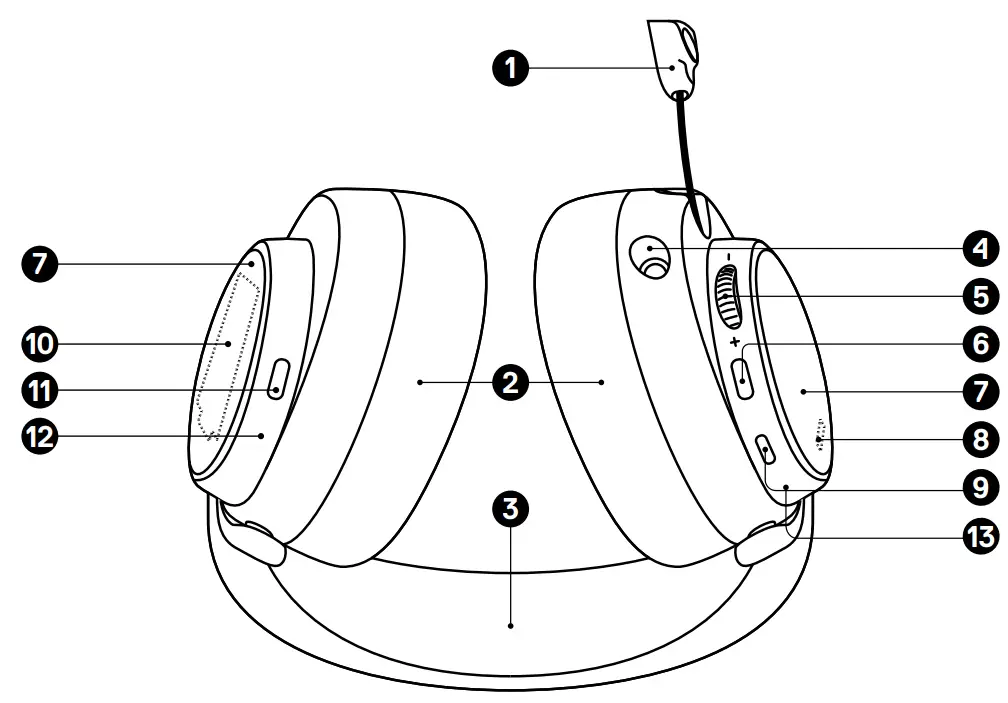

HEADSET

1. Retractable ClearCast Microphone
2. Premium Leatherette Ear Cushions*
3. Elastic Headband
4. 3 .5 mm Audio Jack
5. Volume/Control Wheel
6. Microphone Mute Button
7. Removable Speaker Plates*
8. Mobile Charging Jack (Below the Speaker Plate)
9. Power Button
10. Swappable Battery (Below the Speaker Plate)
11. Bluetooth Button
12. Bluetooth LED Indicator
13. Power LED Indicator
    *Find accessories and replacement parts at steelseries.com/gaming-accessories

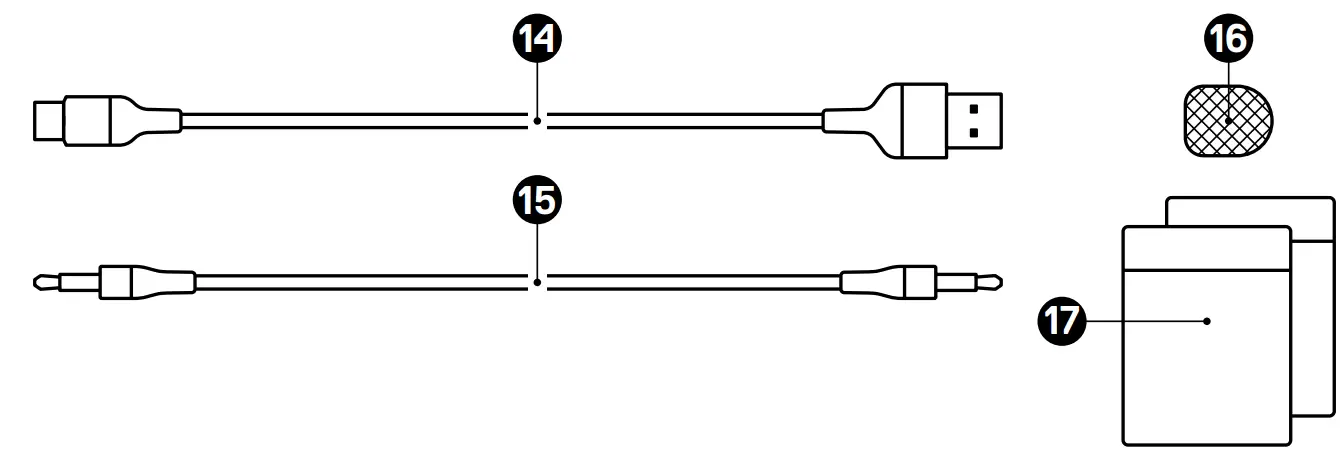

    ACCESSORIES*
14. USB-C to USB-A Cable (x2)
15. 4-Pole 3 .5 mm Audio Cable
16. Microphone Pop Filte
17. Lithium-Ion Battery (x2)

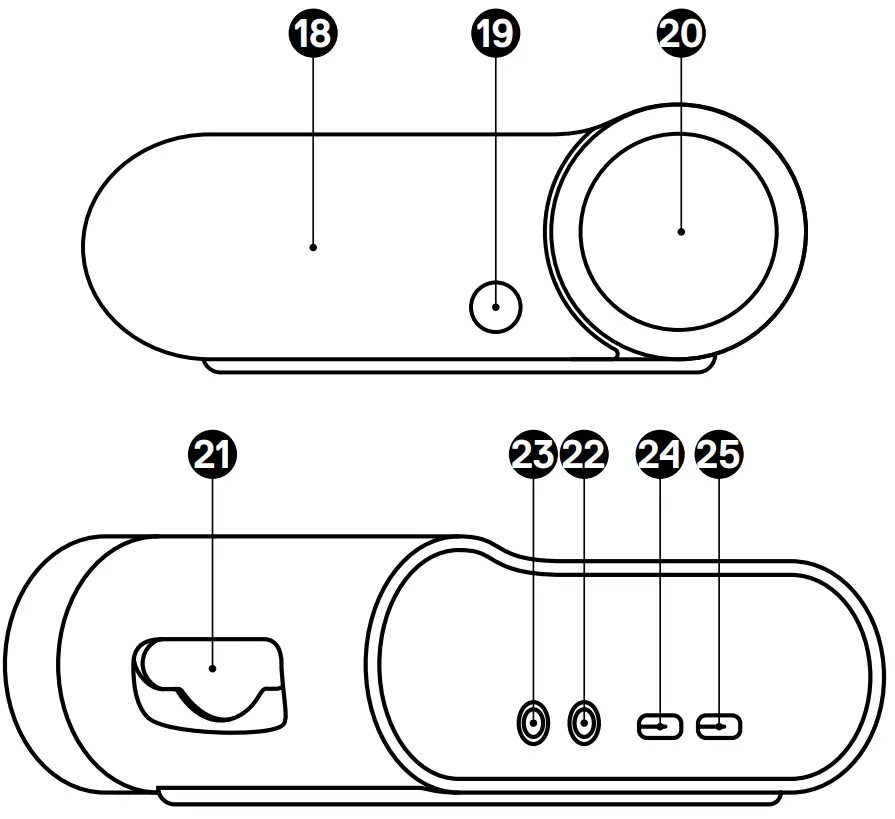

    WIRELESS BASE STATION
18. OLED Screen
19. Secondary Button
20. Control Wheel
21. Battery Charging Slot
22. Line-Out Jack
23. Line-In Jack
24. Xbox Jack
25. USB Jack


SETUP

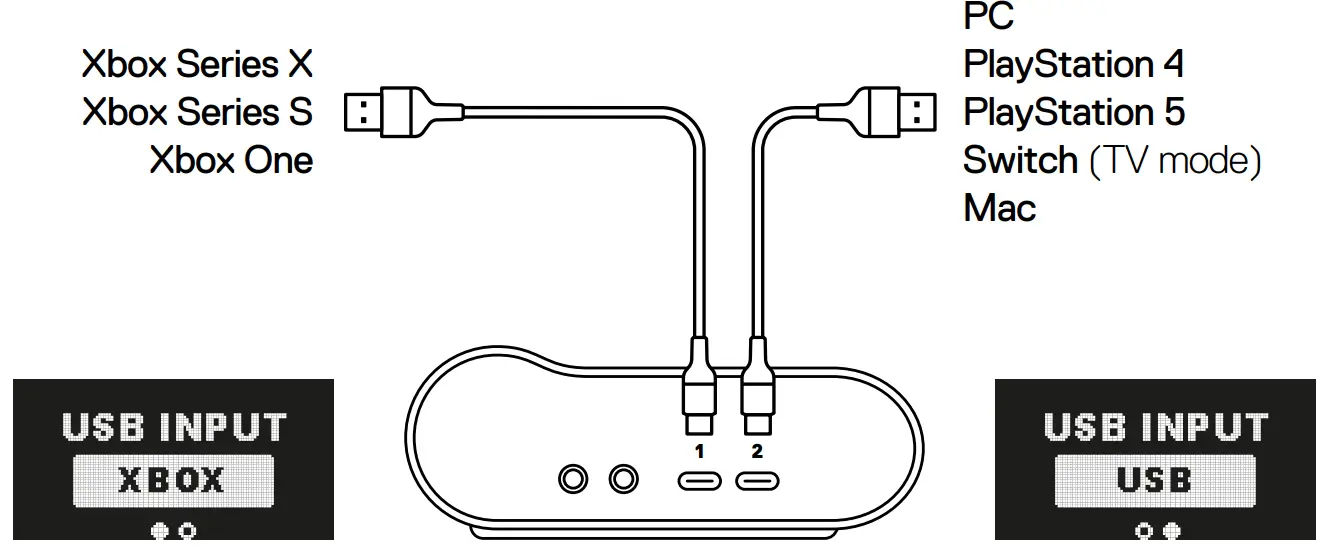

CONNECTIONS

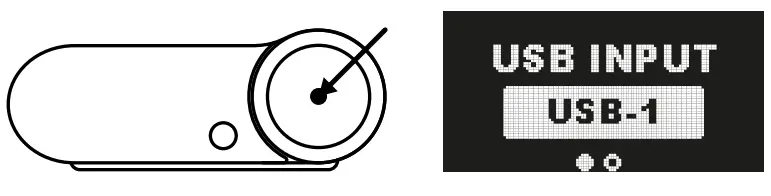

Plug one of the USB-C to USB-A cables (14) into the Xbox Jack (24), and connect the other end to your Xbox. Optionally connect the second USB-C to USB-A Cable (14) from the Base Station’s USB Jack (25) to a PC or console. Change input sources via the OLED Screen (18) menu.

CHARGING

BASE STATION CHARGING
To charge the second Lithium-Ion Battery (17) place it in the charging slot of the base station.
CHANGING BATTERIES

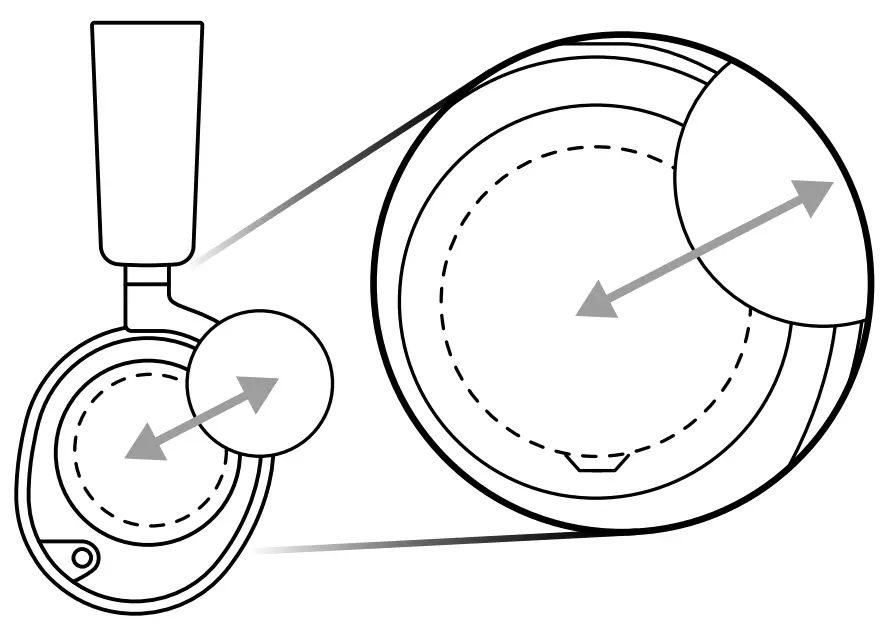

To change the battery, first, remove the right-side Removable Speaker Plate (7) by lifting it from the groove on the bottom. Then remove the Swappable Battery (10) by pushing downward and out to release.

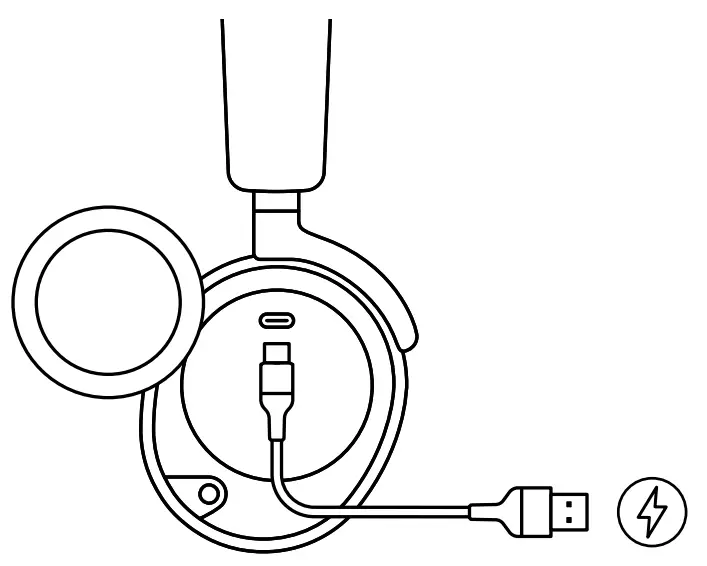

MOBILE CHARGING
The USB-C to USB-A Cable (14) can be used to charge the headset while on the go . Remove the left-side Removable Speaker Plate (7), and connect the cable from the Mobile Charging Jack (8) to a USB power source.

POWER ON/OFF

POWER

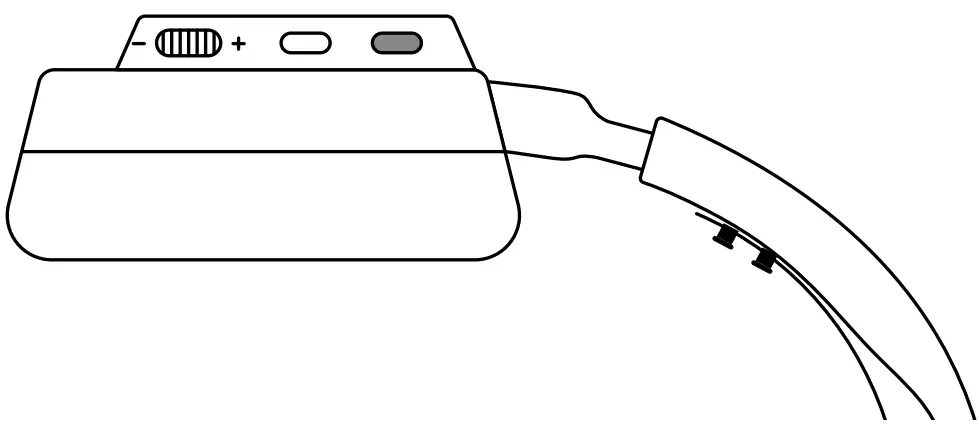

To power the headset on or off press and hold the Power Button (9) for 1 second.

PAIRING

The headset is already paired to the base station when it arrives. In the event you need to repair, open the base station menu, and navigate to the following:
Wireless 2 .4 G 2 .4 G Pairing
Next, while the headset is powered off, hold the power button for 6 seconds until you hear a beep, and the light on the headset is flashing rapidly.

BLUETOOTH

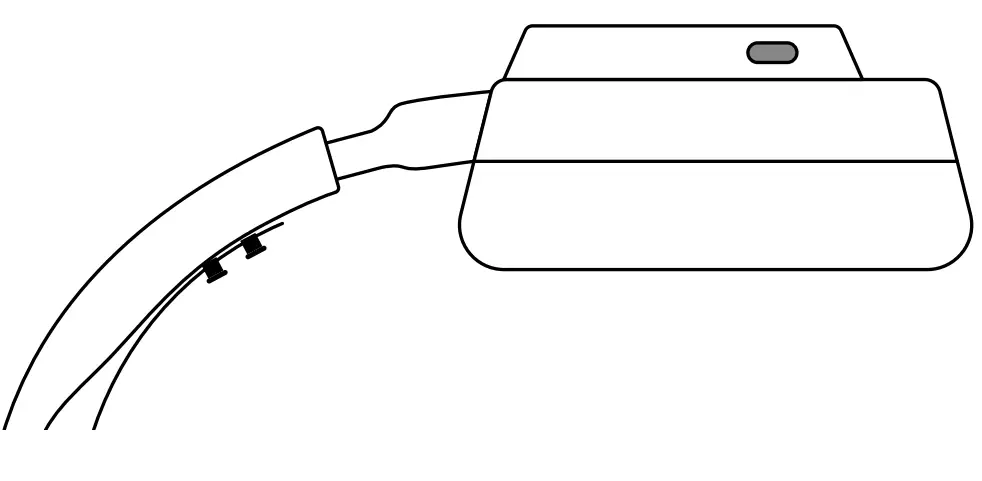

BLUETOOTH POWER Bluetooth can be powered on or off independently of the 2 .4 G wireless by pressing and holding the Bluetooth Button (11) for 1 second. PAIRING
With Bluetooth off, press and hold the Bluetooth Button (11) for 4 seconds.
CONTROL
Answer/End Voice Call Single press the Bluetooth Button (11)
Play/Pause Music Single press the Bluetooth Button (11)
Skip Track Double press the Bluetooth Button (11)
Previous Track Triple press the Bluetooth Button (11)

BASE STATION OPERATION

HOME SCREEN

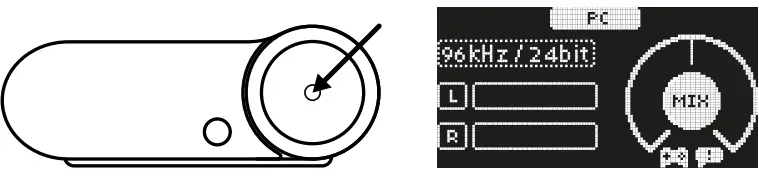

1. Press and release the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to toggle between Volume and ChatMix (PC only, requires software installation).

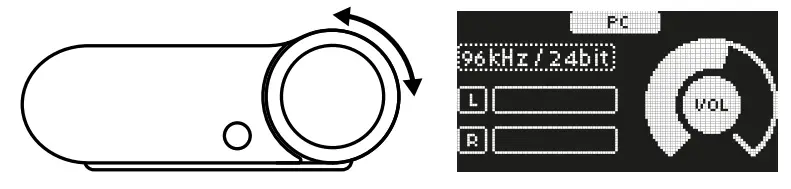

2. Rotate the Control Wheel (20) or the Headset’s Volume/ Control Wheel (5) to adjust the selected parameter.

3. Press and hold the control wheel or the Headset’s Volume/ Control Wheel (5) to bring up the main menu.


MAIN MENU

1. Rotate the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to cycle menu items.

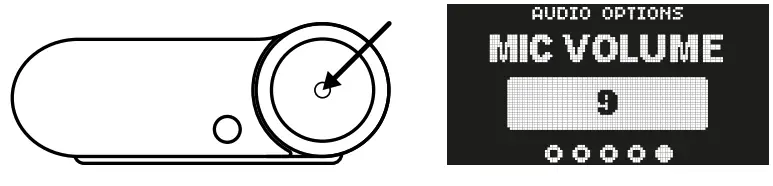

2. Press and release the Control Wheel (20) or the Headset’s Volume/Control Wheel (5) to select.

3. Press and release the Secondary Button (19) or the Headset’s Power Button (9) to move back into the menu.


AUDIO OPTIONS

SURROUND
Toggle Software Surround Sound On/Off (PC only, requires software install)

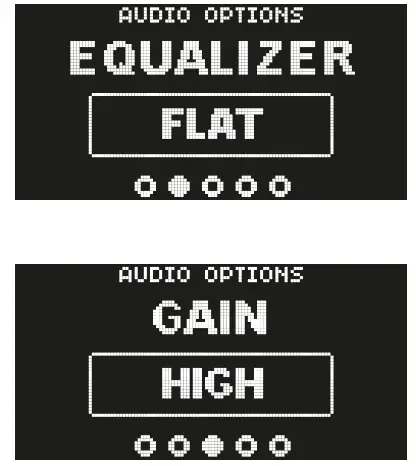

EQUALIZER
Customize your sound with included presets or fully adjustable 10-band EQ
GAIN
Changes the maximum output level of the GameDAC

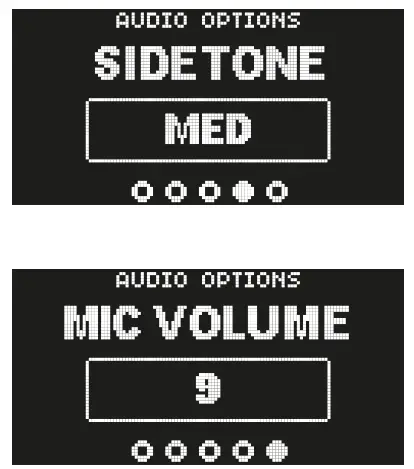

SIDETONE
Select the amount of your own voice you wish to hear in the headphones
MIC VOLUME
Optimize the level of the microphone for your system

AUDIO OUTPUT SETTINGS

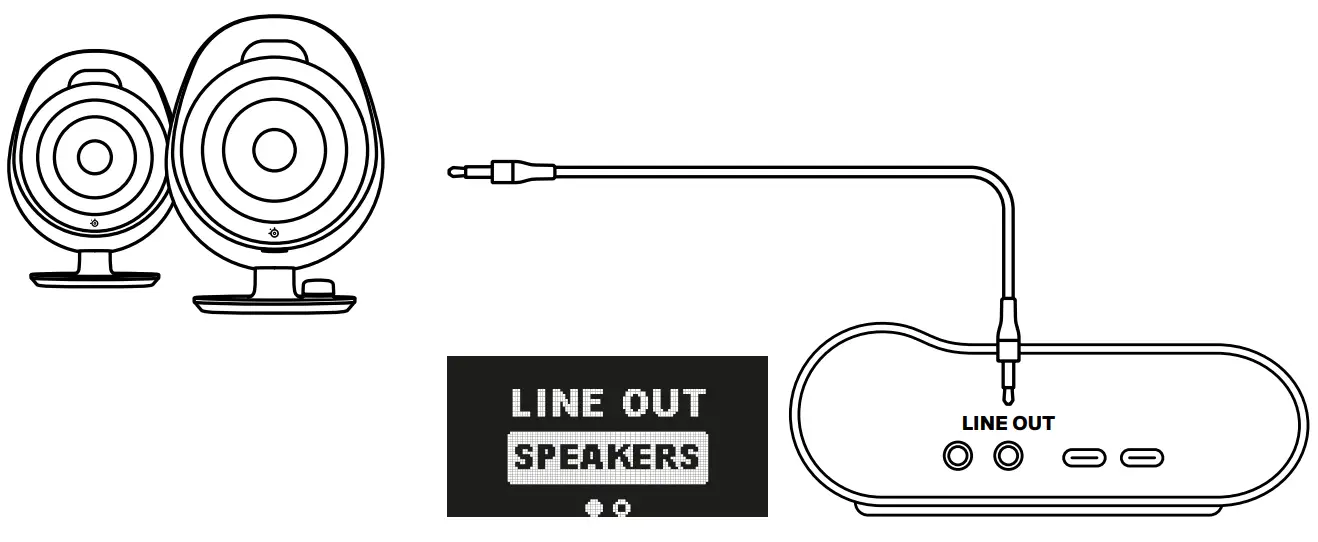

SPEAKERS
Play games and chat audio through a pair of external speakers.

1. Connect a 3 .5 mm cable (not included) from the Base Station’s Line-Out Jack (22) to your speakers .
2. In the OLED Screen (18) Menu set the Line Out option to `Speakers’ .

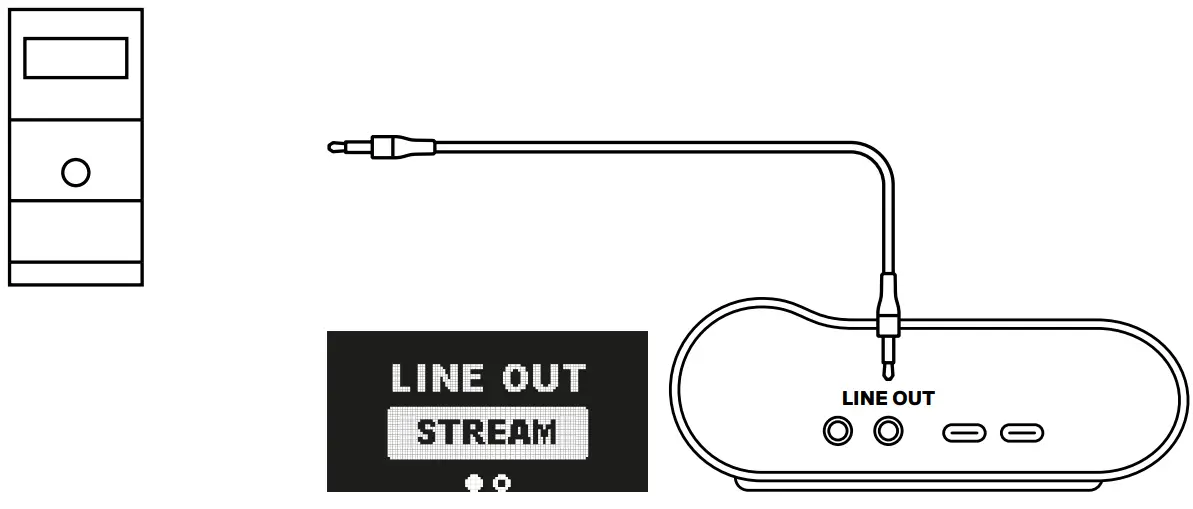

STREAM
Mix your Main, Aux, and Mic audio together to send to a PC for streaming.

1. Connect a 3 .5 mm cable (not included) from the Base Station’s Line-Out Jack (22) to your stream PC’s Soundcard input.
2. In the OLED Screen (18) Menu set the Line Out option to `Stream.
3. Adjust your custom mix via the Stream Mixer on the OLED Screen (18).


ACTIVE NOISE CANCELLATION

ANC

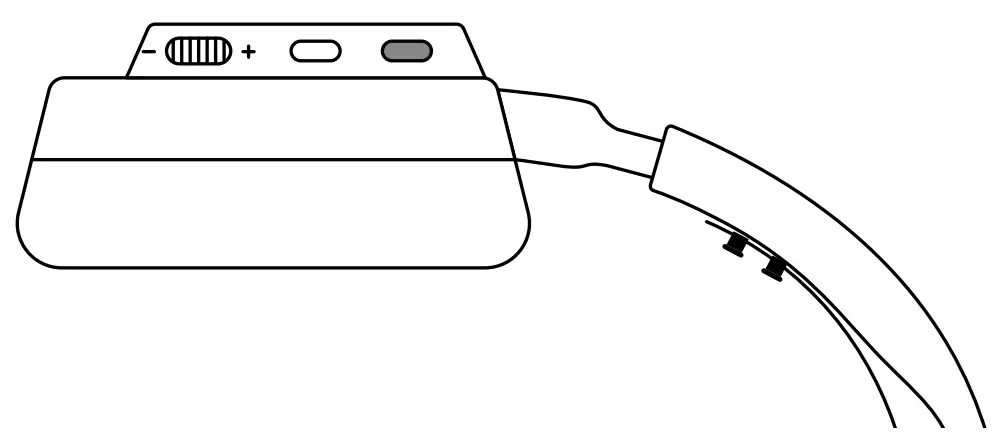

To toggle ANC on/off, single press the Headset’s Power Button (9) .
TRANSPARENCY
To enable transparency mode, double press the Headset’s Power Button (9) .

MICROPHONE

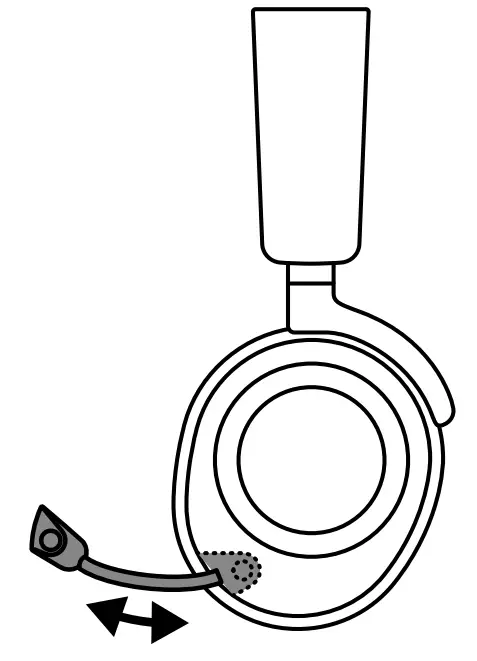

RETRACTABLE MICROPHONE
Out of the box, the Retractable ClearCast Microphone (1) is retracted. To use the microphone, slide it away from the headset until it reaches full extension.

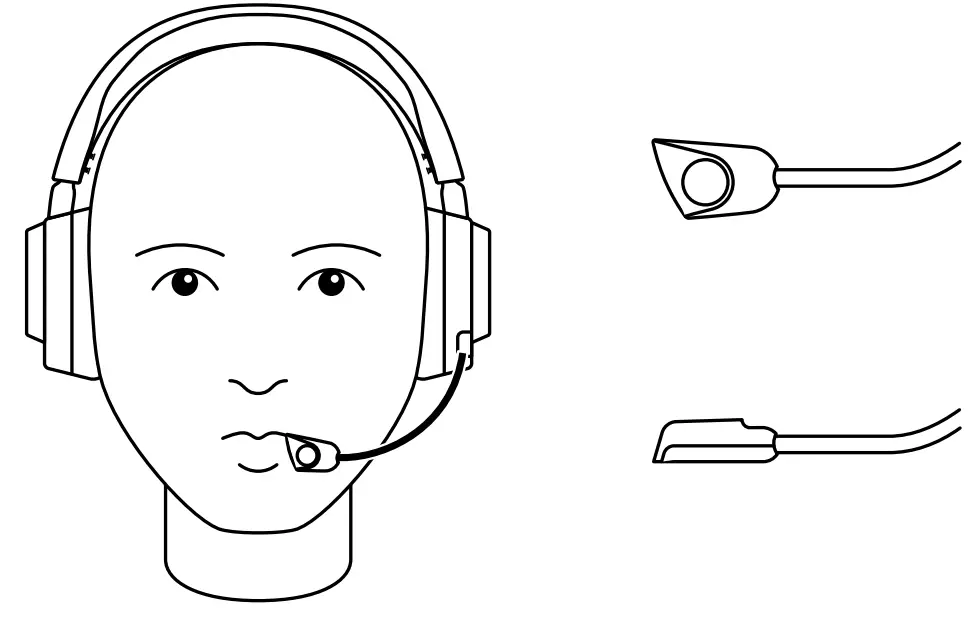

POSITIONING
Position the Retractable ClearCast Microphone (1) close to the corner of your mouth with the front surface facing you . Note: The microphone should not be used when retracted.

PERFECT FIT

EARCUP ADJUSTMENT
Slide the Earcups up or down to change the overall height.

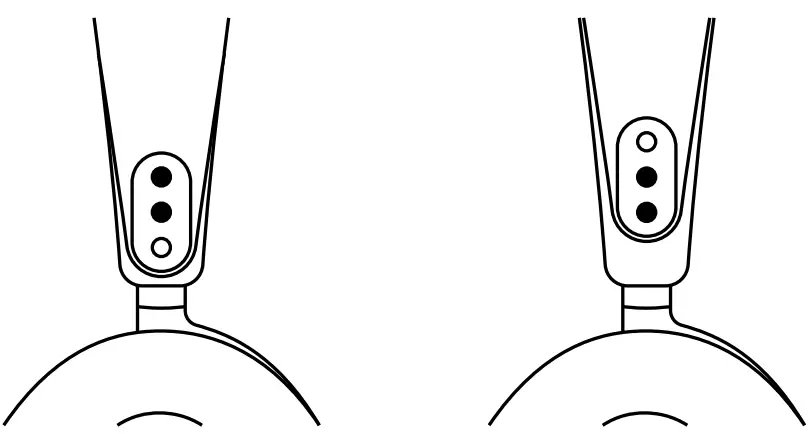

HEADBAND ADJUSTMENT
Change the position of the Elastic Headband (3) on one or both sides to achieve the desired tension and flex.

SPEAKER PLATES

The Removable Speaker Plates (7) are attached with magnets. To remove for replacement, place your fingernail in the groove at the bottom of the plate and gently lift.

REGULATORY

Europe ­ EU Declaration of Conformity
Hereby, SteelSeries ApS. declares that the equipment is in compliance with directive RoHS 2 .0 (2015/863/EU), R .E .D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/ EU) which are issued by the Commission of the European Community.
The full text of the EU declaration of conformity is available at the following internet address: https://steelseries.com/
SteelSeries ApS. hereby confirms, to date, based on the feedback from our suppliers indicates that the shipping of our products to the EU territory complies with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006) compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.
Frequency bands and Powers (Headset and Transceiver)
a . Frequency band(s) in which the radio equipment operates: 2 .400 – 2 .4835 GHz
b . Maximum radio-frequency power transmitted in the frequency band(s) in which the radio equipment operates:
· EIRP: GFSK: 3 .71 dBm (Headset/BLE)
· EIRP: GFSK: 3 .92 dBm (Headset/BT)
· EIRP: GFSK: 4 .37 dBm (Headset/SRD)
· EIRP: GFSK: 7 .51 dBm (Transceiver-XBOX Version/SRD)
c . Firmware Version: P1 .17 .00
UK Declaration of Conformity
Hereby, SteelSeries ApS. declares that the following equipment is in compliance with Electromagnetic Compatibility Regulations 2016, Electrical Equipment (Safety) Regulations 2016, Radio Equipment Regulations 2017, and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 issued by the Department for Business, Energy& Industrial Strategy. The full text of the UK declaration of conformity is available at the following internet address: www.steelseries.com
WEEK
This product must not be disposed of with your other household waste or treated in compliance with local regulations contact your local city office, your household waste disposal service, or the shop where you purchased the product. Turkey RoHS Compliance Republic of Turkey: In conformity with the EEE Regulation Türkiye Cumhuriyeti: EEE Yönetmeliine Uygundur
Safety Guideline for Lithium Battery This battery must not be disposed of with your other household waste or treated in compliance with the local regulations contact your local city office, your household waste disposal service or the shop where you purchased the product.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected .
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirements, the device can be used in portable exposure conditions without restriction. FCC ID: ZHK-HS25 (Wireless Headset) FCC ID: ZHK-HS25TXX(Transceiver)
Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device

Custom Union Compliance. (Russia / Belarus / Kazakhstan / Armenia / Kyrgyzstan)
ACMA Compliance (Australia/ New Zealand)
Complies with IMDA Standards DA 106032
Singapore approval (IMDA)
Direct Current

Malaysia Approval (SIRIM)

More information and support from SteelSeries.com
Product Name: Wireless Headset
Model No. : HS25 (HS-25)
Rated :5V 500mA
Accessories information
Product Name: Transceiver
Model No: HS25TXX
Rated : 5V 500mA
Made in China
Operating Temperature: 0 to + 40 °C : 0 – 40 learn more at steelseries.com
