IN DESK TOP ACCESS & HOUSING
CONFERENCE MID
User Guide

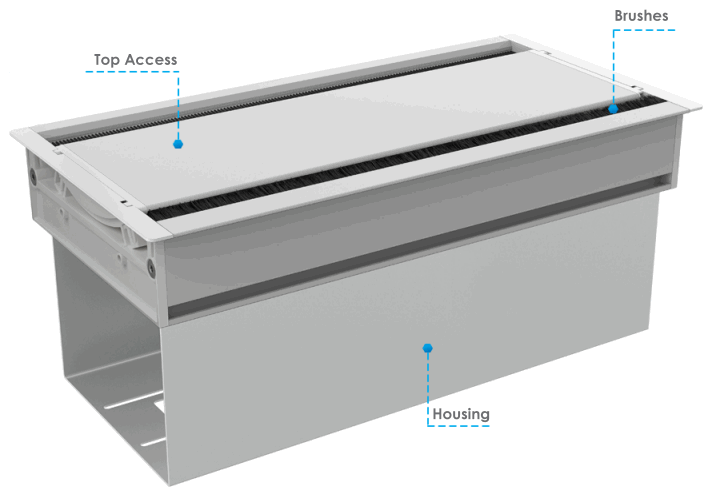

Conference Black Top Access and Housing

Conference Top Access & Housing is a perfect solution for boardrooms and meeting tables when you need to access power and media from both sides. Conference’s low profile design allows the lid to close while devices are connected. The brushing system allows the cables to run out smoothly at the same time preventing dust ingress.

FEATURES

• The accompanying under desk power module, Link, complies with BS5733
• Top Access is available in Silver, Black and White
• Ills available in three dimensions – MIN, MID and MAX depending on the configuration
• All UK sockets feature integral, spare fuses. Choice of 3.15A or 56 fuses are available to comply with BS 6396

Before making a cut-out, please contact your supplier to provide you with technical drawing stating the suitable table cut-out dimensions. Ensure that there is a sufficient clearance, 150mm below surface and 30 mm between the cut-out edge and the edge of the work surface.

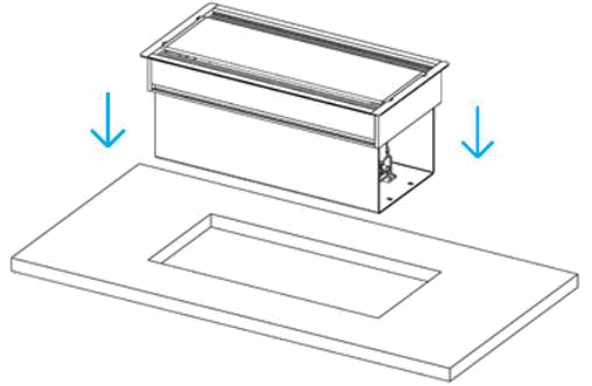

1. Place the Conference into the table cut-out.

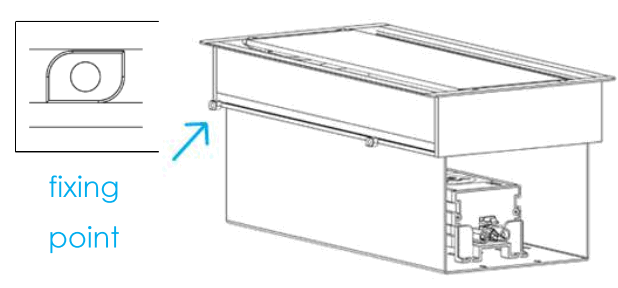

2. Place the fixing point into the sliding cannal.

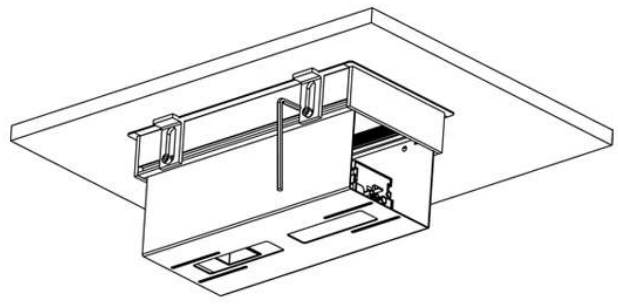

3. Place the L tighteners onto the fixing points.
4. Tighten the screws using Allen key.

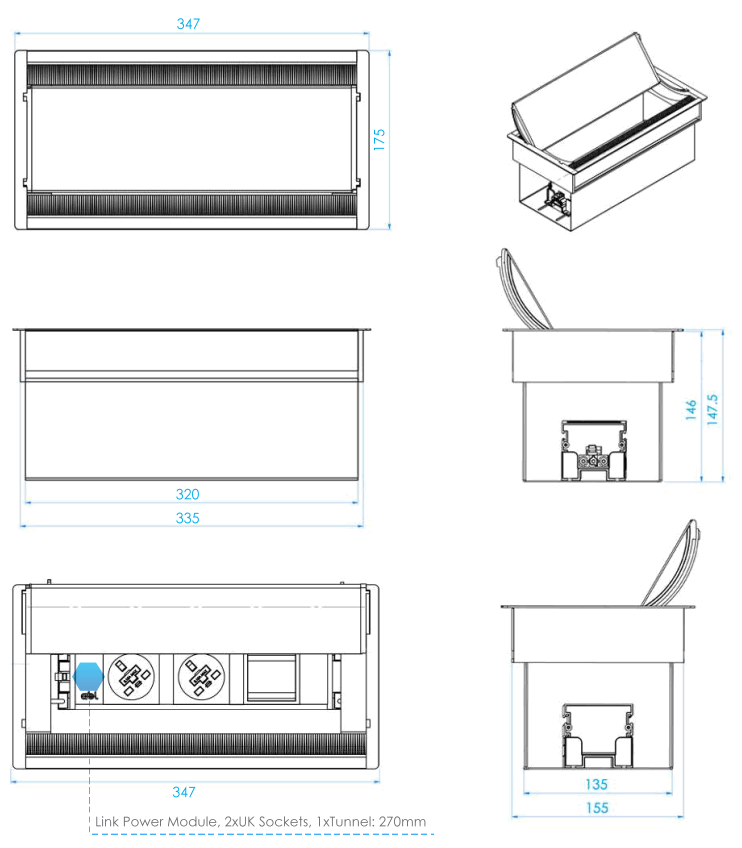

DIMENSIONS

Conference MID with the Link under desk power module inside. Available for up to four sockets or tunnels.

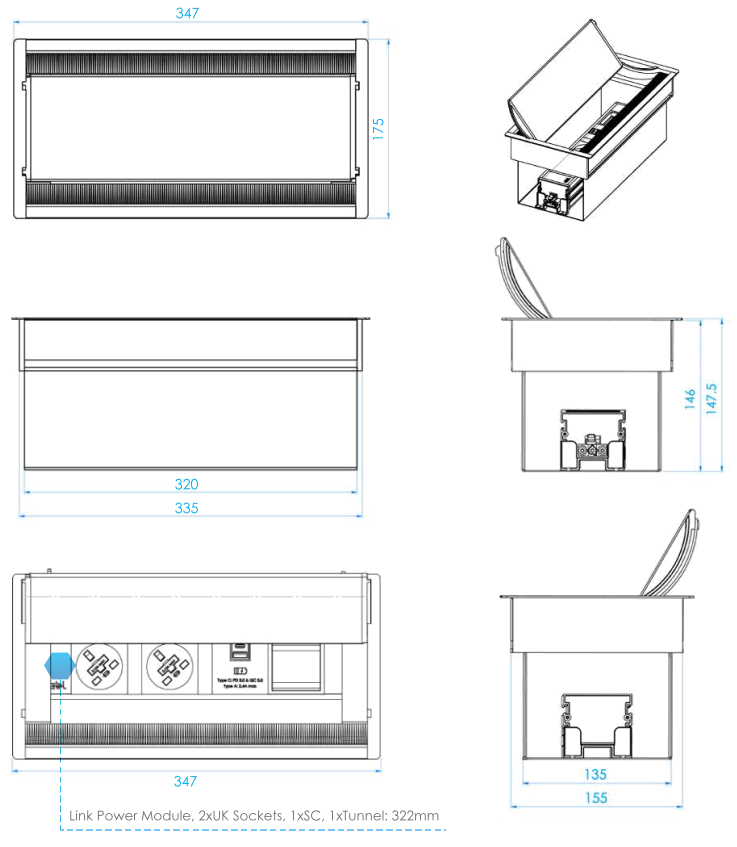

DIMENSIONS
Conference MD with the Link under desk power module inside. Available for up to four sockets or tunnels.
