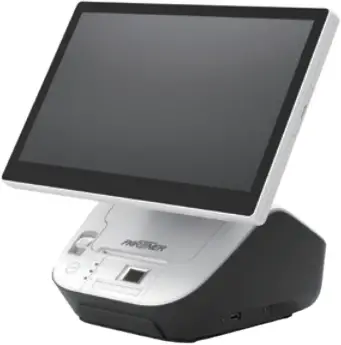

C14-1E
Quick Start Guide

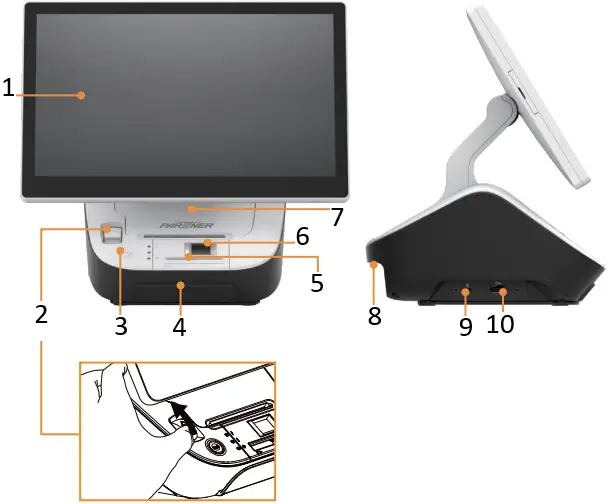

Identifying Components
- 14.1” Touch Panel
- Printer Door Release Button
- Feed Button
- MSR (optional)
- IC Card Reader (optional)
- Fingerprint (optional)
- Printer Door
- Power Switch*
- Kensington lock
- USB
- USB
- RFID (optional)
- LINE OUT
- DC-in Jack
- Cash Drawer
- LAN
- HDMI
- COM
Specification
| Item | C14-1E |
| Display | 14.1”, Resolution 1366 x 768 |
| Touch | PCAP touch |
| CPU | Intel® Celeron® Processor J6412 (Elkhart Lake) |
| Memory | DDR4 4GB , 8GB ,16GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G |
| External I/O Interface | 4 x USB 3.2 + 2 x USB 2.0 4 x Serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4) 1 x LAN, (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) 1 x RJ11 port supports 2 cash drawers with 24V / 12V by jumper setting 1 x Audio (1 x line out) 1 x HDMI 2.1 1 x DC +24V input N/A |
| Speaker | 1 x Speaker 3W |
| Printer | 3″ Thermal printer |
| Optional Peripheral | MSR (Beep), IC Card Reader, Fingerprint, RFID 2D Bar Code Scanner 5M Camera CD-101C |
| Display Support | 3 Independent Displays (Main Display + HDMI + CD-101C) |
| Spill & Dust resistant | N/A |
| Operation System | 1. Windows 11 IoT Enterprise AC (64bit) 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version 3. Linux (Ubuntu 22.04) |
| TPM | H/W TPM 2.0 |
| Power Adaptor | AC-In 100~240V / DC-Out 24V,72W |
| Reliability | System Operating Temperature:0~40°C System Humidity: 15% ~ 80% Storage Temperature: -20~60°C |
| Dimensions | 340.64 (W) x 315.19 (H) x 247.13 (D) mm |
| Weight | 4.0 Kgs |
| POS Terminal Model ：C14-1E | ||||||
| Part name | Lead(Pb) and its compounds | Mercury(Hg) and its compounds | Cadmium(Cd) and its compounds | Hexavalent chromium (Cr6+) and its compounds | Polybrominated biphenyls (PBB) | Polybrominated diphenyl ethers (PBDE) |
| Plastic Shell | Ο | Ο | Ο | Ο | Ο | Ο |
| Speaker | Ο | Ο | Ο | Ο | Ο | Ο |
| LCD Panel | Ο | Ο | Ο | Ο | Ο | Ο |
| Circuit board | Ο | Ο | Ο | Ο | Ο | Ο |
| Power Cable | Ο | Ο | Ο | Ο | Ο | Ο |
| Other Wire | Ο | Ο | Ο | Ο | Ο | Ο |
| This table is prepared in accordance with the provisions of SJ/T 11364. Ο: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572. X : Indicates that said hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572. | ||||||
CE RF Feature
| RF Spec. | NFC |
| Frequency Range | 13.56MHz |
| Max. Output Power (dBm) | NA |
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING
The system uses a 3V CR2032 battery mounted on the mainboard to keep time. There is a risk of explosion if the wrong battery type is used when replacing. Dispose of used batteries according to local ordinance regulations.
WARNING
This is Class A Product. In domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
Safety information
Before installing and using the machine, take note of the following precautions:
- Do not place the unit on an unstable surface, cart, or stand.
- Do not block the slots and opening on the unit, which are provided for ventilation.
- Only use the power source indicated on the marking label. If you are not sure, contact your dealer or the Power Company.
- When replacing parts, ensure that your service technician uses parts specified by the manufacturer.
- Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
