Quick Start Guide

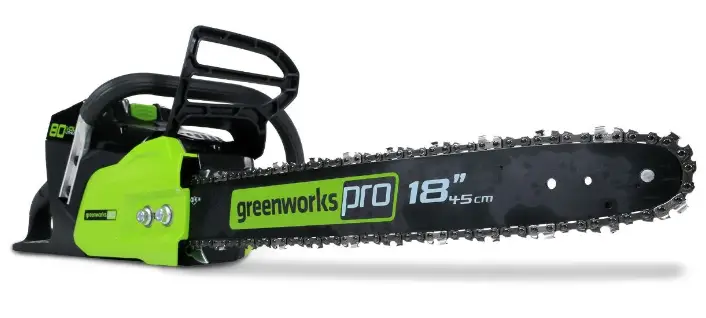

80V CHAINSAW
Depending on the model purchased, packaging will contain different accessories and parts.
Refer to the package for more details.

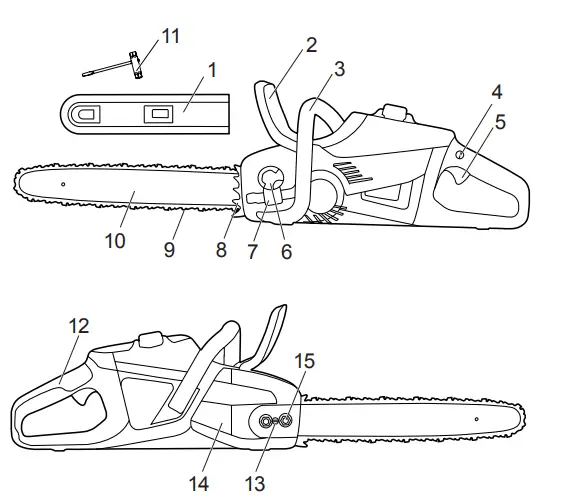

KNOW YOUR MACHINE
| 1. Scabbard 2. Chain brake 3. Front handle 4. Lock out button 5. Trigger 6. Oil cap 7. Oil window 8. Bucking spikes | 9. Chain 10. Guide bar 11. Wrench 12. Rear handle 13. Chain tension screw 14. Chain cover 15. Chain cover nuts |
- INSTALLATION

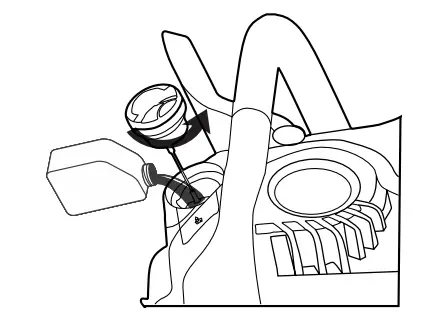

Add oil

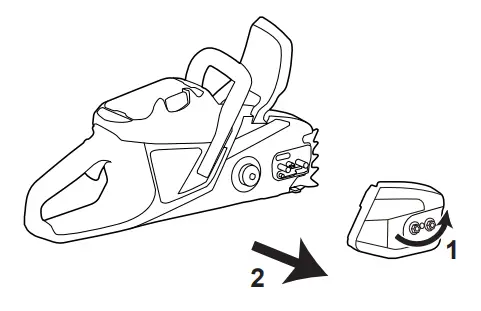

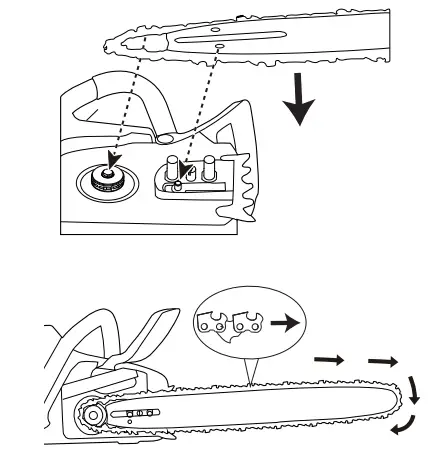

- Assemble the bar and chain

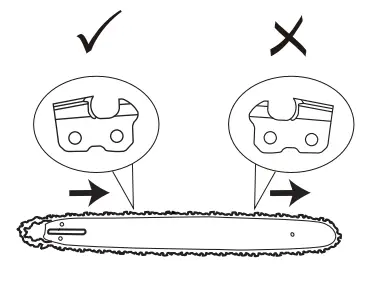

Ensure the chain is put on in the correct direction, do not assemble with the cutters backwards.

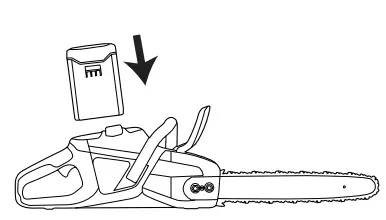

- Install the battery pack
OPERATION

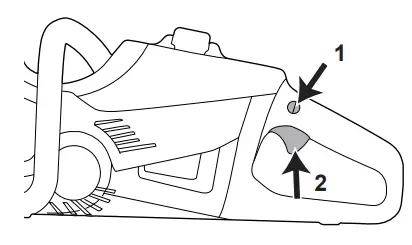

Start the machine

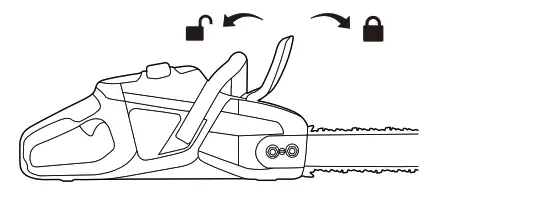

Operate the chain brake

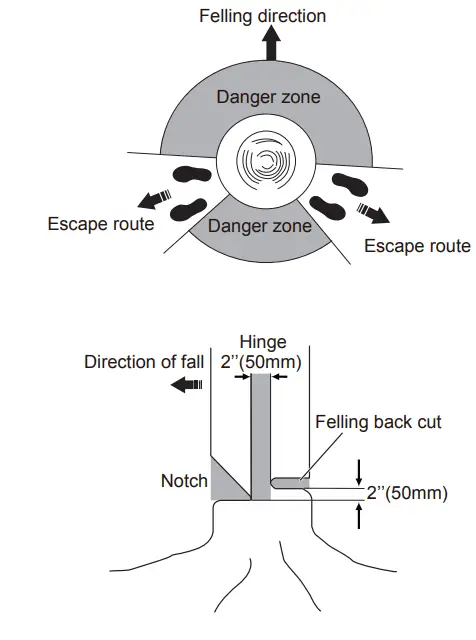

7 Fell a tree

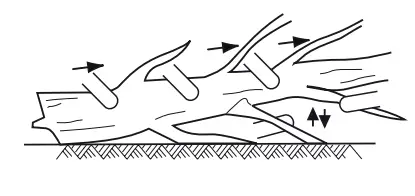

8 Limb a tree

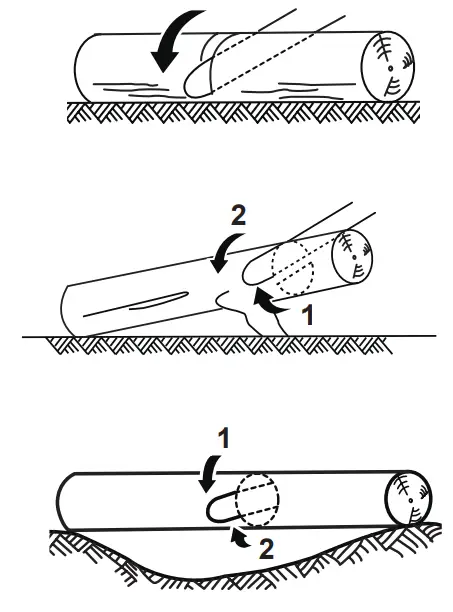

9 Buck a log
10

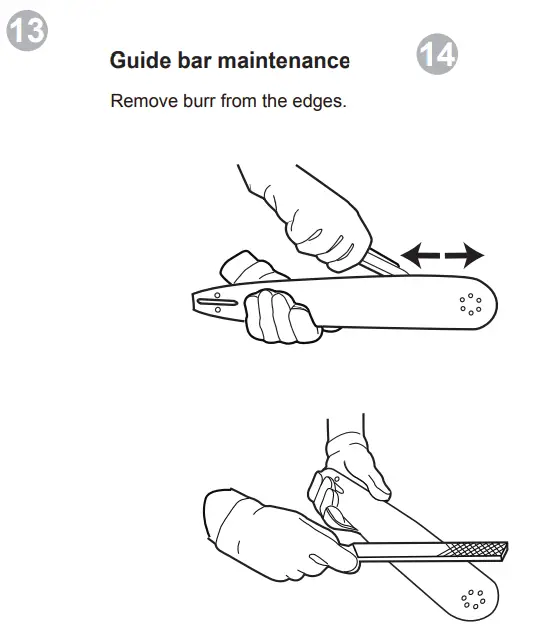

MAINTENANCE

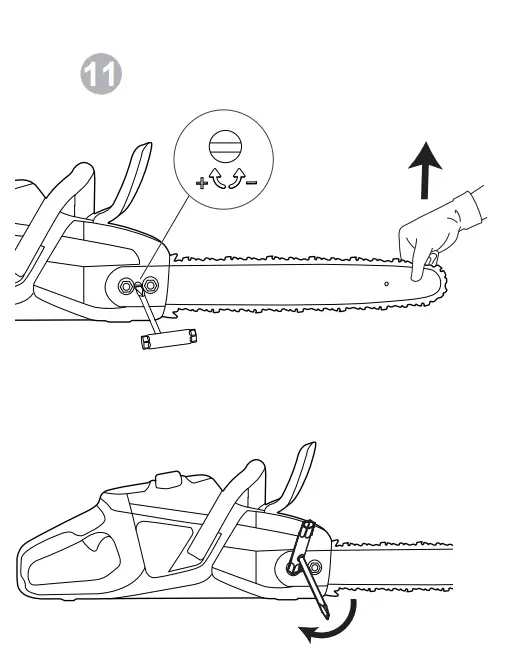

Adjust the chain tension

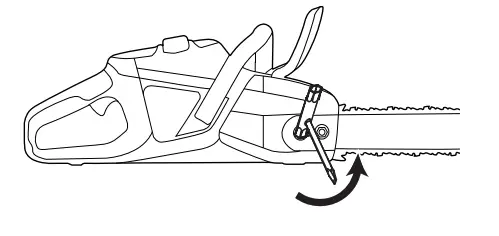

Loosen the chain cover nuts slightly.
 |  |  |
