CS60L02
CS60L252

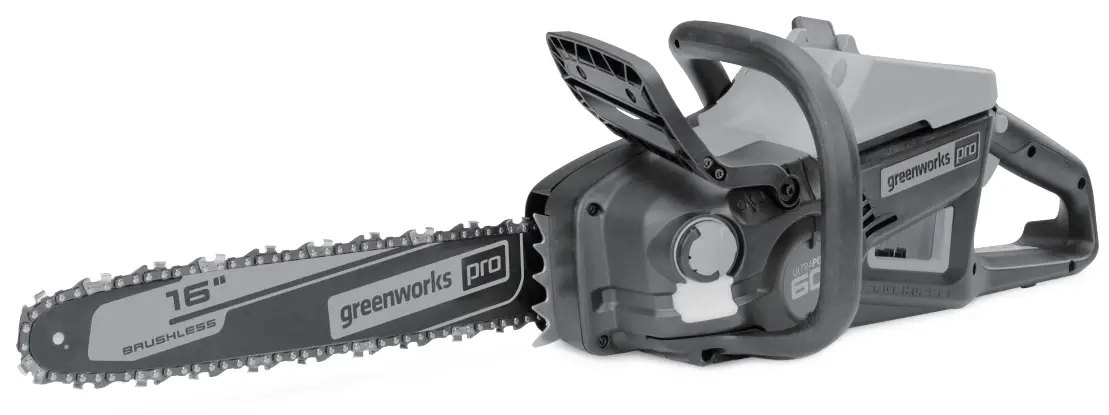

CHAINSAW
OPERATOR MANUAL
CSC404
www.greenworkstools.com

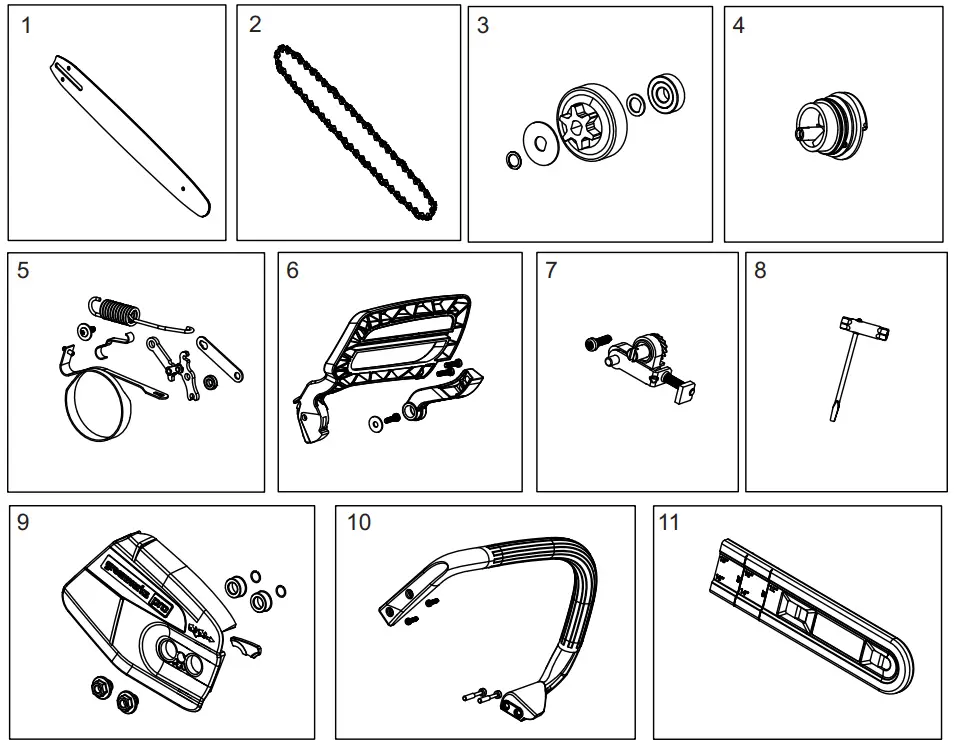

16 EXPLODED VIEW
| No | Part No. | Qty | Description | No | Part No. | Qty | Description |
| 1 | R0201870-00 | 1 | Bar | 7 | R0200896-00 | I | Tensioner Kit |
| 2 | R0201871-00 | 1 | Chain | 8 | RB333001890 | I | Wrench |
| 3 | R0200302-00 | 1 | Sprocket Kit | 9 | R0200304-00 | I | Sprocket Cover Assembly |
| 4 | R0200303-00 | 1 | Oil Cap Assembly | 10 | R0200306-00 | I | Auxiliary Handle Kit |
| 5 | R0201868-00 | 1 | Chain Brake Kit | 11 | R0200002-00 | I | Scabbard |
| 6 | R0200009-00 | 1 | Chain Brake Handle |
BL60B00
BL60B210

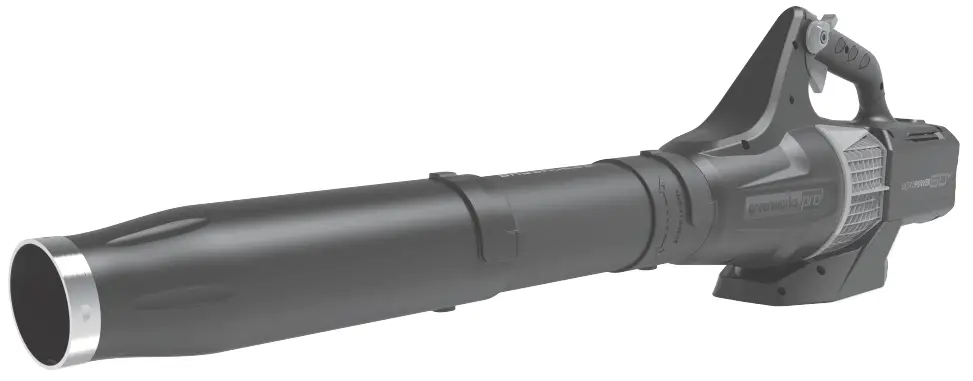

BLOWER
OPERATOR MANUAL
BLC361
www.greenworkstools.com

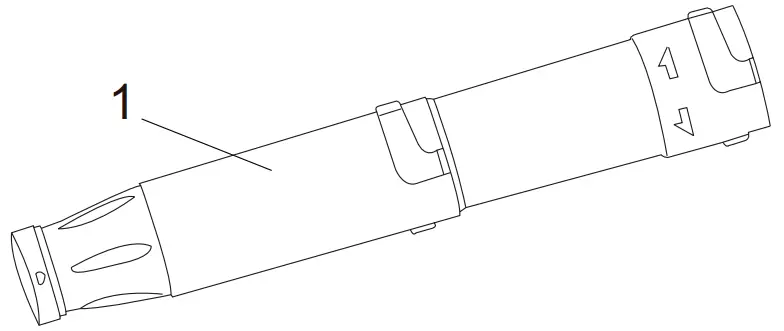

17 EXPLODED VIEW
| No. | Part No. | Qty | Description |
| 1 | R0201166-00 | 1 | Round Pipe Assembly |
ST60L04
ST60L254

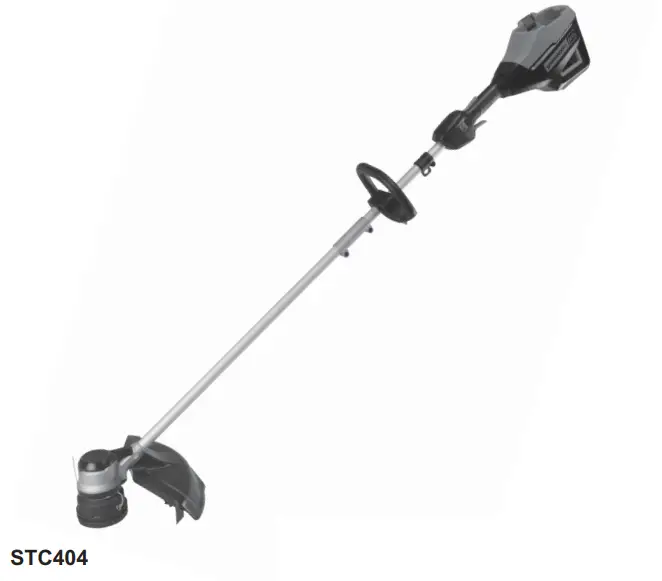

STRING TRIMMER
OPERATOR MANUAL

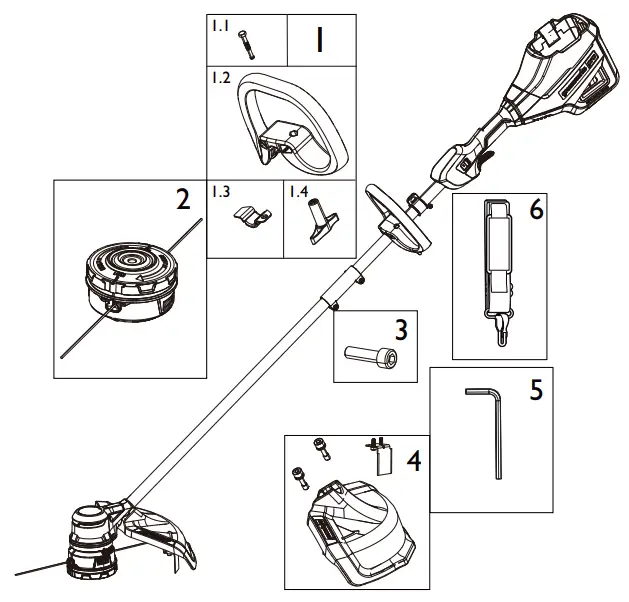

15 EXPLODED VIEW
| No. | Part No. | Qty | Description | No. | Part No. | Qty | Description |
| 1 | R0201836-00 | 1 | Auxiliary Handle Assembly | 2 | R0201834-00 | 1 | Trimmer Head Assembly |
| 1.1 | R0201826-00 | 1 | Bolt | 3 | R0201830-00 | 1 | Hex Screw |
| 1.2 | R0201827-00 | 1 | Auxiliary handle | 4 | R0201881-00 | 1 | Guard Assembly |
| 1.3 | R0201828-00 | 1 | Bracket | 5 | R0201770-00 | 1 | Allen key |
| 1.4 | R0201833-00 | 1 | Knob | 6 | RB37902144 | 1 | Shouler strap |
HT60L211
HT60L01

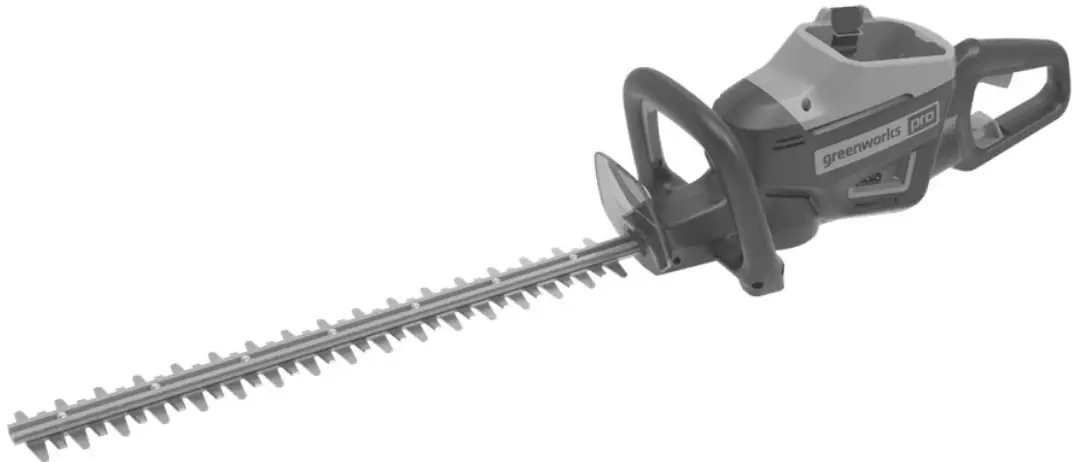

HEDGE TRIMMER
OPERATOR MANUAL
HTC402
www.greenworkstools.com

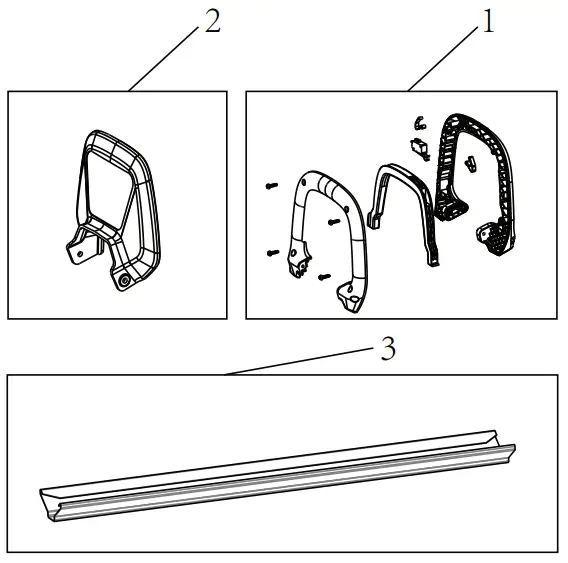

15 EXPLODED VIEW
| No. | Part No. | Qty | Description |
| 1 | R0201807-00 | 1 | Auxiliary handle assembly |
| 2 | R0201808-00 | 1 | Guard |
| 3 | R0201931-00 | 1 | Blade cover |
