Dell Latitude 5330-01 2in1 User Guide

Dell Latitude 5330-01 2in1 User Guide

Contents hide
1 DELL Latitude 5330-01 2in1
2 Power Adapter
3 Maximum operating temperature
4 Icons
5 Documents / Resources
5.1 References
6 Related Posts

Dell_Logo

DELL Latitude 5330-01 2in1

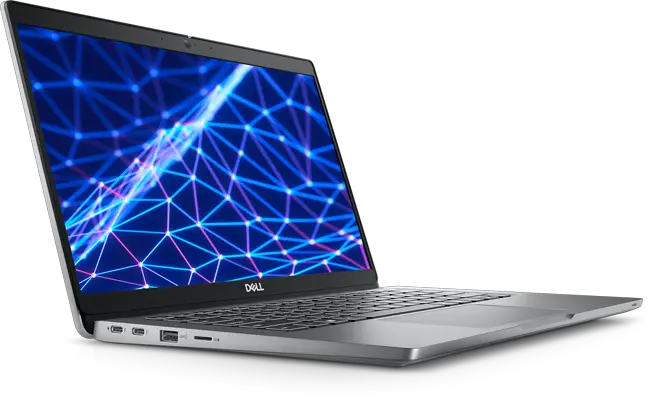

DELL Latitude 5330-01 2in1 product-img

Regulatory Model/Type

  • P139G/P139G002

MCMC certification mark
Windows In Windows Search, type System. In the search results, click System

Warning

  • Read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at Dell.com/regulatory_compliance.
  • Do not remove the computer cover unless you need to install internal accessories for your computer. For instructions on removing and replacing parts, see the Owner’s or Service Manual at Dell.com/support.
  • Retain the filler brackets or cards that ship with your computer. Installing filler brackets or filler cards over empty card-slot openings is necessary to maintain FCC certification of the computer. The filler brackets and filler cards keep dust and dirt out of your computer and maintain the airflow that cools your computer.

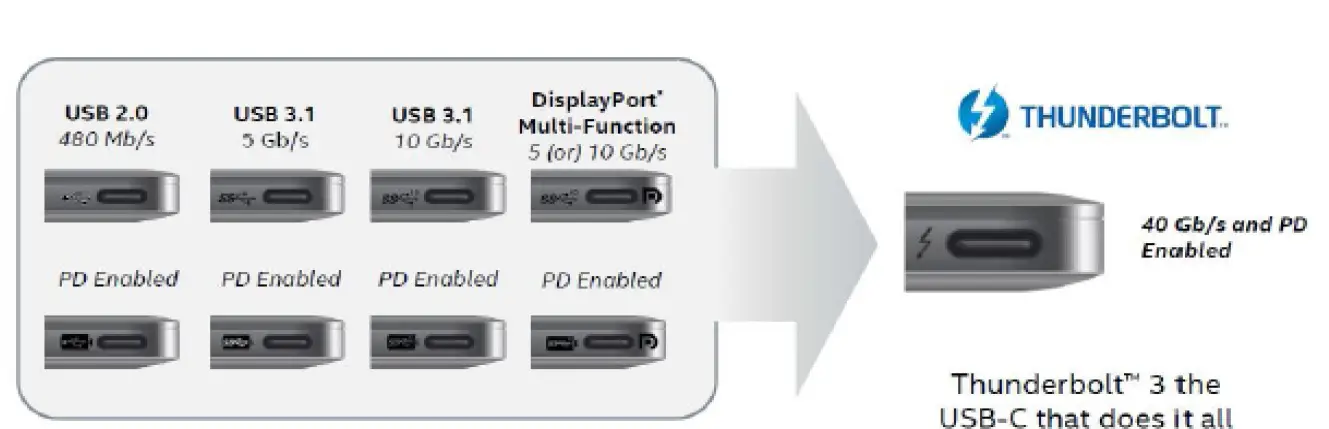

Not all USB-C Computer Ports Will be EqualDELL Latitude 5330-01 2in1 fig (1)

Power Adapter

  1. Input voltage   100-240V
  2. Input current (maximum)   1.7 A / 1.7 A / 1.5 A
  3. Input frequency    50-60 Hz
  4. Output current     3 A / 3.25 A / 4.5 A
  5. Output voltage   20 V

Maximum operating temperature

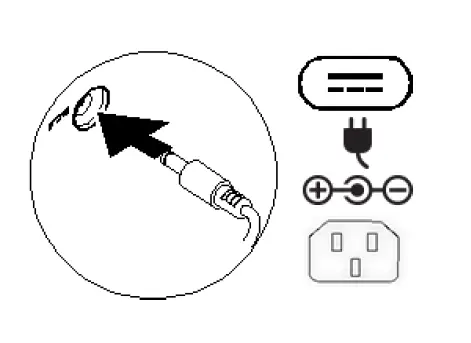

  • Connect the power adapter or the power cable to your computer and to the display, if required.DELL Latitude 5330-01 2in1 fig (2)
  • Power on the computer (and the display, if connected).
  • Depending on your computer configuration, some ports or connectors may not be available.

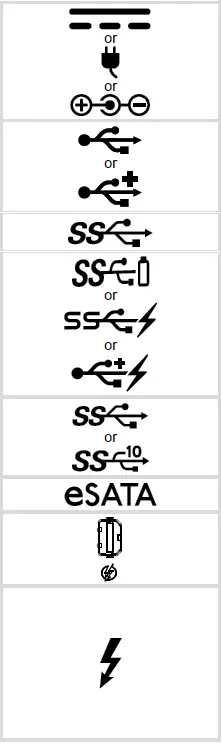

IconsDELL Latitude 5330-01 2in1 fig (4)

  1. Power adapter
  2. USB 2.0
  3. USB 3.0/USB 3.1 Gen 1
  4. USB 3.0/USB 3.1 with PowerShare
  5. USB 3.1 Type-C
  6. eSATA
  7. Thunderbolt
  8. Thunderbolt 3 port with Power delivery (USB-C)

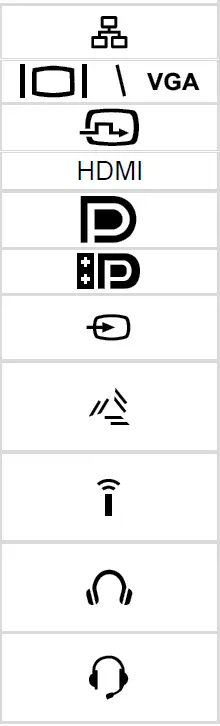

IconsDELL Latitude 5330-01 2in1 fig (5)

  1. Network
  2. VGA
  3. DVI
  4. HDMI
  5. DisplayPort
  6. Mini DisplayPort
  7. TV-in
  8. External Graphics Port
  9. Infrared (IR) emitter
  10. Headphone/Audio-out
  11. Headset

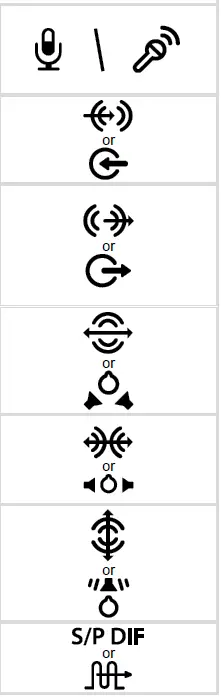

Icons DELL Latitude 5330-01 2in1 fig (6)

  1. Microphone
  2. Line-in
  3. Line-out/Speakers: front left-right
  4. Speakers: rear left-right
  5. Speakers: side left-right
  6. Speakers: Audio center/subwoofer
  7. S/PDIF

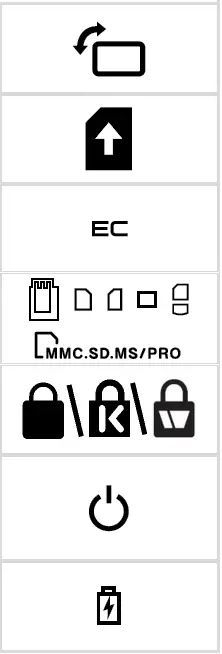

IconsDELL Latitude 5330-01 2in1 fig (7)

  1. Screen-rotation lock
  2. SIM-card slot
  3. ExpressCard slot
  4. Media-card reader
  5. Security-cable slot
  6. Power/Battery-status light
  7. Battery-status light

IconsDELL Latitude 5330-01 2in1 fig (8)

  1. Hard-drive activity light
  2. Wi-Fi light
  3. bluetooth light

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
