Ubiquiti Unifi Security Gateway User Manual

UBIQUITI UniFi Security Gateway User Manual

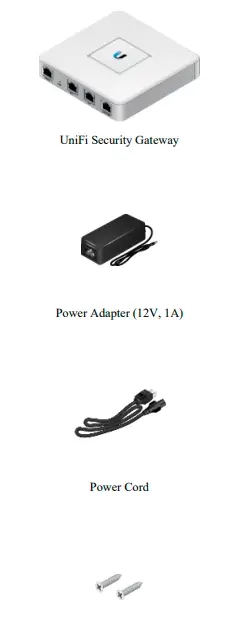

Package Contents

UniFi Controller System Requirements

•  Microsoft Windows 8, Mac OS X, or Linux
•  Java Runtime Environment 1.6 (or above)
•  Web Browser: Mozilla Firefox, Google Chrome, Microsoft Edge, or Microsoft Internet Explorer 11
•  UniFi Controller software v5.4 or higher
• Hardware Overview

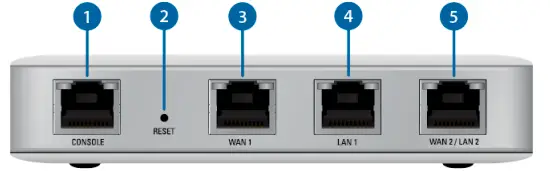

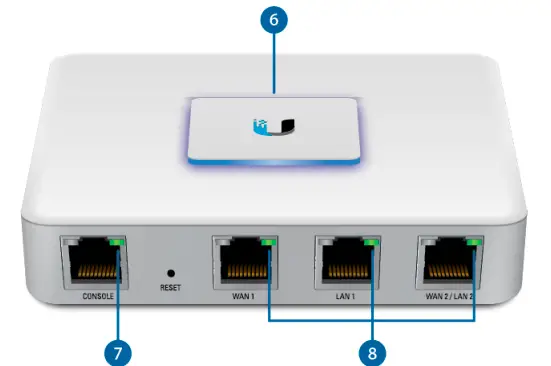

Ports Panel

LEDs

Hardware Installation

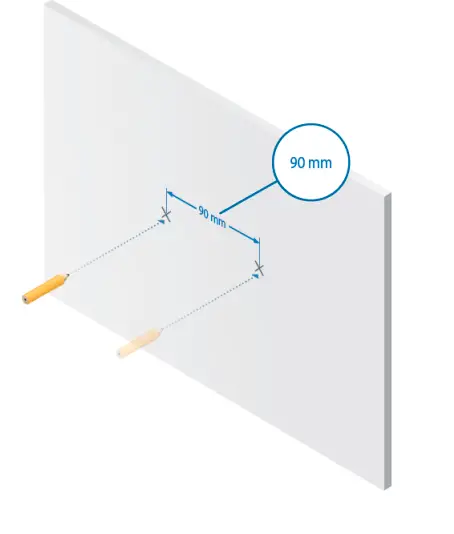

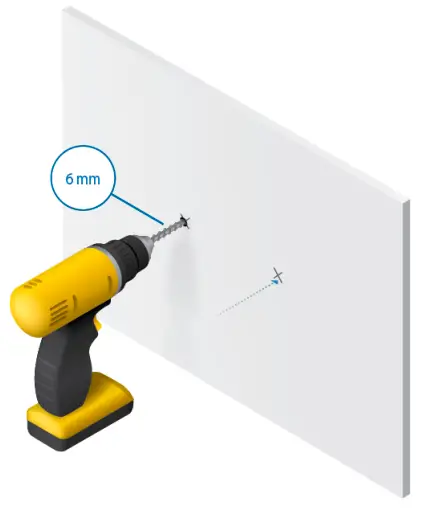

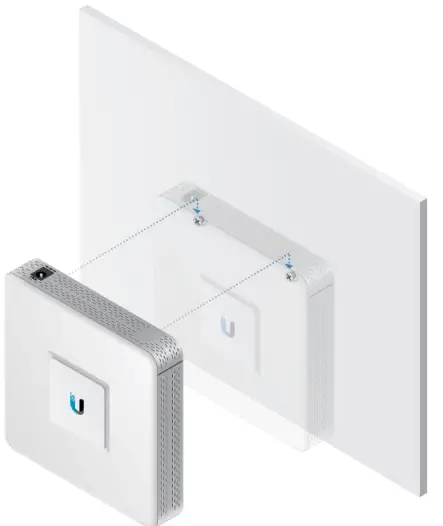

Wall-Mounting (Optional)

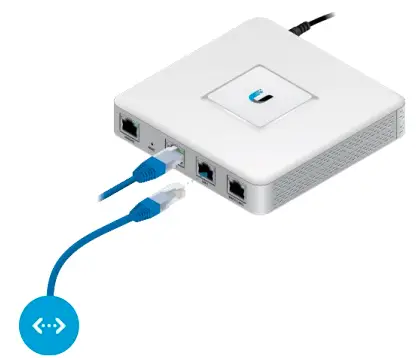

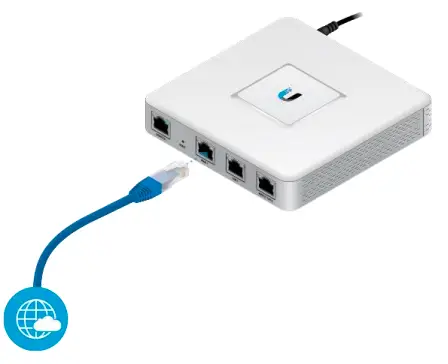

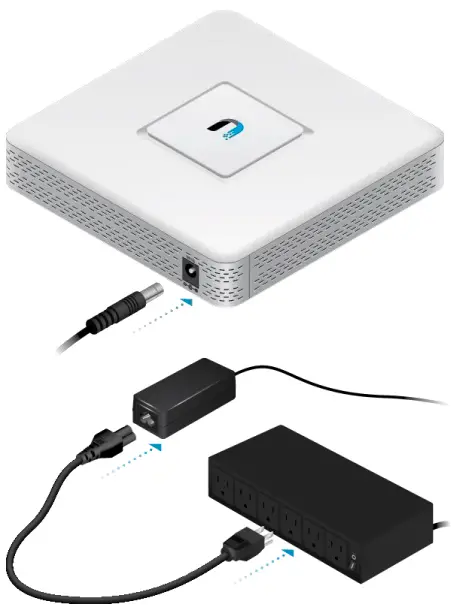

Connecting Power Network Connections

Software Installation

Download the latest version of the UniFi Controller software From a management station connected to the same Layer-2 network, launch the installer and follow the on-screen instructions.

Note:
If you already have UniFi Controller v5.4 or higher installed, go to the section, Adopting the UniFi Gateway.

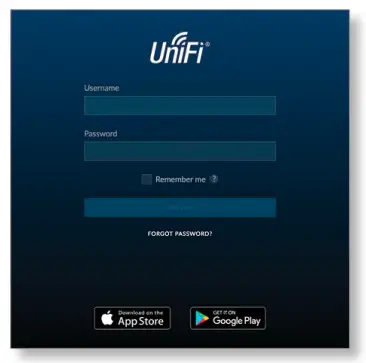

After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the username and password that you created and click Sign In.

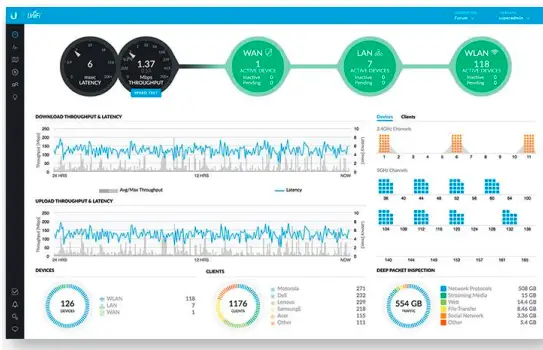

You can manage your network and view network statistics using the UniFi Controller management interface. For information on using the UniFi Controller software, refer to the User Guide located on our website at: ui.com/download/unifi

Adopting the UniFi Gateway

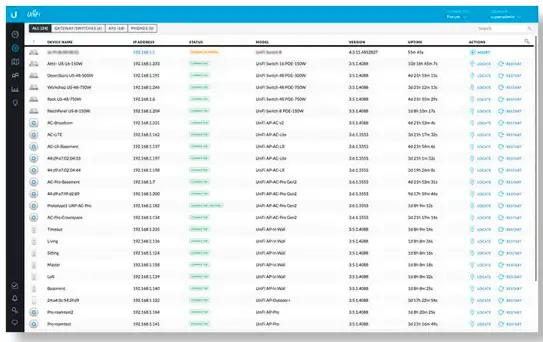

1. From the UniFi Controller dashboard, click Devices in the left menu bar.
2.  Locate the UniFi Gateway in the list of devices under the Model column. Click Adopt.
3. The System LED on the UniFi Gateway will turn blue to confirm that it is successfully adopted.
   Optional WAN Port Configuration via Layer 3
   By default, the WAN port is set to DHCP so it can be assigned network settings by the service provider. To change the setting, connect a computer directly (or through a switch) to the LAN 1 port of the UniFi Gateway.
   1.  From a web browser, go to https://setup.ui.com
   2. Enter your Username and Password. Click Sign In.
      Note:

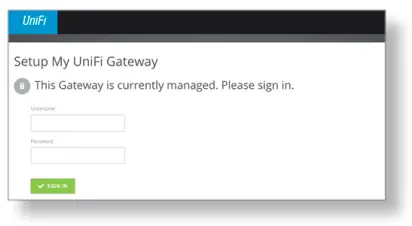

      If the UniFi Gateway has not been adopted by a UniFi Controller, the login window will be skipped and the Setup window will appear.

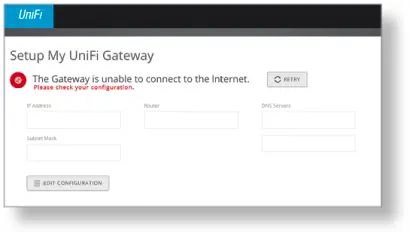

   3. In the Setup window, click Edit Configuration to configure the WAN port to DHCP, Static IP, or PPPoE.
      For information on using the UniFi Controller software, refer to the User Guide located on our website
