Refrigerator Disassembly and Recycling
Disassembly Guide
Guidelines

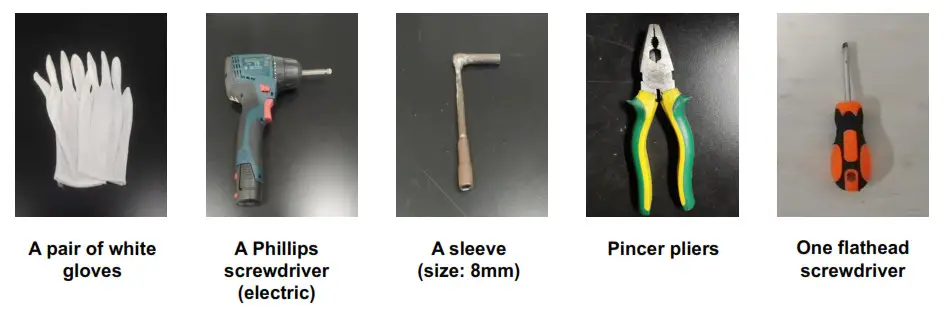

Required tools:
1. A pair of white gloves
2. A Phillips screwdriver
3. A sleeve (size: 8mm)
4. Pincer pliers
5. One flathead screwdriver

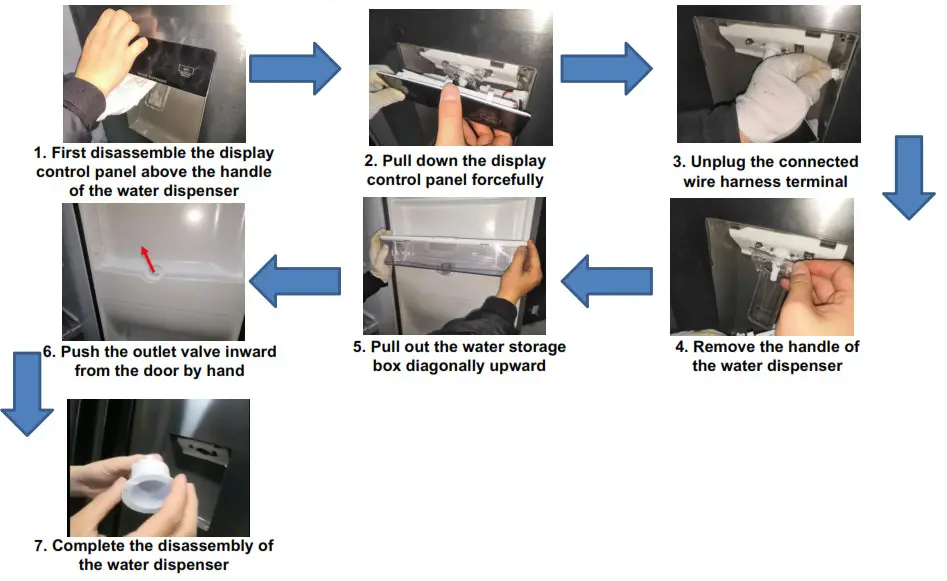

Guidelines for disassembly of water dispenser

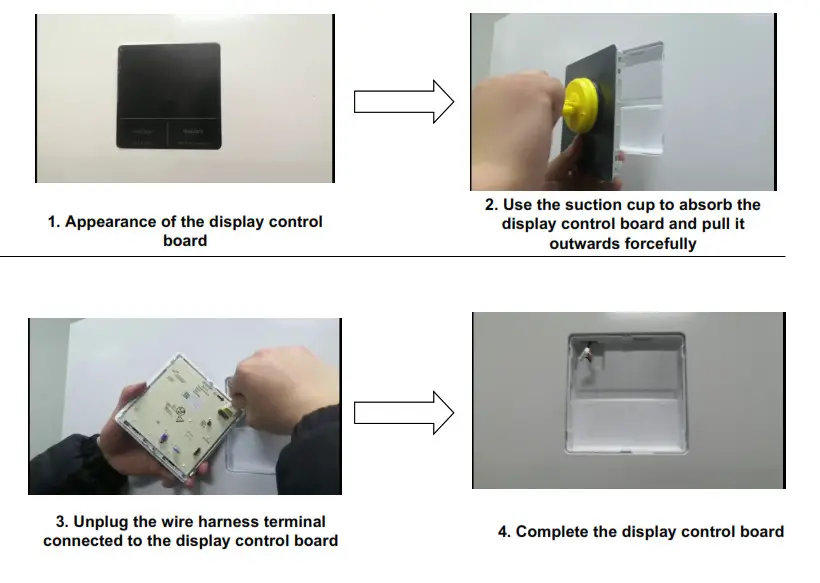

Disassembly of display control board

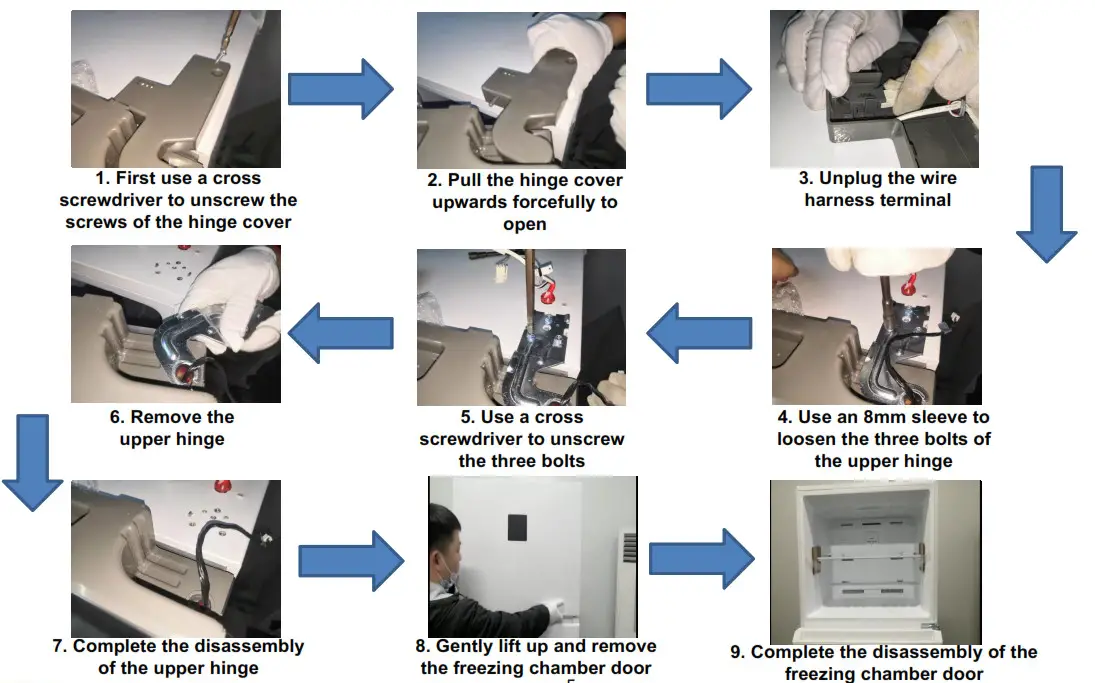

Guidelines for disassembly of the freezing chamber door

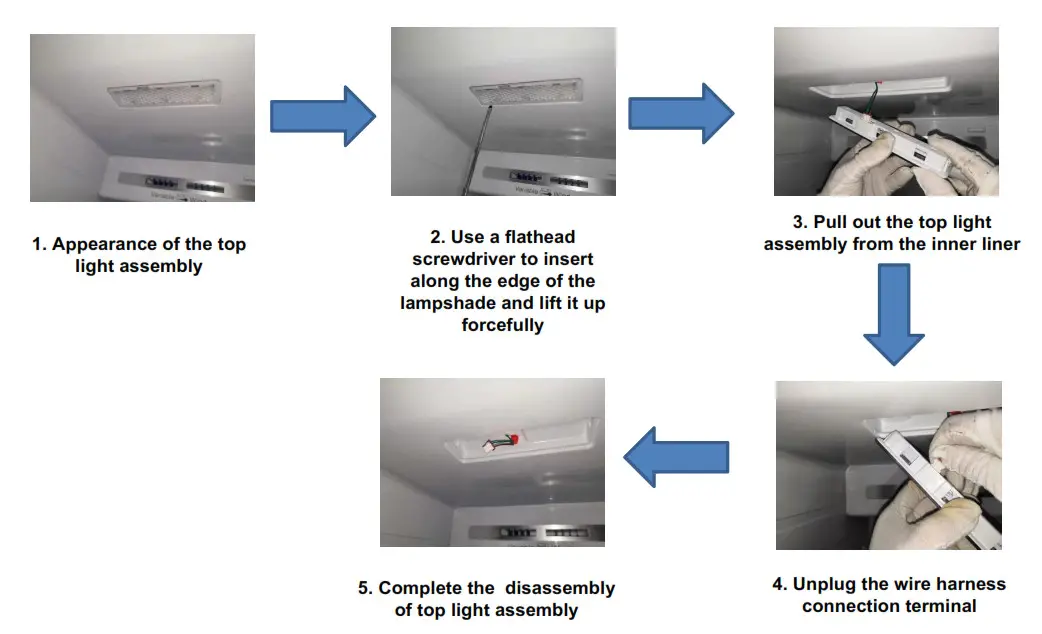

Guidelines for disassembly of the top light assembly

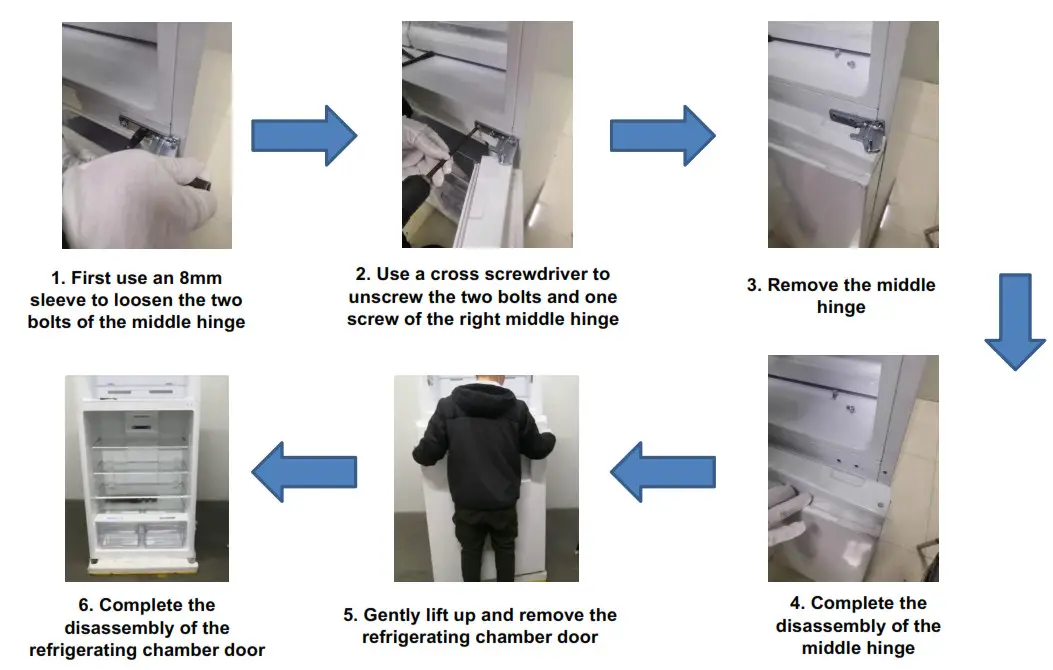

Guidelines for disassembly of the refrigerating chamber door

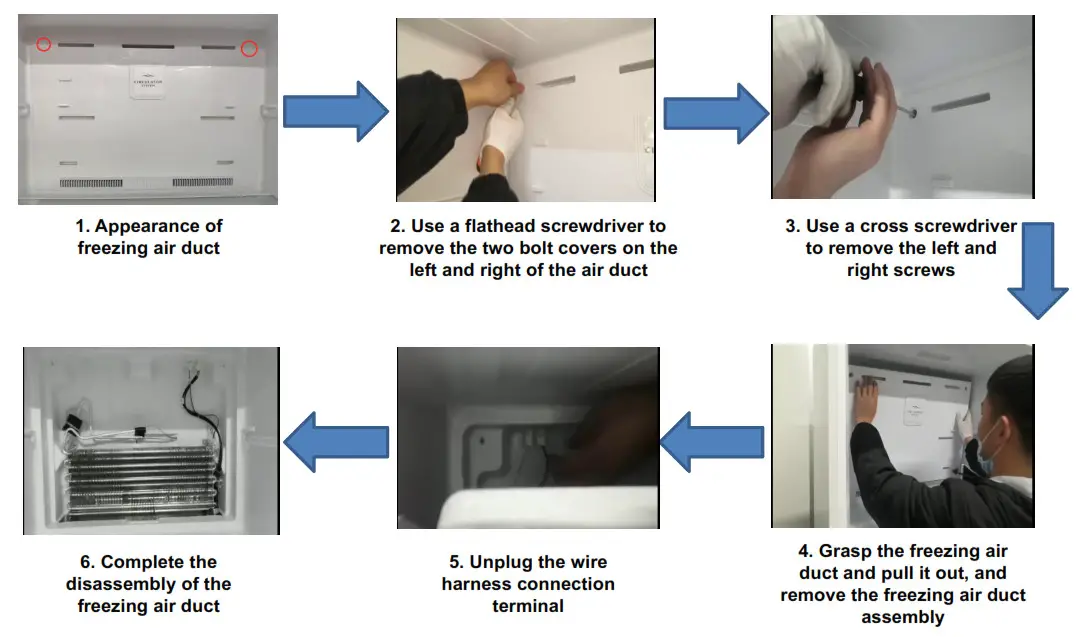

Guidelines for disassembly of freezing air duct

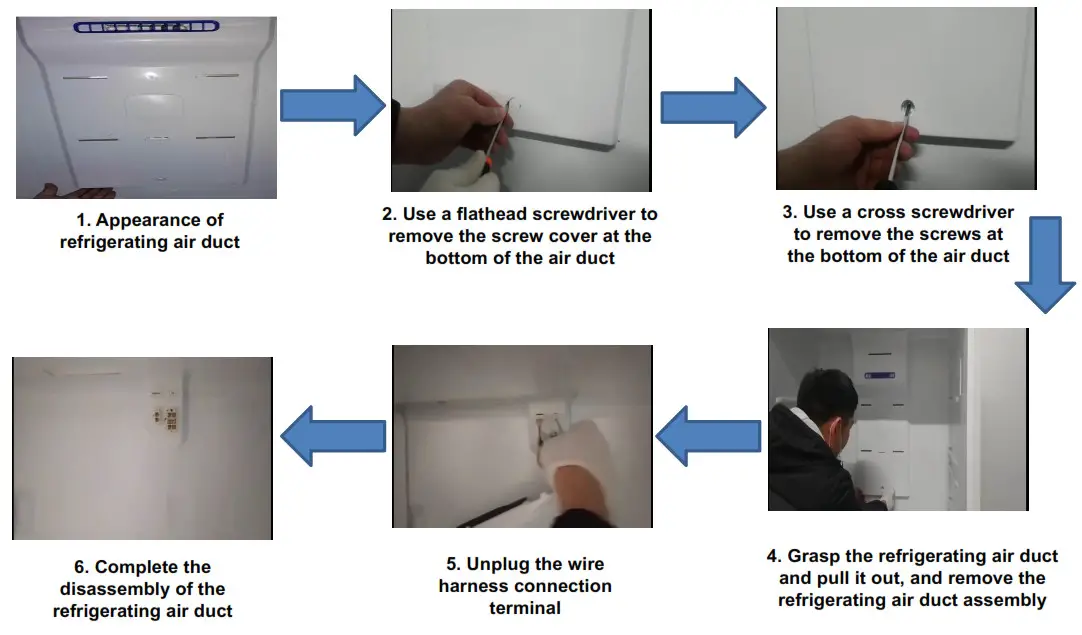

Guidelines for disassembly of refrigerating air duct

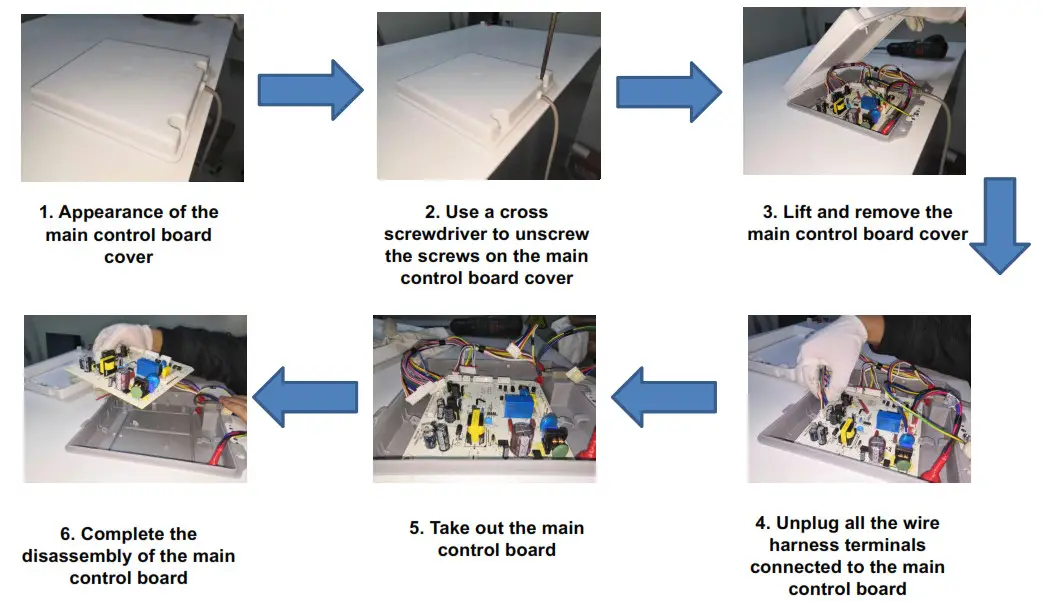

Disassembly of the main control board

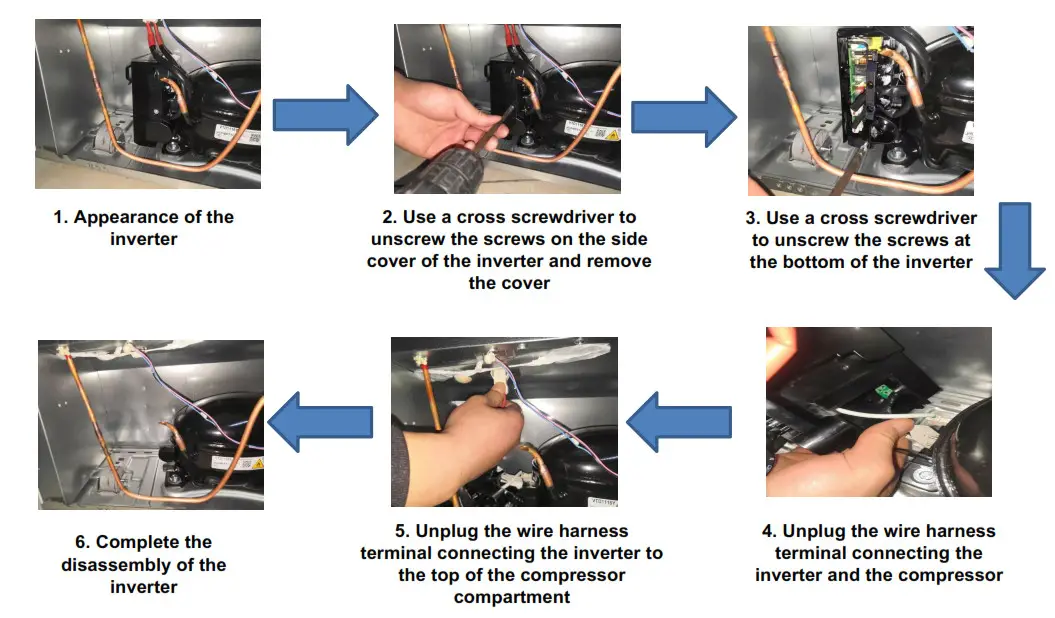

Disassembly of the inverter

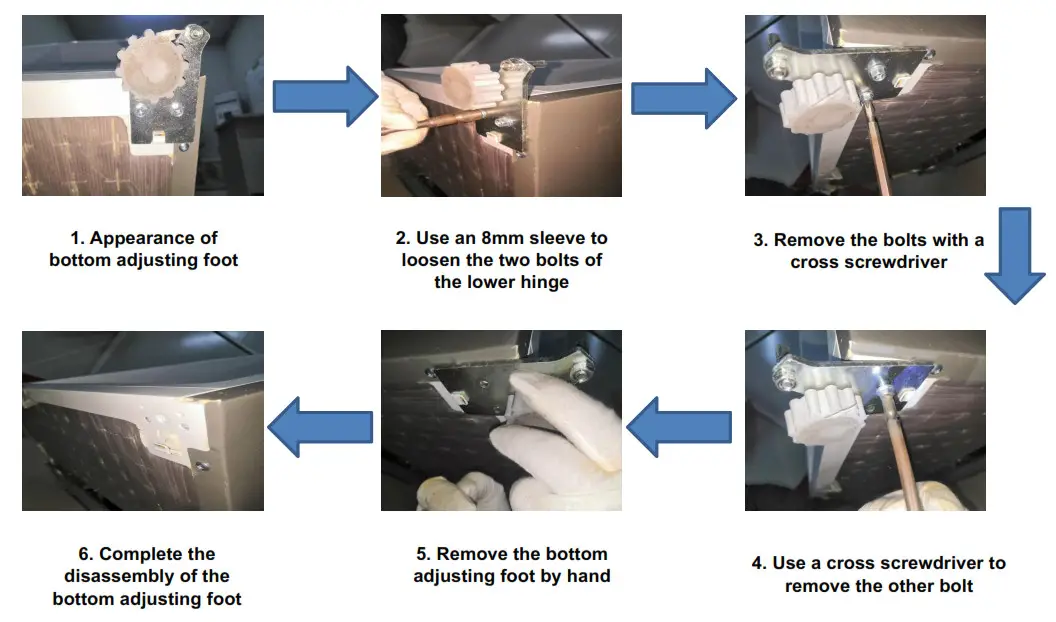

Disassembly of the bottom adjusting foot

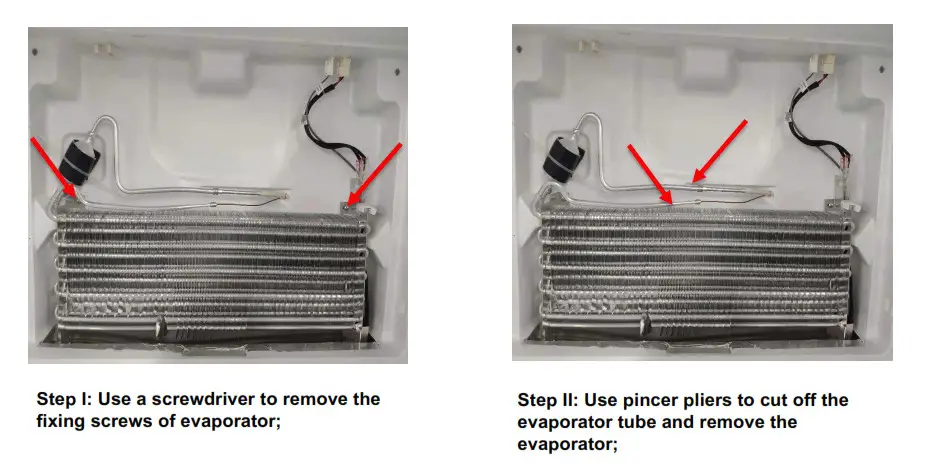

Disassembly of the fin evaporator

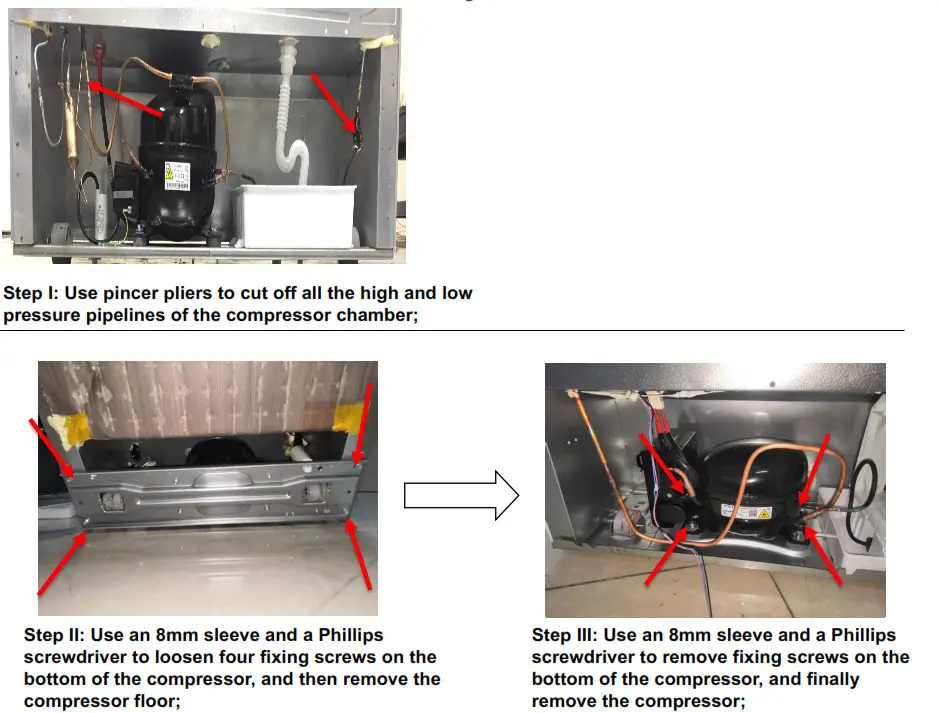

Disassembly of compressor chamber
