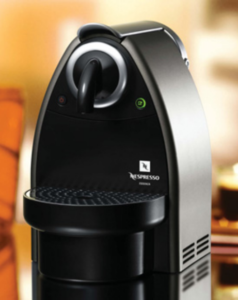

Nespresso Essenza C90 Instruction Manual

C90
Instruction Manual

Please read this Instruction Manual and the safety instructions on pages 1 and 2 before operating the appliance!

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions carefully.
• In case of emergency, immediately remove plug from power outlet.
• Do not touch hot surfaces. Use levers or knobs.
• To protect against fi re, electric shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Never clean the appliance or the power cord if those are humid. Avoid touching the machine with wet hands.
• Close supervision is required when any appliance is used by or near children.
• Unplug appliance from outlet if leaving for an extended period of time (vacation, etc).
• Allow to cool before adding or removing parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination repair or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer
  may result in fi re, electric shock or personal injury.
• Always attach plug to appliance fi rst, then plug cord into the wall outlet. To
  disconnect, turn off appliance, then remove plug from wall outlet.
• Do not use appliance for other than intended purposes.
• Do not put fi ngers inside capsule housing, due to sharp edges.

POWER CORD INSTRUCTIONS

Regarding your power cord:

a) A short power cord (and detachable power cord) is ovided to reduce risks that may result from longer and tangled cords.
b) Longer detachable power cords or extension cords are available and may be used if proper care is used.
c) If a long detachable power-supply cord or extension cord is used (1) the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance, (2) If the appliance is of the grounded type 3-wire cord (3) the longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

CAUTION

Household use only. Do not use outdoors. To reduce the risk of fire or electric shock, any servicing other than cleaning and user maintenance should be performed by an authorized service representative. Under no circumstances should you open the machine yourself.

• Check voltage to be sure that the voltage indicated on the name plate corresponds with your voltage.
• Never use warm or hot water to fi ll the water container. Use cold water only!
• Keep your hands and the cord away from hot parts of the appliance during operation.
• Never clean with scouring powders or sharp tools.

SAFETY INSTRUCTIONS

Read these instructions carefully before using your Nespresso machine.

• Do not plug the machine into anything other than a grounded electrical socket. Verify that the voltage indicated on the technical specifications plate on the bottom of the unit corresponds to your electrical installation. The use of incorrect connection voids warranty.
• Do not place your Nespresso machine on a hot surface (electrical heating plate for example) or near a flame.
• Do not lift the closing lever while the machine is functioning since coff ee is extracted under high pressure.
• Do not use the machine without the drip tray and drip grid in place.
• Ensure that the electrical cord does not hang over edge of table or counter. Do not disconnect the electrical plug by pulling on the cord.
• Avoid touching the electrical cord as well as any other part which may become hot during the use of the machine.
• For descaling, adhere to the directions which follow:
  a) Preparation: please read carefully the safety instructions on the descaling packaging.
  c) Descaling: do not open the closing handle during the descaling process.
  d) Rinse: rinse the water tank and clean the machine to avoid any residual descaling agent.
• Waste disposal: Unplug the machine. Cut off power cord near the housing. Dispose machine and cable at your public disposal or customer service.

Save these Instructions

  8 Troubleshooting

a No light indicator    Check mains: plug, voltage, fuse. In case of failure, call the Nespresso Club.

b No coffee, no water

• Water tank empty –> Fill tank
• Venting

1. Open + 2. hold lever in position          Water comes      close

• Descale, if necessary –> refer to point 7

c Coffee is not hot enough   Preheat cup, descale if necessary

d Capsule area is leaking (water in capsule container)   Position capsule correctly. In case of leakage: call the Nespresso Club

e  Irregular interval blinking Send machine to repair or call the Nespresso Club

Specifications

110 – 120 V, 60 Hz, max. 1260 W

max. 19 bar

~6.6 lbs

34 oz

41 F … 113 F

              6.5 in    9.9 in        11.4 in

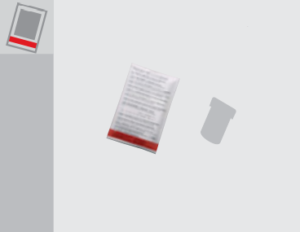

Optional Accessory

Nespresso descaling kit

TSM SUCCESS MANUAL designed by electro suisse >>

1 Initial set-up or after a longer period of non-use

Remove protective film

Fill water tank

Place a container

Plug machine in. Turn machine on

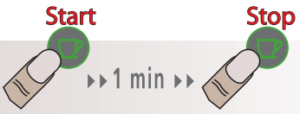

Heating up       Ready            Let water run through

No water see: 8b

2 Daily: before brewing your first cup

Fill water tank with fresh water

Press the ON switch

Heating up

READY

3     Espresso   Lungo

Preparation

Preheat espresso cup: run 1 cup of water through

Insert capsule

Flow speed depends on coffee variety

Eject capsule (drops into capsule container)

4 Daily: After the last coffee

Press the OFF switch

Empty capsule container + drip tray

Rinse and empty water tank

5 Clean: When necessary

Damped cloth, mild cleaning agent

6 Empty the system: After long period of non-use, for frost protection and after repair

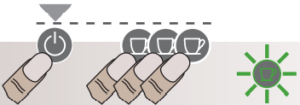

Press the OFF switch        press and hold and press 3 x

(1.) Open and (2.) hold

Close

Machine switches off automatically and is blocked for 10 min

7 Descaling

Carefully read safety instructions on descaling package. Descaling solution can damage machine casing. Avoid using vinegar as it can damage your machine.

Water hardness          Descale after

fH  dH
36  20          300
18  10          600
0    0            1200

Preparation

a Eject capsule

Empty drip tray and capsule container

Rinse machine, see step 1

If leakage, refers to: 8d

b Fill in descaling kit solution and two cups of water

Place a recipient

1. Lift lever, 2. insert filter, 3. close lever

Descaling

c Press both buttons simultaneously for 3 seconds

Let descaling solution run through twice

Refill water tank once more with descaling solution and repeat step

Rinse

d Remove filter

Empty, rinse and fill water tank

Rinse machine, see 1

Exit: press both buttons simultaneously for 3 secs
