RIDECASE

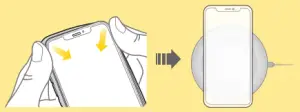

Remove ride case for wireless charging.

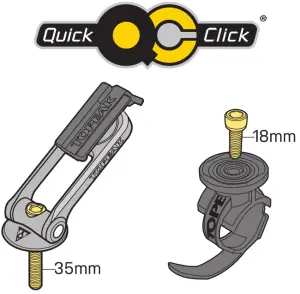

Stem Cap Mount (For 1-1/8″ Stem Cap)
Handlebar Mount
- 11/8″ Stem Cap Mount is recommended for use with 1-1/8″ steel or alloy fork steer tubes only.
- 1″, 1-1/4″, 1.5″ or Carbon steer tubes should use included Handlebar Mount.

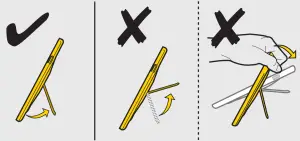

The built-in RideCase flips and allows convenient viewing of your iPhone on any flat surface. However, do not place a load or press down on RideCase, or try to over-extend the flips and past its limit as this will cause it to break.
Important Note :
- Due to the precise tolerance fit of RideCase with iPhone, any protective film on the back and sides must be removed before installing RideCase or your iPhone may be damaged by inadvertent release from RideCase while riding.
- Make sure to install the iPhone in RideCase first before mounting on RideCase Mount.
- Make sure to remove the iPhone from RideCase Mount before adjusting the mounting angle.
USE AS A REGULAR IPHONE CASE

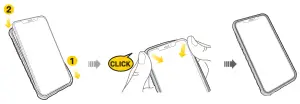

A. Install iPhone on case
Insert lower portion of iPhone in RideCase. Use thumbs to snap the top of the iPhone into RideCase and listen for an audible click. Check that the metal corners of the iPhone
are installed under a plastic RideCase frame.

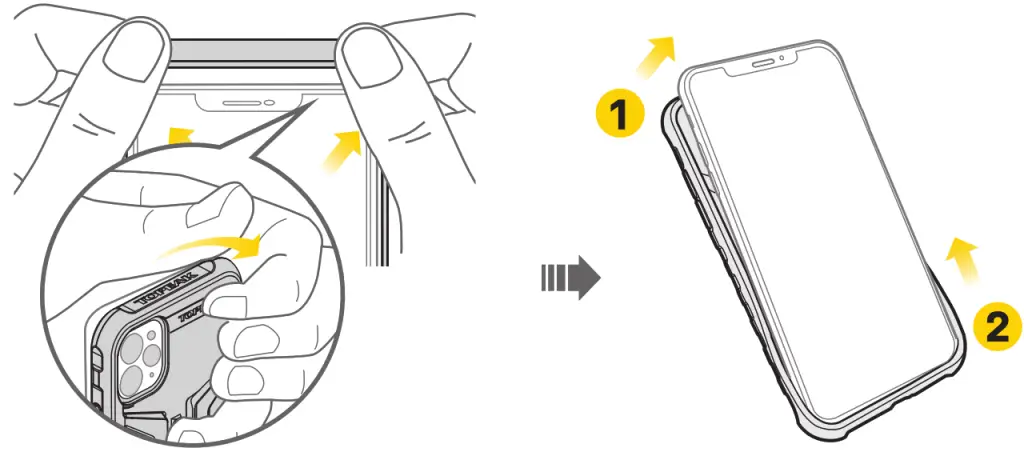

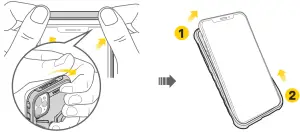

B. Remove iPhone from case

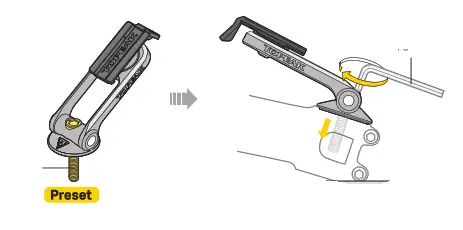

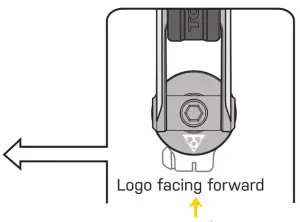

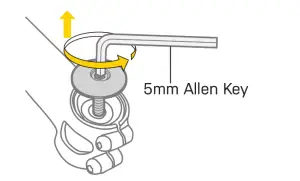

INSTALL RIDE CASE MOUNT ON STEM CAP
Remove stem cap and replace with the RiceCase Mount.
35mm Bolt
imbus 5mm

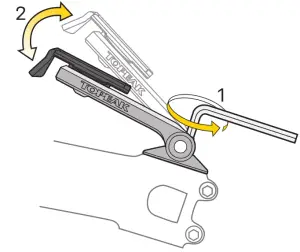

NOTE: Make sure to remove the iPhone from the RideCase mount before adjusting the mounting angle. : Make sure to remove the iPhone from the RideCase mount before adjusting the mounting angle.

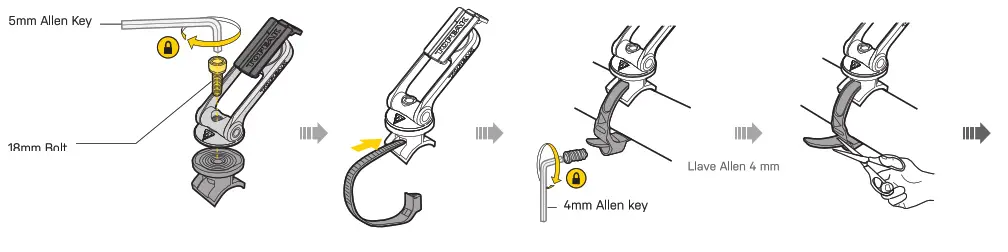

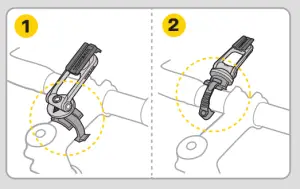

INSTALL RIOECASE MOUNT ON HANDLEBAR OR STEM
NOTE:
Do not install RideCase mount on the tapered section of the handlebar to prevent unintended loosening of the mount and causing possible damage to your iPhone

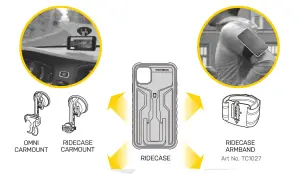

OPTIONAL ACCESSORIES
https://www.topeak.com/global/en/ridecase-series

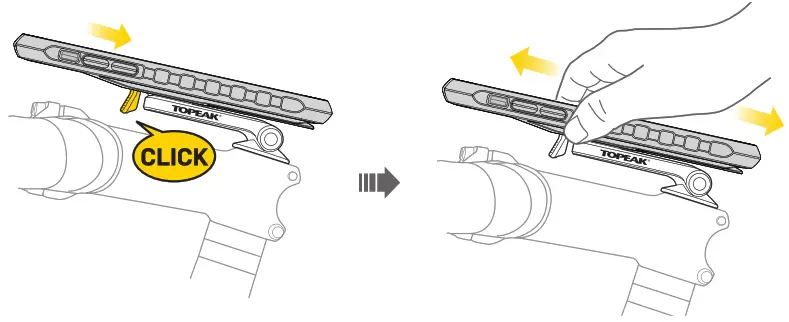

INSTALL IPHONE WITH RIDE CASE ONTO RIDECASE MOUNT
Install iPhone/RideCase assembly on RideCase Mount until an audible click is heard. Slide iPhone/RideCase assembly back and forth to ensure that it is firmly fixed on the RideCase Mount

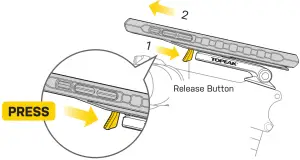

REMOVE IPHONE WITH RIOECASE FROM RIOECASE MOUNT
Press Release Button to remove [phone with ideas from RideCase Mount

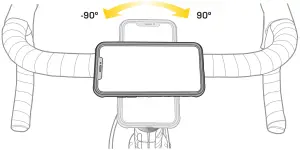

ROTATION ADJUSTABLE
WARRANTY
2-year Warranty: All mechanical components against manufacturer defects only
Warranty Claim Requirements
To obtain warranty service, you must have your original sales receipt items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if the product is damaged due to user crash, abuse, system alteration, modification, or used in any way not intended as described in this manual
+ Te specifications and design are subject to change without notice
please contact your Topeak dealer with any questions.
For USA customer service call:
1800-250-3068 www.topeak.com
