Swit Ka-s30s Mount Hot Swap Plate User Manual

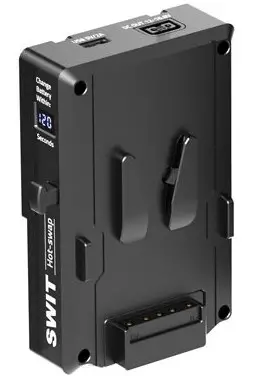

SWIT KA-S30S Mount Hot Swap Plate User Manual

• Congratulations on your purchase of this product. Please read this user manual carefully.
  Warning
  Keep the following precautions in mind to avoid fire and other safety risk!
• Do not use the plate around fire and high-tempera-ture environment to avoid over-heat and burst.
• Do not disassemble the plate or change the inner cells by yourself.
• Do not use the plate over the specified temperature range.
• Do not use the plate which was already broken.
• Do not damage the plate physically.
• Please confirm the power of device is compatible with the using plate.
• Keep the plate out of the reach of kids.
  Caution
• It is normal that the plate will get hot when using.
• Do not use the plate in a high temperature environment over 50°C
• Keep the pole of the plate clean to avoid short circuit.
• Please store the plate in cool and dry environment, also make sure the capacity is over 60s.
• Follow the specification of the plate when using.
  Feature
• The internal cells of the plate can provide 120s for hot swap batteries;
• The power of the internal cells is 200W,suitable for different using device;
• Support V-mount batteries,4-pin XLR,B-MOUNTor 8-pin DC input, compatible with different device;
• Various output interface: D-TAP,2-pin DC,V-MOUT, 8-pin DC;
• Different installation way:support ARRI special suite, dual pipe clamp,V-mount plate etc.;
• The 3 digital tubes display the power supply time of the battery inside the plate in real time;
• The output interface of KA-S3OS is compatible with SONY & RED digital communication;
• KA-R31S support 1 3GSDI input and 2*3GSDI output.

APPEARANCE

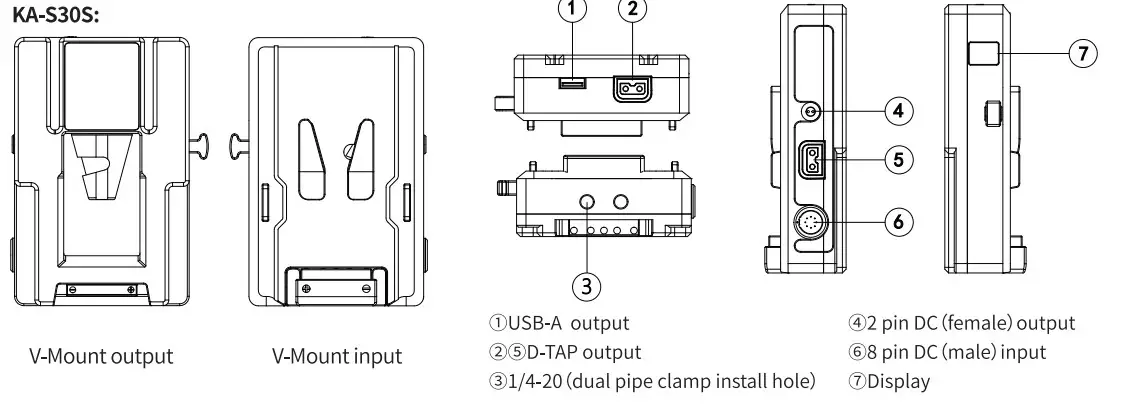

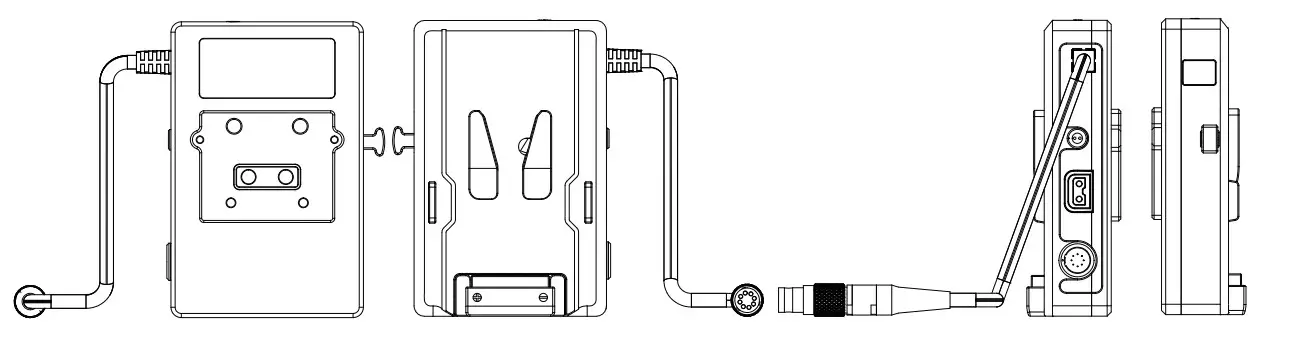

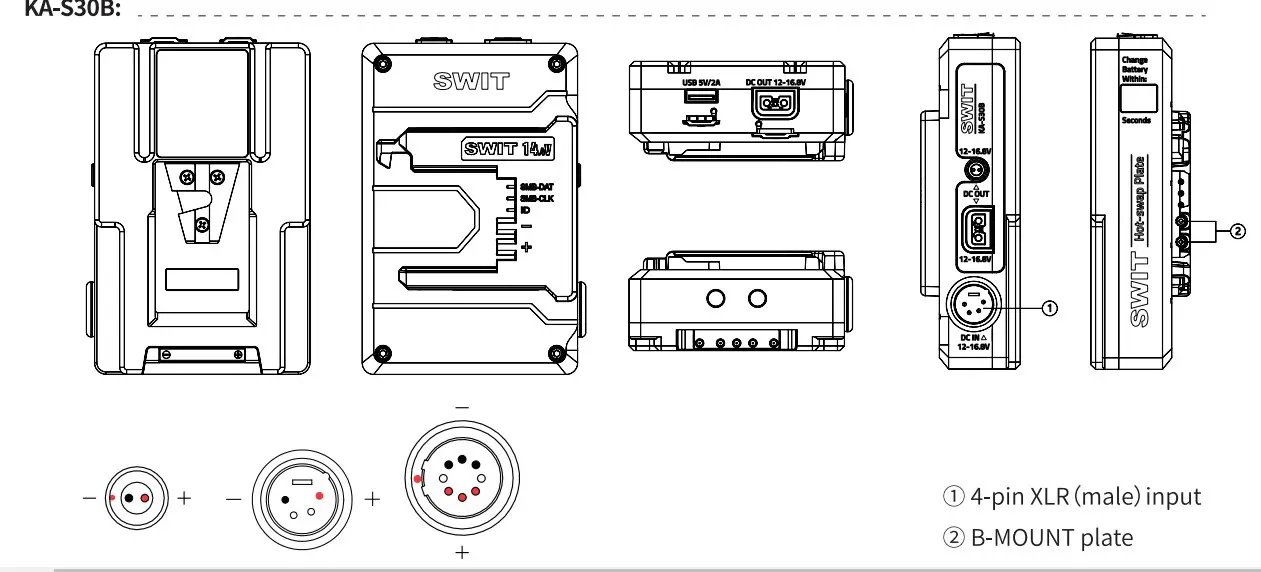

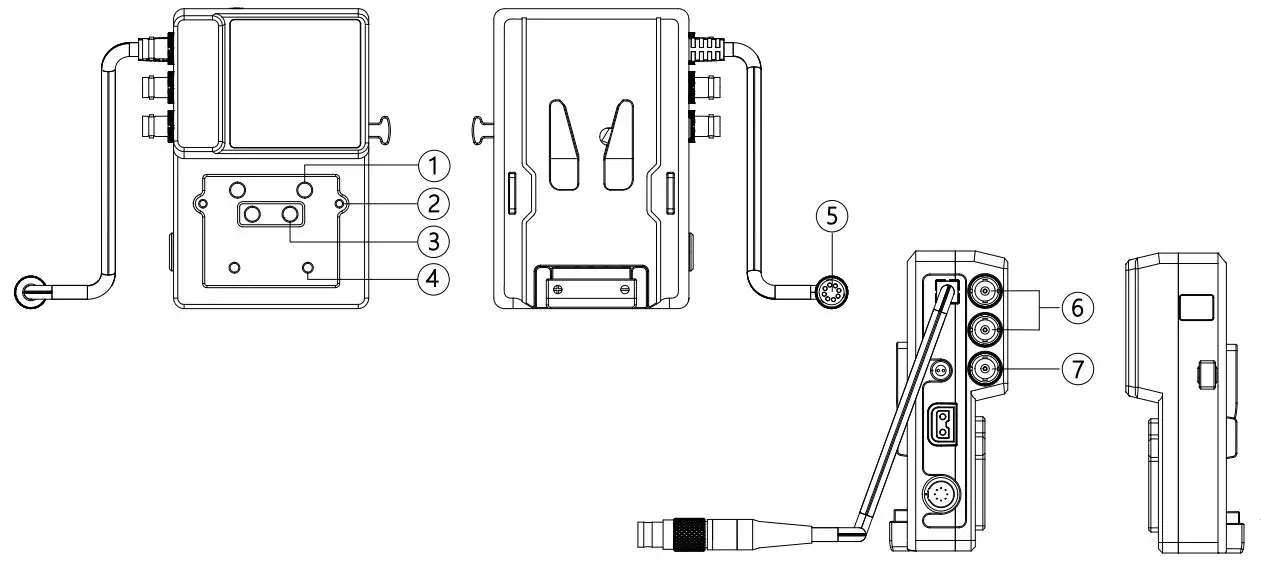

1. 1/4-20 ® M3 “…41) M4,compatible with ARRI K2.0023406
2. 1/4-20 (dual pipe clamp install hole)
3. 8 pin DC (female) output
4. 3G/HD/SD-SDI output C)
5. 3G/HD/SD-SDI input

Internal cells charging

1. Charging condition:The voltage of external power supply device(battery or adapter) should be higher than the voltage of internal cells.
2. Recommendation : Frequently using the plate may make the power supply time unable to reach 120s. If the power supply is needed for a long time of 120s, the plate can be charged with a fully charged battery under the condition of no load.

Hot swap function & Display status:

1.  The plate will supply the power when taking down the using device(batteries or adapter) or the input voltage is lower than 10.8V.
2. When the external power supply device is mounted again, it will automatically switch to the external power supply; At this point, the plate reevaluates the power supply time according to the remaining capacity of its own battery.
