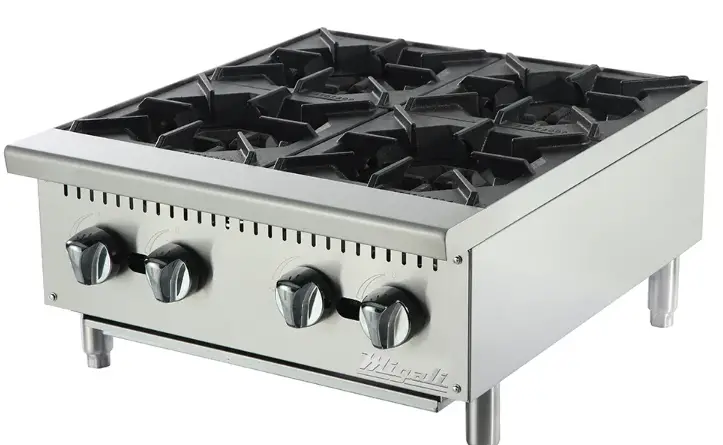

Migali C-HP-4-24 Hot Plates
HOT PLATES
- Heavy duty cast iron removable trivets
- 25,000 BTU manually controlled burners
- Removable, full width slide out waste tray
- Beautiful ergonomic design and easy to clean
- High polished, stainless steel exterior and chrome temperture knobs
- (4) adjustable stainless steel feet
- Comes standard as natural gas with L.P orifice kit for in-field conversion
- Migali Industries® Protection Plan: 1 Year Parts & Labor Warranty
|
MODEL |
BURNERS |
TOTAL BTU NATURAL GAS / LP |
PER BTU NATURAL GAS / LP | IN TAKE TUBE PRESSURE (W.C.) NATURAL GAS / LP |
NOZZLE NO. NATURAL GAS / LP |
IGNITION |
VALVE TYPE |
TOP PLATE SIZE W X D X H |

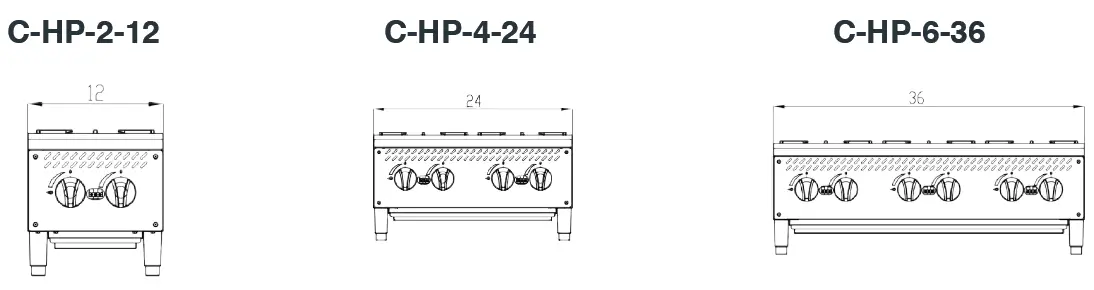

EXTERIOR DIMENSIONS W X D X H |
PACKAGING DIMENSIONS W X D X H |
WEIGHT |
PACKAGED WEIGHT |
| C-HP-2-12 | 2 | 50,000 | 25,000 | 4 /10 | #43 / #53 | Manual | Pilot Light | (2) 11.8” w x 11.8” d | 12 x 27.6 x 13.1 | 15 x 29.9 x 16.5 | 54 lbs. | 74 lbs. |
| C-HP-4-24 | 4 | 100,000 | 25,000 | 4 /10 | #43 / #53 | Manual | Pilot Light | (4) 11.8” w x 11.8” d | 24 x 27.6 x 13.1 | 26.8 x 29.9 x 16.5 | 94 lbs. | 125 lbs. |
| C-HP-6-36 | 6 | 140,000 | 25,000 | 4 /10 | #43 / #53 | Manual | Pilot Light | (6) 11.8” w x 11.8” d | 36 x 27.6 x 13.1 | 38.6 x 29.9 x 16.5 | 135 lbs. | 179 lbs. |
- Gas Connection: 3/4” NPT on the irght
- Clearance for combustible work area: 6” rear & 15” sides
- Altitudes over 2,000 feet may need high altitude orifice adjustments to deliver BTU output listed
