Kogan Kahcwdac16a 1.6kw Window Wall Air Conditioner User Guide

WINDOW WALL AIR CONDITIONER
KAHCWDAC16A, KAWDAC26TA & KAWDAC41TA
User Guide

SAFETY & WARNINGS

• Ensure to read all instructions in this user guide prior to first use. Retain this user guide for future reference. Misuse may cause injuries to people and damage property.
• IMPORTANT: All wiring must comply with local and national electrical codes and must be installed by a licensed electrician. If you have any questions regarding the following
  instructions, contact a licensed electrician.
• Check the available power supply and resolve any wiring problems before installing and operating this unit.
• For your safety and protection, this unit is grounded through the power cord when plugged into a matching wall outlet. If you are not sure whether your wall outlet is properly grounded, please consult a qualified electrician.
• The rating plate on the unit contains electrical and other technical data. The rating plate is located on the right side of the unit. Make sure to use the correct power supply according to the rating plate of your air conditioner.
• WARNING: This air conditioner can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Do not allow children to play with the air conditioner.
• Cleaning and user maintenance shall not be performed by children without supervision.
• To ensure safety, always switch off and cut the power supply when the air conditioner is not in use for a long time.
• If the power cord is damaged, cease use immediately and contact help.Kogan.com for support.
• Always switch off and cut the power supply before performing any maintenance or cleaning. Not doing so may cause electric shock or damage.
• Do not attempt to repair the air conditioner yourself. Incorrect repairs may cause fires or explosions. Contact a qualified service technician for all service requirements.
• Do not attempt to disassemble the air conditioner yourself.
• Do not use the air conditioner during lightning storms. The power supply should be cut in time to prevent danger.
• Do not put hands or any objects into the air inlet or air outlet. This may cause personal injury or damage to the air conditioner.
• Do not use the air conditioner for other purposes, (for example, drying clothes, or preserving foods).

Electric Shock Hazard
The air conditioner has a serial rating voltage. It must have its own fuse or circuit breaker and no other device or unit should be operated on the fuse or circuit breaker. To
avoid the possibility of personal injury, and disconnect power to the unit before installing or servicing.

CAUTION:

• The installation parts must be protected against corrosion, especially in cases where the air conditioner will be installed near the sea or hot springs.
• Do not install the air conditioner in a place where flammable gas leaks are possible. Ensure any combustible surfaces and materials are at least 10cm away from the unit during heating mode.
• The range of external static pressures at which the appliance has been tested is 0- 5Pa.

Operation

• Check the capacity of wiring and power outlet. Do not use the power outlet with other appliances connected.
• Ground the air conditioner to prevent the danger of electric shock.
• Connect the air conditioner with the power source securely. Use the fuse as below.

CAUTION:

• Before installation, turn off the operation switch and disconnect the power cord.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance.
• The appliance is fitted with means for disconnection from the supply mains, having a contact separation in all poles that provides full disconnection under overvoltage category III conditions, and these means must be incorporated in the fixed wiring in accordance with the wiring rules.

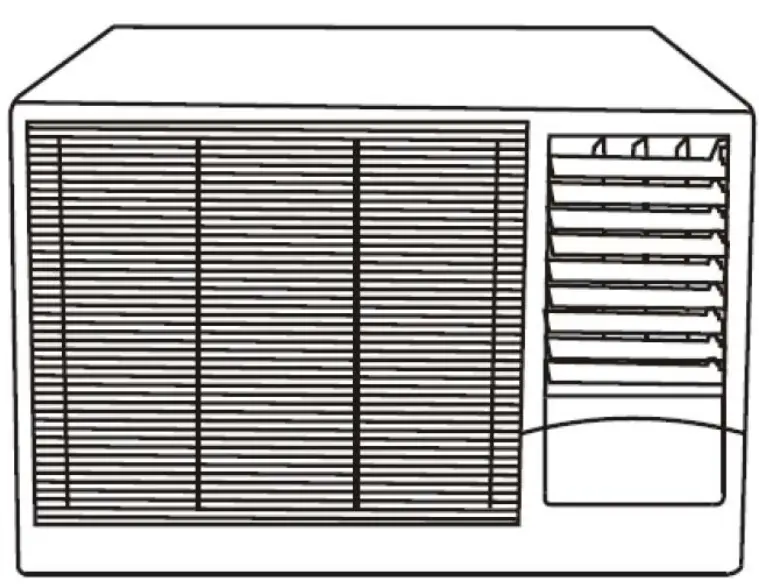

OVERVIEW

INSTALLATION

Location

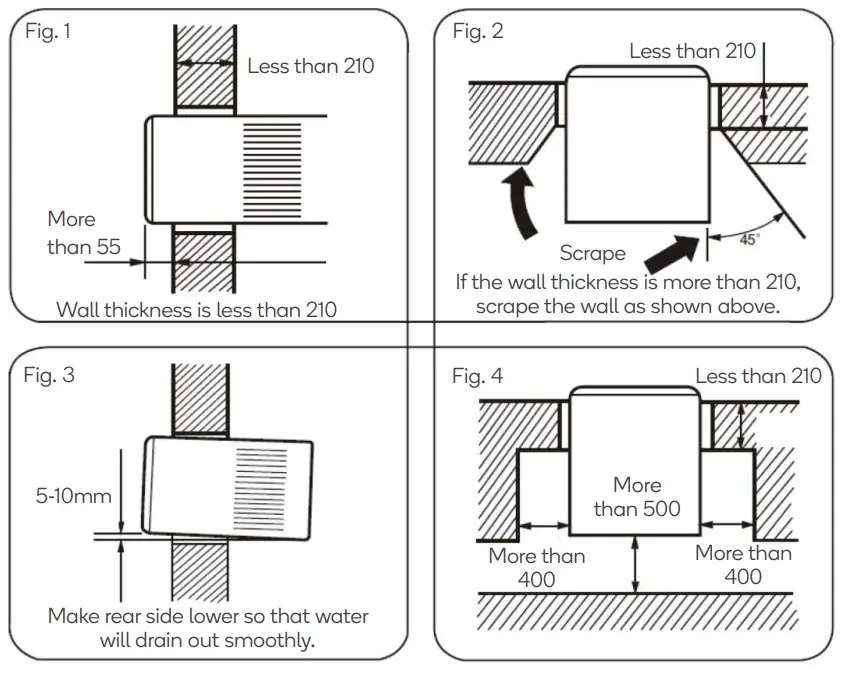

• Select a location that can support the weight of the air conditioner and will not cause increased operation noise or vibration.
• Avoid direct sunlight for efficient cooling.
• Select a place where there are no obstructions near the air inlet and outlet.

Installation instructions

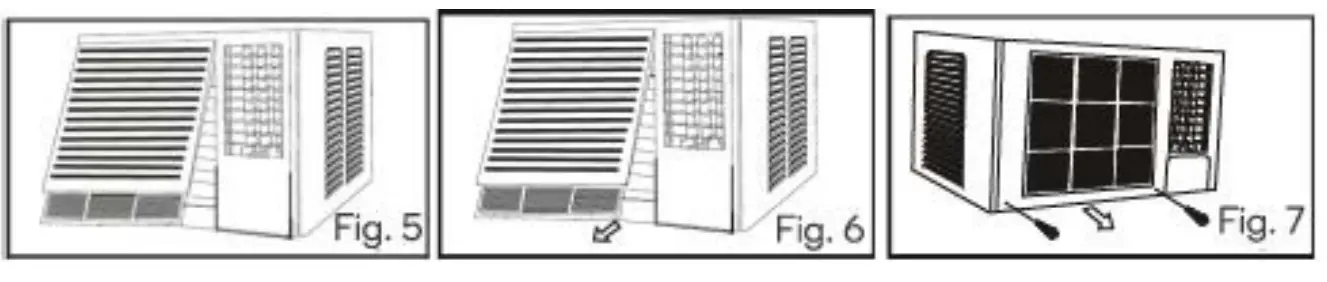

1. Remove the front panel. (Fig.5)
   Remove the air filter. (Fig.6)
   Remove screws at the bottom of the front panel. (Fig.7)
   Open the panel cover.

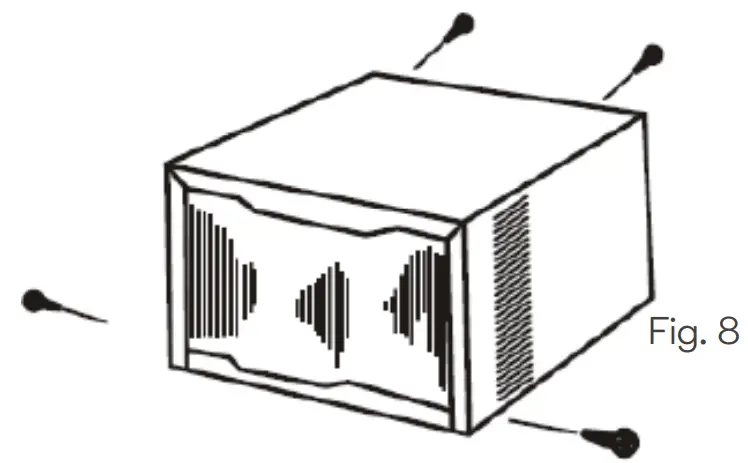

2. Remove the screws in the chassis-fixing board and cabinet. Some models have two more screws on the back of the cabinet. (Fig.8)

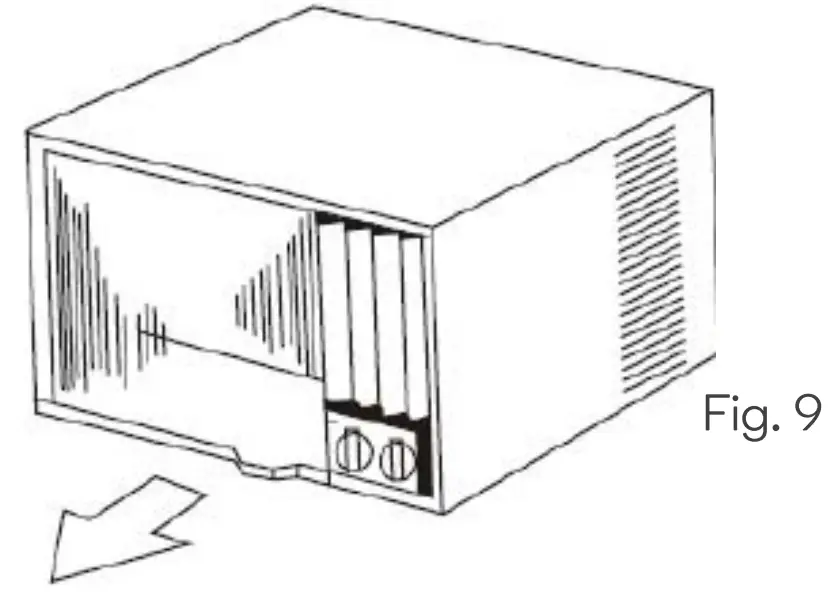

3. Grasp the handle on the front of the chassis and carefully slide the air conditioner unit out of the cabinet. (Fig.9)

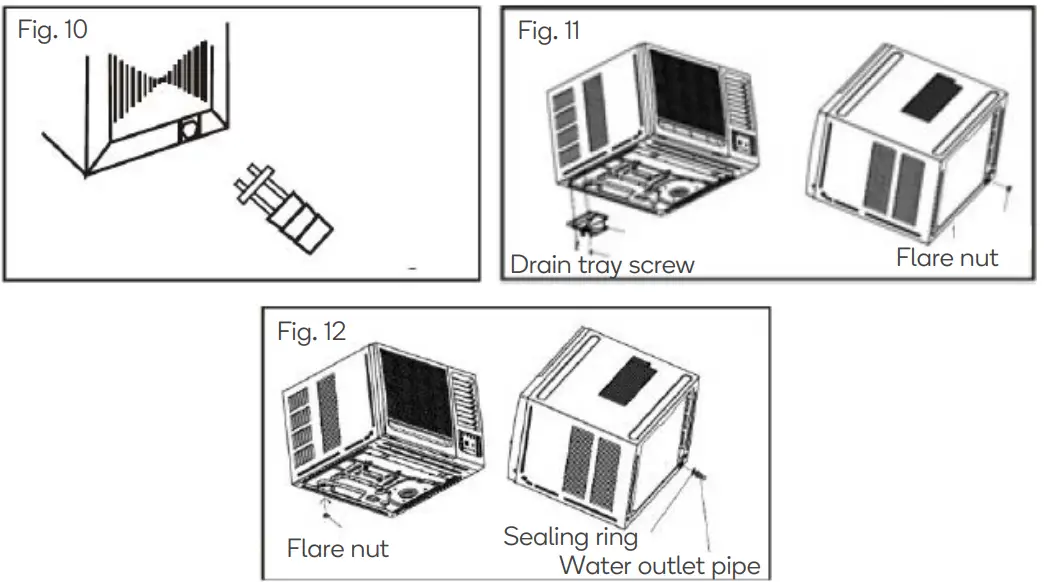

4. Install the drain tube connection into the hole provided at the rear of the air conditioner chassis. (Fig.10) (Available for single drainage method: rear drainage only).
   Bottom drainage: The drain tray is fixed in position using four screws, and the flare nut is used to block the rear drainage hole. (Fig.11)
   Rear drainage: Use the flare nut to block the bottom drainage hole and use a water outlet pipe to connect the rear drainage hole. Pay attention to the sealing ring to prevent water leakage. (Fig.12)

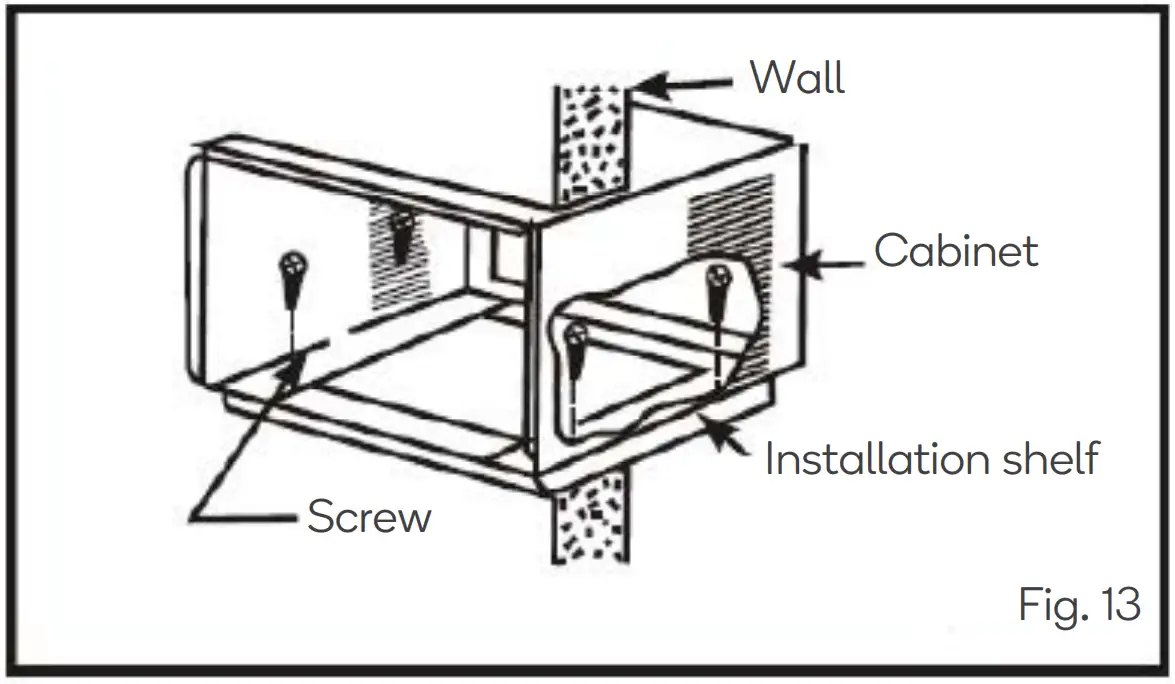

5. Install the air conditioner cabinet on the installation shelf (not included) with screws. (Fig.13)

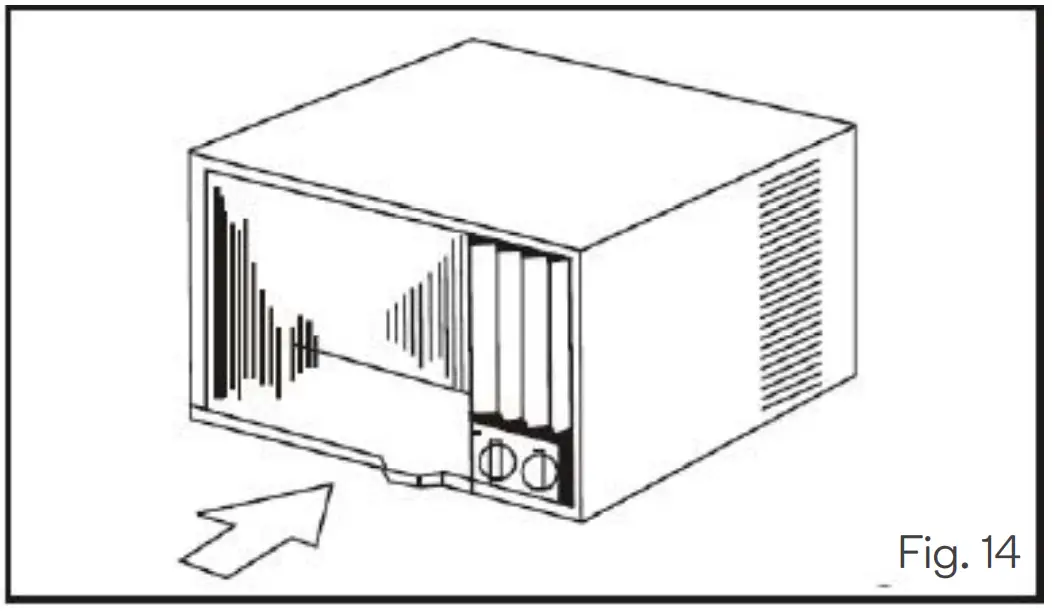

6. Carefully slide the unit back into the cabinet. (Fig.14)

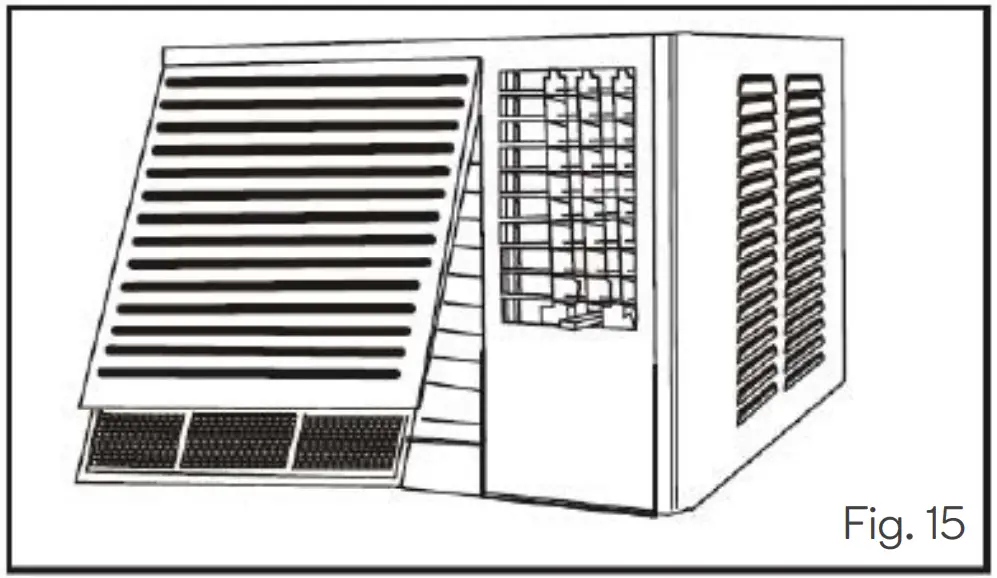

7. Reinstall the retaining bracket, front panel, and mounting screws. (Fig. 8, 7, 15)

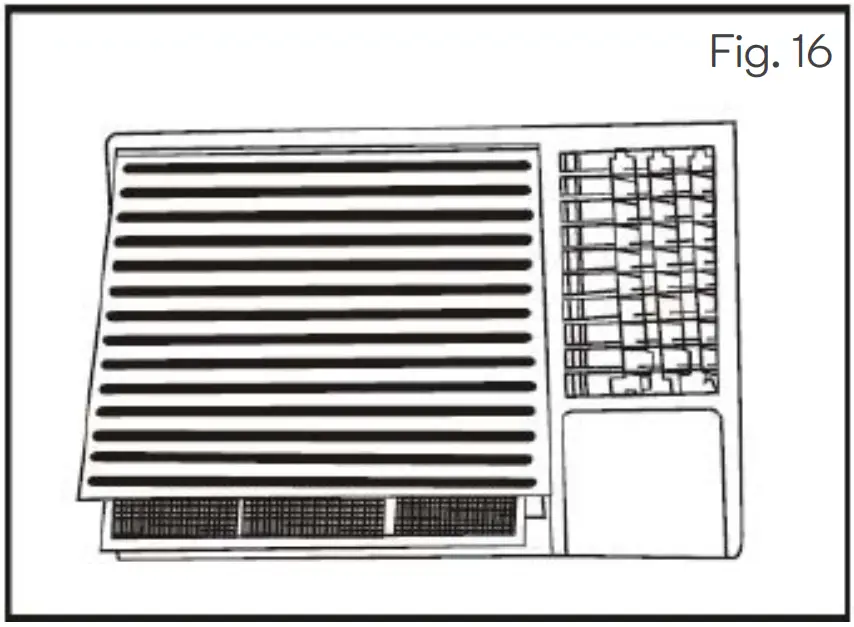

8. Reinstall the air filter. (Fig.16)

OPERATION

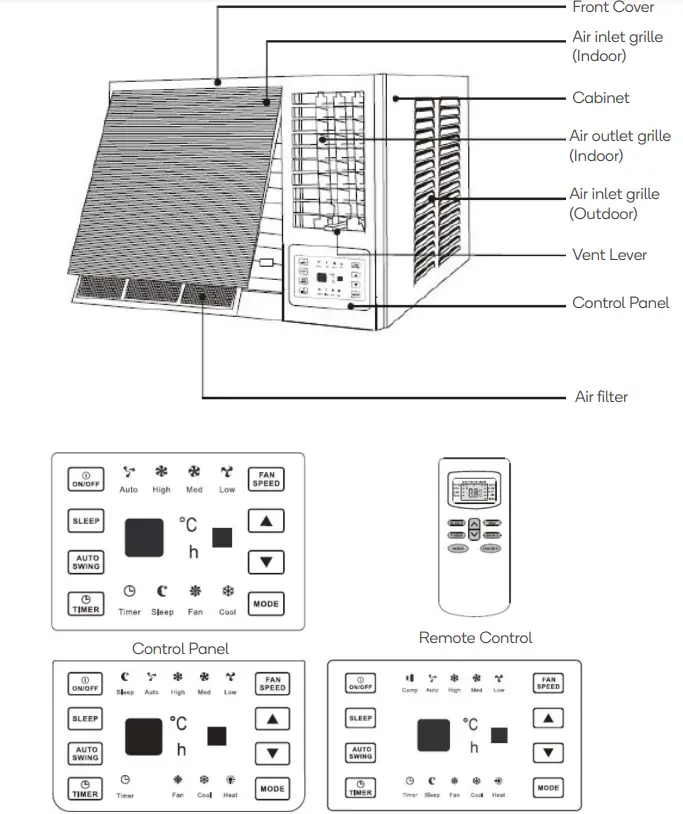

Control panel buttons

No.	Button	Function
1	AUTO SWING	Used to adjust airflow direction.
2	TIMER	•Used to set or cancel the timer operation. •When the unit is in operation, you can set the OFF TIMER. When the unit is off, you can set the ON TIMER. The timer setting range is 0 to 24 hours. •If the OFF TIMER is set, the timer LED displays the remaining time to turn off the unit for 10 seconds, then the LED shifts to display set temperature. If you press the TIMER button within 10 seconds, the OFF TIMER will be canceled. •If the ON TIMER is set, the timer LED displays the remaining time to turn on the unit. If you want to cancel. ON TIMER, press the TIMER button.
3		Used to turn the air conditioner ON/OFF.
4		Every time you press this button, the operation mode is changed in sequence: COOLING/FAN ONLY/HEATING COOLING.
5		Used to select fan speed in sequence: auto, high, mid, and low.
6		•This button is used to set room temperature mode or used to set time in TIMER mode. If the two keys are pressed at the same time for more than three seconds the
		temperature LED display will alternate between °C and °F. •Temperature setting range is from 16°C to 31°C.
7		Used to activate the SLEEP function

No.	Button	Function
1		Timer
2		Cooling
3		Heating
4		Fan only
5		Sleep
6		Display set temperature/display set timer
7		Low fan speed
8		Mid fan speed
9		High fan speed
10		Auto fan speed
11		Compressor running

Remote control
The remote control transmits signals to the system. The unit will confirm the command with a beep.

No.	Button	Function
1	(TEMP UP)	Increase the temperature or time by 1 unit
2	(TEMP DOWN)	Decrease the temperature or time by 1 unit
3	ON/OFF	To switch the unit ON/OFF
4	FAN	To select the fan speed of AUTO/LOW/MID/HIGH
5	TIMER	To set automatic switching ON/OFF
6	SLEEP	To activate the SLEEP function
7	MODE	To select the mode of operation
8	SWING	To activate or deactivate the movement of the deflectors

CLEANING & CARE

Air filter

• The air filter should be washed at least once a month. If the air filter remains full of dust, the airflow will decrease, and the cooling capacity will be reduced.
• The filter is behind the cover and can be pulled out from the right-hand side.
• Wash the air filter with water and mild detergent.
• Rinse with clean water and dry it before reinstalling.

CAUTION:

• Do not use hot water above 40°C for washing the air filter.
• Let the filter dry thoroughly in the shade before reinstalling. Do not expose it to direct sunlight.
• Do not operate the air conditioner with the filter removed.

Long off-period maintenance

• Operate the fan alone (“LOW FAN” or “HIGH FAN”) for half a day to dry out the inside of the unit.
• Turn off the power and remove the plug from the power outlet.
• After a long off-period and when you are about to use the air conditioner again, clean the condenser (at the rear) and evaporator (at the front) fins by using a soft brush or vacuum cleaner.

CAUTION: Be careful not to damage the fins during cleaning.

Air cleaning filter
The air-cleaning filter is attached to the air filter. Wash the air cleaning filter as well when washing the air filter.

Front cover

• The front cover will accumulate dirt and dust. To clean it, wipe it with a soft dry cloth. When it is excessively dirty, wipe it with a soft cloth dampened with warm water or mild soap, and then wipe it again thoroughly with a soft dry cloth.
• Never use hot water above 50°C, benzene, gasoline, acid, thinner, or brushes to wipe off dirt, as they will damage the plastic surface and the coating.

SPECIFICATIONS

Disposal

• Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. • Contact your local government for information regarding the collection systems available. • If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
