Honeywell Hf715be Turbo Force Power Digital Osccillating Floor Fan Instruction Manual

TURBO FORCE™ POWER DIGITAL
HF715BE
OSCILLATING FLOOR FAN
Operation Instructions

HF715BE Turbo Force Power Digital Oscillating Floor Fan

IMPORTANT SAFETY INSTRUCTIONS

Read through all the instructions before starting to use the appliance. Keep this manual in a safe place for future reference.
These instructions are also available on our website. Please visit www.hoteurope.com.

• This appliance must only be operated as instructed in this user manual.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not touch the rotating fan blades with any part of the body. This can cause personal injury and damage.
• Clean the appliance regularly by following the “Cleaning” section.
• This appliance is only designed for indoor use.
• Always switch the appliance off when not in use, during cleaning, or transport.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• Do not use this appliance if it is damaged or shows any signs of possible damage, or if it is not functioning properly. Disconnect the power plug from the power socket.

COMPONENTS

1. Grille
2. LED Control panel
3. Base
4. Power cord
5. Remote control
6. Carrying handle
7. Power button
8. Fan speed setting
9. Oscillation
10. Auto-off timer

INTRODUCTION

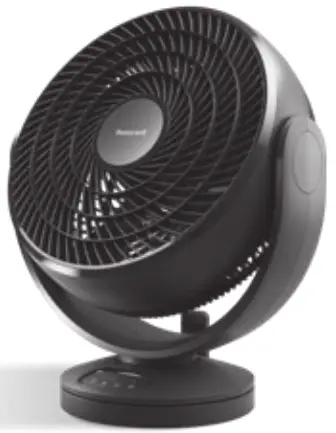

The Turbo Force™ Power Digital Oscillating Floor Fan is aerodynamically designed to give you the versatility of changing this fan’s angular direction simply by adjusting the fan to the desired angular output (Fig. 1). Upon using this fan, you will feel a strong and powerful air stream that will quickly move air to provide a cooling effect.

OPERATING INSTRUCTIONS

ON/OFF and SPEED CONTROL (See page 1, fig. 2)
Be sure the fan is in the OFF position.
Place your fan on a dry, level surface.
Plug the power cord into a wall outlet.
ON/OFF
push the ( ) button. The unit will default to the HIGH fan speed.
To operate, press the ( ) button on the desired fan speed: HIGH ( ), MEDIUM ( ) or LOW ( ).
LEDs will light each speed as you press the ( ) button to change the fan speed.

OSCILLATION

To activate the wide-area oscillation feature, press the oscillation button once ( ).
Press the Oscillation button again to turn the Oscillation feature off.
AUTO-OFF TIMER OPTION
To activate the Auto-Off Timer option choose from 1, 2 or 4-hour settings by pressing the timer ( ) button.
1 hour: Press the Timer button ( ) once.
2 hours: Press the Timer button ( ) twice.
4 hours: Press the Timer button ( ) a third time.
Press the Timer button ( ) a fourth time to turn the Timer feature off.
ANGULAR OUTPUT
Adjust the fan to the desired angular air output direction.
The fan head pivots 90 degrees.
REMOTE CONTROL OPERATION
(See page 1, fig. 5)
ON/OFF
Remove the remote control from the back of the fan. The remote control will not work while in the fan housing. Press the Power button ( ) once to turn the fan on. Press the Power button a second time to turn the fan off.
SPEED CONTROL
To adjust the speed up or down, press the Fan Speed button ( ) repeatedly to increase the level.
Press the button once for HIGH
Press the button twice for MEDIUM
Press the button three times for LOW
TIMER

• Choose from 1, 2 or 4-hour settings by performing the following function:
• 1 hour: Press the Timer button ( ) once.
• 2 hours: Press the Timer button ( ) twice.
• 4 hours: Press the Timer button ( ) a third time.
• Press the Timer button ( ) a fourth time to turn the Timer features off.

OSCILLATION
Press the button once ( ) for the ON
Press the button again for OFF

CLEANING AND STORAGE

• Ensure the fan is turned off and unplugged.
•  Use only a soft cloth to gently wipe the outer surfaces of the fan clean.
• Do not immerse the fan in water and NEVER allow water to drip into the motor housing.
• Do not use gasoline, paint thinner, or other chemicals to clean the fan.
•  Store your fan in the original box or cover the fan to protect it from dust and debris. Store the fan in a cool, dry place.
• Do not wrap the power cord around the base of the fan. This could result in damage to the power cord.

DISPOSAL

This appliance complies with EU legislation 2012/19/EU on the end of life recycling. Products showing the ‘Crossed Through’ wheeled bin symbol on either the rating label, gift box or instructions must be recycled separately from household waste at the end of their useful life. Please DO NOT dispose of appliances in normal household waste. Your local appliance retailer may operate a ‘take-back’ scheme when you are ready to purchase a replacement product, alternatively contact your local government authority for further help and advice on where to take your appliance for recycling.

GUARANTEE

Please read all instructions before attempting to use this device. Please retain the receipt as proof of and date of purchase. The receipt must be presented when making any claim within the relevant guarantee period. Any claim under the guarantee will not be valid without proof of purchase.
Your device is guaranteed for three Years (3 Years) from the date of purchase.
This guarantee covers defects in materials or workmanship that occur under normal use; defective devices meeting these criteria will be replaced free of charge.
The guarantee DOES NOT cover defects or damage resulting from abuse or failure to follow the user instructions. The guarantee becomes void if the device is opened, tampered with or used with other parts or accessories, or if repairs are undertaken by unauthorised persons.
Accessories and consumables are excluded from any warranty.
For support requests, please visit www.helenoftroy.com/emea-en/support/ or find service contact information at the end of this owner’s manual.
This Guarantee is applicable to Europe, Russia, Middle East and Africa only.
UK Only: This does not affect your consumer statutory rights.
The LOT and SN of your device are printed on the rating label on the packaging of the product.

CONDITION OF PURCHASE

As condition of purchase the purchaser assumes responsibility for the correct use and care of this product according to these user instructions. The purchaser or user must himself or herself decide when and for how long this product is in use.
WARNING: IF PROBLEMS ARISE WITH THIS PRODUCT, PLEASE OBSERVE THE INSTRUCTIONS IN THE GUARANTEE CONDITIONS. DO NOT ATTEMPT TO OPEN OR REPAIR THE PRODUCT YOURSELF, AS THIS COULD LEAD TO TERMINATION OF THE GUARANTEE AND CAUSE
DAMAGE TO PERSONS AND PROPERTY.
This product carries the CE mark and is manufactured in conformity with the Electromagnetic Directive 2014/30/EU, the Low Voltage Directive 2014/35/ EU, the RoHS Directive 2011/65/EU and the Energy Using Products Directive 2009/125/EC.
Technical modifications reserved
HF715BE
220-240VAC ~ 50Hz 70W

SUPPORT CONTACT NUMBERS

Austria +43 (0)1 360 277 1225 Bahrain +973 1725 1988 Belgium/Luxemburg +32 (0) 2 620 01 01 Bosnia +387 (33) 902 911 Bulgaria +35 929 358 684 Croatia +385 (01) 3444 856 Cyprus +357 22575016 Cyprus Northern region +0392 22 72 367 Czech Republic +420 (0) 2 25 43 97 69 Denmark +45 35 15 80 40 Finland +358 (0)9 81 71 00 14 France +33 (0) 1 85 14 80 95 Germany +49 (0) 21 173 749 003 Greece +30 211 180 94 56 Hungary +36 (06) 1 429 2216

Iceland +354 555 3100 Ireland (The Republic Of) +353 (0) 1 525 1809 Israel +1 800250221 Italy +39 02 3859 1183 Jordan +962 6 582 0112-3-4-5 Kuwait +965 1 88 55 22 Lebanon +961 1 696 999 Netherlands +31 (0) 78 201 8001 Norway +47 23 50 01 20 Poland +48 22 512 39 02 Portugal +351 21 060 8045 Qatar +974 4437 3644 Romania + 40 (0) 264 406488 Saudi-Arabia +966 3 8692244 Western Region – Jeddah +966 (0) 22565555

Central Region – Riyadh +966 (0) 12886808 Eastern Region – Al-Khobar +966 (0) 38940555 South Region – Abha +966 (0) 72376062 Slovakia +421 2 5011 2115 Slovenia +386 (01) 888 86 74 South Africa +27 (0) 21 460 1969 Spain + 34 913 754 176 Sweden +46 (0)8 5199 3097 Switzerland +41 (0) 22 567 5200 Tunisia +216 71716880 Turkey +90 216 337 22 55 UAE + 971 4 269 1230 United Kingdom/Northern Ireland +44 (0) 207 949 0115

Kaz Europe Sàrl A Helen of Troy Company Place Chauderon 18 CH-1003 Lausanne, Switzerland © 2021, All rights reserved. www.helenoftroy.com/emea-en/

Honeywell is a trademark of Honeywell International Inc., used under license by Helen of Troy Limited. Honeywell International Inc. makes no representation or warranties with respect to this product.  Turbo Force™ is a trademark of Helen of Troy Limited. HF715BE 04MAY21 P/N: A003825R0
