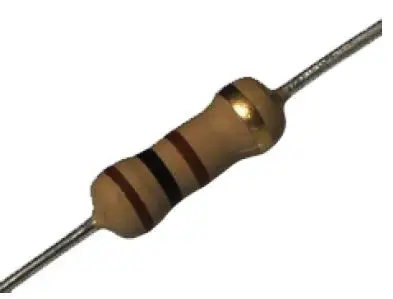

multicomp Carbon Film Fixed Resistor Axial Leaded
Features
- Automatically insertable
- High quality performance
- Non-Flame type available
- Cost effective and commonly used
- Too low or too high values can be supplied on case to case basis
Performance Specification
Temperature Coefficient :
≤10Ω : ±350PPM/°C
11Ω to 99kΩ : 0 to -450PPM/°C
100kΩ to 1MΩ : 0 to -700PPM/°C
1.1MΩ to 10MΩ : 0 to -1500PPM/°C
Short Time Overload: ±(1% +0.05Ω)Max. with no evidence of mechanical damage
Insulation Resistance: Min. 1,000MΩ
Dielectric Withstanding Voltage : No evidence of flashover, mechanical damage, arcing or insulation breakdown.
Terminal Strength: No evidence of mechanical damage.
Resistance to Soldering Heat: ±(1% +0.05Ω)Max. with no evidence of mechanical damage.
Solderability : Min. 95% coverage
Temperature Cycling : ±(1% +0.05Ω) Max. with no evidence of mechanical damage

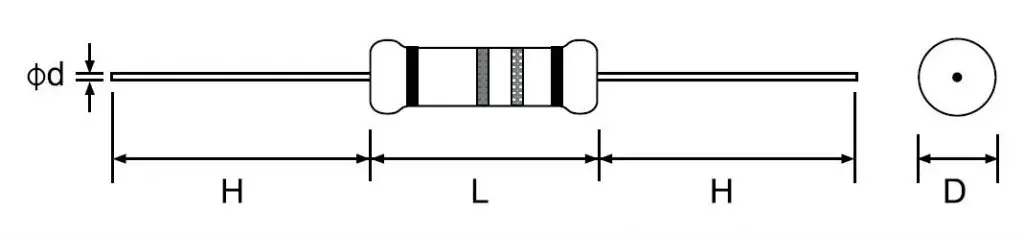

Dimension
| Power Rating at 70°C | Dimension (mm) | Resistance Range | Max. Working Voltage | Max. Overload Voltage | Dielectric Withstanding Voltage | ||||
| D Max. | L Max. | H ±3 | d ±0.05 | PT | |||||
| 1/8W (0.125W) | 1.85 | 3.5 |
28 | 0.45 | 52 | 1Ω to 1MΩ | 200 | 400 | 400 |
| 1/4W (0.25W) | 2.5 | 6.8 | 0.54 | 52 |
1Ω to 10MΩ | 250 | 500 | 500 | |
| 1/2W (0.5W) | 3.5 | 10 | 0.54 | 52 | 350 | 700 | 700 | ||
| 1W | 5.5 | 16 | 0.7 | 64 | 500 | 1,000 | 1,000 | ||
| 2W | 6.5 | 17.5 | 0.75 | 64 | 500 | 1,000 | 1,000 | ||
Note:
Standard beige base colour
Standard grayish-green colour (Non-flammable coating) for CFRFU2 (CFR-50-SS) and CFRF1U (CFR-100-SS) Ohmic values outside the standard range available on a case to sase basis

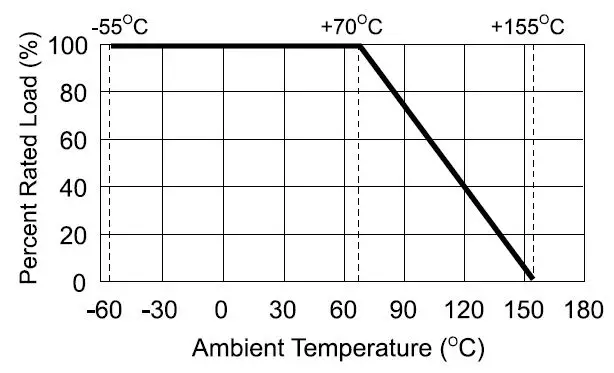

Derating Curve
Current Noise

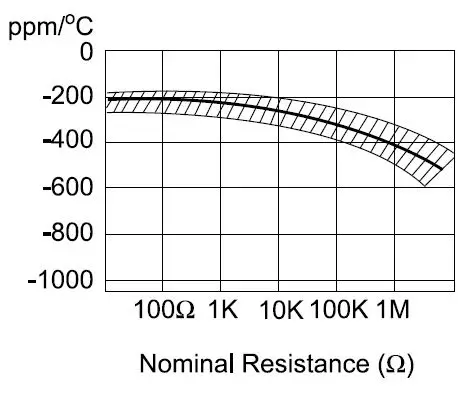

Temp. Coefficient
Part Number Table
| Description | Part Number |
| Resistor, Carbon Film, 125mW, 1R | MCRE000001 |
| Resistor, Carbon Film, 125mW, 1R2 | MCRE000002 |
| Resistor, Carbon Film, 125mW, 1R5 | MCRE000003 |
| Resistor, Carbon Film, 125mW, 1R8 | MCRE000004 |
| Resistor, Carbon Film, 125mW, 2R2 | MCRE000005 |
| Resistor, Carbon Film, 125mW, 2R7 | MCRE000006 |
| Resistor, Carbon Film, 125mW, 3R3 | MCRE000007 |
| Resistor, Carbon Film, 125mW, 3R9 | MCRE000008 |
| Resistor, Carbon Film, 125mW, 4R7 | MCRE000009 |
| Resistor, Carbon Film, 125mW, 5R6 | MCRE000010 |
| Resistor, Carbon Film, 125mW, 6R8 | MCRE000011 |
| Resistor, Carbon Film, 125mW, 8R2 | MCRE000012 |
| Resistor, Carbon Film, 125mW, 10R | MCRE000013 |
| Resistor, Carbon Film, 125mW, 12R | MCRE000014 |
| Resistor, Carbon Film, 125mW, 15R | MCRE000015 |
| Resistor, Carbon Film, 125mW, 18R | MCRE000016 |
| Resistor, Carbon Film, 125mW, 22R | MCRE000017 |
| Resistor, Carbon Film, 125mW, 27R | MCRE000018 |
| Resistor, Carbon Film, 125mW, 33R | MCRE000019 |
| Resistor, Carbon Film, 125mW, 39R | MCRE000020 |
| Resistor, Carbon Film, 125mW, 47R | MCRE000021 |
| Resistor, Carbon Film, 125mW, 56R | MCRE000022 |
| Resistor, Carbon Film, 125mW, 68R | MCRE000023 |
| Resistor, Carbon Film, 125mW, 82R | MCRE000024 |
| Resistor, Carbon Film, 125mW, 100R | MCRE000025 |
| Resistor, Carbon Film, 125mW, 120R | MCRE000026 |
| Resistor, Carbon Film, 125mW, 150R | MCRE000027 |
| Resistor, Carbon Film, 125mW, 180R | MCRE000028 |
| Resistor, Carbon Film, 125mW, 220R | MCRE000029 |
| Resistor, Carbon Film, 125mW, 270R | MCRE000030 |
| Resistor, Carbon Film, 125mW, 330R | MCRE000031 |
| Resistor, Carbon Film, 125mW, 390R | MCRE000032 |
| Resistor, Carbon Film, 125mW, 470R | MCRE000033 |
| Resistor, Carbon Film, 125mW, 560R | MCRE000034 |
| Resistor, Carbon Film, 125mW, 680R | MCRE000035 |
| Resistor, Carbon Film, 125mW, 820R | MCRE000036 |
| Resistor, Carbon Film, 1K, 125mW, 5% | MCRE000037 |
| Description | Part Number |
| Resistor, Carbon Film, 125mW, 1K2 | MCRE000038 |
| Resistor, Carbon Film, 125mW, 1K5 | MCRE000039 |
| Resistor, Carbon Film, 125mW, 1K8 | MCRE000040 |
| Resistor, Carbon Film, 125mW, 2K2 | MCRE000041 |
| Resistor, Carbon Film, 125mW, 2K7 | MCRE000042 |
| Resistor, Carbon Film, 125mW, 3K3 | MCRE000043 |
| Resistor, Carbon Film, 125mW, 3K9 | MCRE000044 |
| Resistor, Carbon Film, 4.7K, 125mW, 5% | MCRE000045 |
| Resistor, Carbon Film, 125mW, 5K6 | MCRE000046 |
| Resistor, Carbon Film, 125mW, 6K8 | MCRE000047 |
| Resistor, Carbon Film, 125mW, 8K2 | MCRE000048 |
| Resistor, Carbon Film, 10K, 125mW, 5% | MCRE000049 |
| Resistor, Carbon Film, 125mW, 12K | MCRE000050 |
| Resistor, Carbon Film, 125mW, 15K | MCRE000051 |
| Resistor, Carbon Film, 125mW, 18K | MCRE000052 |
| Resistor, Carbon Film, 125mW, 22K | MCRE000053 |
| Resistor, Carbon Film, 125mW, 27K | MCRE000054 |
| Resistor, Carbon Film, 125mW, 33K | MCRE000055 |
| Resistor, Carbon Film, 125mW, 39K | MCRE000056 |
| Resistor, Carbon Film, 125mW, 47K | MCRE000057 |
| Resistor, Carbon Film, 125mW, 56K | MCRE000058 |
| Resistor, Carbon Film, 125mW, 68K | MCRE000059 |
| Resistor, Carbon Film, 125mW, 82K | MCRE000060 |
| Resistor, Carbon Film, 100K, 125mW, 5% | MCRE000061 |
| Resistor, Carbon Film, 125mW, 120K | MCRE000062 |
| Resistor, Carbon Film, 125mW, 150K | MCRE000063 |
| Resistor, Carbon Film, 125mW, 180K | MCRE000064 |
| Resistor, Carbon Film, 125mW, 220K | MCRE000065 |
| Resistor, Carbon Film, 125mW, 270K | MCRE000066 |
| Resistor, Carbon Film, 125mW, 330K | MCRE000067 |
| Resistor, Carbon Film, 125mW, 390K | MCRE000068 |
| Resistor, Carbon Film, 125mW, 470K | MCRE000069 |
| Resistor, Carbon Film, 125mW, 560K | MCRE000070 |
| Resistor, Carbon Film, 125mW, 680K | MCRE000071 |
| Resistor, Carbon Film, 125mW, 820K | MCRE000072 |
| Resistor, Carbon Film, 125mW, 1M | MCRE000073 |
| Resistor, Carbon Film, 125mW, 1M2 | MCRE000074 |
| Description | Part Number |
| Resistor, Carbon Film, 125mW, 1M5 | MCRE000075 |
| Resistor, Carbon Film, 125mW, 1M8 | MCRE000076 |
| Resistor, Carbon Film, 125mW, 2M2 | MCRE000077 |
| Resistor, Carbon Film, 125mW, 2M7 | MCRE000078 |
| Resistor, Carbon Film, 125mW, 3M3 | MCRE000079 |
| Resistor, Carbon Film, 125mW, 3M9 | MCRE000080 |
| Resistor, Carbon Film, 125mW, 4M7 | MCRE000081 |
| Resistor, Carbon Film, 125mW, 5M6 | MCRE000082 |
| Resistor, Carbon Film, 125mW, 6M8 | MCRE000083 |
| Resistor, Carbon Film, 125mW, 8M2 | MCRE000084 |
| Resistor, Carbon Film, 125mW, 10M | MCRE000085 |
| Resistor, 500mW 5% 1M2 | MCF 0.5W 1M2 |
| Resistor, 250mW 5% 1M2 | MCF 0.25W 1M2 |
| Resistor, 250mW 5% 1M5 | MCF 0.25W 1M5 |
| Resistor, 250mW 5% 1M8 | MCF 0.25W 1M8 |
| Resistor, 250mW 5% 2M2 | MCF 0.25W 2M2 |
| Resistor, 2.2K, 500mW, 5% | MCF 0.5W 2K2 |
| Resistor, 500mW 5% 27R | MCF 0.5W 27R |
| Resistor, 500mW 5% 270R | MCF 0.5W 270R |
| Resistor, 500mW 5% 27K | MCF 0.5W 27K |
| Resistor, 500mW 5% 270K | MCF 0.5W 270K |
| Resistor, 250mW 5% 33R | MCF 0.25W 33R |
| Resistor, 250mW 5% 390R | MCF 0.25W 390R |
| Resistor, 250mW 5% 390K | MCF 0.25W 390K |
| Resistor, 250mW 5% 2M7 | MCF 0.25W 2M7 |
| Resistor, 250mW 5% 3M3 | MCF 0.25W 3M3 |
| Resistor, 250mW 5% 3M9 | MCF 0.25W 3M9 |
| Resistor, 250mW 5% 4M7 | MCF 0.25W 4M7 |
| Resistor, 250mW 5% 5M6 | MCF 0.25W 5M6 |
| Resistor, 250mW 5% 6M8 | MCF 0.25W 6M8 |
| Resistor, 250mW 5% 8M2 | MCF 0.25W 8M2 |
| Resistor, 250mW 5% 10M | MCF 0.25W 10M |
| Resistor, 500mW 5% 1M5 | MCF 0.5W 1M5 |
| Resistor, 500mW 5% 1M8 | MCF 0.5W 1M8 |
| Resistor, 500mW 5% 2M2 | MCF 0.5W 2M2 |
| Resistor, 500mW 5% 2M7 | MCF 0.5W 2M7 |
| Resistor, 500mW 5% 3M3 | MCF 0.5W 3M3 |
| Description | Part Number |
| Resistor, 500mW 5% 3M9 | MCF 0.5W 3M9 |
| Resistor, 500mW 5% 4M7 | MCF 0.5W 4M7 |
| Resistor, 500mW 5% 5M6 | MCF 0.5W 5M6 |
| Resistor, 500mW 5% 8M2 | MCF 0.5W 8M2 |
| Resistor, 500mW 5% 6M8 | MCF 0.5W 6M8 |
| Resistor, Carbon Film, 250mW, 10K | MCCFR0W4J0103A50 |
| Resistor, 500mW 5% 2R2 | MCF 0.5W 2R2. |
| Resistor, 1,000mW 5% 1R | MCF 1W 1R.. |
| Resistor, 1,000mW 5% 3R3 | MCF 1W 3R3. |
| Resistor, 1,000mW 5% 10R | MCF 1W 10R |
| Resistor, 100R, 1,000mW, 5% | MCF 1W 100R |
| Resistor, 1K, 1,000mW, 5% | MCF 1W 1K |
| Resistor, 10K, 1,000mW, 5% | MCF 1W 10K |
| Resistor, 1,000mW 5% 100K | MCF 1W 100K |
| Resistor, 1,000mW 5% 1M | MCF 1W 1M |
| Resistor, 1,000mW 5% 1R | MCF 1W 1R. |
| Resistor, 1,000mW 5% 15R | MCF 1W 15R |
| Resistor, 1,000mW 5% 150R | MCF 1W 150R |
| Resistor, 1,000mW 5% 1K5 | MCF 1W 1K5 |
| Resistor, 1,000mW 5% 15K | MCF 1W 15K |
| Resistor, 1,000mW 5% 150K | MCF 1W 150K |
| Resistor, 1,000mW 5% 1R5 | MCF 1W 1R5 |
| Resistor, 1,000mW 5% 22R | MCF 1W 22R |
| Resistor, 1,000mW 5% 220R | MCF 1W 220R |
| Resistor, 1,000mW 5% 2K2 | MCF 1W 2K2 |
| Resistor, 1,000mW 5% 22K | MCF 1W 22K |
| Resistor, 1,000mW 5% 220K | MCF 1W 220K |
| Resistor, 1,000mW 5% 2R2 | MCF 1W 2R2 |
| Resistor, 1,000mW 5% 33R | MCF 1W 33R |
| Resistor, 1,000mW 5% 330R | MCF 1W 330R |
| Resistor, 1,000mW 5% 3K3 | MCF 1W 3K3 |
| Resistor, 1,000mW 5% 33K | MCF 1W 33K |
| Resistor, 1,000mW 5% 330K | MCF 1W 330K |
| Resistor, 1,000mW 5% 3R3 | MCF 1W 3R3 |
| Resistor, 1,000mW 5% 47R | MCF 1W 47R |
| Resistor, 1,000mW 5% 470R | MCF 1W 470R |
| Resistor, 1,000mW 5% 4K7 | MCF 1W 4K7 |
| Description | Part Number |
| Resistor, 1,000mW 5% 47K | MCF 1W 47K |
| Resistor, 1,000mW 5% 470K | MCF 1W 470K |
| Resistor, 1,000mW 5% 4R7 | MCF 1W 4R7 |
| Resistor, 1,000mW 5% 5K6 | MCF 1W 5K6 |
| Resistor, 1,000mW 5% 68R | MCF 1W 68R |
| Resistor, 1,000mW 5% 680R | MCF 1W 680R |
| Resistor, 1,000mW 5% 6K8 | MCF 1W 6K8 |
| Resistor, 1,000mW 5% 68K | MCF 1W 68K |
| Resistor, 1,000mW 5% 680K | MCF 1W 680K |
| Resistor, 1,000mW 5% 6R8 | MCF 1W 6R8 |
| Resistor, 2,000mW 5% 10R | MCF 2W 10R |
| Resistor, 2,000mW 5% 100R | MCF 2W 100R |
| Resistor, 2,000mW 5% 1K | MCF 2W 1K |
| Resistor, 2,000mW 5% 10K | MCF 2W 10K |
| Resistor, 2,000mW 5% 100K | MCF 2W 100K |
| Resistor, 2,000mW 5% 1M | MCF 2W 1M |
| Resistor, 2,000mW 5% 15R | MCF 2W 15R |
| Resistor, 2,000mW 5% 150R | MCF 2W 150R |
| Resistor, 2,000mW 5% 1K5 | MCF 2W 1K5 |
| Resistor, 2,000mW 5% 15K | MCF 2W 15K |
| Resistor, 2,000mW 5% 150K | MCF 2W 150K |
| Resistor, 2,000mW 5% 22R | MCF 2W 22R |
| Resistor, 2,000mW 5% 220R | MCF 2W 220R |
| Resistor, 2,000mW 5% 2K2 | MCF 2W 2K2 |
| Resistor, 2,000mW 5% 22K | MCF 2W 22K |
| Resistor, 2,000mW 5% 220K | MCF 2W 220K |
| Resistor, 2,000mW 5% 33R | MCF 2W 33R |
| Resistor, 2,000mW 5% 330R | MCF 2W 330R |
| Resistor, 2,000mW 5% 3K3 | MCF 2W 3K3 |
| Resistor, 2,000mW 5% 33K | MCF 2W 33K |
| Resistor, 2,000mW 5% 330K | MCF 2W 330K |
| Resistor, 2,000mW 5% 47R | MCF 2W 47R |
| Resistor, 2,000mW 5% 470R | MCF 2W 470R |
| Resistor, 2,000mW 5% 4K7 | MCF 2W 4K7 |
| Resistor, 2,000mW 5% 47K | MCF 2W 47K |
| Resistor, 2,000mW 5% 470K | MCF 2W 470K |
| Resistor, 2,000mW 5% 68R | MCF 2W 68R |
| Description | Part Number |
| Resistor, 2,000mW 5% 680R | MCF 2W 680R |
| Resistor, 2,000mW 5% 6K8 | MCF 2W 6K8 |
| Resistor, 2,000mW 5% 68K | MCF 2W 68K |
| Resistor, 2,000mW 5% 680K | MCF 2W 680K |
| Resistor, 500mW 5% 10R | MCF 0.5W 10R |
| Resistor, 500mW 5% 100R | MCF 0.5W 100R |
| Resistor, 1K, 500mW, 5% | MCF 0.5W 1K |
| Resistor, 10K, 500mW, 5% | MCF 0.5W 10K |
| Resistor, 500mW 5% 100K | MCF 0.5W 100K |
| Resistor, 500mW 5% 1M | MCF 0.5W 1M |
| Resistor, 500mW 5% 10M | MCF 0.5W 10M |
| Resistor, 500mW 5% 1R | MCF 0.5W 1R |
| Resistor, 500mW 5% 12R | MCF 0.5W 12R |
| Resistor, 500mW 5% 120R | MCF 0.5W 120R |
| Resistor, 500mW 5% 1K2 | MCF 0.5W 1K2 |
| Resistor, 500mW 5% 12K | MCF 0.5W 12K |
| Resistor, 500mW 5% 120K | MCF 0.5W 120K |
| Resistor, 500mW 5% 15R | MCF 0.5W 15R |
| Resistor, 500mW 5% 150R | MCF 0.5W 150R |
| Resistor, 500mW 5% 1K5 | MCF 0.5W 1K5 |
| Resistor, 500mW 5% 15K | MCF 0.5W 15K |
| Resistor, 500mW 5% 150K | MCF 0.5W 150K |
| Resistor, 500mW 5% 1R5 | MCF 0.5W 1R5 |
| Resistor, 500mW 5% 18R | MCF 0.5W 18R |
| Resistor, 500mW 5% 180R | MCF 0.5W 180R |
| Resistor, 500mW 5% 1K8 | MCF 0.5W 1K8 |
| Resistor, 500mW 5% 18K | MCF 0.5W 18K |
| Resistor, 500mW 5% 180K | MCF 0.5W 180K |
| Resistor, 500mW 5% 22R | MCF 0.5W 22R |
| Resistor, 500mW 5% 220R | MCF 0.5W 220R |
| Resistor, 500mW 5% 22K | MCF 0.5W 22K |
| Resistor, 500mW 5% 220K | MCF 0.5W 220K |
| Resistor, 500mW 5% 2R2 | MCF 0.5W 2R2 |
| Resistor, 500mW 5% 2K7 | MCF 0.5W 2K7 |
| Resistor, 500mW 5% 33R | MCF 0.5W 33R |
| Resistor, 500mW 5% 330R | MCF 0.5W 330R |
| Resistor, 500mW 5% 3K3 | MCF 0.5W 3K3 |
| Description | Part Number |
| Resistor, 500mW 5% 33K | MCF 0.5W 33K |
| Resistor, 500mW 5% 330K | MCF 0.5W 330K |
| Resistor, 500mW 5% 3R3 | MCF 0.5W 3R3 |
| Resistor, 500mW 5% 39R | MCF 0.5W 39R |
| Resistor, 500mW 5% 390R | MCF 0.5W 390R |
| Resistor, 500mW 5% 3K9 | MCF 0.5W 3K9 |
| Resistor, 500mW 5% 39K | MCF 0.5W 39K |
| Resistor, 500mW 5% 390K | MCF 0.5W 390K |
| Resistor, 500mW 5% 47R | MCF 0.5W 47R |
| Resistor, 500mW 5% 470R | MCF 0.5W 470R |
| Resistor, 500mW 5% 4K7 | MCF 0.5W 4K7 |
| Resistor, 500mW 5% 47K | MCF 0.5W 47K |
| Resistor, 500mW 5% 470K | MCF 0.5W 470K |
| Resistor, 500mW 5% 4R7 | MCF 0.5W 4R7 |
| Resistor, 500mW 5% 56R | MCF 0.5W 56R |
| Resistor, 500mW 5% 560R | MCF 0.5W 560R |
| Resistor, 500mW 5% 5K6 | MCF 0.5W 5K6 |
| Resistor, 500mW 5% 56K | MCF 0.5W 56K |
| Resistor, 500mW 5% 560K | MCF 0.5W 560K |
| Resistor, 500mW 5% 68R | MCF 0.5W 68R |
| Resistor, 500mW 5% 680R | MCF 0.5W 680R |
| Resistor, 500mW 5% 6K8 | MCF 0.5W 6K8 |
| Resistor, 500mW 5% 68K | MCF 0.5W 68K |
| Resistor, 500mW 5% 680K | MCF 0.5W 680K |
| Resistor, 500mW 5% 6R8 | MCF 0.5W 6R8 |
| Resistor, 500mW 5% 82R | MCF 0.5W 82R |
| Resistor, 500mW 5% 820R | MCF 0.5W 820R |
| Resistor, 500mW 5% 8K2 | MCF 0.5W 8K2 |
| Resistor, 500mW 5% 82K | MCF 0.5W 82K |
| Resistor, 500mW 5% 820K | MCF 0.5W 820K |
| Resistor, ZERO R LINK, 0R, 250mW | MCF 0.25W 0R |
| Resistor, 10R, 250mW, 5% | MCF 0.25W 10R |
| Resistor, 100R, 250mW, 5% | MCF 0.25W 100R |
| Resistor, 1K, 250mW, 5% | MCF 0.25W 1K |
| Resistor, 10K, 250mW, 5% | MCF 0.25W 10K |
| Resistor, 100K, 250mW, 5% | MCF 0.25W 100K |
| Resistor, 1MR, 250mW, 5% | MCF 0.25W 1M |
| Description | Part Number |
| Resistor, 250mW 5% 1R | MCF 0.25W 1R |
| Resistor, 250mW 5% 12R | MCF 0.25W 12R |
| Resistor, 120R, 250mW, 5% | MCF 0.25W 120R |
| Resistor, 250mW 5% 1K2 | MCF 0.25W 1K2 |
| Resistor, 250mW 5% 12K | MCF 0.25W 12K |
| Resistor, 250mW 5% 120K | MCF 0.25W 120K |
| Resistor, 250mW 5% 1R2 | MCF 0.25W 1R2 |
| Resistor, 250mW 5% 15R | MCF 0.25W 15R |
| Resistor, 250mW 5% 150R | MCF 0.25W 150R |
| Resistor, 250mW, 5% 1.5K | MCF 0.25W 1K5 |
| Resistor, 250mW 5% 15K | MCF 0.25W 15K |
| Resistor, 250mW 5% 150K | MCF 0.25W 150K |
| Resistor, 250mW 5% 1R5 | MCF 0.25W 1R5 |
| Resistor, 250mW 5% 18R | MCF 0.25W 18R |
| Resistor, 250mW 5% 180R | MCF 0.25W 180R |
| Resistor, 250mW 5% 1K8 | MCF 0.25W 1K8 |
| Resistor, 250mW 5% 18K | MCF 0.25W 18K |
| Resistor, 250mW 5% 180K | MCF 0.25W 180K |
| Resistor, 250mW 5% 1R8 | MCF 0.25W 1R8 |
| Resistor, 250mW 5% 22R | MCF 0.25W 22R |
| Resistor, 220R, 250mW, 5% | MCF 0.25W 220R |
| Resistor, 2.2K, 250mW, 5% | MCF 0.25W 2K2 |
| Resistor, 22K, 250mW, 5% | MCF 0.25W 22K |
| Resistor, 250mW 5% 220K | MCF 0.25W 220K |
| Resistor, 250mW 5% 2R2 | MCF 0.25W 2R2 |
| Resistor, 250mW 5% 27R | MCF 0.25W 27R |
| Resistor, 250mW 5% 270R | MCF 0.25W 270R |
| Resistor, 250mW 5% 2K7 | MCF 0.25W 2K7 |
| Resistor, 250mW, 5% 27K | MCF 0.25W 27K |
| Resistor, 250mW 5% 270K | MCF 0.25W 270K |
| Resistor, 250mW 5% 2R7 | MCF 0.25W 2R7 |
| Resistor, 250mW, 5% 330R | MCF 0.25W 330R |
| Resistor, 250mW, 5% 3.3K | MCF 0.25W 3K3 |
| Resistor, 33K, 250mW, 5% | MCF 0.25W 33K |
| Resistor, 250mW 5% 330K | MCF 0.25W 330K |
| Resistor, 250mW 5% 3R3 | MCF 0.25W 3R3 |
| Resistor, 250mW 5% 39R | MCF 0.25W 39R |
| Description | Part Number |
| Resistor, 250mW 5% 3K9 | MCF 0.25W 3K9 |
| Resistor, 250mW 5% 39K | MCF 0.25W 39K |
| Resistor, 250mW 5% 3R9 | MCF 0.25W 3R9 |
| Resistor, 250mW 5% 47R | MCF 0.25W 47R |
| Resistor, 470R, 250mW, 5% | MCF 0.25W 470R |
| Resistor, 4.7K, 250mW, 5% | MCF 0.25W 4K7 |
| Resistor, 47K, 250mW, 5% | MCF 0.25W 47K |
| Resistor, 250mW 5% 470K | MCF 0.25W 470K |
| Resistor, 250mW 5% 4R7 | MCF 0.25W 4R7 |
| Resistor, 250mW 5% 56R | MCF 0.25W 56R |
| Resistor, 560R, 250mW, 5% | MCF 0.25W 560R |
| Resistor, 250mW 5% 5K6 | MCF 0.25W 5K6 |
| Resistor, 250mW 5% 56K | MCF 0.25W 56K |
| Resistor, 250mW 5% 560K | MCF 0.25W 560K |
| Resistor, 250mW 5% 5R6 | MCF 0.25W 5R6 |
| Resistor, 250mW 5% 68R | MCF 0.25W 68R |
| Resistor, 680R, 250mW, 5% | MCF 0.25W 680R |
| Resistor, 250mW 5% 6K8 | MCF 0.25W 6K8 |
| Resistor, 250mW 5% 68K | MCF 0.25W 68K |
| Resistor, 250mW 5% 680K | MCF 0.25W 680K |
| Resistor, 250mW 5% 6R8 | MCF 0.25W 6R8 |
| Resistor, 250mW 5% 82R | MCF 0.25W 82R |
| Resistor, 250mW 5% 820R | MCF 0.25W 820R |
| Resistor, 8.2K, 250mW, 5% | MCF 0.25W 8K2 |
| Resistor, 250mW 5% 82K | MCF 0.25W 82K |
| Resistor, 250mW 5% 820K | MCF 0.25W 820K |
| Resistor, 250mW 5% 8R2 | MCF 0.25W 8R2 |
Important Notice : This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
Newark.com/multicomp-pro
Farnell.com/multicomp-pro
Element14.com/multicomp-pro
Multicomp Pro
