Mobile To Go 6132510 Mtg Bt Fm Transmitter With Dual Usb User Manual

MOBILE TO GO 6132510 MTG BT FM Transmitter with Dual USB

MTG BT FM Transmitter w/ Dual USB

Operation Manual

Safety Instructions

• Please Read this manual carefully before using it.
• Keep following this instructions.
• Don’t try to disassemble it by yourself.
• Don’t exposed directly to sunlight, open flames which will cause a potential damage.
• Keep your attention on road and do not operate this product while driving

Introduction

Features:

• Input 12-24V
• FM transmitter:88.1-107.9MHz frequency range
• Bluetooth hands-free calling
• Stream music from smart phone to car system via FM transmission
• Dual USB charging ports
• Quick charge version:QC3.0+5V/Max2.4A
• Support USB flash drive playing
• Support TF card playing
• Car battery monitor

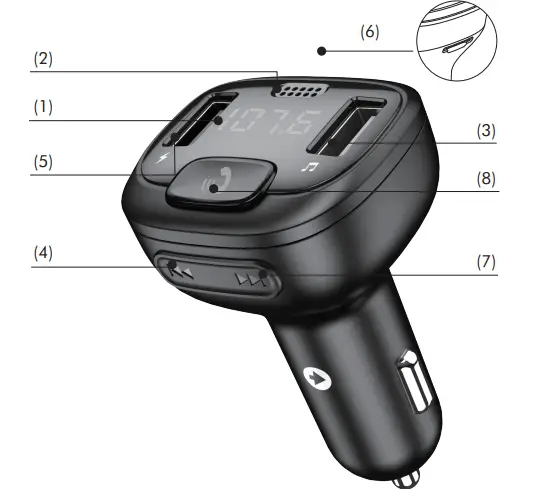

MTG BT FM Transmitter EQ

1. LED display
2. Microphone
3. QC3.0:5V/3A,9V/2A,12V/1.5A
4. Previous song
5. USB flash drive reading&playing port 6.TF card slo
6. .Next song
7. Multifunction button: change frequency; +&-/Call Answer & hang up

Get it Ready for Playing

1. Plug MTG BT FM Transmitter into your car cigarette lighter socket.

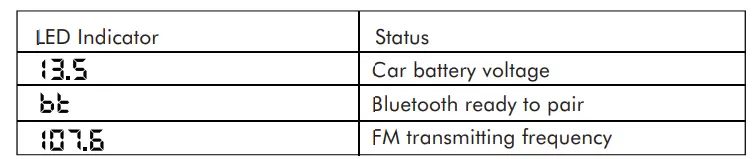

2. LED display light on, it will shows”13.5-bt-107.6“

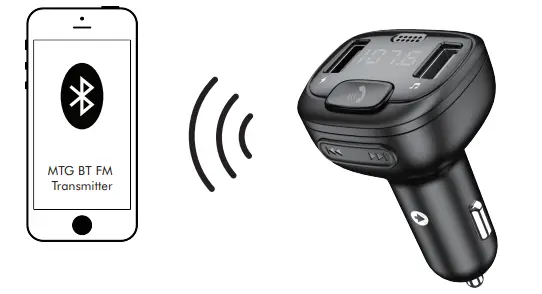

3. Bluetooth connect:
   After LED displays ”bt,” means it is ready to pair with a voice prompt:
   “Waiting for connection”.
   On your smart phone,enable Bluetooth function,search available devices, select “MTG BT FM Transmitter”,and pair with it. Once connected, there is a voice prompt: “Bluetooth connection success”.
