Fisher Paykel E442brxfdu5 Freestanding Refrigerator Freezer User Guide

Fisher Paykel E442brxfdu5 Freestanding Refrigerator Freezer User Guide

FISHER PAYKEL logoE442BRXFDU5 Freestanding Refrigerator Freezer
User GuideFISHER PAYKEL E442BRXFDU5 Freestanding Refrigerator Freezer

E442BRXFDU5 Freestanding Refrigerator Freezer

QUICK REFERENCE GUIDE > E442BRXFDU5
Freestanding Refrigerator Freezer, 68cm, 413L, Ice & Water
Series 5 | Contemporary
Stainless Steel | Right HingeFISHER PAYKEL E442BRXFDU5 Freestanding Refrigerator FreezerWith stylish contemporary design and generous, flexible storage for all your chilled and frozen foods.

  • ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
  • Spacious bottom freezer with easy-slide internal drawers to separate storage
  • Door water dispenser and internal ice maker

DIMENSIONS

Height1715mm
Width680mm
Depth695mm

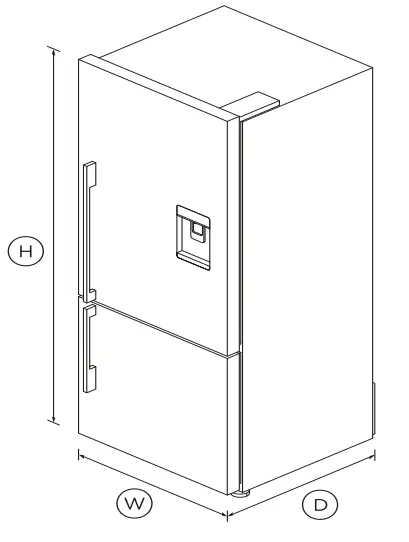

FISHER PAYKEL E442BRXFDU5 Freestanding Refrigerator Freezer - fig 1

FEATURES & BENEFITS

Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel for the finish, and solid glass for shelving.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel fridges. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water, and doesn’t take up any storage space in your fridge.
Humidity control
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.

SPECIFICATIONS

Capacity
Volume413L
Volume freezer119L
Volume refrigerator294L
Consumption
Energy rating3 star
Energy usage433kWh/year
Features
Adjustable half width door2
Covered door shelves2
Door alarm
Egg Trays2
Front levelling feet
Full extension runners
Full width door shelves2
LED lighting
Rear rollers
Single bottle holders4
SmartTouch control panel
Ultra slim water dispenser
Freezer Features
Bottle chill
Door alarm
Fast freeze
Freezer bins3
Ice Boost
Ice bin and scoop
Performance
ActiveSmart™ Foodcare
ActiveSmart™ technology
Adaptive defrost
Frost free
Frost free freezer
Humidity control system
Inverter controlled compressor
Product dimensions
Depth695mm
Height1715mm
Height to top of cabinet1715mm
Width680mm
Warranty
Parts and labour2 years
Sealed system parts onlyadditional 3 years
SKU25548

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
FISHER PAYKEL DW60UD6X Built-Under Dishwasher Sanitise - icon 1User Guide
FISHER PAYKEL DW60UD6X Built-Under Dishwasher Sanitise - icon 1Service & Warranty
FISHER PAYKEL DW60UD6X Built-Under Dishwasher Sanitise - icon 1Installation Guide
FISHER PAYKEL DW60UD6X Built-Under Dishwasher Sanitise - icon 1Data Sheet Freestanding Refrigerator Freezer

FISHER PAYKEL logoA PEACE OF MIND SALE
FISHER PAYKEL RDV3 488 L 48 Inch 8 Burners Self Cleaning Dual Fuel Range - icon 24 Hours 7 Days a Week
Customer Support
T 0800 372 273
Wwww.fisherpaykel.com
Date: 16.12.2021 > 2
