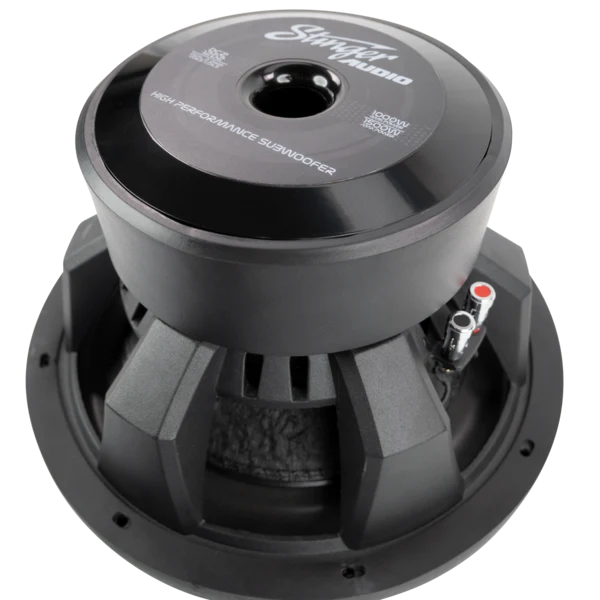

Stinger AUDIO DC212D2 Peak Power Car Subwoofer
Specifications
| MODEL | DC212D2 | DC212D4 |
| Nominal Impedance (Z) | 1.8 ohms | 3.2 ohms |
| DC Resistance (Re) | 3.6 ohms | 6.4 ohms |
| Resonance Frequency (Fs) | 36.2380 Hz | 31.645 Hz |
| Piston Area (Sd) | 0.0471 m2 | 0.0471 m2 |
| Force Factor (BL) | 21.7424 T.m | 27.0326 T.m |
| Mechanical Q Factor (Qms) | 8.9256 | 6.7714 |
| Electrical Q Factor (Qes) | 0.4997 | 0.4433 |
| Total Q Factor (Qts) | 0.4732 | 0.4161 |
| Sensitivity 1W/M (SPL) | 84.9847 | 85.4553 |
| Mechanical Compliance (Cms) | 0.0669 mm/N | 0.0994 mm/N |
| Moving Mass (Mms) | 288.2100 g | 254.5784 g |
| Linear Excursion (Xmax) | 16 mm | 16 mm |
| Volume Acoustic | 20.7705 Ltr | 30.8356 Ltr |
| Compliance (Vas) | 0.734 cu ft | 1.089 cu ft |
| Reference Efficiency (NO.) | 0.19% | 0.21% |
| Nominal Power (Pe) | 1000 Watts | 1000 Watts |
| Peak Power | 1500 Watts | 1500 Watts |
| Frequency Response | 20-200 Hz | 20-200 Hz |
| Voice Coil Diameter | 3 in/76.2 mm | 3 in/76.2 mm |
| Displacement | 0.1083 cu ft/ 3.066 Ltr | 0.1083 cu ft/ 3.066 Ltr |

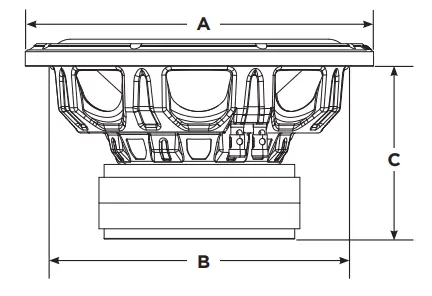

Dimensions
| Overall Diameter (A) | 12.72in / 323mm |
| Cut Out Diameter (B) | 11.30in / 287mm |
| Mounting Depth (C) | 6.58in / 167 mm |
Enclosure Size (Matters)
Enclosure is the fancy name for a speaker box. You can go ready-made or build your own. Ported or Sealed. To the right are the recommended enclosure size ranges stated in internal volume. Whether buying pre-made or building, try to stay within these parameters for best performance.
| Recommended Sealed Internal Volume | 1.40-2.25 cu.ft. |
| Recommended Vented internal Volume w/o vent displacement | 1.3-3.0 cu.ft. |
| Recommended Vented Area | 23 cu.in. |
| Recommended Tuning Frequency | 30-38 Hz |
Enclosure Example

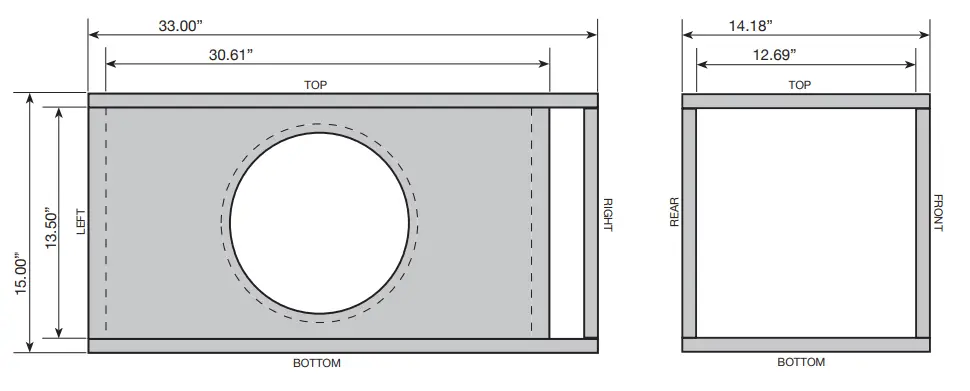

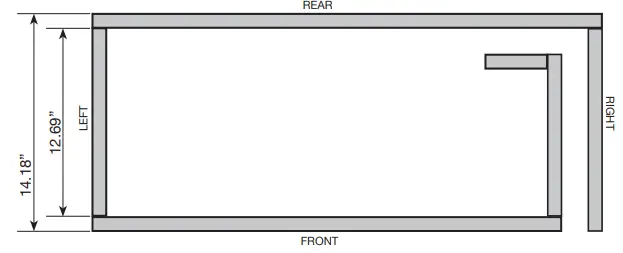

If you’re going it on your own, here’s a good starting point. We recommend using .75” MDF or plywood. Screws or air staples along with strong bonding “yellow” wood working glue for construction. Be sure that the enclosure’s panels are airtight at all joining seams. Lining the inside with some poly-fill to finish it off.
| External Size | 33″ x 15″ x 14.18″ |
| Material Thickness | 0.75″ |
| Net Internal Volume | 2.75 ft3 |
| Tuning Frequency | 30 Hz |
| Port Area | 22.10 inch2 |
| Port Inlet | 1.64” x 13.50” |
| Port Length | 18.30” |
Material Prep Sheet
| Top / Bottom | 33.00″ x 14.18″ | 2 |
| Front | 30.61″ x 13.50″ | 1 |
| Rear | 33.00″ x 13.50″ | 1 |
| Left | 12.69″ x 13.50″ | 1 |
| Right | 13.43″ x 13.50″ | 1 |
| Port 1 | 11.05″ x 13.50″ | 1 |
| Port 2 | 4.12″ x 13.50″ | 1 |
Please note there are no fingers mention in the list above. Cut safe my friends.
Subwoofer Wiring Diagrams

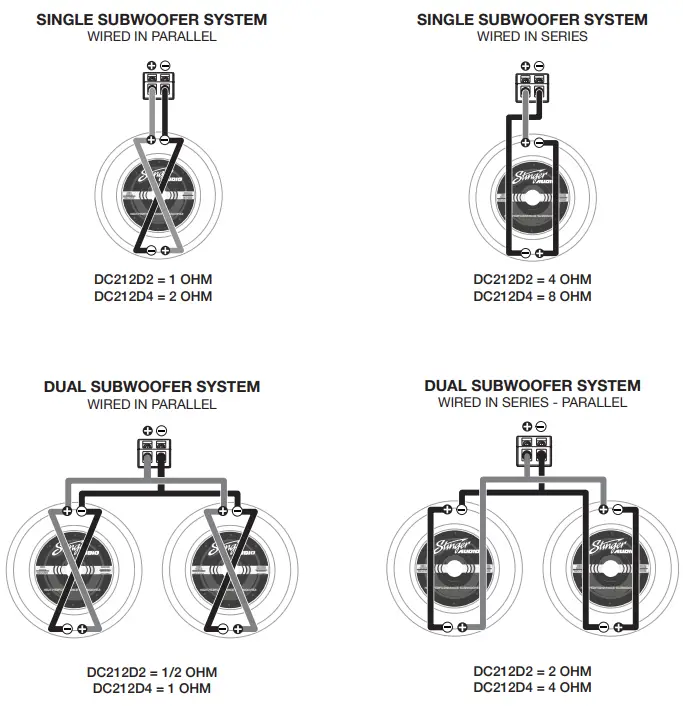

DC2 Subwoofers are Dual Voice Coil (DVC), meaning they have two positive and negative terminals per speaker. The voice coils can be wired in parallel or series or a combination of both. The subwoofer should be wired to match the amplifier’s lowest impedance as stated by the amplifier manufacturer. Going below the amplifier’s minimum impedance may damage the amplifier, so wire carefully. For wiring subwoofers, we recommend using 12- to 16-gauge wire.
