Mini 18
ORIGINALITY DESIGN SMART AND BEAUTIFUL
QUICK GUIDE

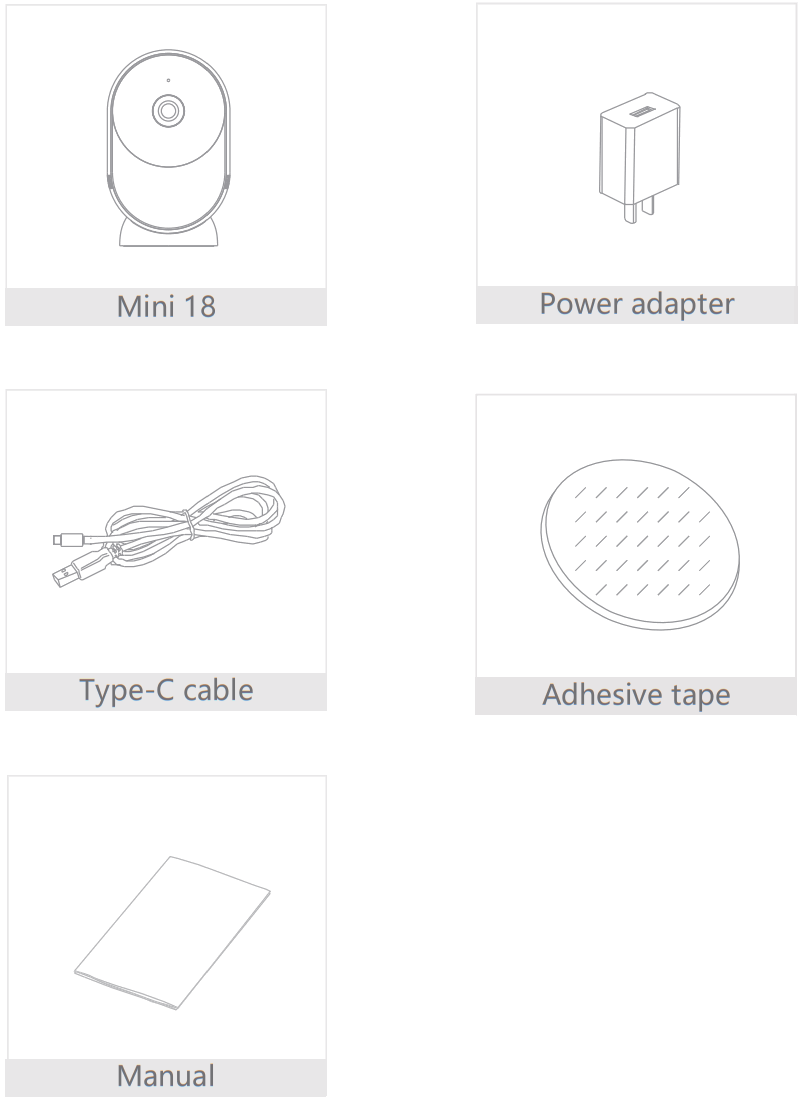

What’s in the box
Please consult this checklist for all parts.

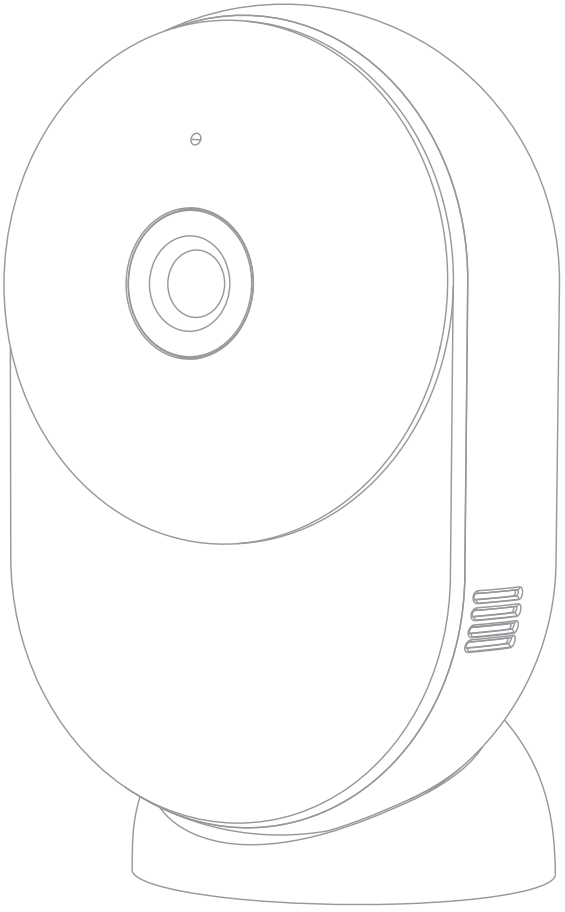

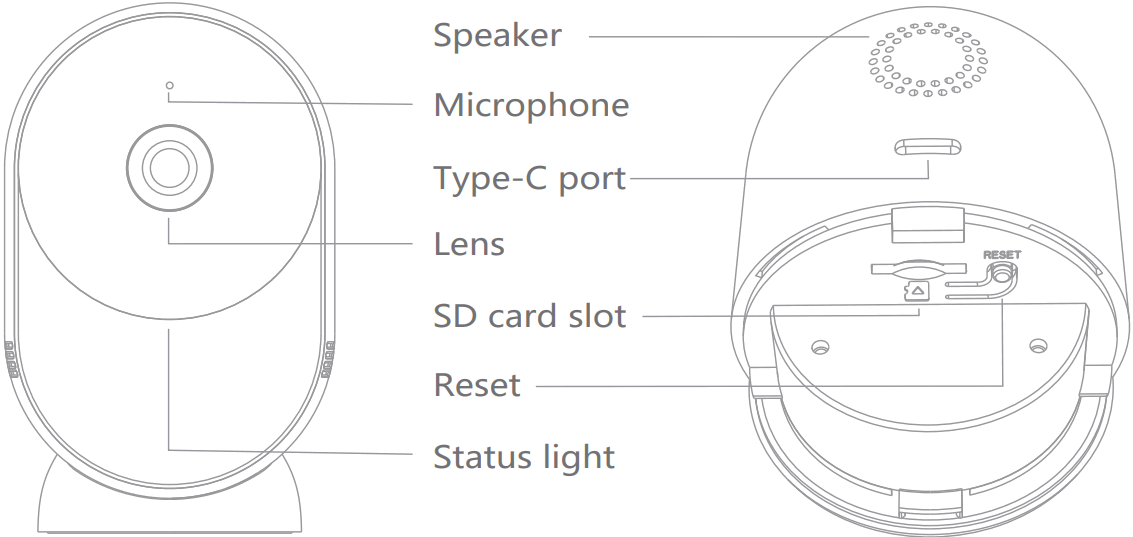

Description
| Power | DC 5V±10% (Type-C) |
| Status light | • Solid red light on: the network is abnormal • Blinking red light: wait for network connection (fast blinking) • Solid blue light on the camera is running correctly. • Blinking blue light: currently connecting (fast blinking) |
| Microphone | Capture sound for your video |
| SD card slot | Support local SD Card storage (Max.128G) |
| Reset | Press and hold for 5 seconds with a pin to reset the camera (if you have modified settings, they will return to factory defaults) |

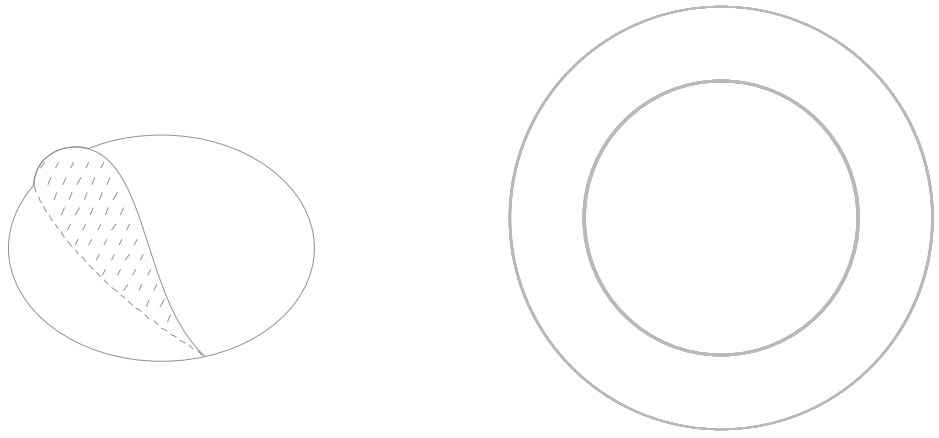

Installation
- Stick the adhesive tape in the middle of the camera bottom.

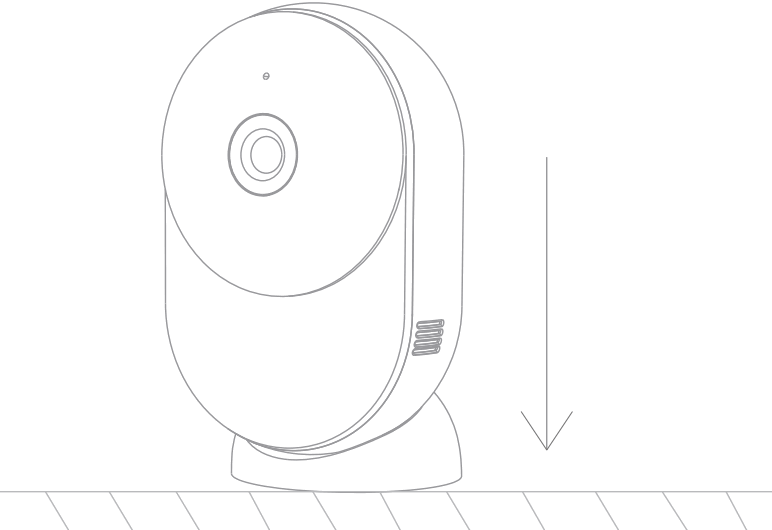

- Put the camera on the clean plane.
Connection
Download
Smart Life is available for both iOS and Android OS. Research the name ‘Smart Life’s App Store or Android Market, or scan the QR-Code to download the App.
Support
 |

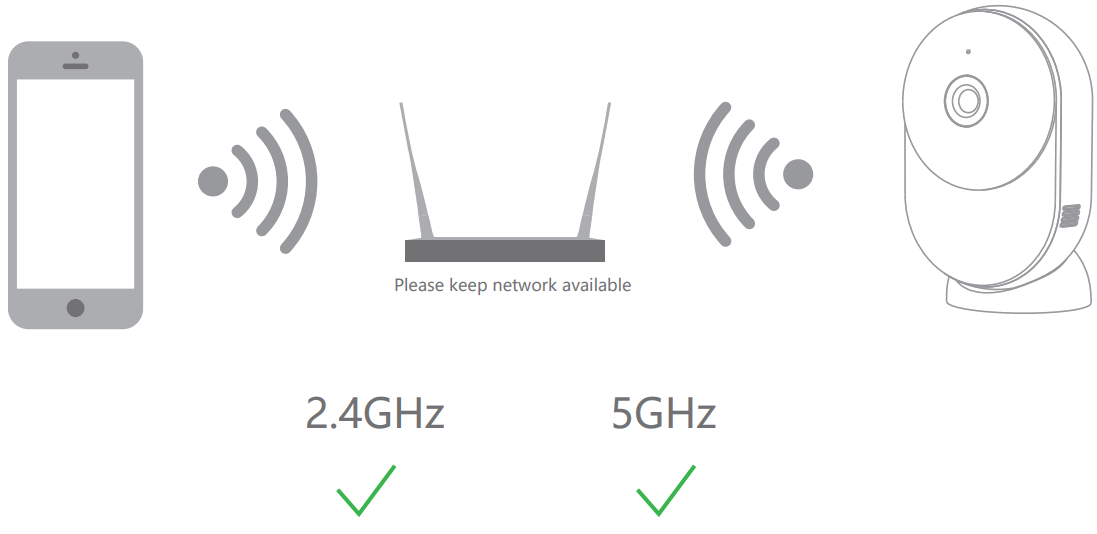

Set up router
The router supports 2.4GHz WiFi and 5GHz WiFi and is connected to the WiFi network. Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi.

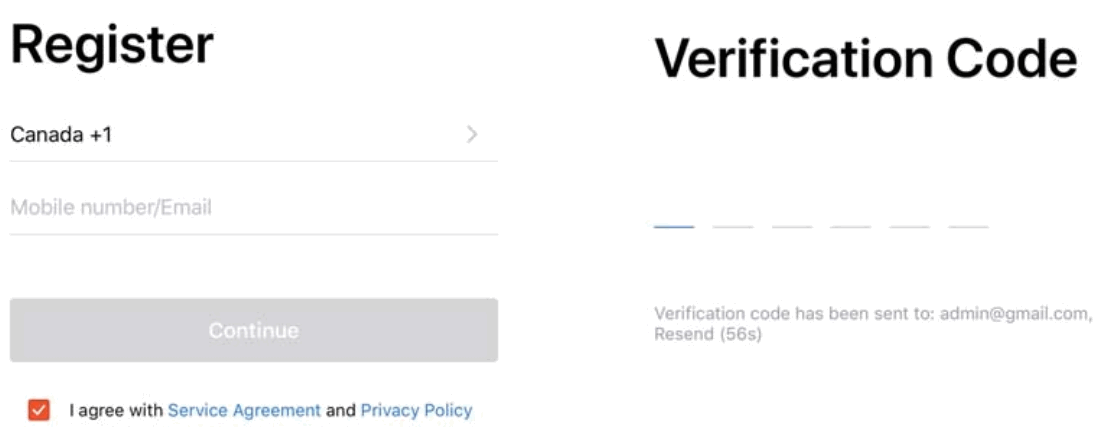

Registration process

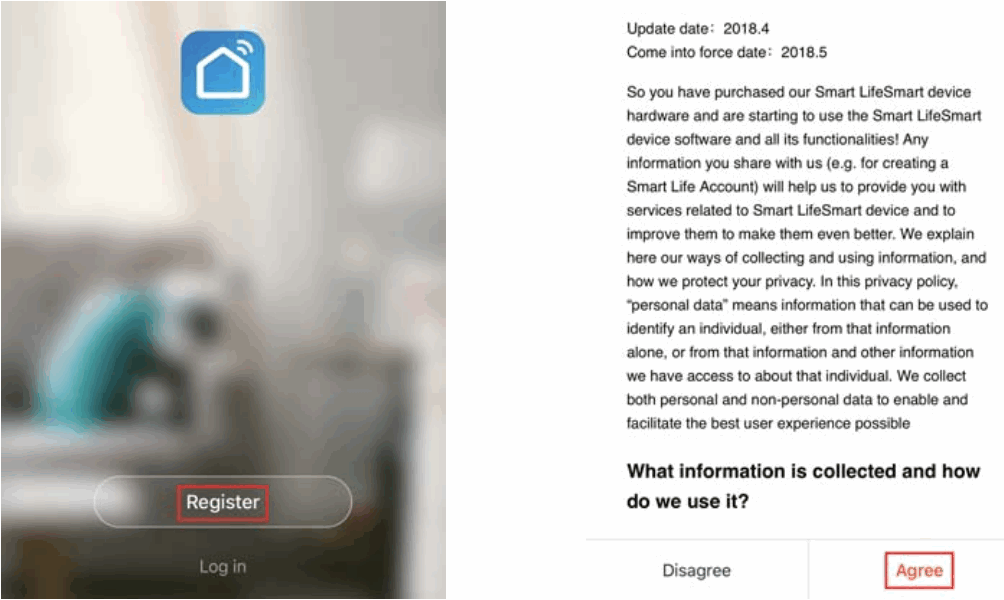

Step 1 Open the Smart Life App, click “Register”, read the “Privacy Policy” and click “Agree”.
Step 2 Input a legal and valid Mobile number or Email address and click “Continue”. Input Verification Code, then log in to the app.
QR Code Configuration

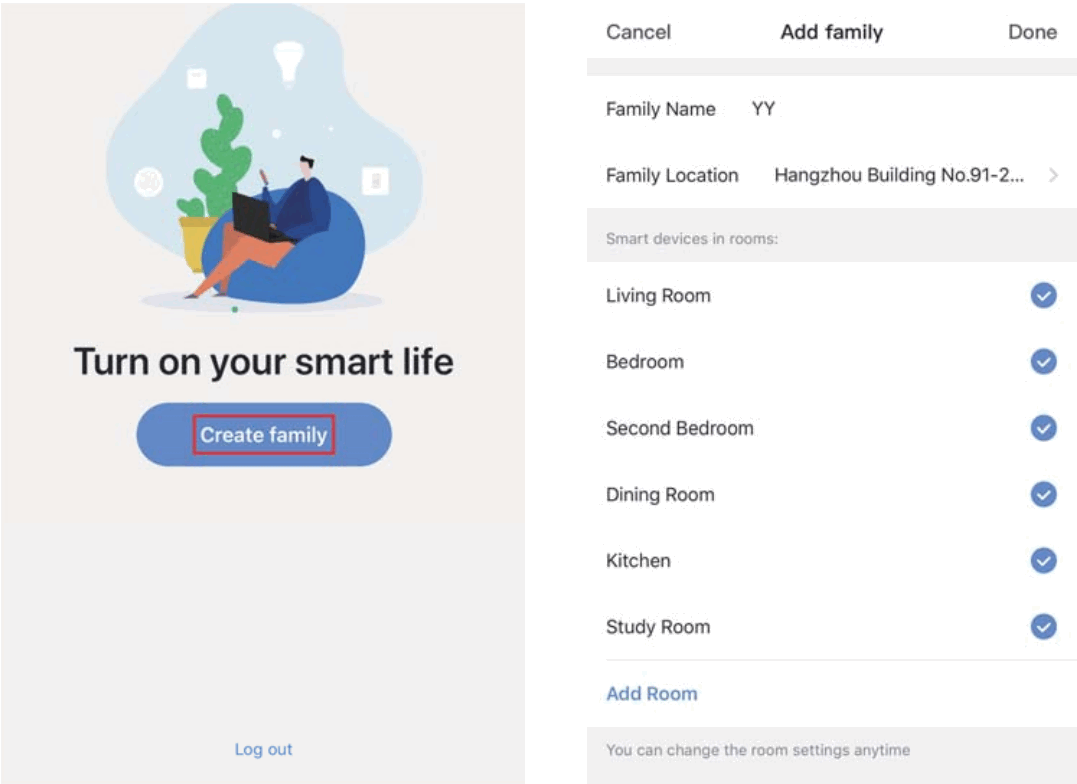

- Open the Smart Life App, click “Create a family”, and you can customize the Family name and related settings.

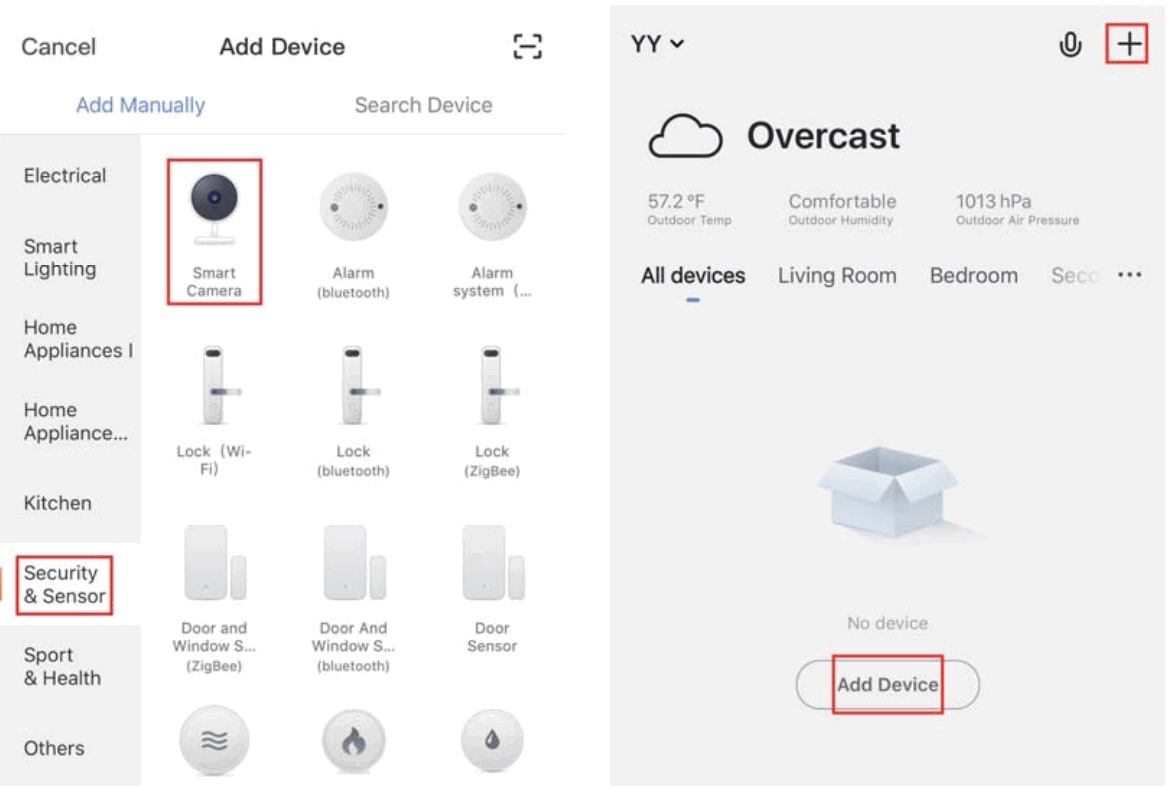

- Continue to click “Security & Sensor” >> > “Smart Camera”,and then choose”Add Device” or “+”,ready to add camera.

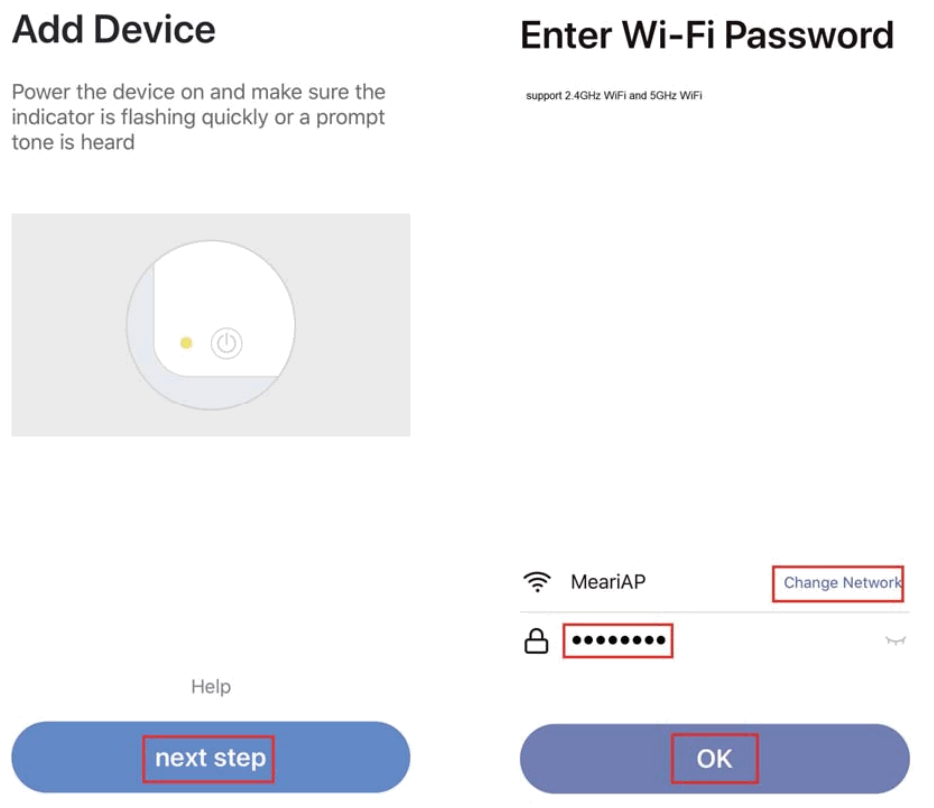

- In “Add Device” this interface, continue to click “next step”, and then you should input your WiFi’s passwords.
Note:
1) Camera supports 2.4GHz and 5GHz WiFi networks.
2) The number of bits in the SSID and passwords of the router should not exceed 24 digits. - In this interface, you should scan the QR code in your phone with the camera, when the camera comes out “dong dong dong”. And you can complete the configuration in about 30s.

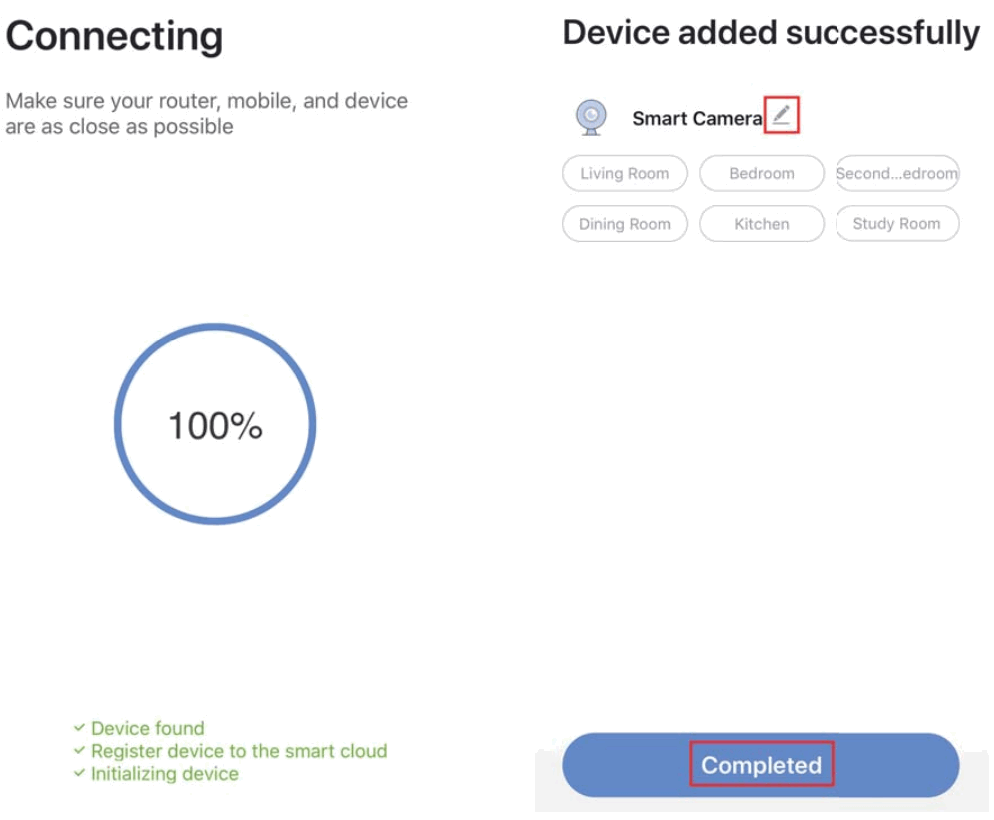

- When connecting, you should make sure your router, mobile, and camera are as close as possible. When the camera is added successfully, click ”
” you could also DIY the camera’s name.
Note:

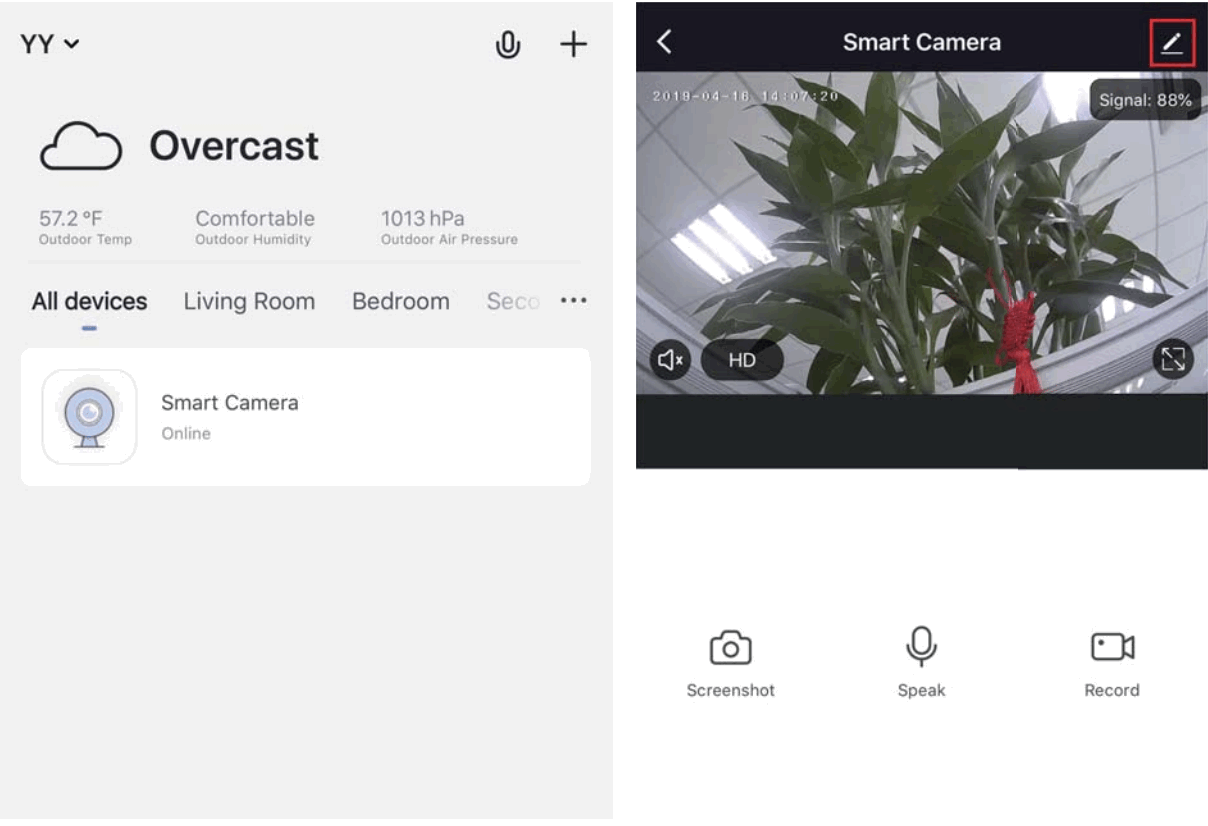

Settings
In the “Smart Camera” interface, click ”
“, you can set the camera common functions.
FAQ
Q: The device cannot be previewed properly?
A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again.
Q: Why is it still on the list of devices after resetting? A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App.
Q: How to cut the camera network to another router?
A: First remove and reset the device on the App and then configure the device again by the App.
Q: Why doesn’t the device identify the SD card?
A: It is recommended to plug in an SD card after a power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can’t be identified when the internet environment is not good.
Q: Why can’t get the notifications with my cell phone App?
A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened; Message notification and authority confirmation in the mobile phone system has been opened.
Functions
Video flip
Flip your video stream up or down for maximum flexibility.
Motion detection
Built-in motion sensors detect movement, and the camera will send you to push notifications and app alerts.
Record
Support 24H continuous recording with high capacity SD storage or Cloud storage.
Daytime & Night
Never miss a moment, even in complete darkness, with powerful night-vision technology.
FCC Statement:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
