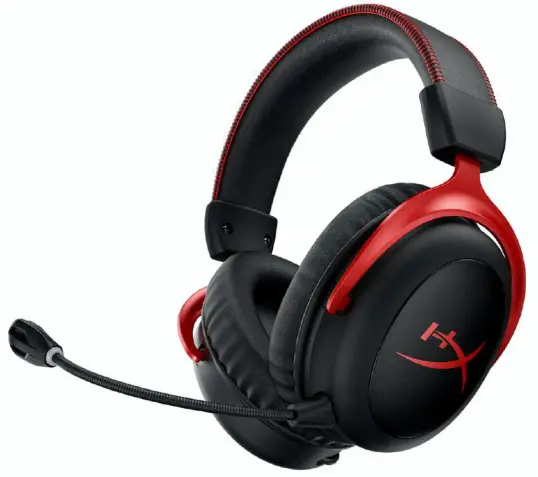

HyperX Cloud II Wireless
HyperX Cloud II Wireless Installation Guide
Part Numbers
HHSC2X-BA-RD/G

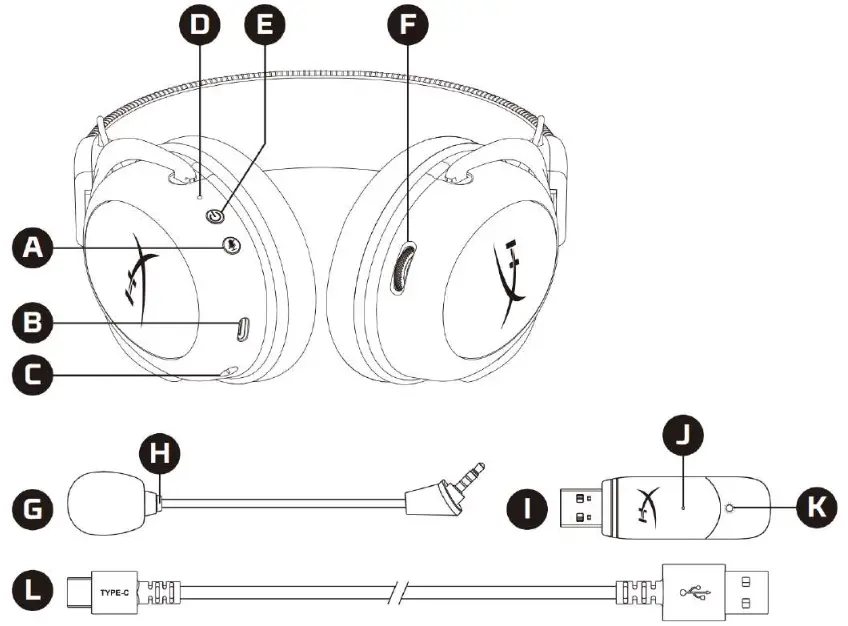

 Overview

Specifications

Headphone
Driver: Dynamic, 53mm with neodymium magnets
Type: Circumaural, Closed back
Frequency response: 15Hz–20kHz
Impedance: 60 Ω
Sound pressure level: 104dBSPL/mW at 1kHz
T.H.D.: ≤ 1%
Weight: 300g
Weight with mic: 309g
Cable length and type: USB charge cable (0.5m)
Microphone
Element: Electret condenser microphone
Polar pattern: Bi-directional, Noise-cancelling
Frequency response: 50Hz-6.8kHz
Sensitivity: -20dBV (1V/Pa at 1kHz)
Battery life*
30 hours
Wireless Range**
2.4 GHz
Up to 20 meters
*Tested at 50% headphone volume. Battery life varies depending upon the usage.
**Wireless range may vary due to environmental conditions.

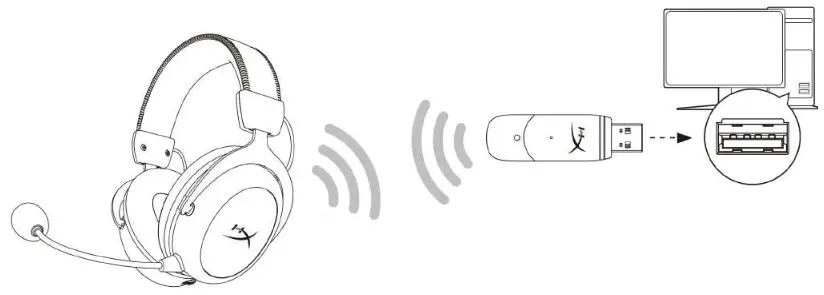

Setting up with PC

1. Connect the wireless USB adapter to the PC.
2. Power on the headset.

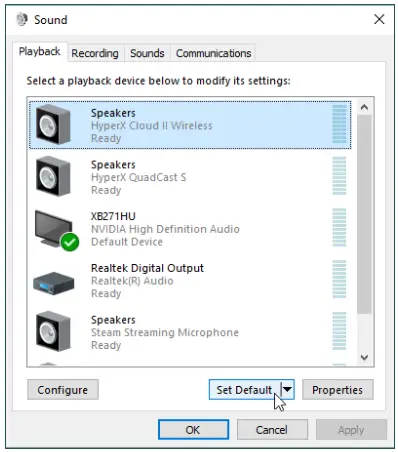

3. Right-click speaker icon > Select Open Sound settings > Select Sound Control Panel
4. Under the Playback tab, click on “HyperX Cloud II Wireless” and click on the Set Default button.

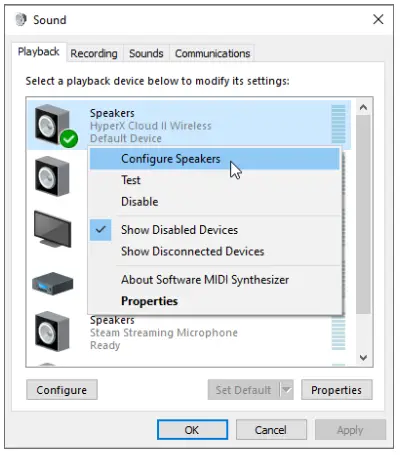

5. Right-click on “HyperX Cloud II Wireless” and click on Configure Speakers.

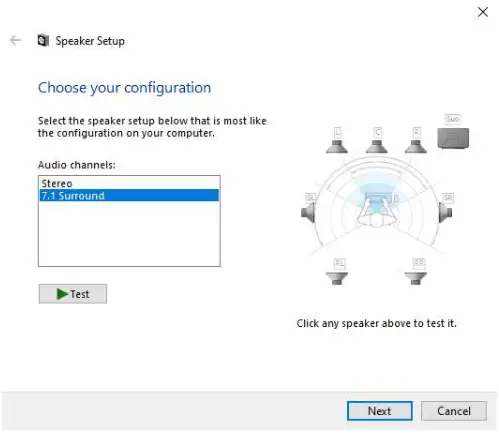

6. Select 7.1 Surround as the speaker configuration and click next.

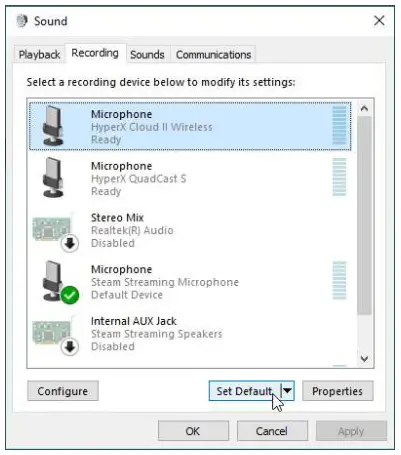

7. Under the Recording tab, click on “HyperX Cloud II Wireless” and click on the Set Default button.
8. Under the Playback tab, verify that “HyperX Cloud II Wireless” is set as Default Device and Default Communication Device. Under the Recording tab, verify that “HyperX Cloud II Wireless” is set as Default Device.

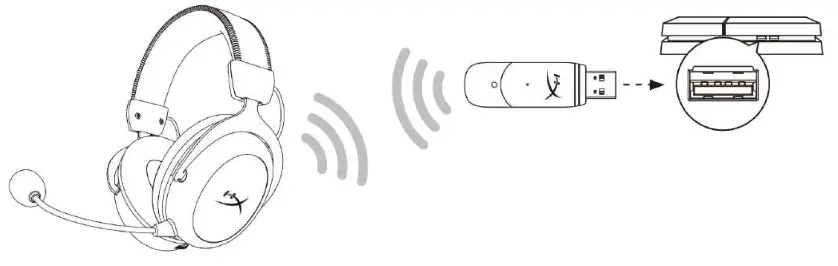

Setting up with PlayStation 4

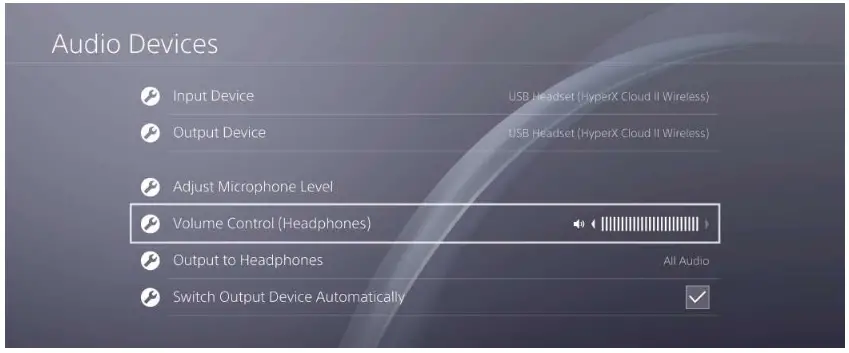

1. Set Input Device to USB Headset (HyperX Cloud II Wireless)
2. Set Output Device to USB Headset (HyperX Cloud II Wireless)
3. Set Output to Headphones to All Audio
4. Set Volume Control (Headphones) to the maximum.

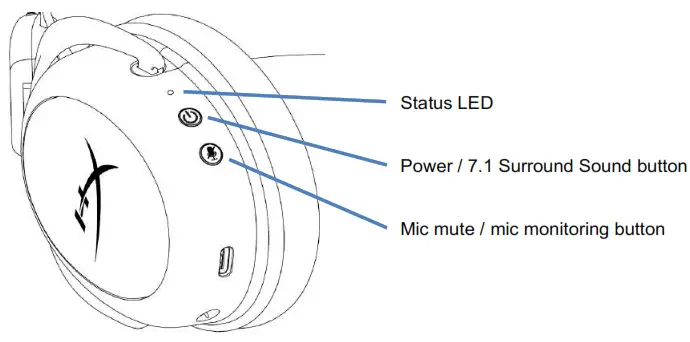

Controls

Status LED

Power / 7.1 Surround Sound button

• Hold for 3 seconds to power the headset on/off
• Press to toggle 7.1 Surround Sound * on/off

* Virtual 7.1 surround sound outputs as a 2-channel stereo signal to be used with stereo headphones.

Mic mute / mic monitoring button

• Press to toggle mic mute on/off
  o LED On – Mic muted
  o LED Off – Mic active
• Hold for 3 seconds to toggle mic monitoring on/off

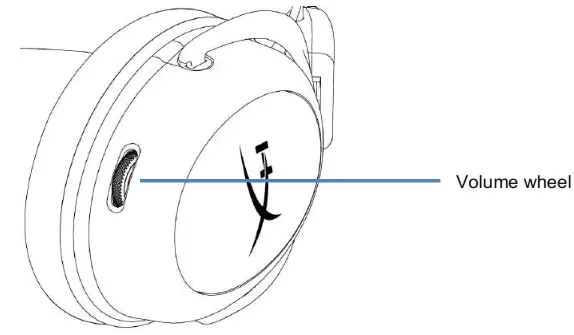

Volume wheel

• Scroll up and down to adjust the volume level

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time

Charging the Headset

It is recommended to fully charge your headset before first use.
When charging the headset, the headset status LED will indicate the current charge status.

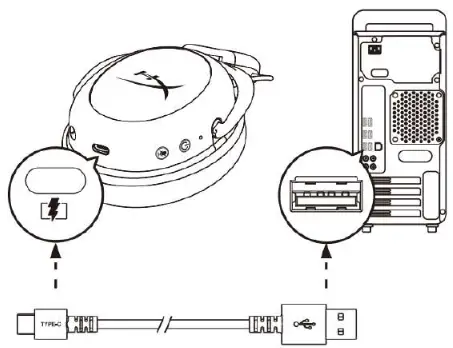

Wired charging

To charge the headset via wired, plug the headset into a USB port with the USB charge cable.

HyperX INGENUITY Software
Download INGENUITY software at: hyperxgaming.com/ngenuity

Manually Pairing the Headset and USB Adapter

The headset and USB adapter are automatically paired together out of the box. But if the manual pairing is needed, follow the steps below to pair the headset and USB adapter.

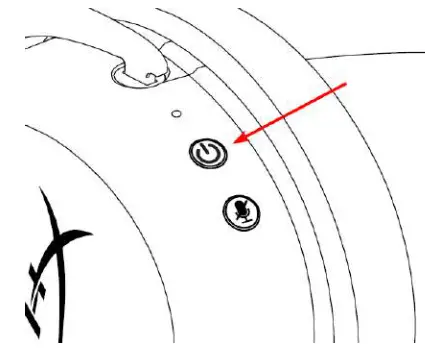

1.  While the headset is powered off, hold down the power button until the headset status LED starts blinking red/green rapidly. The headset is now in pairing mode.c

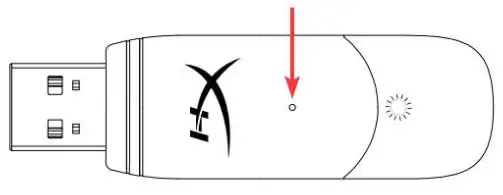

2. While the USB adapter is plugged in, use a small tool (e.g. paper clip, SIM tray ejector, etc.) to hold down the button inside the pinhole until the USB adapter LED starts blinking rapidly. The USB adapter is now in pairing mode.
3. Wait until both the headset LED and the USB adapter LED are solid.

The headset and USB adapter are now paired together.

Questions or Setup Issues?
Contact the HyperX support team at: hyperxgaming.com/support/

Dokument Nr. 480HX-HHSC2X.A01
HyperX Cloud II Wireless
