Naked Sun Fascination Fx Spray Tanning Machine System User Guide

NAKED SUN Fascination FX Spray Tanning Machine System

Step 1

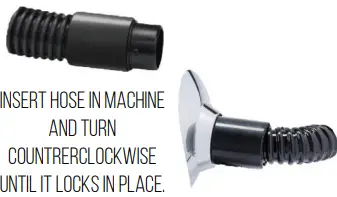

Attaching the hose

Connect hose to machine

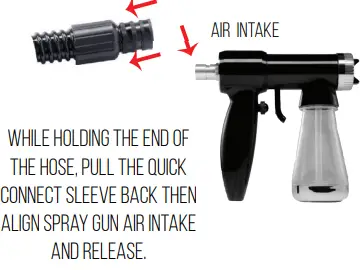

Connect hose to spray gun

Step 2

Adjusting your solution dial

• Turn fluid knob clockwise until fully tightened.
  TIP: When making adjustments hold the spray gun with the nozzle facing you.
• Turn fluid knob counter-clockwise up to 2 full turns.Please note:
  We recommend testing with water first before spraying clients to fine tune this adjustment for the atomization desired.

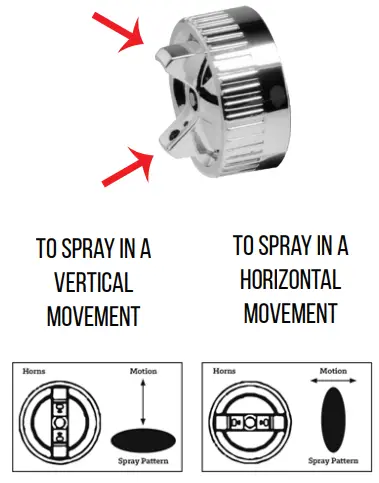

Step 3

setting spray pattern

To adjust the spray pattern you will need to turn the horns on the nozzle only.
Please note: If you are unable to turn horns you may need to loosen cap slightly. If this is required hold horns in place while tighening cap back to avoid horn movement.
