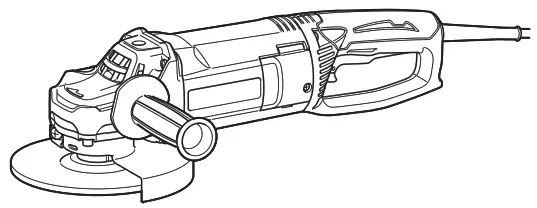

Angle Grinder
INSTRUCTION MANUAL
A7062
GA7062R
GA9062
GA9062R
SPECIFICATIONS
| Model: | GA7062 | I GA7062R | GA9062 | GA9062R | |
| Wheel diameter | 180mm | 230mm | |||
| Max. wheel thickness | 6.5mm | ||||
| Spindle thread | M14 or M16 or 5/8′ (country-specific) | ||||
| Rated speed (n) | 8,500miril | I 6,600min” | |||
| Overall length | 450mm | ||||
| Net weight | 5.4kg | I 5.5kg I | 5.6kg | 5.7kg | |
| Safety class | o Ill | ||||
- Due to our continuing program of research and development, the specifications herein are subject to change without notice.
- Specifications may differ from country to country.
- Weight according to EPTA-Procedure 01/2003
Intended use
The tool is intended for grinding, sanding and cutting of metal and stone materials without the use of water.
Power supply
The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated and can, therefore, also be used from sockets without earth wire.
For public low-voltage distribution systems of between 220 V and 250 V
Only for model GA7062 / GA9062
Switching operations of electric apparatus cause voltage fluctuations. The operation of this device under unfavorable main conditions can have adverse effects to the operation of other equipment. With the main impedance equal to or less than 0.25 Ohms, it can be presumed that there will be no negative effects. The main socket used for this device must be protected with a fuse or protective circuit breaker having slow tripping characteristics.
Noise
The typical A-weighted noise level determined accord-ing to EN60745:
Model GA7062 Sound pressure level (LpA) : 91 dB(A)
Sound power level (LwA): 102 dB (A)
Uncertainty (K) : 3 dB(A)
Model GA7062R Sound pressure level (LpA) : 91 dB(A)
Sound power level (LNA): 102 dB (A)
Uncertainty (K) : 3 dB(A)
Model GA9062 Sound pressure level (LpA) : 91 dB(A)
Sound power level (LwA): 102 dB (A)
Uncertainty (K) : 3dB(A)
Model GA9062R Sound pressure level (Li,A) : 91 dB(A)
Sound power level (L,,A) : 102 dB (A)
Uncertainty (K) : 3dB(A)
WARNING: Wear ear protection.
Vibaration
The vibration total value (tri-axial vector sum) deter-mined according to EN60745:
Model GA7062 Work mode: surface grinding with normal side grip
Vibration emission (ah : 7.5 m/s2
Uncertainty (K) : 1.5 mils’
Work mode: surface grinding with anti vibration side grip
Vibration emission (ah : 7.5 m/s2Uncertainty (K) : 1.5 m/s 1
Work mode: disc sanding with normal side grip
Vibration emission (ah Ds) : 2.5 m/s2 (K) : 1.5 m/s
Work mode: disc sanding with anti vibration side grip
Vibration emission (ah Ds) : 2.5 m/s2
Uncertainty (K) : 1.5 m/s
Model GA7062R
Work mode: surface grinding with normal side grip
Vibration emission (ah AO: 7.5 m/s2
Uncertainty (K) : 1.5 m/s1
Work mode: surface grinding with anti vibration side grip
Vibration emission (ah : 7.5 m/s2 (K) : 1.5 mils’
Work mode: disc sanding with normal side grip
Vibration emission (ah Ds) : 2.5 m/s2
Uncertainty (K) : 1.5 m/s`
Work mode: disc sanding with anti vibration side grip
Vibration emission (ah Ds) : 2.5 m/s2
Uncertainty (K) : 1.5 m/s1
Model GA9062
Work mode: surface grinding with normal side grip
Vibration emission (ah : 6.5 m/s2 (K) : 1.5 mils’
Work mode: surface grinding with anti vibration side grip
Vibration emission (a, : 6.0 m/s2 (K) : 1.5 rigs’
