Haier Hce604tb3 Electric Cooktop User Guide (+ PDF)

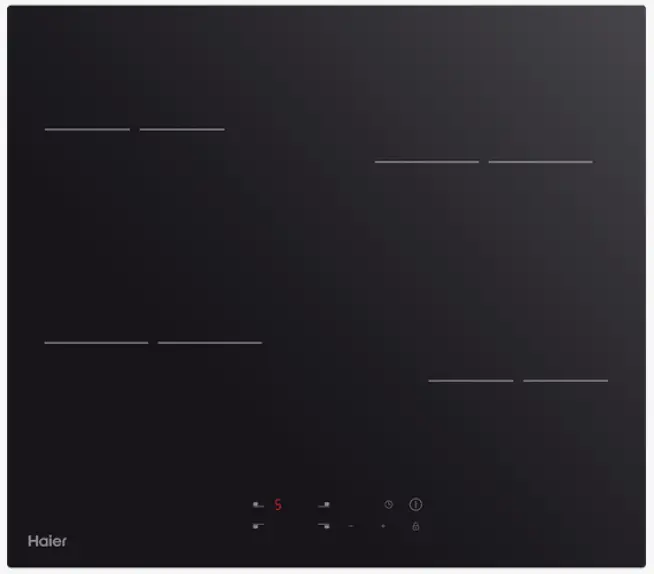

Haier HCE604TB3 Electric Cooktop

A compact cooktop with four elements and sleek black glass design.

Four cooking elements for different sized cookware
Touch controls and simple, intuitive usability
Spill detection alert for safety
Designed to pair with a Haier black or stainless steel wall oven

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

3.1 Other product downloads available at haier.com

3.2 A PEACE OF MIND SALE

4 Documents / Resources

4.1 References

5 Related Posts

DIMENSIONS

Height	52 mm
Width	590 mm
Depth	520 mm

FEATURES & BENEFITS

Matching design
The sleek black aesthetic matches the wider Haier family of appliances, pairing well with a black or stainless steel wall oven.

Spill detector safety
A spill detector automatically switches off your cooktop if pots overflow.

Simple cleaning
A single ceramic-glass surface reduces time spent cleaning, requiring a quick wipe after use.

Intuitive controls
With simple to use touch controls, and a child lock for safety.

SPECIFICATIONS

Controls
Family match	Black & Stainless steel wall
Touch control glass interface	•
Performance
Heat settings	9
Power requirements
AMP draw	27.2A
Power cord length	1m
Supply voltage	220 – 240V
Product dimensions
Depth	520 mm
Height	52 mm
Installation cutout dimensions	490 mm
Installation cutout dimensions	560 mm
Width	590 mm
Safety
Child lock	•
Over heating alert	•
Over spillage alert	•
Surface hot indicators	•
Warranty
Parts and labour	2 years
Zone ratings
Left front	1800W
Left rear	1200W
Right front	1200W
Right rear	1800W
Zones
Cooking zones	4
SKU	61825

The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
