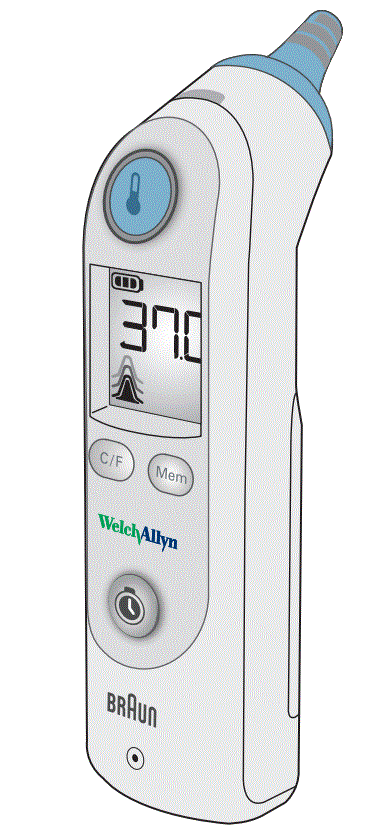

BRAUN ThermoScan PRO 6000 Ear Thermometer

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-PRODUCT

Cleaning Guide

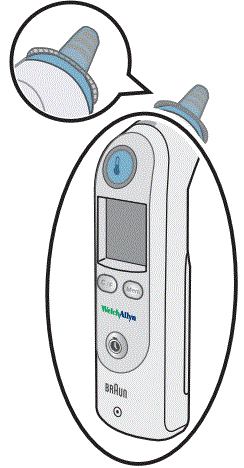

Thermometer body

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-1

NOTE: Place a new probe cover on the thermometer before cleaning.
Approved cleaning solutionsBRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-2

  • 70% isopropyl alcohol or ethyl alcohol
  • Hydrogen peroxide (Virox, Oxivir)
  • Quaternary ammonium compounds (CaviWipes™, Clinell Universal Wipes®, Sanicloth)
  • 10% Chlorine bleach solution

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-3Wipe dry. Allow 5 minutes drying time. Make sure thermometer body is dry before use.

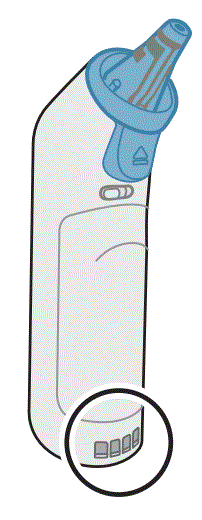

Thermometer contacts

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-4

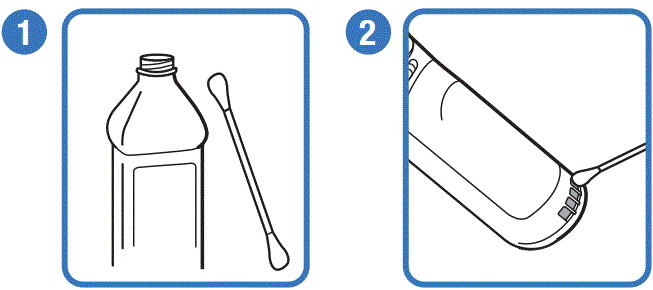

Approved cleaning solutionsBRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-5

  • 70% isopropyl alcohol or ethyl alcohol

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-6Place the thermometer aside for 1 minute, allowing the contacts to air dry.

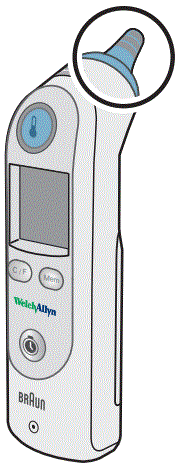

Lens window and probe

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-7

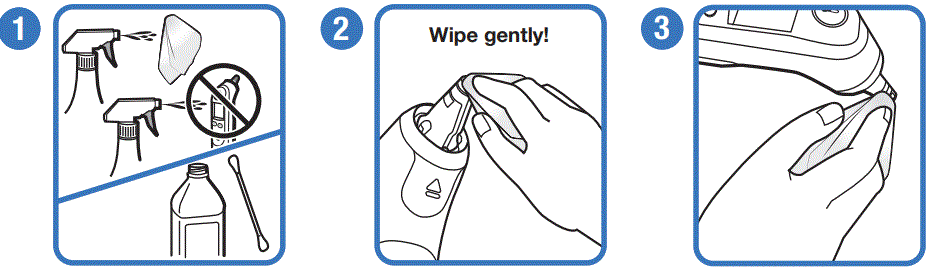

Approved cleaning solutionsBRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-8

  • 70% isopropyl alcohol or ethyl alcohol only

BRAUN-ThermoScan-PRO-6000-Ear-Thermometer-FIG-9Wipe dry. Allow 5 minutes drying time. Make sure probe lens window is dry before use.

Technical Support

80028341 Ver. A Revision Date: 2021-04 ©2021 Welch Allyn, Inc. All rights reserved. This product is manufactured by Welch Allyn, Inc. under licence to the ‘Braun’ trademark. ‘Braun’ is a registered trademark of Braun GmbH, Kronberg, Germany. Thermoscan is a registered trademark owned by Helen of Troy Limited. Hillrom Technical Support hillrom.com/en-us/about-us/locations/ Welch Allyn, Inc. is a subsidiary of Hill-Rom Holdings, Inc.
