Audi Q7 4M LED Matrix Headlights
Instruction Manual
Audi Q7 4M LED Matrix Headlights
Installation Instructions
LED Matrix Headlights LED DRL
Audi Q7 4M
v1.1 (14.06.2021)
Kufatec GmbH & Co. KG – Dahlienstr.
15 – 23795 Bad Segeberg
– e-mail: [email protected]
Assembly Instructions

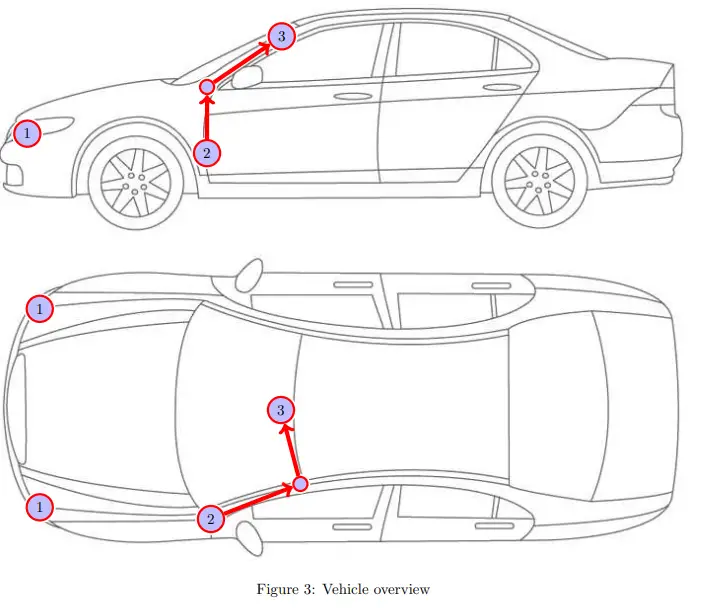

The following illustration shows the cable routing as well as the position of the individual components.
Figure 3: Vehicle overview
- 1 Matrix headlights
- 2 Body Control Module
- 3 Front camera
Please be aware, that this overview is only for illustration purposes. Always lay the cable set in the most convenient and shortest way possible. For a detailed description of the cable routing, please refer to the relevant sections of the following manual.
