NEXA MGDR-200 Plug-In Dimmer-Outdoor User Guide
MGDR-200
PLUG-IN DIMMER – OUTDOOR
NEXA AB, DATAVÄGEN 37B, 436 32 ASKIM, SWEDEN
[email protected] | www.nexa.se

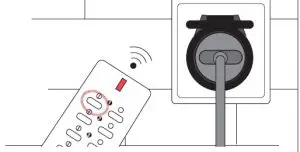

Press the “ON” button for the selected channel on any System Nexa remote control within 6 seconds.

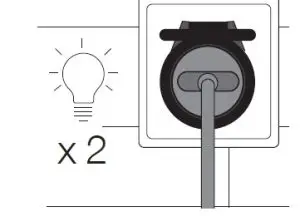

The connected light flashes twice.
ENGLISH – TECHNICAL DATA
| MGDR-200 – PLUG-IN DIMMER | |
| Power supply | 220-240 V~50 Hz |
| Max. load | 200 W |
| Max. load, LED | 3-24 W |
| Protocol | System Nexa |
| Range | up to 30 m |
| Memory slots | 32 |
| Internal consumption | < 1 W |
| IP rating | IP44, outdoor use |
| Size, Ø | 53 mm |
A complete manual is available at nexa.se
