Paul Neuhaus 6539-55 Q Malina Led Ceiling Light Instruction Manual

Fitting instructions

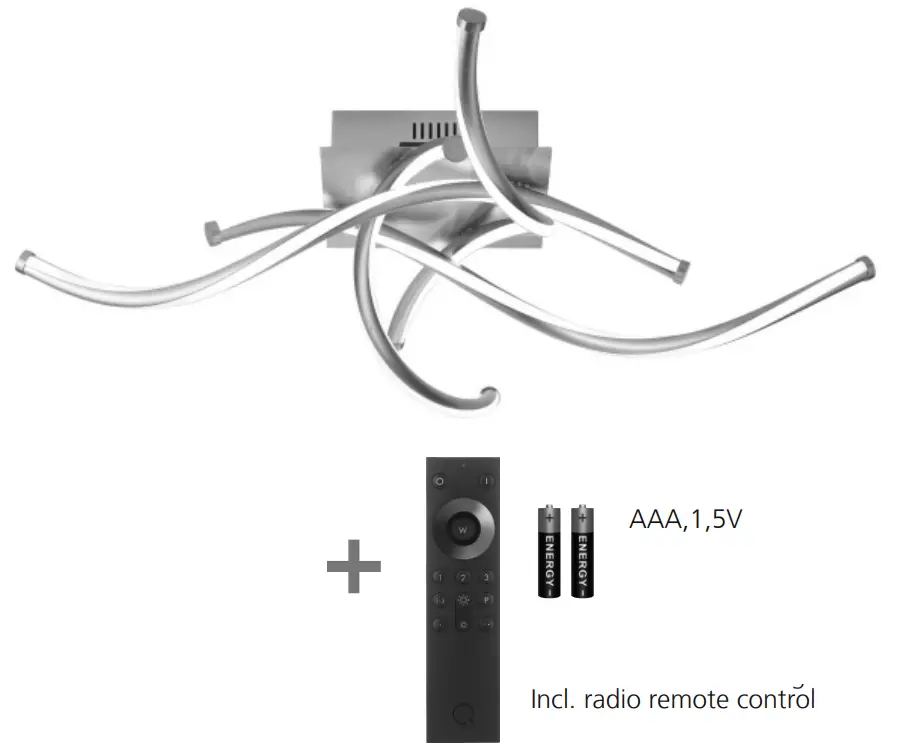

6539-55 Q Malina LED Ceiling Light

832467

230V/50Hz~
4x 9W LED-Board
not changeable

	2,4 GHz 10 dBm
	9 W 1.250 lm
	40 W 2.300 lm
	LED-Board
t	25.000 h
Tk	2.700-5.000 K
	15.000 x
	<0,5 s
	dimmable with rrc

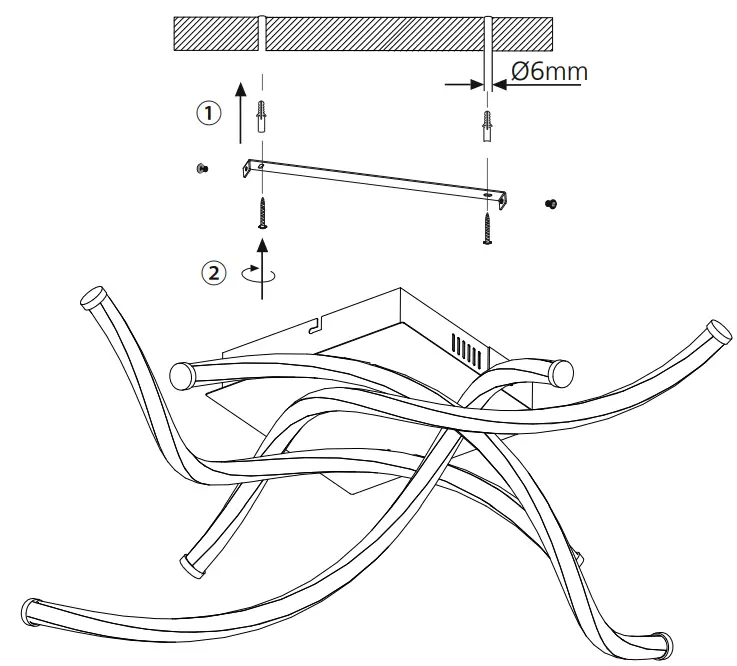

fitting

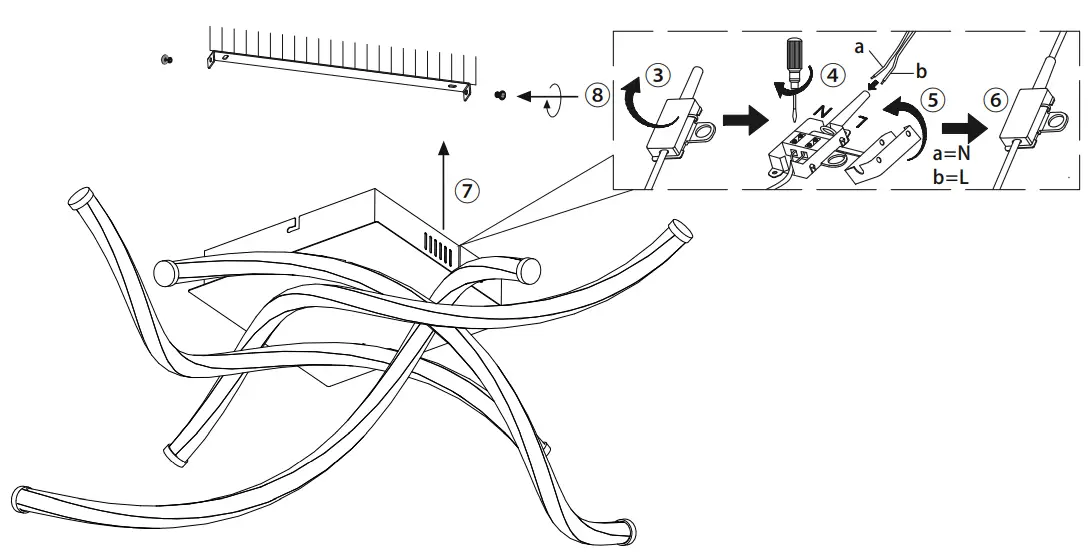

electrical connection

230 voltage / 50Hz – connection

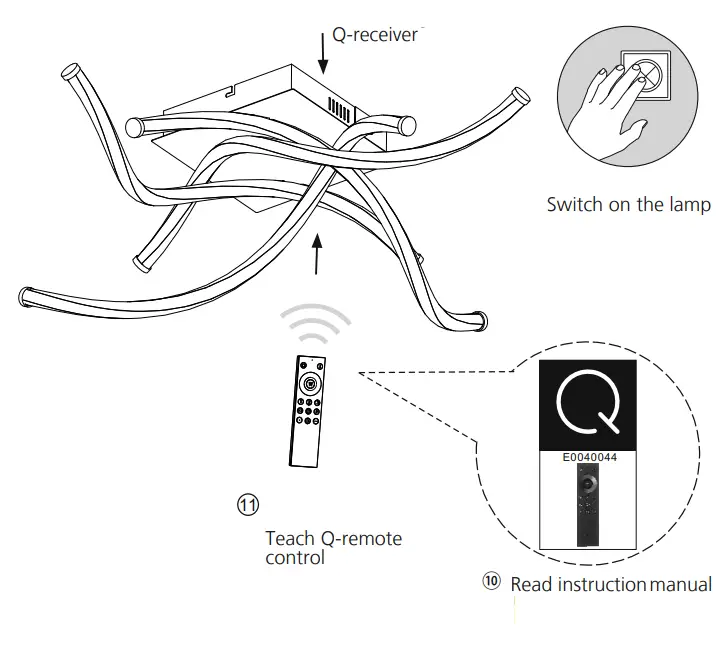

teach remote control

See Q-remote control manual

https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4	http://q.paul-haus.de/

Reset
Reset the lamp, factory new

This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the Internet-address given below.

Paul Neuhaus GmbH
Olakenweg 36 · D-59457 Werl
Telefon:+49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
