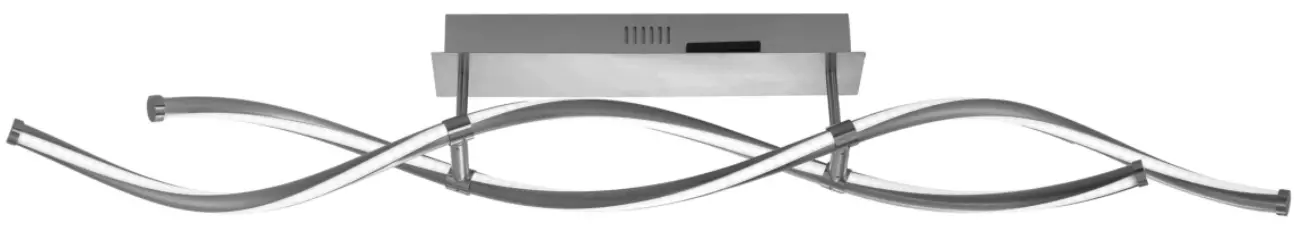

Paul Neuhaus 6339-55 Q Malina Led Ceiling Light Instruction Manual

Paul Neuhaus 6339-55 Q MALINA LED Ceiling Light Instruction Manual

832456
230V/50 Hz
2xLED-Board 20W

not changeable

• 20W 2.000lm

• 47W 1.650lm

• LED-Board

• 25.000 h

• 2.700K-5.000K

• 15.000 x

• < 0.5 s

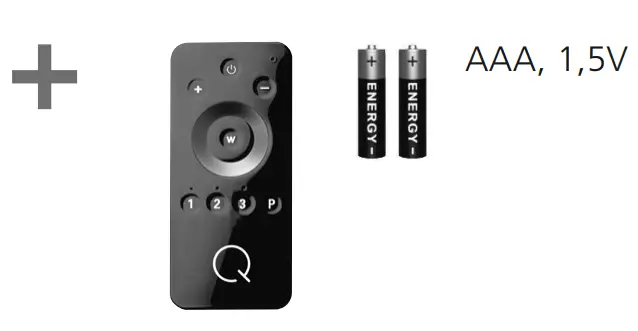

• dimmable with rrc

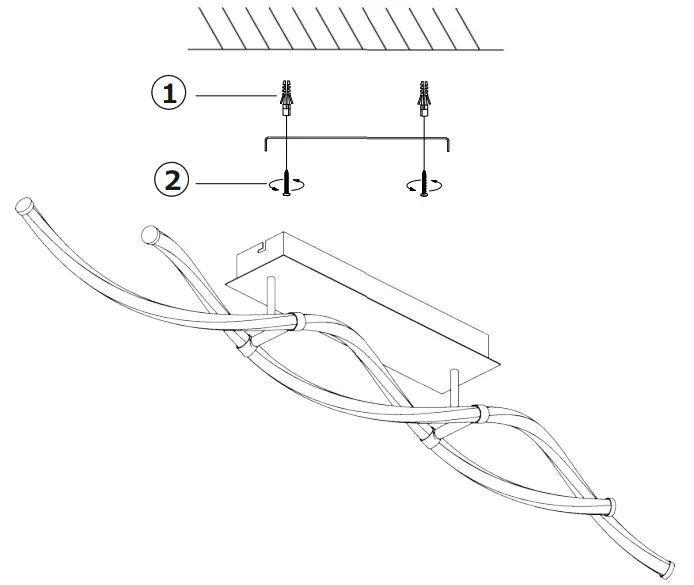

fitting

as ceiling light

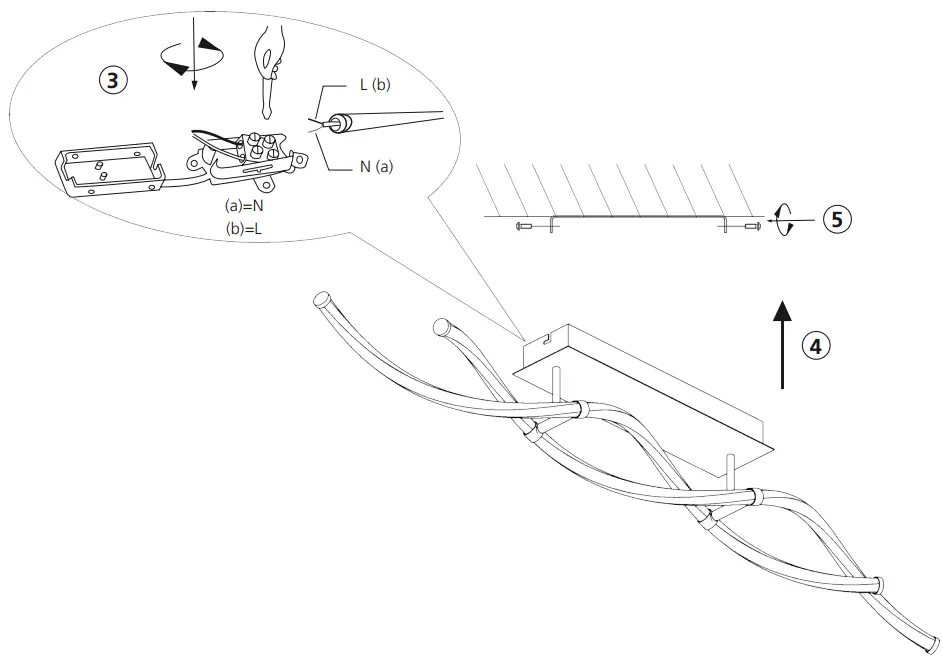

electrical connection

230 voltage/50 Hz connection

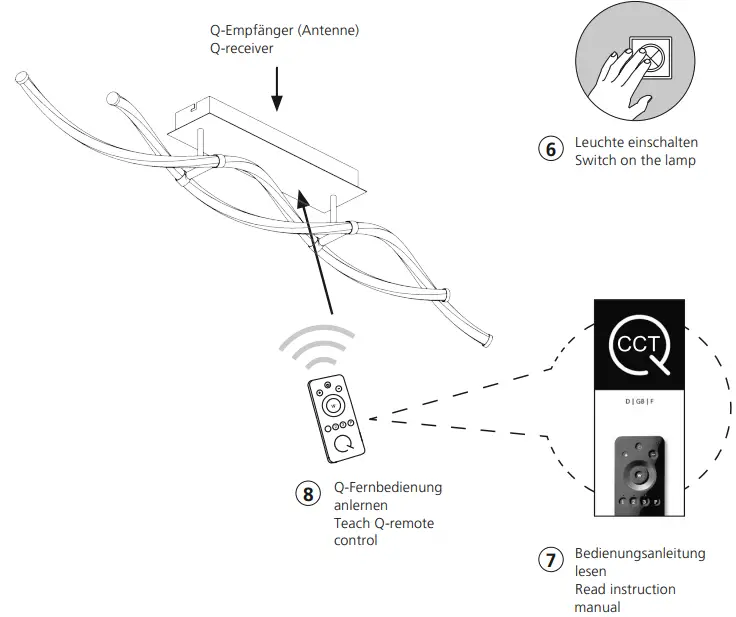

teach remote control

See Q-remote control manual

Reset

Reset the lamp, factory new

5 x on/off

This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment and the mutual recognition of their conformity. The full declaration of conformity can be requested from the address given below. When raising any technical questions, please cite the batch number (xxxxx-xx-xx xxxxx-xxx). You will find it on the Q light fitting‘s type plate.

CUSTOMER SUPPORT

Telefon: +49 (0) 2922-9721- 0
Telefax: +49 (0) 2922-9721- 9120
E-mail: [email protected]
www.neuhaus-group.de
