KAHUNA CHAIR EM 8500 Massage Chair Instruction Manual
Please read and follow all safety instructions listed in this user manual prior to use. Basic precautions should always be considered when operating an electrical appliance.

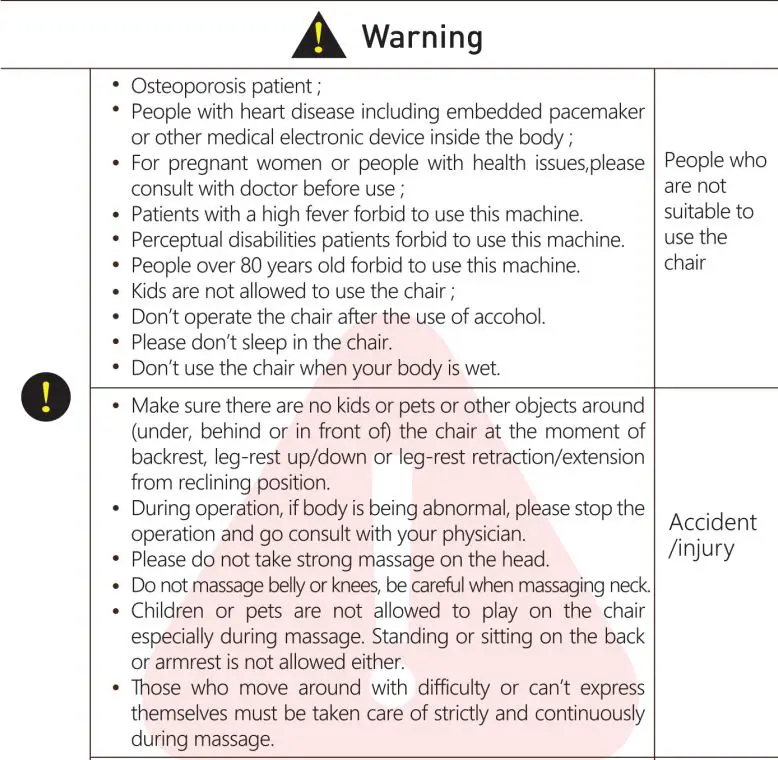

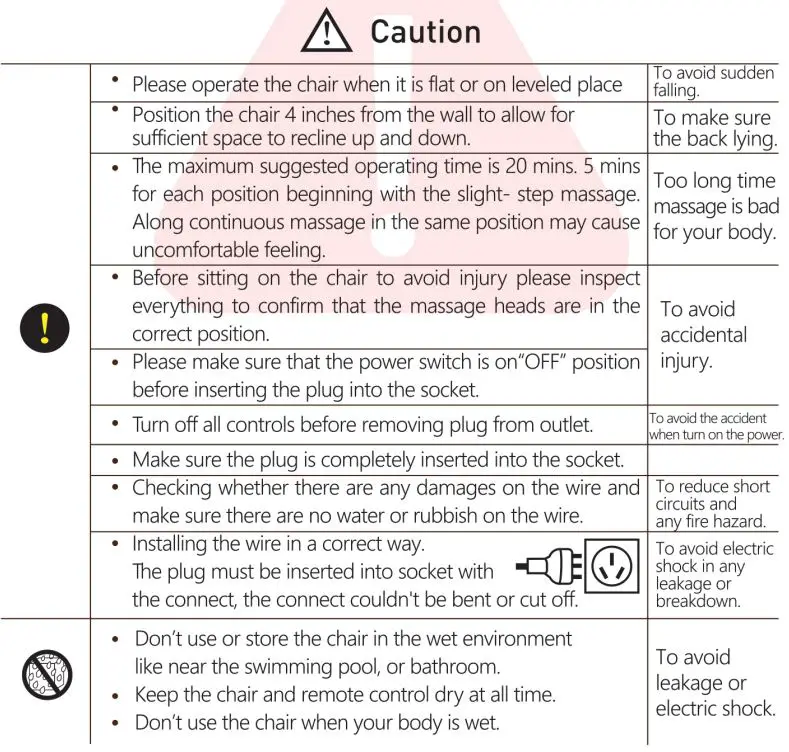

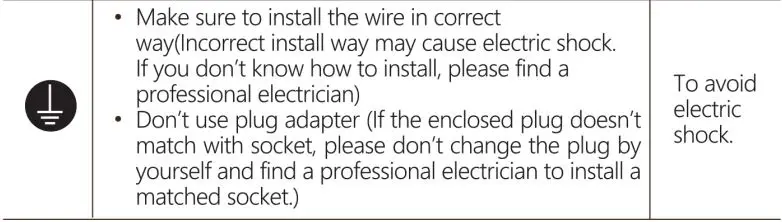

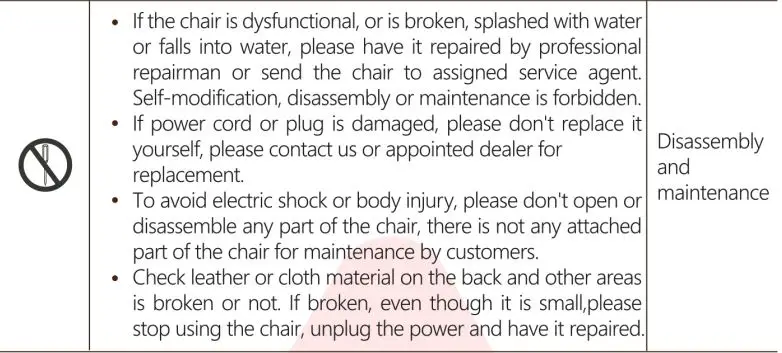

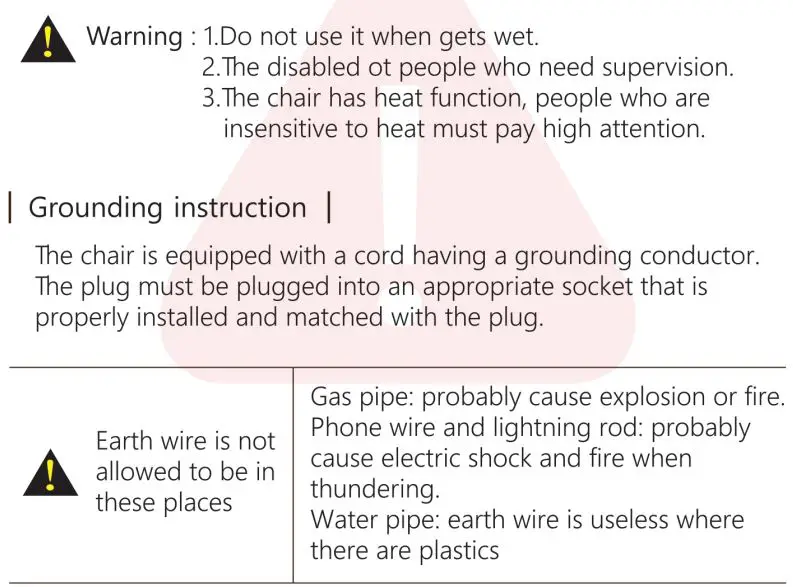

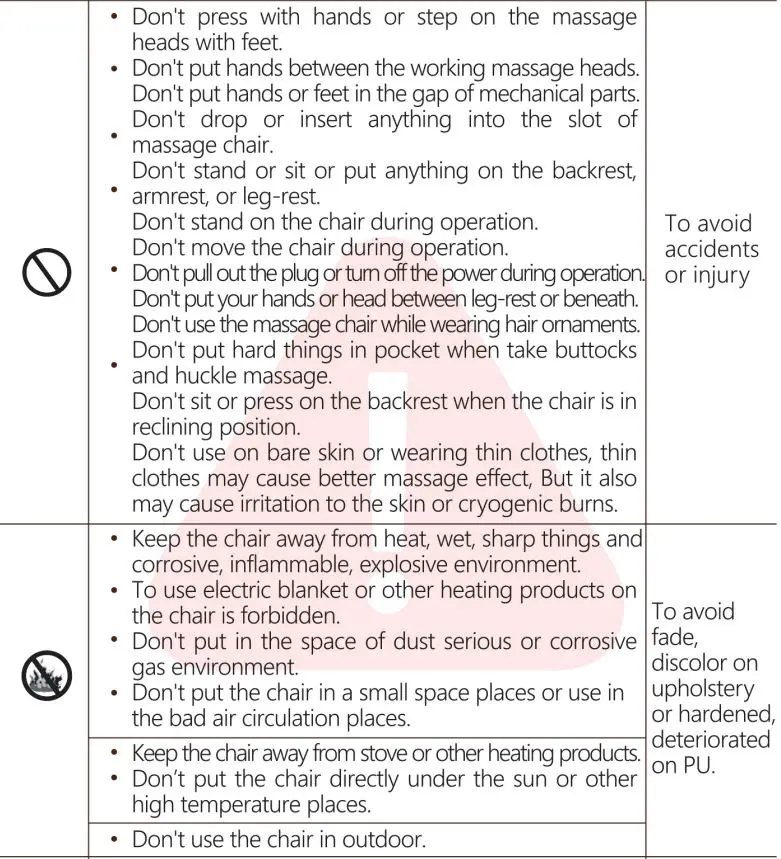

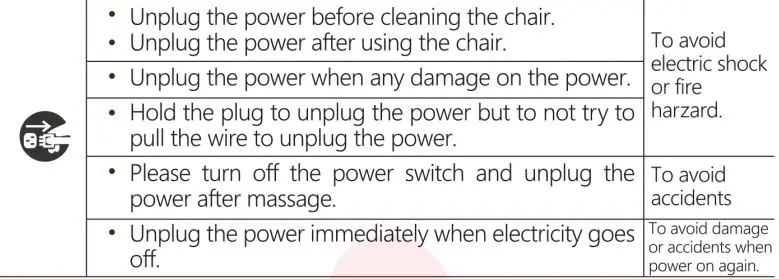

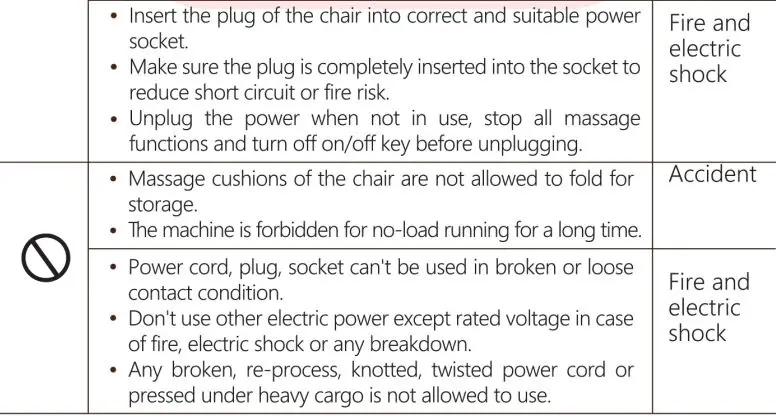

SAFETY INSTRUCTION
- Please read this manual carefully to make sure the installation and operation of the massage chair is done correctly.

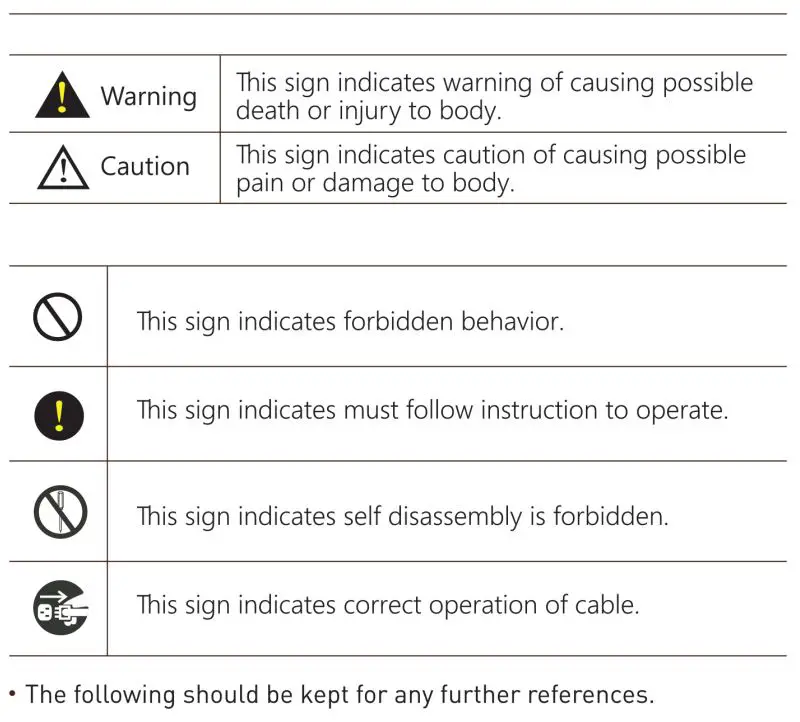

- “Safety Instructions” are provided for important safety information. Both Warning and Caution are important safety caution, please be more cautious .

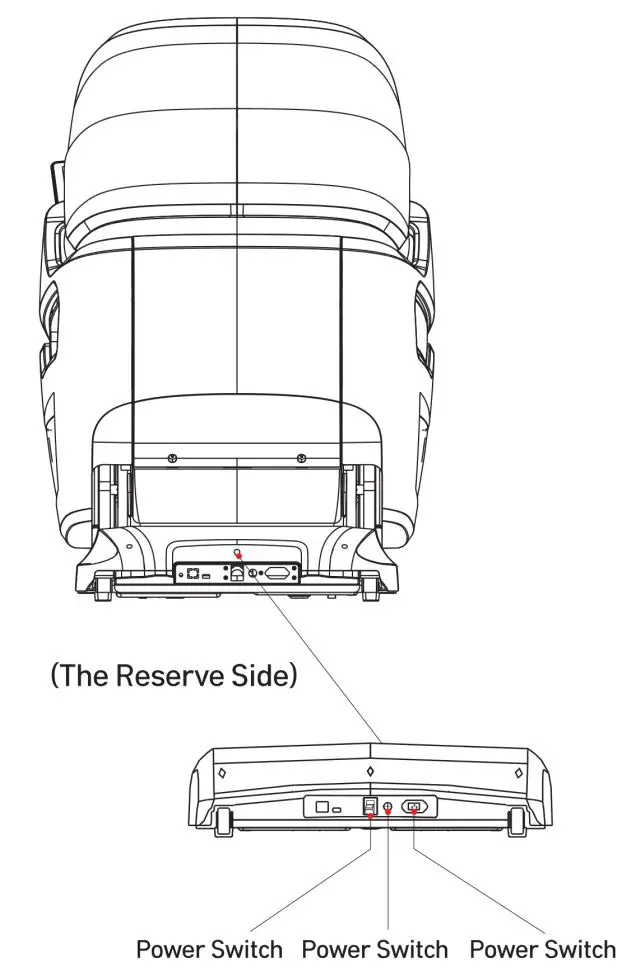

PRODUCT COMPONENTS

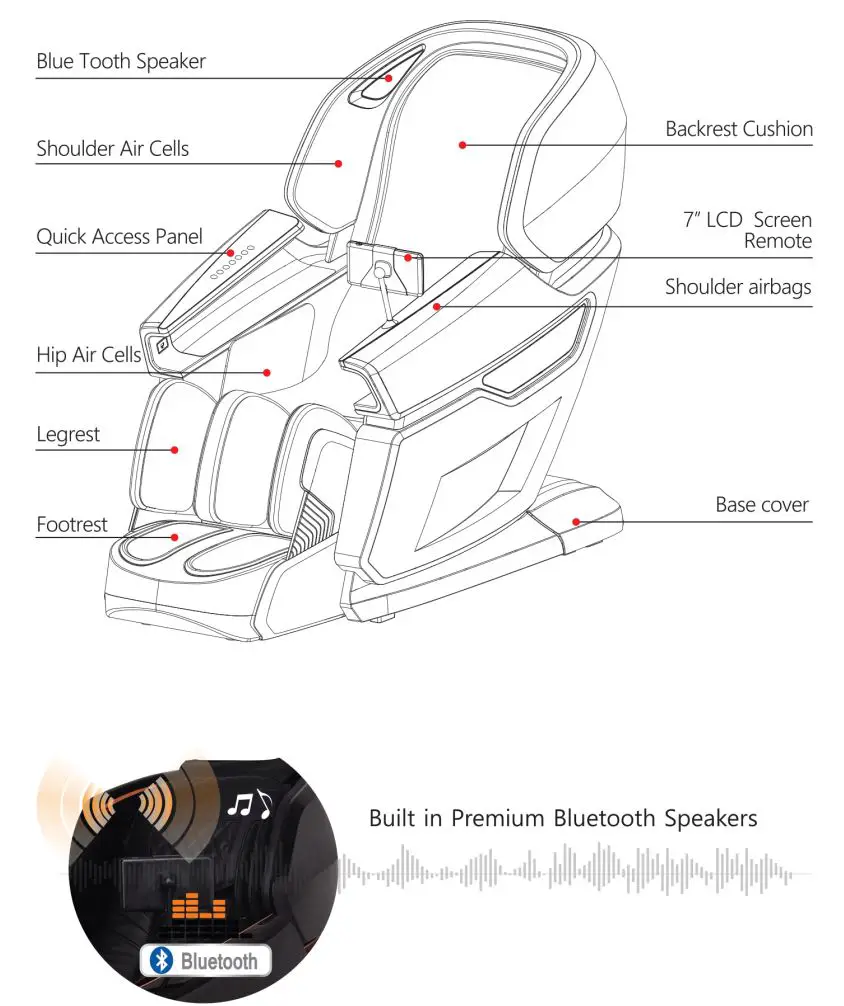

| Main body diagram (front) |
CHAIR INSTALLATION

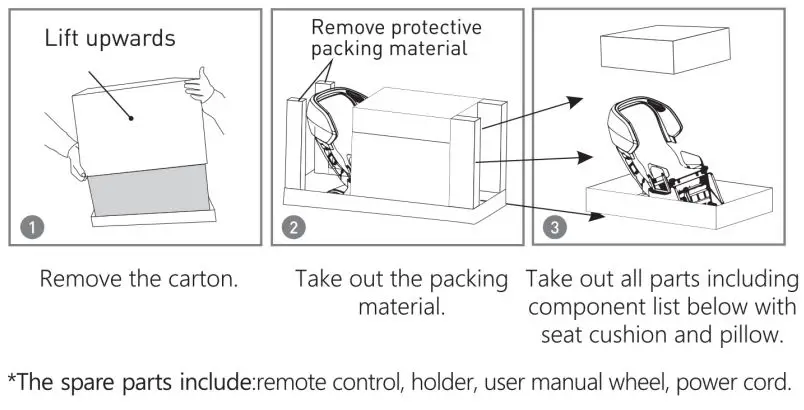

- Remove the package and take out the chair parts and components

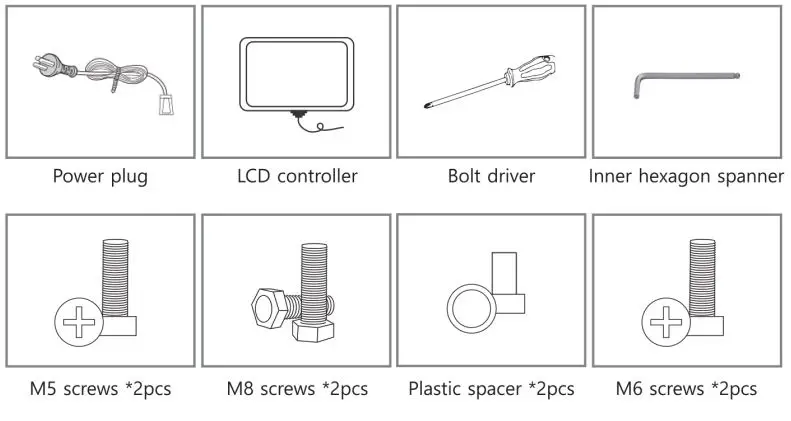

Components
- A screw driver and Allen-wrench is needed to complete installation.
- Allen wrenches are included in the parts bag, but you will need a screw driver as well.
- Please remove Velcro-cover when you attach Velcro.
- Extra Foot Paddings for softer foot massage are included for personal preference.

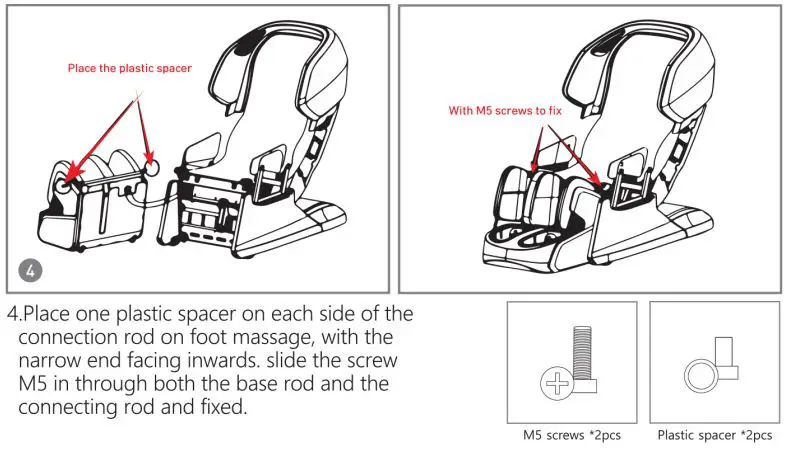

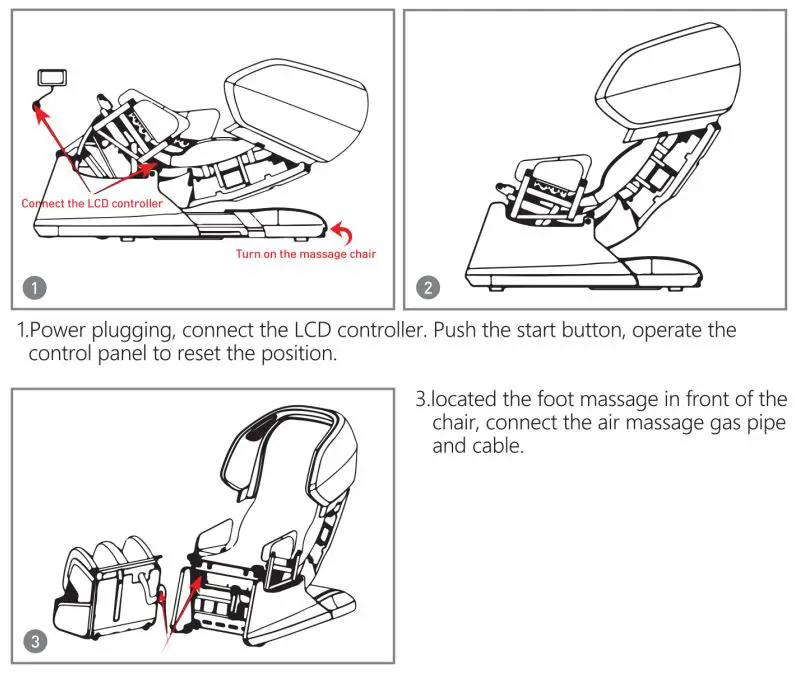

2. Installation of the Footrest

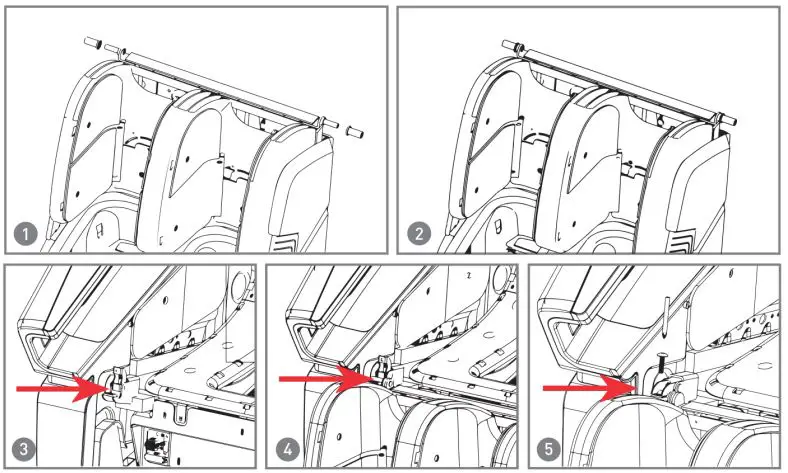

5.Leg installation complete

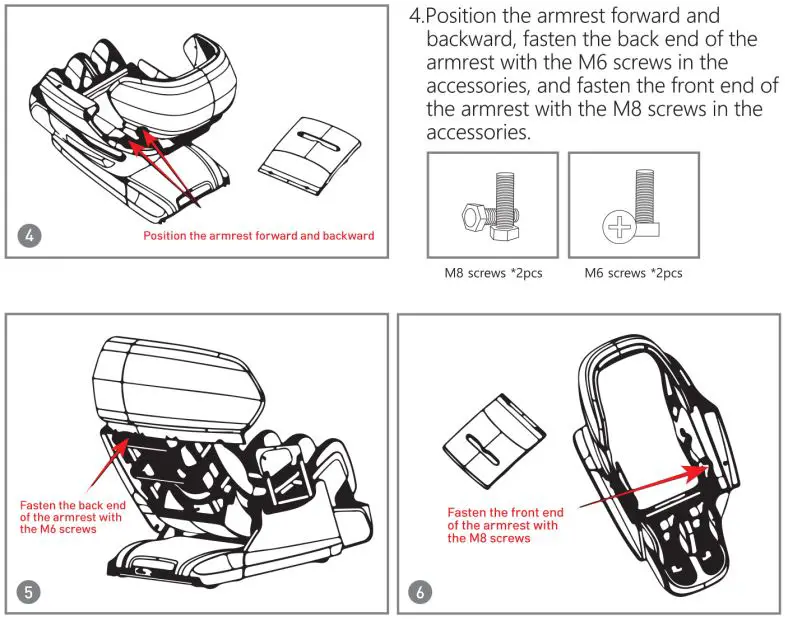

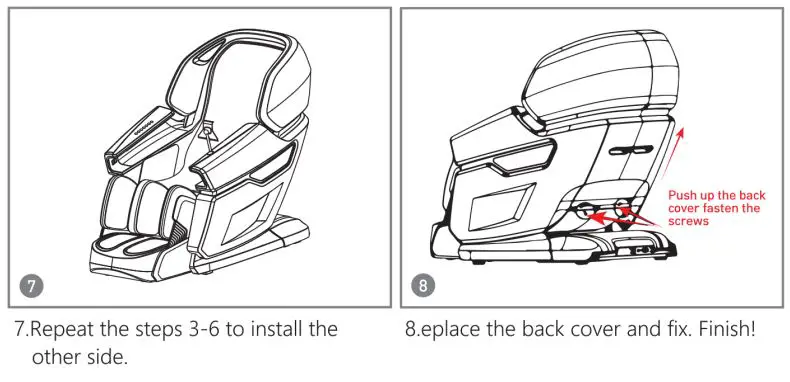

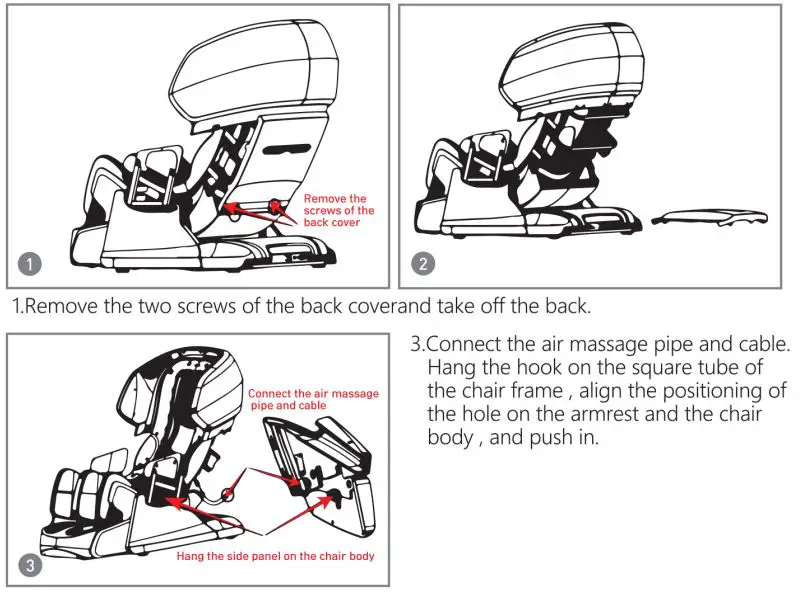

3. Installation of the side panels

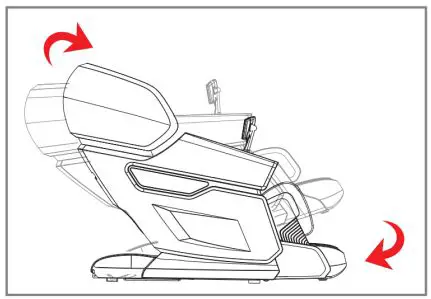

4. Before use
Use the controller to place the backrest frame to the extreme position, raise the calf to the highest position and raise it to the longest position. Make sure there is sufficient space around the massage chair before operation.
Use the controller to place the backrest frame to the extreme position, raise the calf to the highest position and raise it to the longest position. Make sure there is sufficient space around the massage chair before operation.

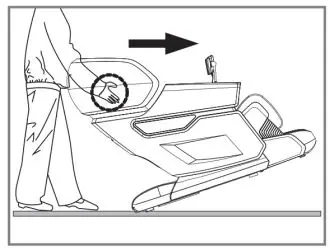

5. Moving the massage chair
After completing the installation, put the chair in incline/ upright position to move the chair easily.
– As illustrated, tilt the chair back onto it’s wheels at 45° angle. Slowly push and manoeuvre the massage chair to desired location. Lower massage chair slowly and smoothly until it is fully flat on the ground.
* Do not move massage chair when occupied or in use.
* Moving the massage chair may cause damage to the floors. Floor protection is recommended (e.g. rugs or carpet).
* Do not drop or suddenly let go of the chair when moving as it may damage the chair.
* Two persons are recommended when moving and extra care when handling the massage chair.
* Make sure power plug & remote is disconnected to prevent damages. Warranty will not cover the power cord & remote if the chair is moved with the plugs connected.

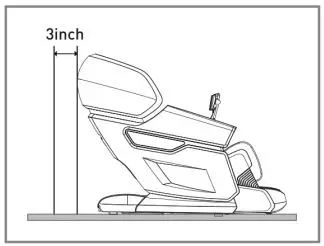

6. Place the massage chair in an open area
– Allow sufficient space around the chair for recline purposes.
– 3 inch distance for the back side and 19.7 inch in front of the foot rest.
OPERATION GUIDE

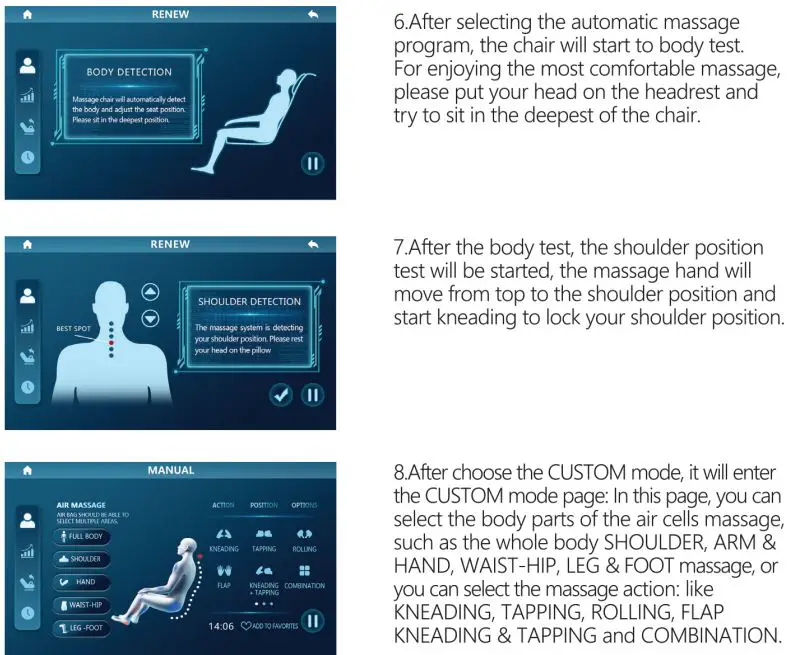

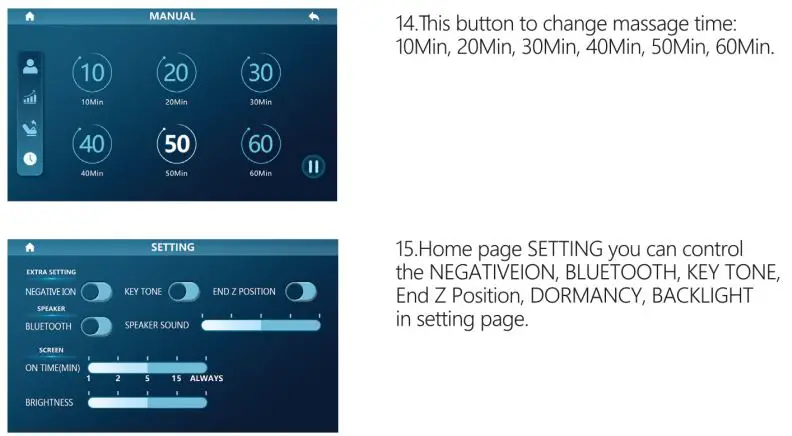

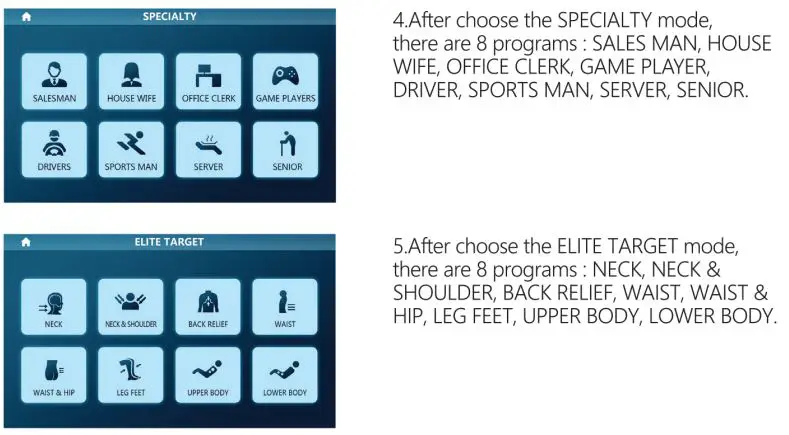

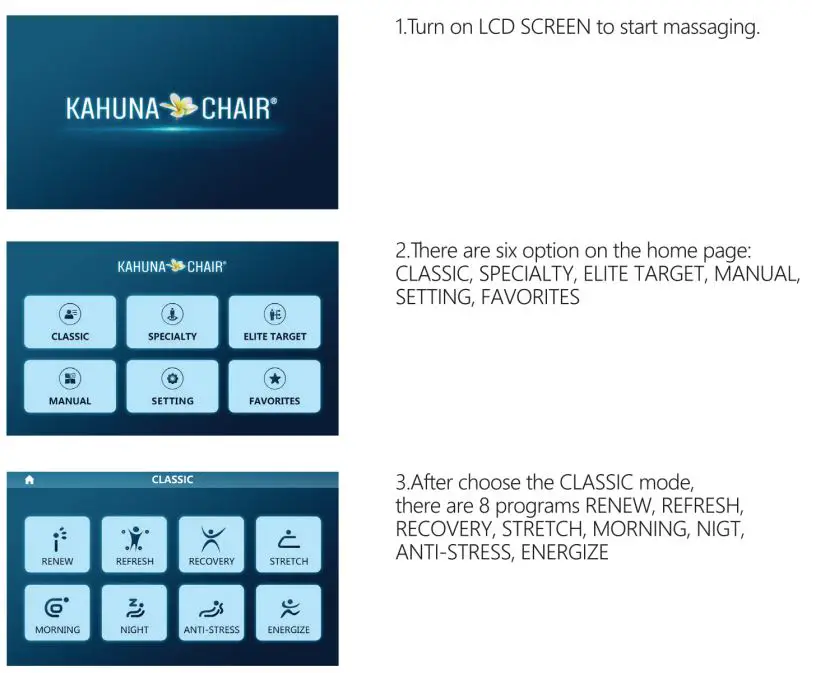

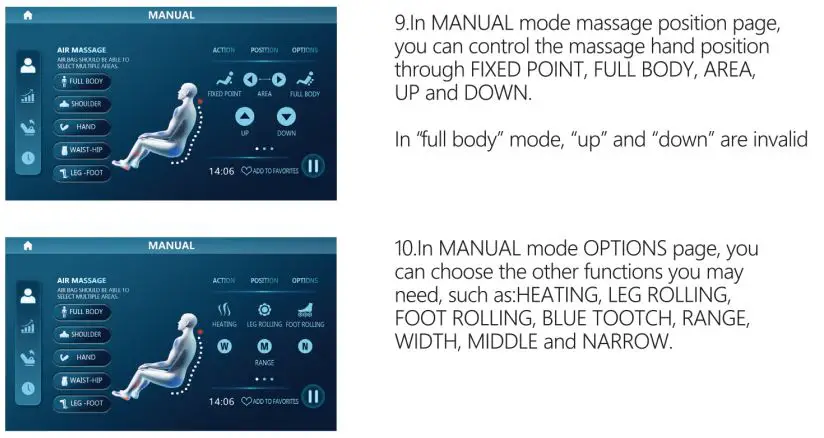

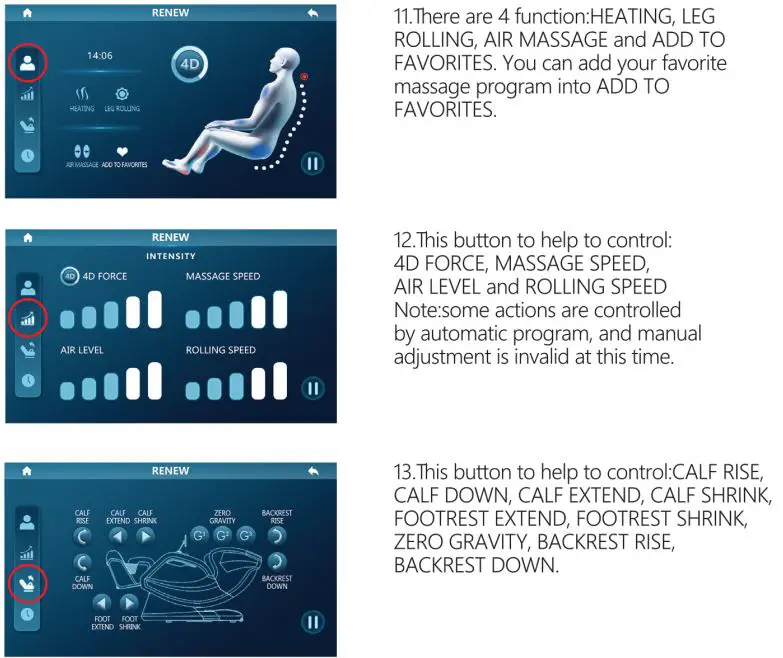

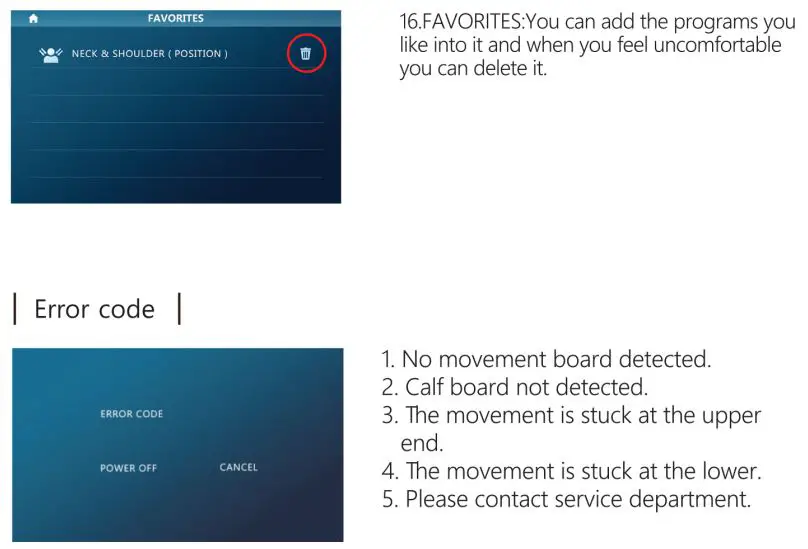

Manual Control
855.646. 9500 / 1. 714.388.2625, [email protected]

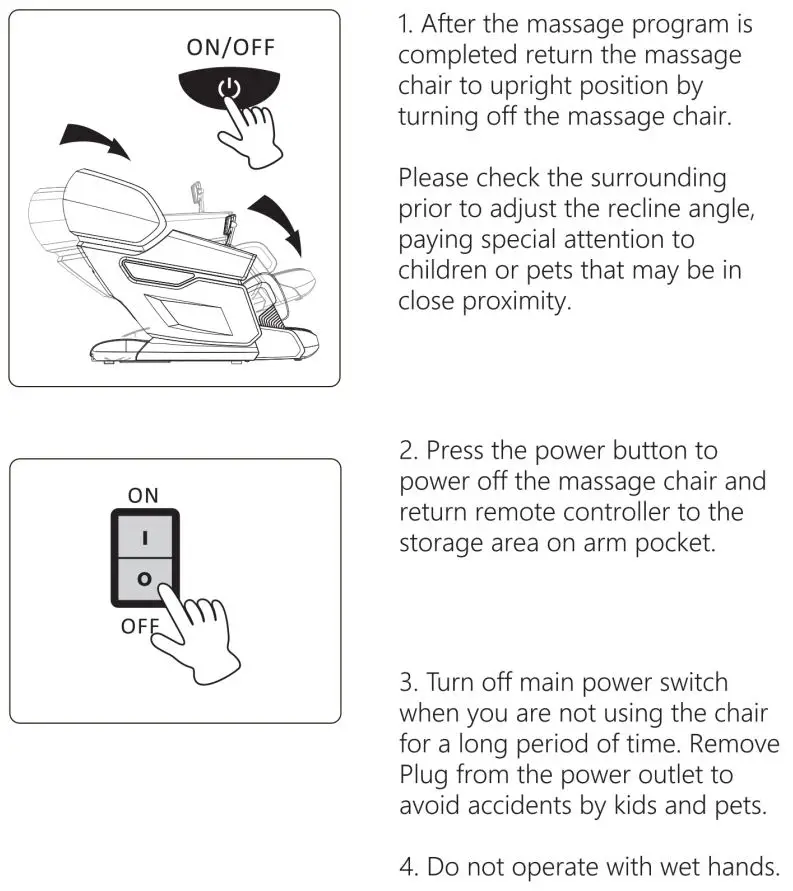

3 After use

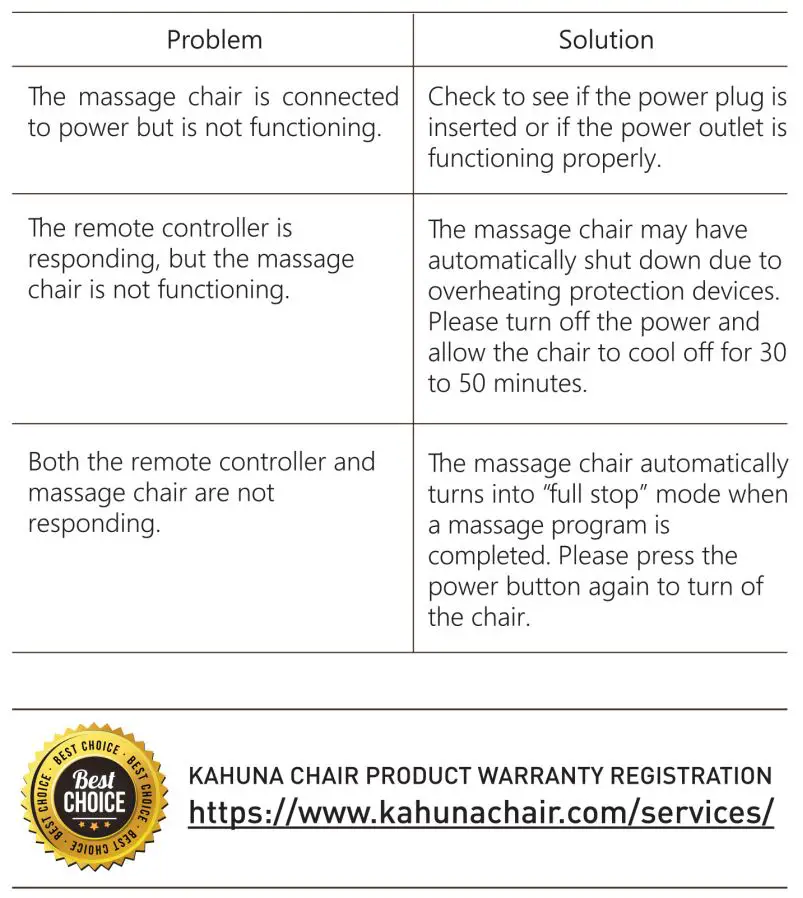

TROUBLE SHOOTING
If the sounds or movements are not normal, please turn off the massage chair and remove the plug from the electric outlet. Please contact the customer service department for further assistance.
855.646. 9500 / 1. 714.388.2625, [email protected]

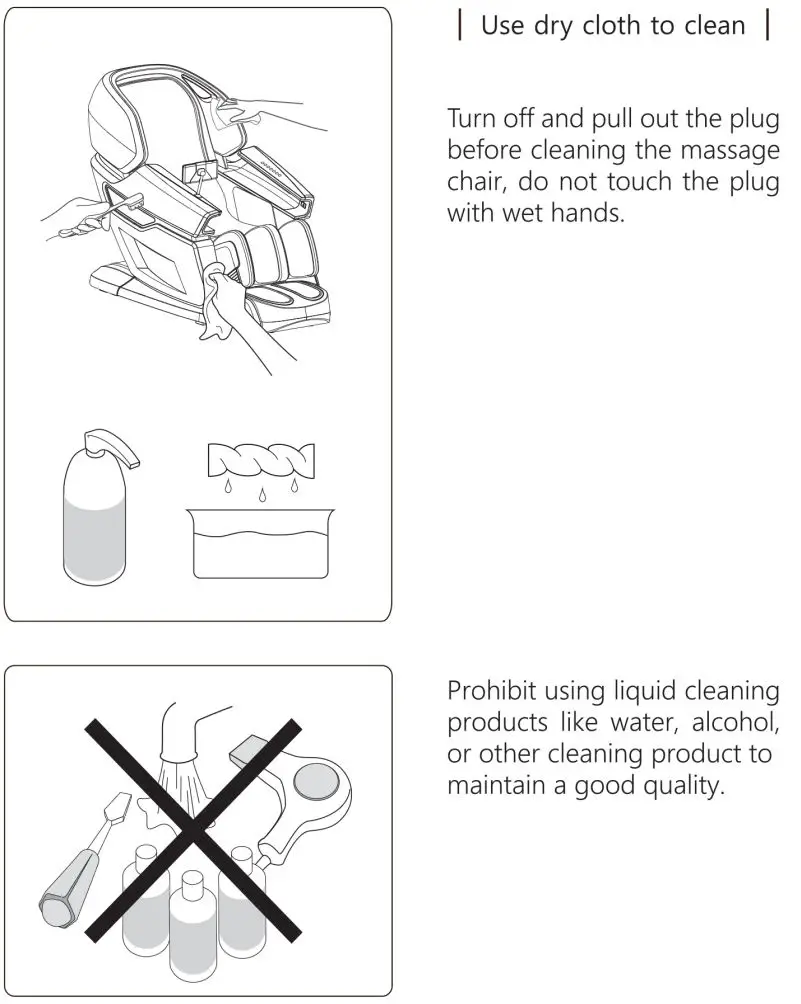

MAINTENANCE

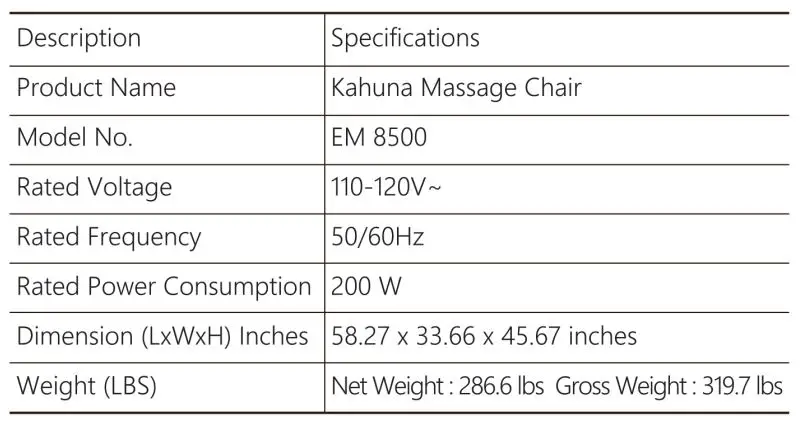

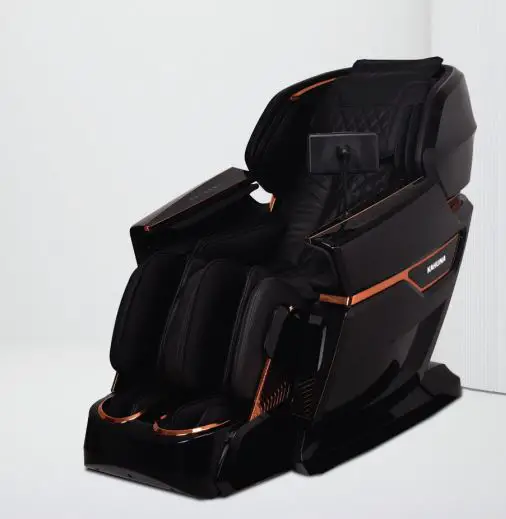

PRODUCT SPECIFICATIONS
Product Massage Chair
Model EM 8500
Developed by AJX Distribution INC
11125 Knott Ave, Suite D
Cypress, CA 90630
Tel 1-855-646-9500
Email [email protected]
You must register warranty at www.kahunachair.com/services/
INSTRUCTION MANUAL
MODEL:EM 8500
Please read this user manual thoroughly prior to operating the massage chair. Store this booklet for future reference.
