Sportdog Sd 875 Sporttrainer Remote Trainers User Manual

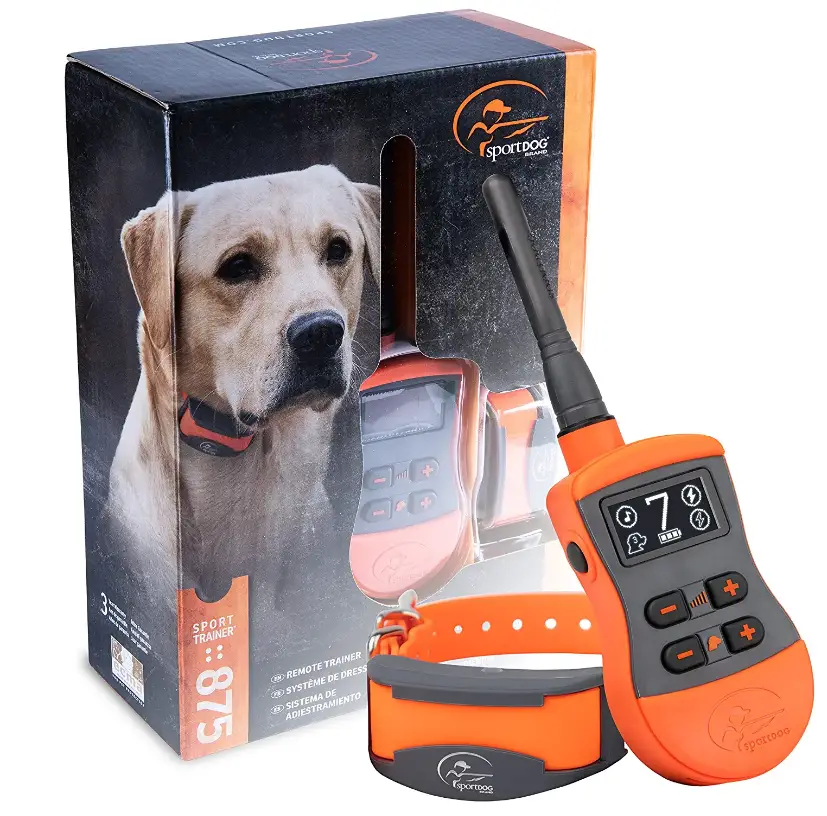

SportDOG SD 875 SportTrainer Remote Trainers

INTRODUCTION

The SportTrainer 875 from SportDOG Brand is intended for close-working dog hunting and field training. With an easy-to-read OLED screen, you can quickly see the selected dog, the degree and mode of static stimulation, as well as the battery level. The SD-875 is especially well suited for multi-dog hunting settings because of this and huge plus/minus buttons to quickly switch between dogs and stim levels. Up to three dogs can be controlled simultaneously by the remote trainer using SportDOG Add-A-Dog Collar Receivers. You can adapt this system to any setting or dog’s temperament with its 10 levels of continuous and transient static stimulation, vibration, and tone options in some modes.

The SportDOG® SportTrainer® SD-875E Remote Trainer has been proven safe, comfortable, and effective for all dogs over 3.6 kg. Consistent, correct use of this product allows you to reinforce commands and correct misbehavior from up to 800 m. The Remote Transmitter sends a signal, activating the Collar Receiver to deliver harmless stimulation. With proper training, a dog will learn to associate this signal with a command. Like all SportDOG® products, this model features adjustable static stimulation levels so you can tailor the stimulation level to your dog’s temperament, eliminating the risk of over-stimulation.

IMPORTANT: The SPORTTRAINER® SD-875E remote trainer has a range of up to 800 m. Depending on the way you hold the remote transmitter, the maximum range may vary. For consistent results at longer ranges, hold the remote transmitter in a vertical position away from your body and above your head. Terrain, weather, vegetation, transmissions from other radio devices, and other factors will affect the maximum range.

SPECIFICATION

• BRAND: SportDOG Brand
• RANGE: 1/2 Mile (880 yards)
• STIMULATION RANGES: 10 instantly selectable static stimulation levels with low/medium stim ranges; option to train with vibration and tone
• DOG EXPANDABILITY: Expandable to 3 dogs
• WATERPROOF: Waterproof and submersible to 25 feet using DryTek technology
• DOG SIZE: For dogs 8 pounds or larger with neck sizes 5″ – 22″
• BATTERIES: Rechargeable lithium-ion batteries
• COLLAR RECEIVER BATTERY LIFE: Charges in 2 hours, lasts 50-70 hours per charge
• REMOTE TRANSMITTER BATTERY LIFE: Charges in 2 hours, lasts 50-70 hours per charge
• PRODUCT DIMENSIONS: 2.15 x 7.25 x 1.25 inches; 15.52 Ounces
• ITEM MODEL NUMBER: SD-875E
• BATTERIES: 2 Lithium Ion batteries

THE SPORTTRAINER® SD-875E CONTAINS

• Remote Transmitter
• Collar Receiver
• Wall Charger
• Lanyard
• Long Contact Points
• Test Light Tool

CHARGING THE BATTERIES

FIRST THINGS FIRST, the Remote Trainer needs its batteries charged before you can use it. While your system is charging, read the entire Operating Guide available online at www.sportdog.com become familiar with your system.

TO CHARGE THE REMOTE TRANSMITTER

1. Connect one of the charger connectors to the Charging Jack.
2. Plug the charger into a standard wall outlet.
3. Charge the Remote Transmitter for 2 hours. It is not harmful to let the unit charge more than 2 hours.
4. When charging is complete, as indicated by the full Battery Icon, replace the rubber cover.

TO CHARGE THE COLLAR RECEIVER

1. Lift the rubber cover protecting the Charging Jack.
2. Connect one of the charger connectors to the Charging Jack.
3. Plug the charger into a standard wall outlet.
4. Charge the Collar Receiver for 2 hours. It is not harmful to let the unit charge more than 2 hours.
5. When charging is complete, as indicated by the Indicator Light blinking green, replace the rubber cover. NOTE: Approximate battery life between charges for both the Remote Transmitter and Collar Receiver is 50 to 70 hours, depending on the frequency of use.

TURNING THE COMPONENTS ON AND OFF

Once charged, the Remote Transmitter is on. Press any button to send signals.

TO TURN THE COLLAR RECEIVER ON

Press and release the On/Off Button. The Receiver Indicator Light will come on and the Collar Receiver will beep 1 – 2 times, depending on what static stimulation range is chosen. To extend the battery life between charging cycles, turn off the Collar Receiver when it is not in use. The default is 2 (medium).

TO TURN THE COLLAR RECEIVER OFF

Press and release the On/Off Button. The Receiver Indicator Light will come on solid red and the Collar Receiver will beep for 2 seconds. To extend the battery life between charging cycles, turn off the Collar Receiver when it is not in use.

PROGRAM THE REMOTE TRANSMITTER

The SportTrainer® SD-875E Remote Transmitter has 8 operational modes to allow you to select the best match for your type or style of training. See STEP 05 of your Operating Guide for complete descriptions of the available modes.

NOTE: The Remote Transmitter is factory set to mode 1.

TO CHANGE THE MODE:

1. Refer to the following table to review the available modes.
2. Using the Intensity Buttons +/-, set the display to 1.
3. Turn the Remote Transmitter over.
4. Using a pen or the tine of a buckle, depress and release the Mode Button. Select the desired mode using the Intensity Buttons +/-. After 5 seconds, your selected mode will flash to indicate that it has been set. Your remote transmitter will now return to the same Intensity level and dog to which it was previously set.

For multi-dog operations, refer to STEP 04.

• Static stimulation level adjusted by Intensity Buttons.
• The +2 Boost sends a signal to the collar to issue a static stimulation that is 2 levels higher than the currently selected level. The system will not correct higher than level 10.
• See your Operating Guide for more information.

MATCH THE COLLAR RECEIVER AND REMOTE TRANSMITTER

The Remote Transmitter has been pre-configured to work with the Collar Receiver. However, if you are using multiple Collar Receivers you will need to match the Collar Receivers to the Remote Transmitter.

TO MATCH THE COLLAR RECEIVER TO THE REMOTE TRANSMITTER:

1. Turn the Collar Receiver off.
2. Press and hold the On/Off Button. The Receiver Indicator Light will come on and then turn off after 5 seconds.

NOTE: If the Receiver Indicator Light begins flashing, repeat this step.

3. Release the On/Off Button.
4. Press and hold one of the Side Buttons on the Remote Transmitter until the Receiver Indicator Light flashes 5 times.
5. Once the Receiver Indicator Light has flashed 5 times, the Collar Receiver has been reset and will begin flashing as normal. If the Receiver Indicator Light does not flash, repeat this procedure.

PROGRAM THE SYSTEM FOR MULTI-DOG OPERATION

SportDOG® Add-A-Dog® extra Collar Receiver(s) must be purchased to train additional dogs. Every operational mode can be used with multiple dogs.

CHANGE THE MODE

Set display to 2 for multi-dog mode (see STEP 03). Select two or three dogs using the Dog Buttons +/-. After 5 seconds, the Remote Transmitter will flash and lock in the number of dogs chosen.

1. Program the first Collar Receiver.
2. Turn the Collar Receiver off.
3. Press and hold the On/Off Button. The Receiver Indicator Light will come on, then turn off after 4-5 seconds. If the On/Off Button is released too early, the Receiver Indicator Light will begin its normal flashing. If this occurs, start over from A.
4. After the Receiver Indicator Light has turned off, release the On/Off Button.
5. Press and hold a side button on the Remote Transmitter until the Receiver Indicator Light flashes 5 times. If the Receiver Indicator Light does not flash 5 times, start over from A.
6. To match additional collars, use the Dog Buttons +/- for Dog 2, etc., and follow the steps listed above

FIT THE COLLAR RECEIVER

CAUTION: Please see page 3 of the SportTrainer® SD-875E Operating Guide for Important Safety Information.

Put the Collar Receiver around your dog’s neck and adjust to find the proper fit. Fasten the Collar Receiver so the fit is snug yet loose enough to allow one finger to fit between the strap and the dog’s neck. Fit is important because a loose collar may cause inconsistent performance.

TERMS OF USE AND LIMITATION OF LIABILITY

1. TERMS OF USE
   Use of this Product is subject to your acceptance without modification of the terms, conditions, and notices contained herein. Use of this Product implies acceptance of all such terms, conditions and notices. If you do not wish to accept these terms, conditions, and notices, please return the Product, unused, in its original packaging, and at your own cost and risk to the relevant Customer Care Centre together with proof of purchase for a full refund.
2. PROPER USE
   This Product is designed for use with dogs where training is desired. The specific temperament or size/weight of your dog may not be suitable for this Product. Radio Systems Corporation recommends that this Product is not used if your dog is aggressive and accepts no liability for determining suitability in individual cases. If you are unsure whether this product is appropriate for your dog, please consult your veterinarian or certified trainer prior to use. Proper use includes, without limitation, reviewing the entire Operating Guide and any specific safety information.
3. NO UNLAWFUL OR PROHIBITED USE
   This Product is designed for use with dogs only. This dog training device is not intended to harm, injure or provoke. Using this Product in a way that is not intended could result in violation of Federal, State or local laws.
4. LIMITATION OF LIABILITY
   In no event shall Radio Systems Corporation or any of its associated companies be liable for (i) any indirect, punitive, incidental, special or consequential damage and/or (ii) any loss or damages whatsoever arising out of or connected with the misuse of this Product. The Purchaser assumes all risks and liability from the use of this Product to the fullest extent permissible by law.
5. MODIFICATION OF TERMS AND CONDITIONS
   Radio Systems Corporation reserves the right to change the terms, conditions and notices governing this Product from time to time. If such changes have been notified to you prior to your use of this Product, they shall be binding on you as if incorporated herein.

COMPLIANCE

This equipment has been tested and found to comply with relevant RED Directives. Before using this equipment outside the EU countries, check with the relevant local RED authority. Unauthorized changes or modifications to the equipment that are not approved by Radio Systems Corporation are in violation of EU RED regulations, could void the user’s authority to operate the equipment, and void the warranty.
The Declaration of Conformity can be found at: www.sportdog.com/eu_docs.php.
IC – SD-875E/SDT54-16043
This device complies with Industry Canada license-exempt RSS. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This radio transmitter, model number SDT54-16043, has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Monopole antenna, part number 610-2395 or equivalent, with -27 dbi gain.

ACMA

This device complies with the applicable EMC requirements specified by the ACMA (Australian Communications and Media Authority).

BATTERY DISPOSAL

Warning: Please see page 3 of the SportTrainer® SD-875E Operating Guide for Important Safety Information related to the batteries.
This system operates on two Li-Ion battery packs (160 mAh capacity for the Collar Receiver, 500 mAh capacity for the Remote Transmitter). Only replace with battery received from calling the Customer Care Centre. For a listing of the telephone numbers in your area, visit our website at www.sportdog.com.
A separate collection of spent batteries is required in many regions; check the regulations in your area before discarding spent batteries. Please see below for instructions on how to remove the battery from the product for separate disposal.
At end of product life, use these battery removal instructions for final disposal (do not open the collar receiver or remote transmitter until you have received the replacement).

• Using a T8 Torx screwdriver, remove the case screws from your Remote Transmitter.
• Using a 3/32 Allen Wrench, remove the case screws from your Collar Receiver.
• Remove the case back or cover.
• Remove the old battery pack.

WARNING:

• When removing the old battery pack, care must be taken when gripping the connector firmly to avoid damaging the wires. Shorting the battery wires may cause fire or explosion.
• These instructions are not valid for repair or battery replacement. Replacing the battery with a battery not specifically approved by Radio Systems Corporation may cause fire or explosion. Please call the Customer Care Centre to avoid invalidating your warranty.

IMPORTANT RECYCLING ADVICE

Please respect the Waste Electrical and Electronic Equipment regulations in your country. This equipment must be recycled. If you no longer require this equipment, do not place it in the normal municipal waste system. Please return it to where it was purchased in order that it can be placed in our recycling system. If this is not possible, please contact the Customer Care Centre for further information. For a listing of Customer Care Centre telephone numbers, visit our website at www.sportdog.com.

FAQs

Does this also shock when barking is sensed?

No it does not, you must push a button when the dog is barking if you want to stop the barking or possibly wear a second no bark collar, which many customers do. Always make sure you are purchasing from an Authorized Sportdog retailer otherwise no warranty applies.

Where can i get a replacement pocket clip for the remote?

The replacement belt clip for this handheld remote transmitter is available separately as SKU# SAC00-12528.

Where do you order the other two extra collars?

Additional receiver collars for the SportDOG Brand SportTrainer can be found with model number SDR-AXF.

Does come with one or two shock collars?

This listing will be the kit of one remote transmitter and one receiver collar.

My dog has developed sores and scabs from the prongs, can you buy silicone covers for the prongs?

While we do not offer silicone covers, we can share with you what we have seen in the past. Typically, sores will only develop in a situation where a collar is worn too tight, too loose, or more than the recommended 12 hours a day. Some adjustments to the fit and/or a reduced time wearing the collar daily will be needed for your dog to be able to continue using this product.

Does the remote have a lock feature to prevent accidental corrections?

This remote transmitter does not offer a lock option. These buttons are designed for sporting use though and are very sturdy. Accidental corrections are not a common occurrence we hear of with this product.

Is vibration and tone modes adjustable too? can I raise the intensity of vibration and tone? if I needed to? thanks.

The levels of vibration and tone are not adjustable; only the level of static correction is adjusted.

Is this compatible with all sport dog beepers?

While most SportDOG Brand remote trainers are compatible with each other, they are not all universal. For specific questions on compatibility, we’ll need to know what equipment you plan to pair this trainer to.

Do you make a “dummy collar”? Have not had a shock collar in some years. Some used to make a dummy collar, of equal weight, to transition the dog off.

We do not manufacture dummy collars.

Can sd-875 be used with an underground fence system? if so what do I need to get?

While the handheld transmitter is compatible with our SDF-CTR Contain + Train Receiver Collar and can be used in conjunction with a fence, please know the SD-875 Receiver Collar has no containment capabilities. You will need the SDF-CTR Contain + Train Receiver Collar along with a compatible in-ground fence system to have both containment and training capabilities in a single collar unit.

Are vibration and tone strong enough for stubborn Doberman? Or we should try x425.

This system will offer the same static stimulation intensity that is offered on the SD-425X system. These systems are best for timid to average temperaments as they offer low and medium stimulation options only. If you feel your dog will need stronger stimulation for stubborn temperaments, we would recommend the SD-1275 which offers low, medium, and high stimulation options.

If u buy the 2 dog expandable version do you have to buy a separate collar & receiver?

To expand the system to two dogs, all you need to purchase is an Add-A-Dog receiver collar.

What can I do if the remote will not charge? The collar charges a fine.

We’re so sorry that you’re having this trouble with your SportTrainer remote. When you can, please contact our Customer Care Center at PetSafe directly so we can help you further.

Can the level be set per dog so it changes when a dog is selected?

Yes, the level for each dog can be set separately.

Can both batteries be changed by the user?

Yes. Although they last a good while. I have one collar that is at least 7 years old and the batteries were changed for the first time a little over two years ago. They are used and recharged 99 days out of a 100 consistently too, FWIW.
