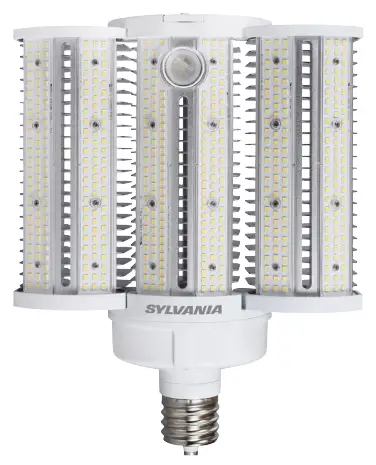

SYLVANIA ULTRA LED HIDr Area Light Lamps
Application
ULTRA LED HIDr replacement area lamps are ideal for outdoor shoebox and wall pack applications with a customizable lumen-selectable directional light output.
Benefits and Features
- Lasts up to 5 times longer than HID lamps
- No warm-up time, instant-on with full light output and stable color
- Consumes up to 74% less energy than an equivalent HID lamps while delivering the same light output
- Lumen selectable light is enabled through physical controls located on the lamp
- Continuous and standby dimming can be enabled on lamps 75W and higher when paired with the optional snap-on motion/daylight sensor and remote control
- Built-in extendable support frame and wire retention.
- features for added support post-installation
- The rotatable base for easy installation
- Passive cooling design (higher reliability with no internal fan)
- Up to 150 LPW
- 3000K, 4000K, and 5000K color temperature— CRI 80+
- 180° directional light output
Electrical
- 120-277VAC
- Power Factor >90%
- 6kV surge protection
Rated Life
- 50,000 hours (L70)
Warranty
- Standard 5-year lamp warranty
Ambient Operating Range
- -40°F to +122°F (-40°C to +50°C)
Wattage Comparison
| Traditional Source | Traditional System Wattage | LED System Wattage | Energy Savings | Energy Savings Over Lamp Life* |
| HID Metal Halide | 70W HID | 18W | 74% | $286 |
| HID Metal Halide | 100W HID | 27W | 73% | $401 |
| HID Metal Halide | 175W HID | 45W | 74% | $715 |
| HID Metal Halide | 250W HID | 75W | 70% | $962 |
| HID Metal Halide | 400W HID | 110W | 73% | $1,595 |
Certifications and Listings
- IP64 Rated
- cULus
- RoHS
- FCC*
- Lead-Free
- Mercury Free
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Please visit www.SYLVANIA.com/fccpart15b for more information.
Installation
- Requires easy ballast by-pass.
- The lamp operates directly on line voltage, 120-277VAC.
Specification Data
| Catalog # | Type |
| Project | |
| Comments | |
| Prepared by |
Ordering Guide
| LED | XXX | HIDR | ODAREA | 8 | XX | Base Type |
| LED LED Lamps and Retrofits | Wattage 18, 27, 45, 75 or 110 Watts | Lamp Type HID Replacement | Application Outdoor Area Light | CRI 8 = 80+ | Color Temperature 30 = 3000K 40 = 4000K 50 = 5000K | Base Type MED = E26 Medium Base MOG = EX39 Mogul Base |
Ordering Information
| Item Number | Ordering Abbreviation | Power (W) | Base Type | Replaces | Input Voltage (V) | Average Life (hrs) | CCT | Typical Lumens (lm) | Efficacy (lm/W) | CRI | Power Factor | Dimming1,2 | Case Qty | DLC | CEC |
| 41021 | LED18HIDRODAREA830MED | 18 | Medium base | 70W HID | 120-277 | 50,000 | 3000K | 2600 | 144 | 80+ | 0.9 | Yes | 4 | No | No |
| 41022 | LED18HIDRODAREA840MED | 18 | Medium base | 70W HID | 120-277 | 50,000 | 4000K | 2700 | 150 | 80+ | 0.9 | Yes | 4 | No | No |
| 41023 | LED18HIDRODAREA850MED | 18 | Medium base | 70W HID | 120-277 | 50,000 | 5000K | 2700 | 156 | 80+ | 0.9 | Yes | 4 | No | No |
| 41024 | LED27HIDRODAREA830MED | 27 | Medium base | 100W HID | 120-277 | 50,000 | 3000K | 3780 | 140 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41025 | LED27HIDRODAREA840MED | 27 | Medium base | 100W HID | 120-277 | 50,000 | 4000K | 4050 | 150 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41026 | LED27HIDRODAREA850MED | 27 | Medium base | 100W HID | 120-277 | 50,000 | 5000K | 4050 | 155 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41027 | LED45HIDRODAREA830MOG | 45 | Mogul base | 175W HID | 120-277 | 50,000 | 3000K | 6300 | 140 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41028 | LED45HIDRODAREA840MOG | 45 | Mogul base | 175W HID | 120-277 | 50,000 | 4000K | 6750 | 150 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41029 | LED45HIDRODAREA850MOG | 45 | Mogul base | 175W HID | 120-277 | 50,000 | 5000K | 6750 | 155 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41015 | LED75HIDRODAREA830MOG | 75 | Mogul base | 250W HID | 120-277 | 50,000 | 3000K | 10,500 | 140 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41016 | LED75HIDRODAREA840MOG | 75 | Mogul base | 250W HID | 120-277 | 50,000 | 4000K | 11,250 | 150 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41017 | LED75HIDRODAREA850MOG | 75 | Mogul base | 250W HID | 120-277 | 50,000 | 5000K | 11,250 | 155 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41018 | LED110HIDRODAREA830MOG | 110 | Mogul base | 400W HID | 120-277 | 50,000 | 3000K | 15,400 | 140 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41019 | LED110HIDRODAREA840MOG | 110 | Mogul base | 400W HID | 120-277 | 50,000 | 4000K | 16,500 | 150 | 80+ | 0.9 | Yes | 4 | No | Yes |
| 41020 | LED110HIDRODAREA850MOG | 110 | Mogul base | 400W HID | 120-277 | 50,000 | 5000K | 16,500 | 155 | 80+ | 0.9 | Yes | 4 | No | Yes |
Dimming can be controlled through a physical knob on 18W-45W lamp types or when paired with an optional motion/daylight sensor and remote control on 75W-110W lamp types. 2Not is compatible with other dimmers.
Accessory Information
| Item Number | Ordering Abbreviation | Description |
| 75055 | LED/ADAPTOR/MOGUL BASE** | LED Retrofit HID Mogul Base Adaptor |
| 41145 | LEDHIDRREMOTE | Remote Control |
| 41146 | LEDHIDRSENSORMICROWAVEMOTDAY | Motion and Daylight Sensor |
- Also compatible with HIDr Selectable and HIDr High Bay.
- Enables lamps with E26 medium base to be used in EX39 mogul base socket applications.

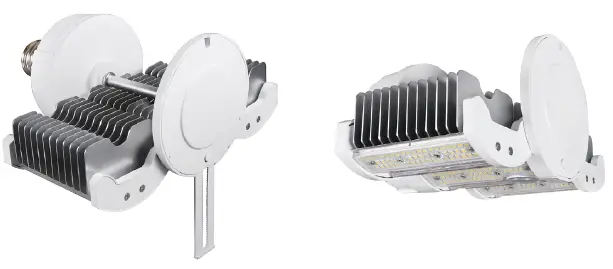

Extendable Support Frame

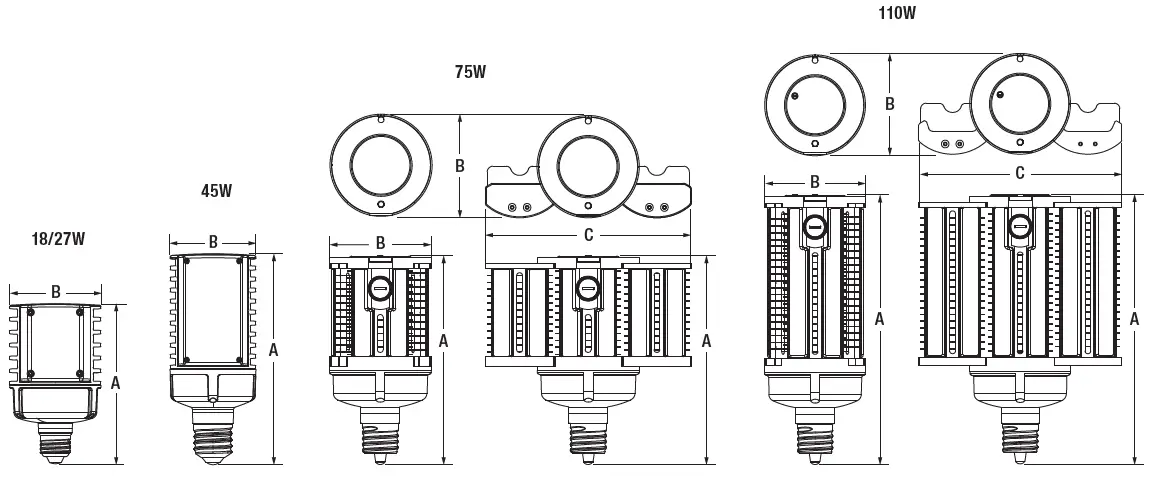

Physical Information
| (A) Height (inches) | (B) Diameter (inches) | (C) Width (inches) | |
| LED HIDR 18W | 5.3 | 3.0 | |
| LED HIDR 27W | 5.3 | 3.0 | |
| LED HIDR 45W | 8.5 | 3.4 | |
| LED HIDR 75W | 8.8 | 4.3 | 8.7 |
| LED HIDR 110W | 11.5 | 4.3 | 8.7 |
Additional Specifications
- Verify fixture size before installation to ensure fit.
- The dimming function can only be enabled either through a physical knob on 18W-45W lamps or by pairing it with an SYLVANIA motion sensor and remote control (purchased separately) for 75W-110W lamps. Dimming is not compatible with other dimmers.
- Not suitable for outdoor fixtures with air vents.
- Should not be directly exposed to water.
LEDVANCE LLC
200 Ballardvale Street Wilmington, MA 01887 USA Phone 1-800-LIGHTBULB (1-800-544-4828) www.sylvania.com.
SYLVANIA and LEDVANCE are registered trademarks. All other trademarks are those of their respective owners. Licensee of product trademark SYLVANIA in general lighting. Specifications are subject to change without notice. © 2021 LEDVANCE LLC.
