Numatic Hetty.160-11 Henry Xtend Bagged Cylinder Vacuum Cleaner Instruction Manual

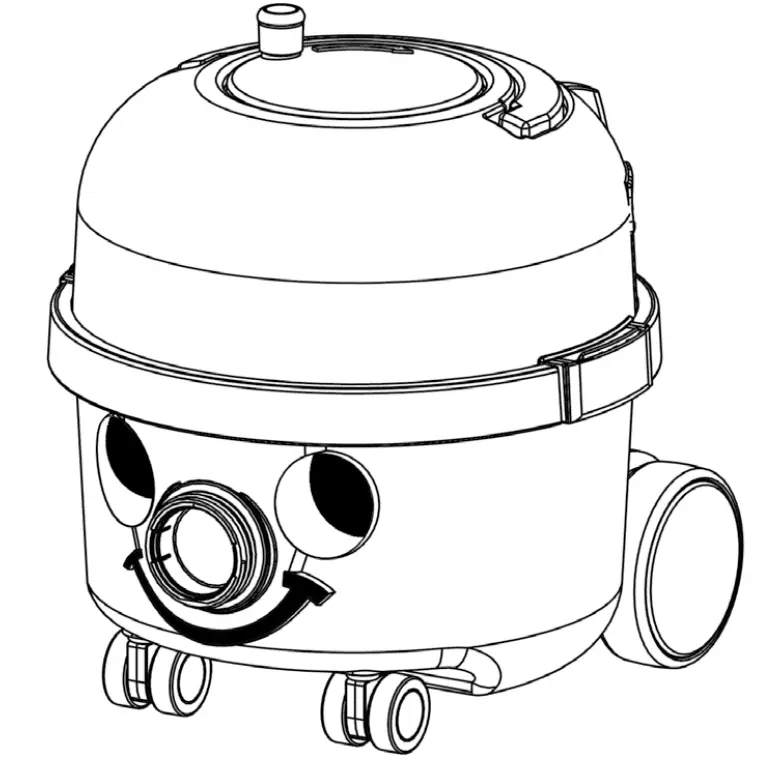

Numatic HETTY.160-11 Henry Xtend Bagged Cylinder Vacuum Cleaner

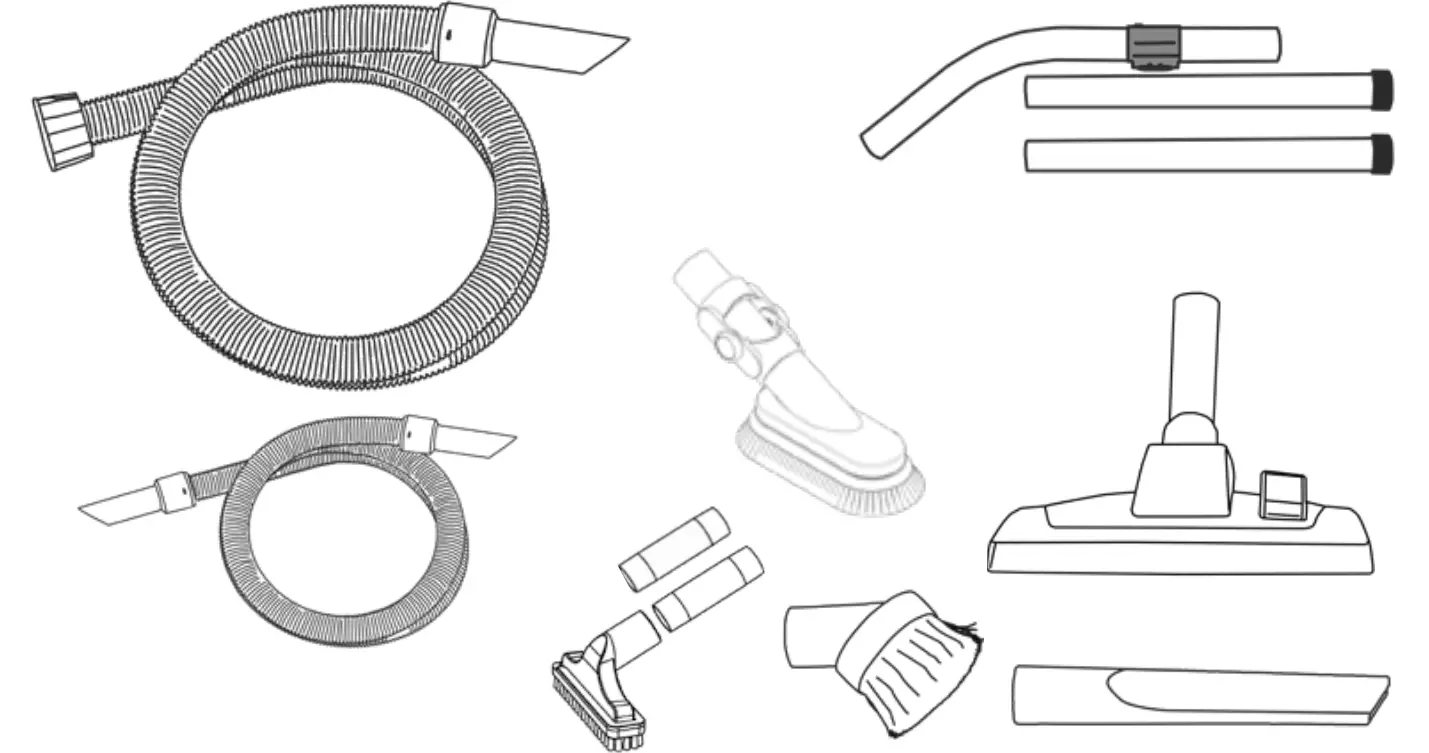

Kit AS20

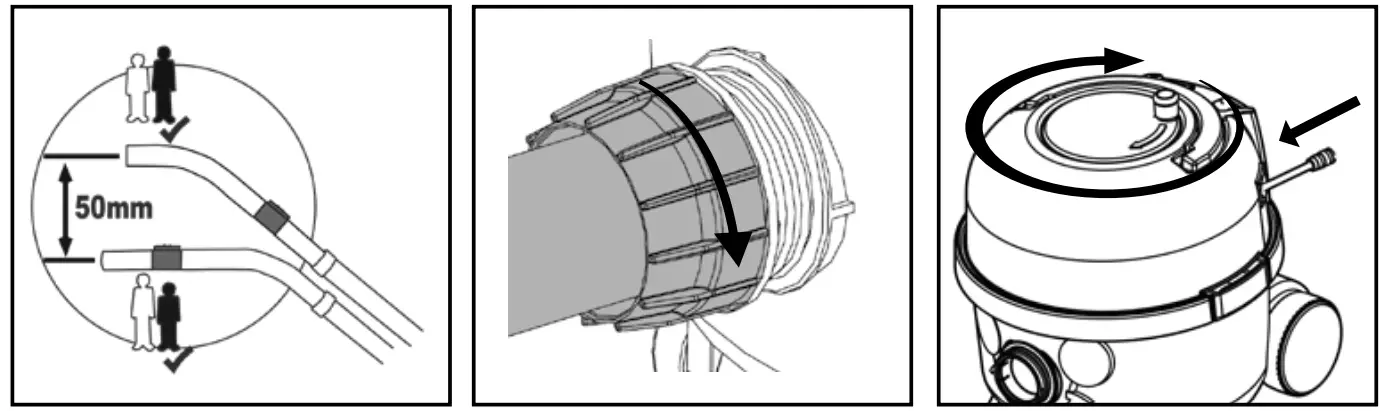

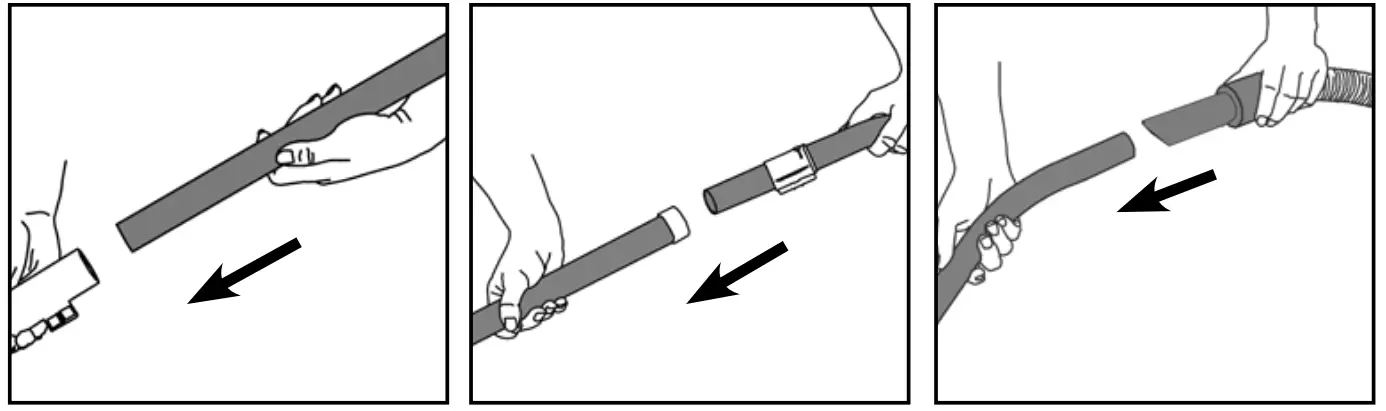

Assembly

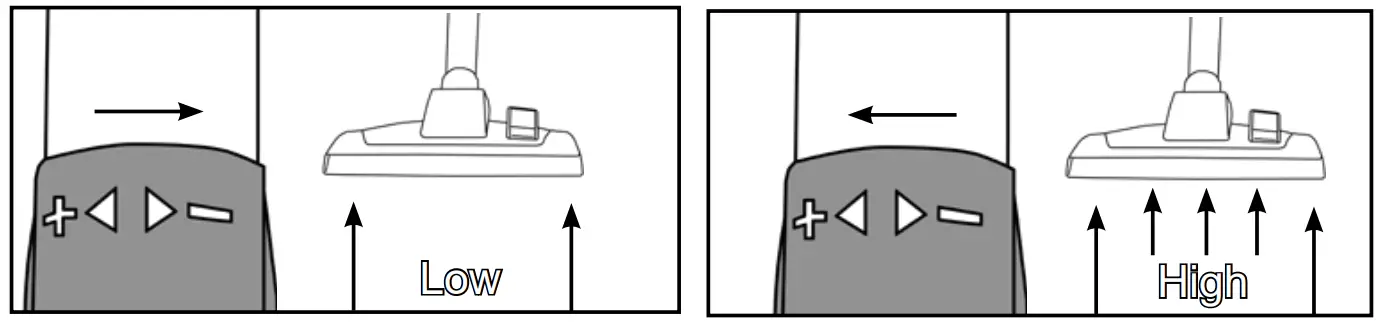

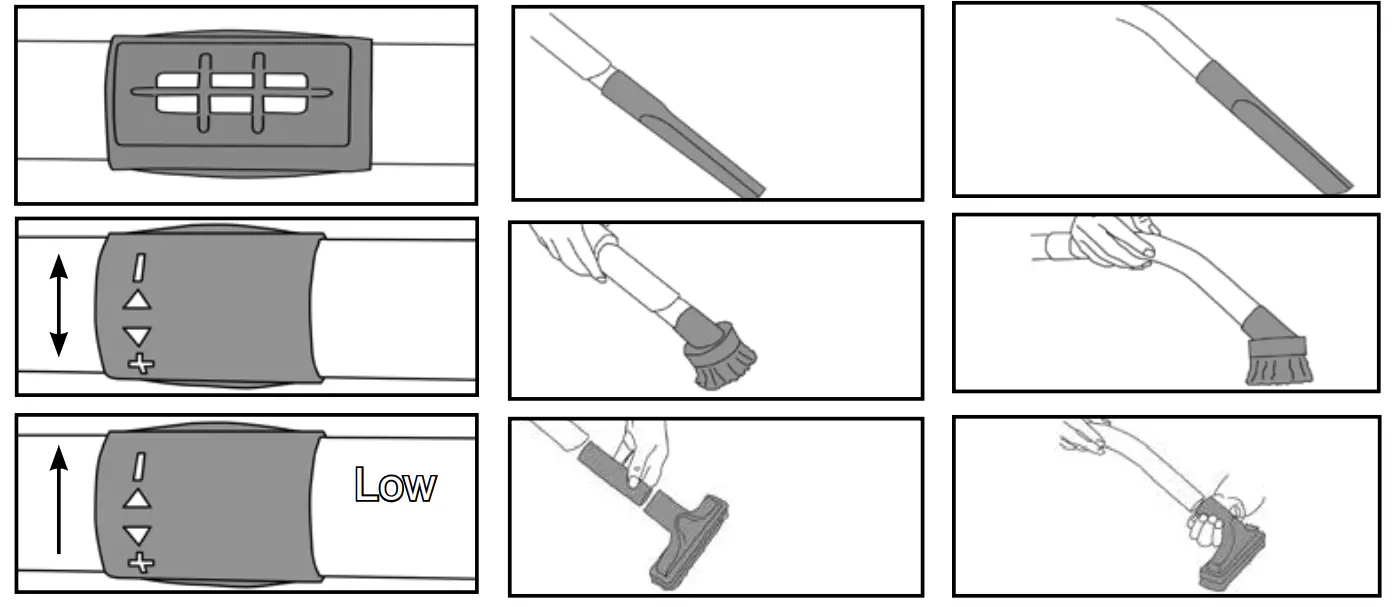

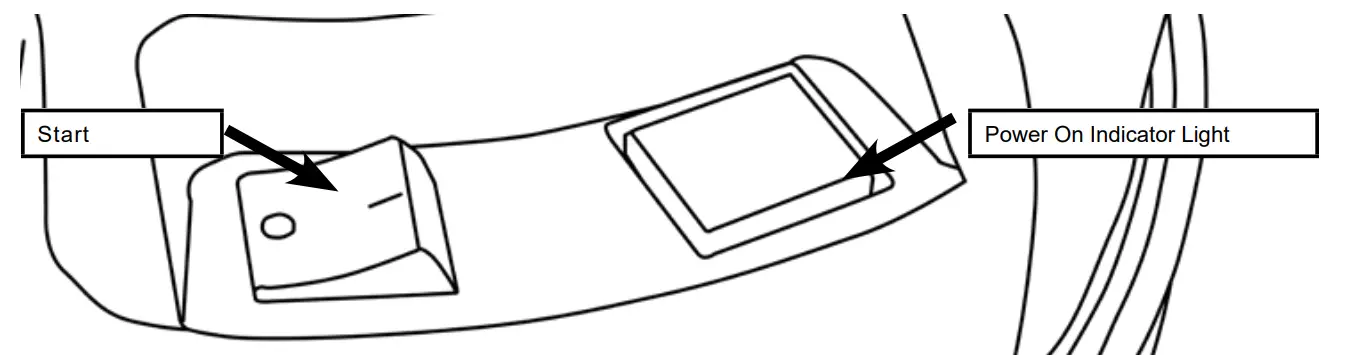

Using your machine

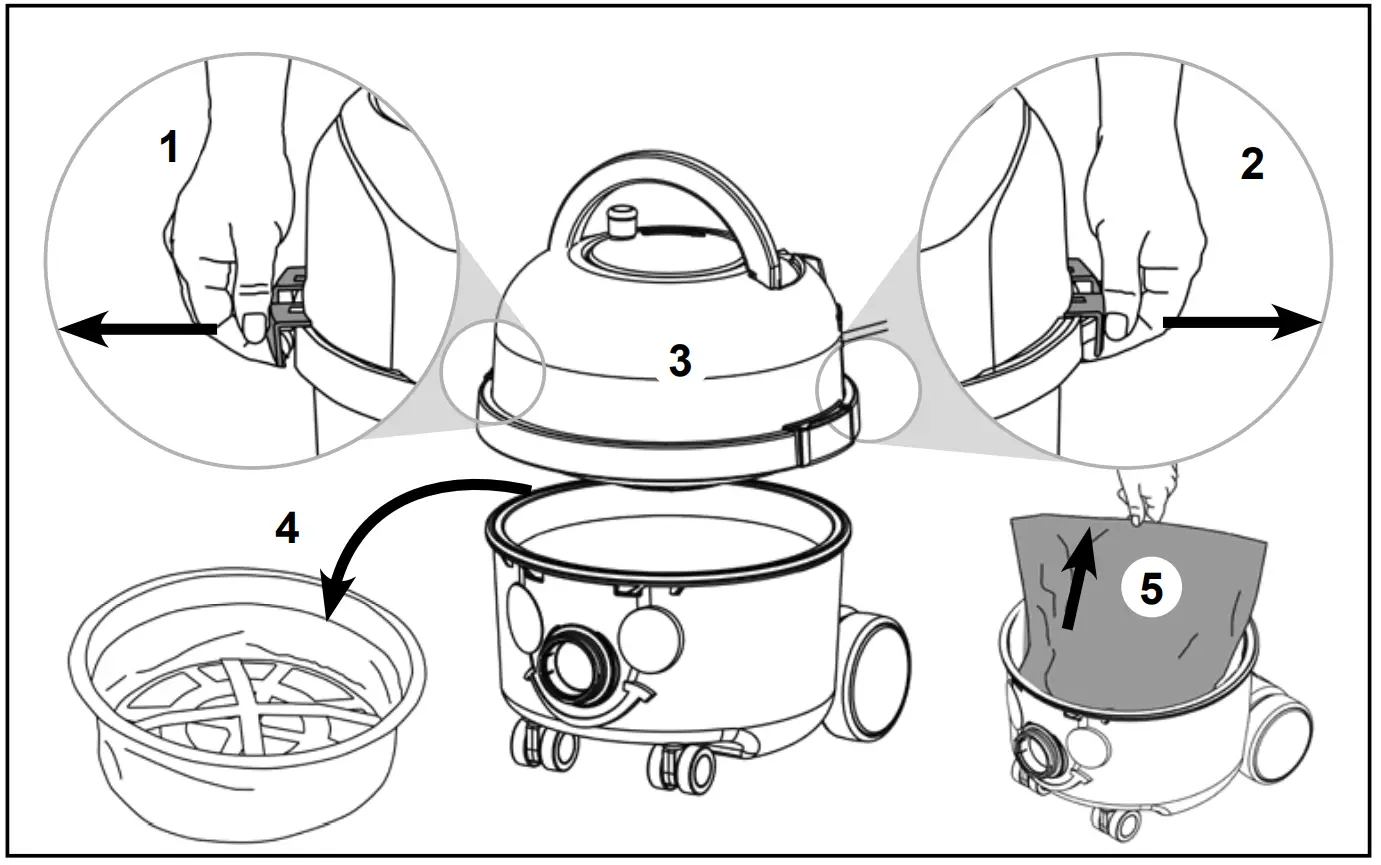

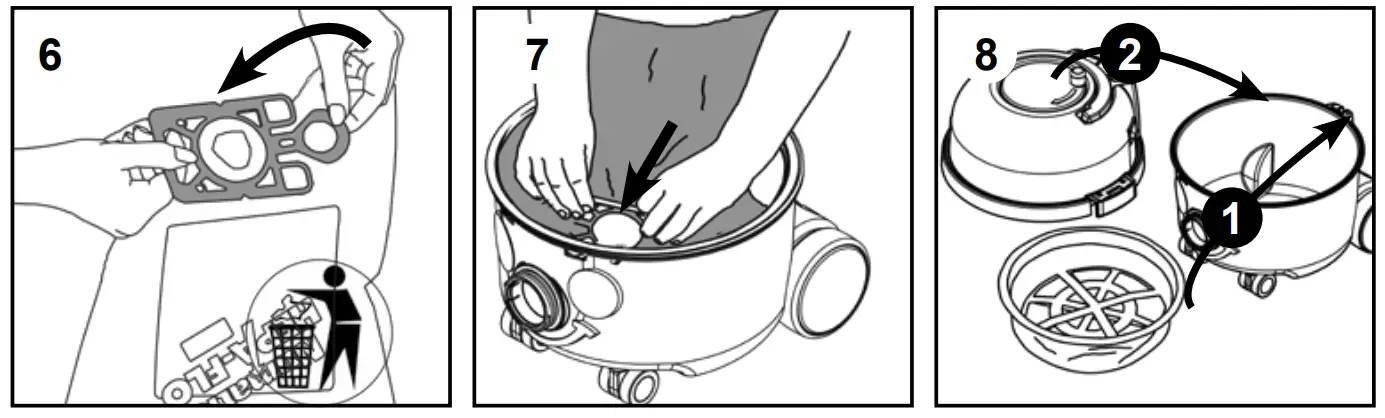

Cleaning your machine

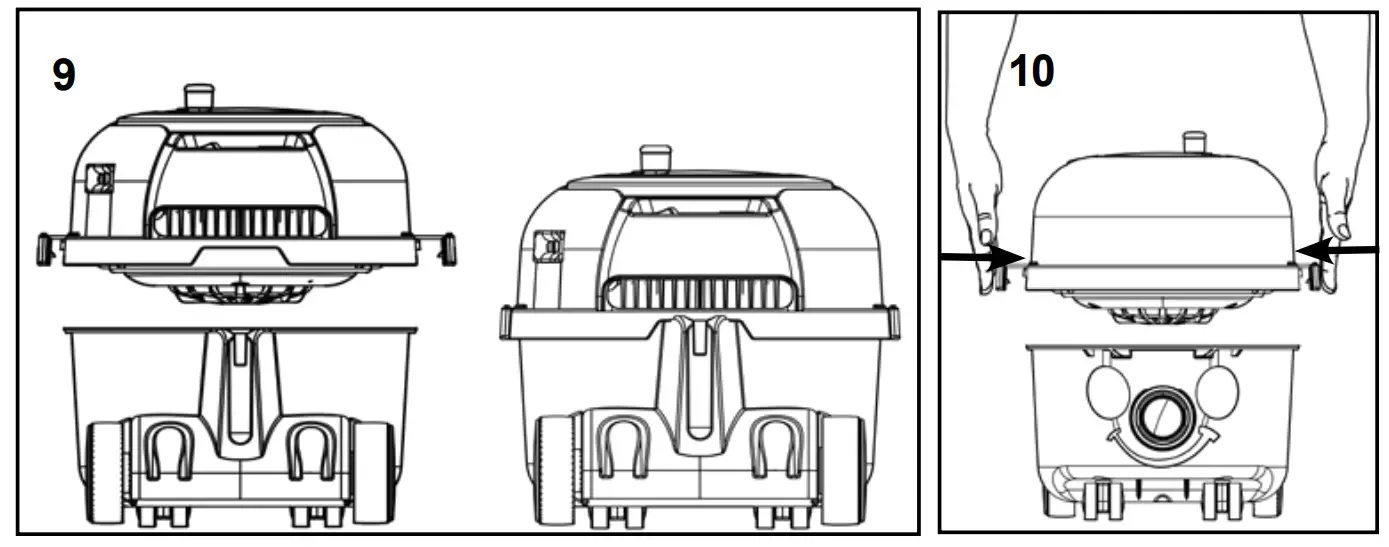

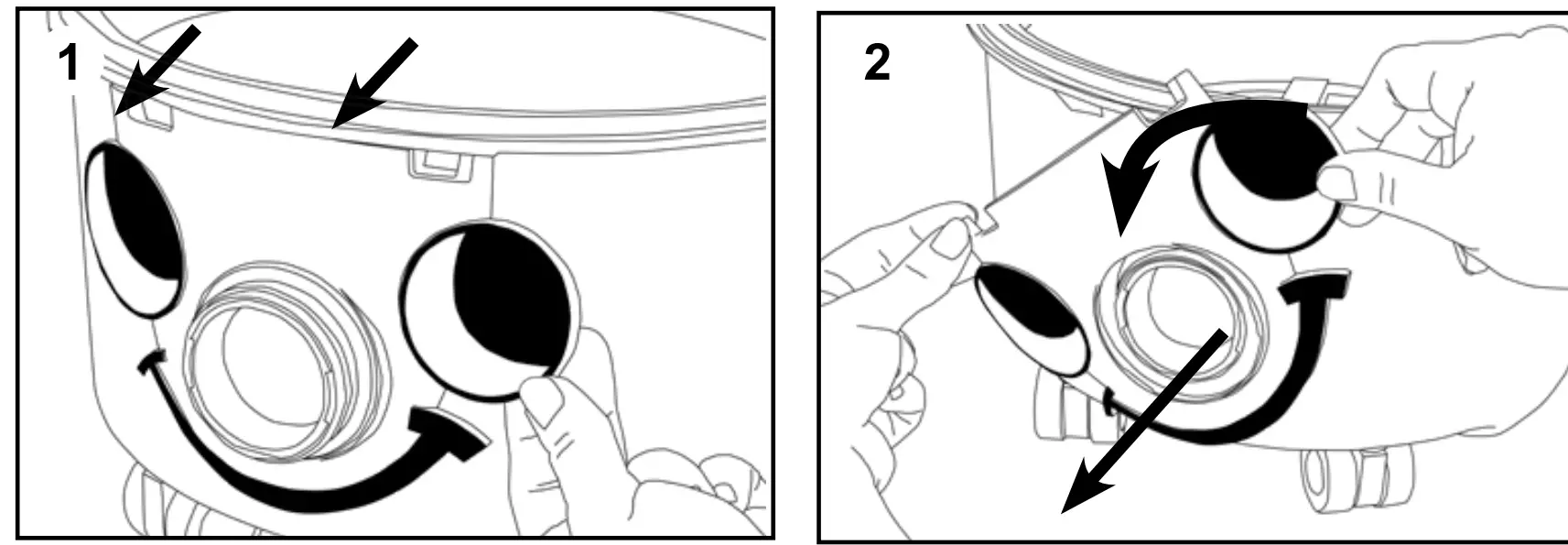

Fitting the Face

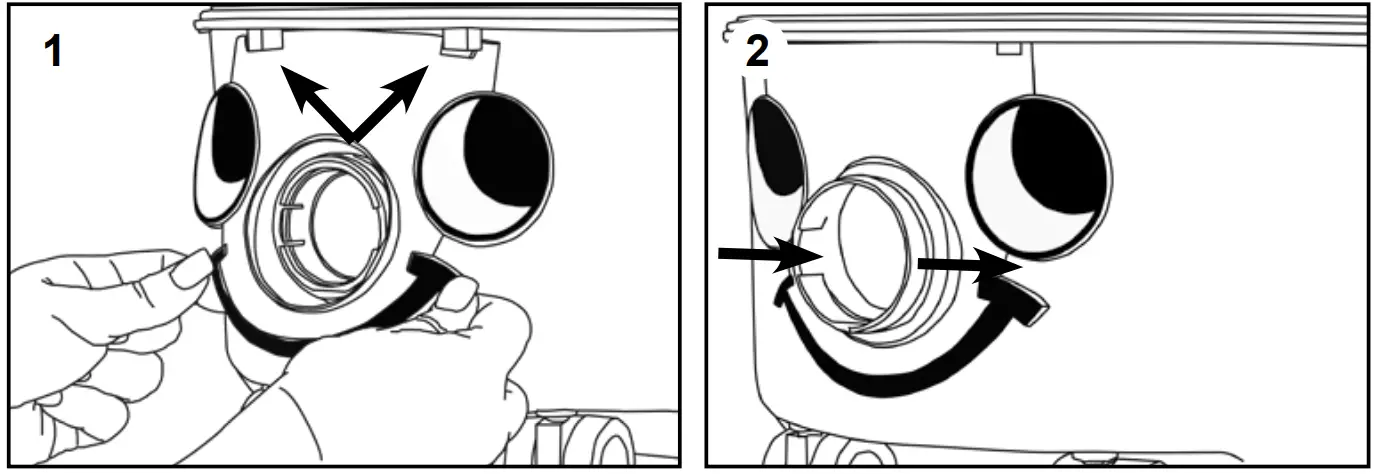

Removing the Face

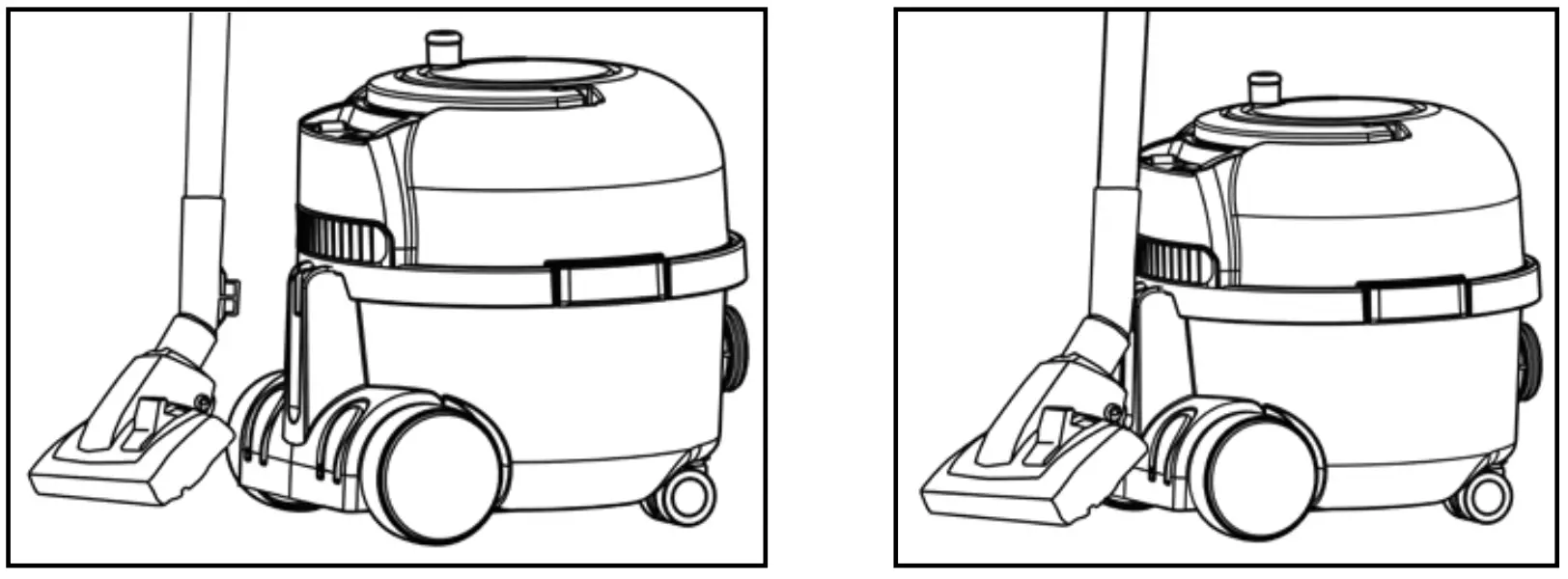

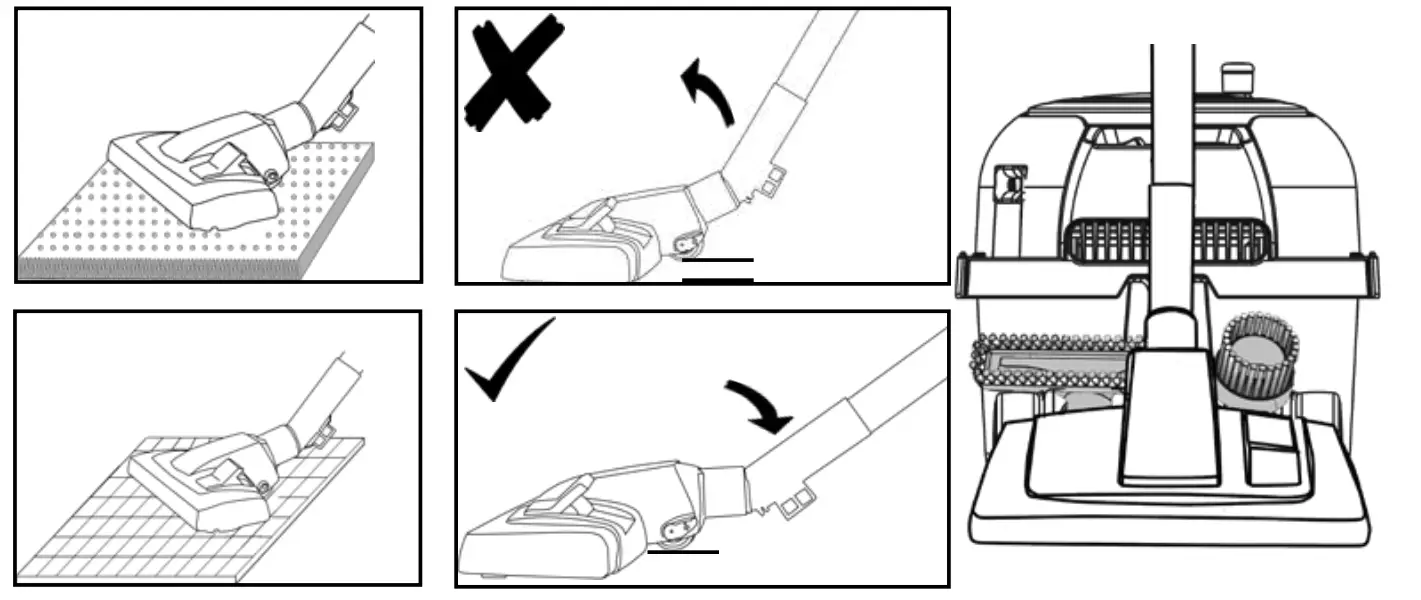

Wand Docking

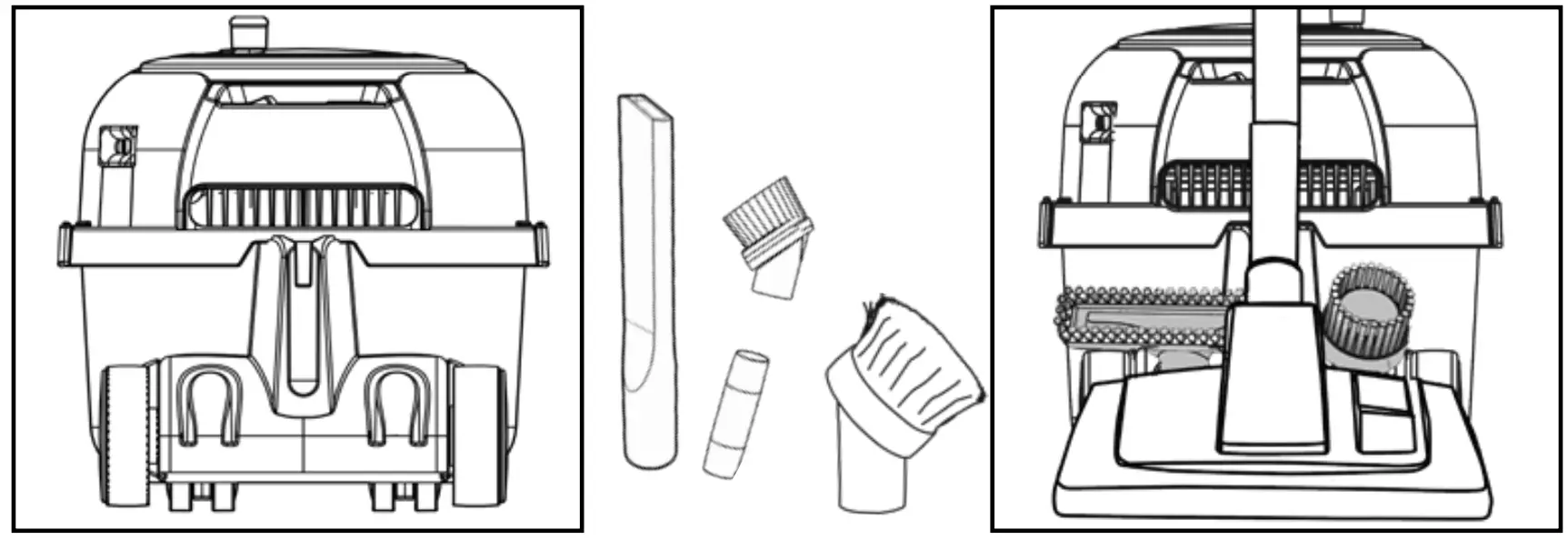

Tool Tidy

About your machine

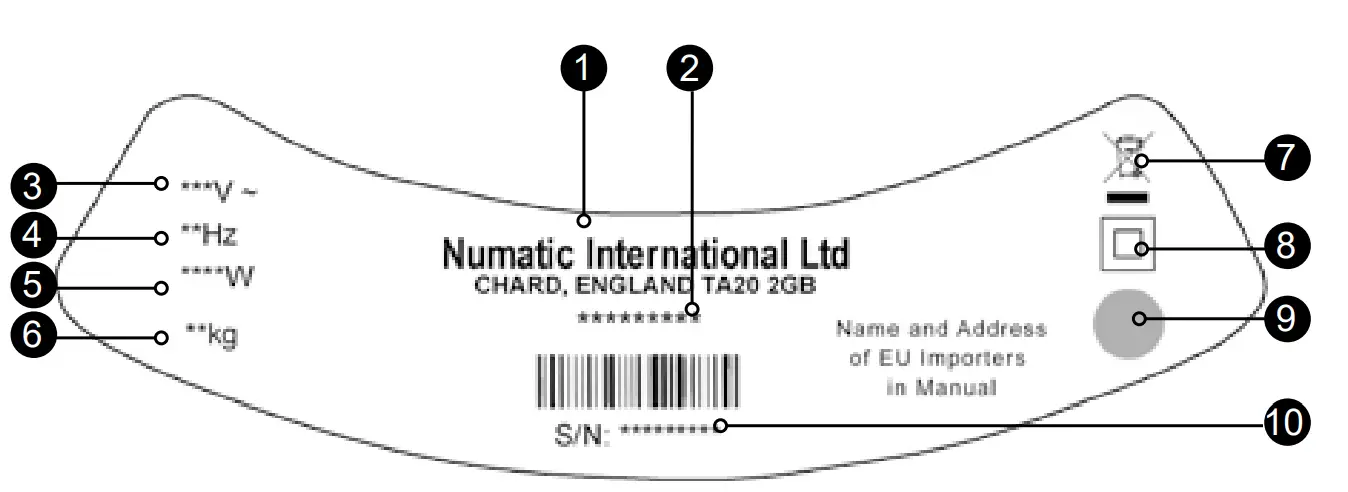

Rating Label

Maintenance

Daily
Keep the machine clean, including hoses and tubes.
Ensure the bag and filter are fitted.
Regularly examine the power cord.
Check dust bag frequently.
Check filters are clean.
Weekly – as daily and:-
Check for any worn or damaged parts and replace immediately

WEEE Legislation (Waste, Electrical and Electronic Equipment)
Vacuum cleaner, accessories and packaging should be sorted for environmentally – friendly recycling.
(Only for UK/EU Countries)
Do not dispose of vacuum cleaner into household waste! According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its incorporation into national law.
Vacuum cleaners that are no longer suitable for use must be separately collected and sent for recovery in an environmentally – friendly manner.

PPE (personal protective equipment).

That may be required for certain operations.

Ear Protection	Safety Footwear	Head Protection	Safety Gloves
Eye Protection	Protective Clothing	Dust / Allergens Protection	Hi Viz Jacket	Caution Floor Sign

Information for DRY use Vacuum cleaners

WARNING
Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of their machine.
As with all electrical equipment, care and attention must be exercised at all times during use, in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render this equipment unsafe and the manufacturer can accept no responsibility in this respect. Maintenance should only be carried out by a qualified person.
This machine is for DRY USE only and must not be stored outside or used in wet conditions.
The machine shall be disconnected from the mains power by removing the plug from the power supply socket during cleaning or maintenance and when replacing parts or converting the machine to another function. Only use the socket outlet on the machine for purposes specified in the instructions (if fitted).
This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience or knowledge.
This appliance is intended to be cleaned and maintained by an adult.
Children being supervised are not to play with the machine.
This machine is not a toy.
This machine is not suitable for picking up hazardous or explosive dust.
Contact your local distributor if you require a machine capable of performing these tasks

CAUTION

Ensure that the filtration system fitted to the machine is suitable for the material being collected.
This vacuum cleaner is intended for indoor use in the collection of dry materials.
This machine should be stored indoors only.

NOTES

The primary use for this machine is commercial, for example in hotels, schools, hospitals, factories, shops and offices.
This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.
This vacuum cleaner is fitted with a thermal protection device. If the vacuum cleaner stops working, remove the plug from the wall before investigating where the fault lies.
If the vacuum cleaner has a blockage, switch off , remove the plug from the power socket, inspect the floor tool, tubes and hose for debris. If the floor tool, tubes and hose are clear, replace the dust bag and clean the filter.
The vacuum cleaner should be inspected after use for damage.
The vacuum cleaner should be stored in a dry place.
When moving from one place to another, consider the weight of the machine.

DO

• Keep your machine clean including hoses and tubes.
• Change dust bag frequently.
• Keep filters clean.
• Keep diffuser filter (where fitted) clean.
• Use filter bags, they will enhance performance and help keep machine clean.
• Use a Numatic Original filter bag under fine dust conditions.
• Keep hoses and tubes clear.
• Replace any worn or damaged parts immediately.
• Only use the brushes provided with the machine. The use of other brushes may impair safety.
• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord must be replaced by a qualified person.
• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Pull on the cable to unplug the machine from the power supply.
• Use to suck up hot ashes or lighted cigarette ends.
• Use steam cleaners or pressure washers to clean the machine or use in the rain.
• Immerse in water for cleaning.
• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
• Use in wet environments or to collect wet materials.
• Under any circumstances place foreign objects including (but not limited to) air fresheners, air freshener capsules or scented beads of any type into the top filter of the machine.
  Doing so can be dangerous and risk damage to the machine and may invalidate the machine warranty

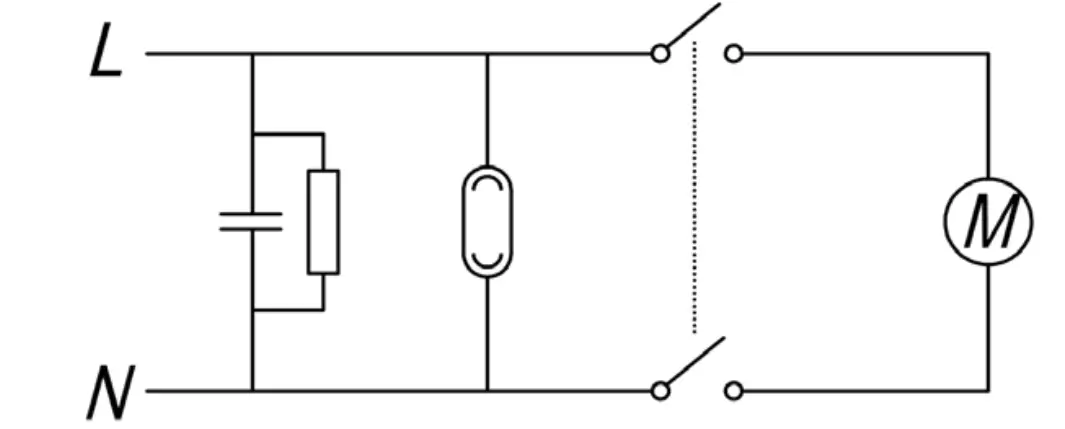

Schematic Diagram

Replacement Parts

Data

Numatic International warranty

Numatic international Limited warrant to the original purchaser  that its products alie free of defects in both material or workmanship for the period shown below:

Homecare and Clean care Vacuum cleaners  2 Years
Rotary Floor !Machines  2 Years
Twintec Auto Scrubber Dryer  1 Year
Vario Ride On Scrubber Dryer 1 Year /1500 hours
Mopping , Compacts , Combi and Servocare Products 1 Year
Individual Accessories and Spare Parts 6 Months

Note: This warranty expressly excludes consumable parts such as carbon brushes, floor brushes, mops,  batteries etc .. that are Considered replaceable from time to time during the normal working life  of  the  machine

Using non Numatic dust bags can be detrimental to both machine performance and life and may invalidate the warranty.

A. The Warranty period commences from the date the goods are purchased so that this may be processed.
B. All warranty claims must be processed through the Dealer from whom the equipment was purchased . the Dealer will co-operate with the purchaser throughout the warranty claims procedure and will arrange any necessary repairs using genuine
C. if the original dealer is no longer able fulfil his obligation please contact Numatic international limited with full details of the claim and proof of purchase so that this may be processed without delay.
D. Any warranty claim can only relate to the specific part that is proven to be at fault and for which a replacement will be supplied but cannot be extended to constitute a claim against the complete machine
E. Numatic International will supply the Dealer with any warranty parts required, subject to the claim being validated, after return of the faulty items in accordance with Numatic International Limited’s General Conditions of Sale
F. Claims will not be accepted if they are the result of fair wear and tear, misuse or abuse of any kind.
G. No replacement will be given unless the appropriate evidence of the validity of the claim has been provided to the satisfaction of Numatfc International Limited.
H. Naimoli° International Limited reserve the right to charge for any unnecessary bevrock canted out as a result of an invalid claim.
I. No variation to this warranty may be made or implied by any member of Namatic International Limited or its Dealers unless such variation is in writing and authorised by the Company.

Numatic International limited . Chard , Somerset, TA20 2GB
Telephone : 0146069600
Fax : 0146068458
Numatic International Limited

UKCA Declaration of Conformity
Manufacturer	Numatic International Limited Chard Somerset TA20 2GB http://www.numatic.co.uk
Product	HVR, HVN, NVR, NSR, NVR, HET, NRV, EVR, HVX, HMR, HHR, HVC, HEC, HEP, HRP, HDK, HLX, PET, PEH, HRR, HVT, PCH, HPC
Description	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the above-mentioned product(s) is/are in conformity with the following directives and standards.

Authorised Signatory: Mr. Matthew Coles

Position: Head of Technology

Numatic International Limited, Chard,
Signed:
Date: 1st Dec 202

EU, EC, EL, UE, ES: Declaration of Conformity
Manufacturer	Numatic International Limited Chard Somerset TA20 2GB www.numatic.co.uk
Product	HVR, HVN, NVR, NSR, VNR, HET, NRV, EVR, HVX, HMR, HHR, HVC, HEC, HEP, HRP, HDK, HLX, PET, PEH, HRR, HVT, PCH, HPC
Description	Vacuum Cleaner – Commercial – Dry
We, Numatic hereby declare under our sole responsibility, that the abovementioned product(s) is/are in conformity with the following directives and standards.

Authorised Signatory: Mr. Matthew Coles
Position: Head of Technology
Numatic International Limited
Chard,
Signed:
Date: 1st Dec 2021
Somerset, TA20 2GB, UK

Customer Service

Visit our web sites:-
www.myhenry.com
www.numatic.co.uk

Numatic International Limited.
Chard, Somerset TA20 2GB ENGLAND
Tel: 01460 68600 www.numatic.co.uk
