Product Information

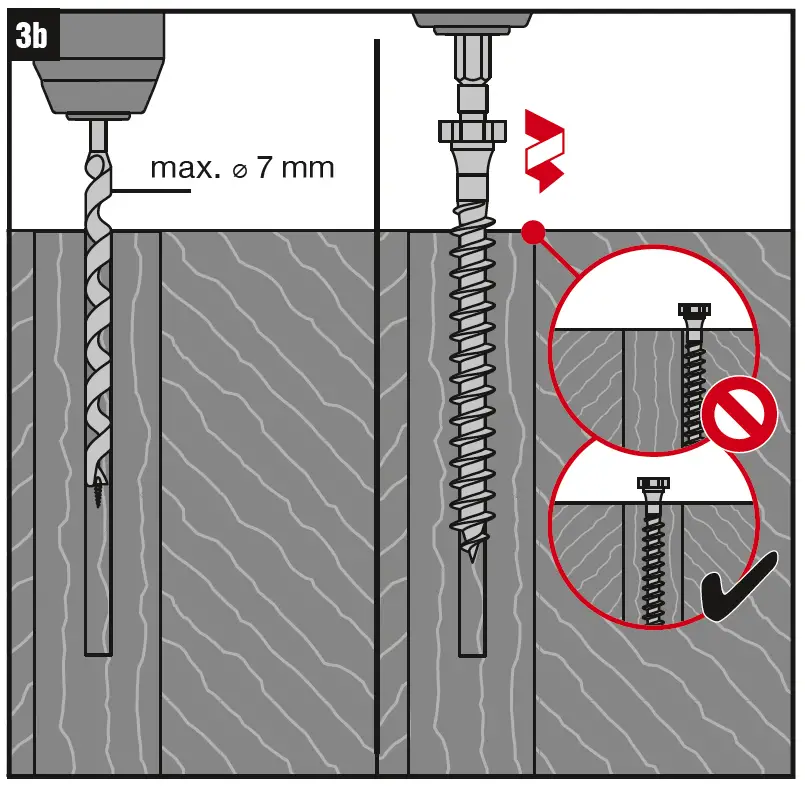

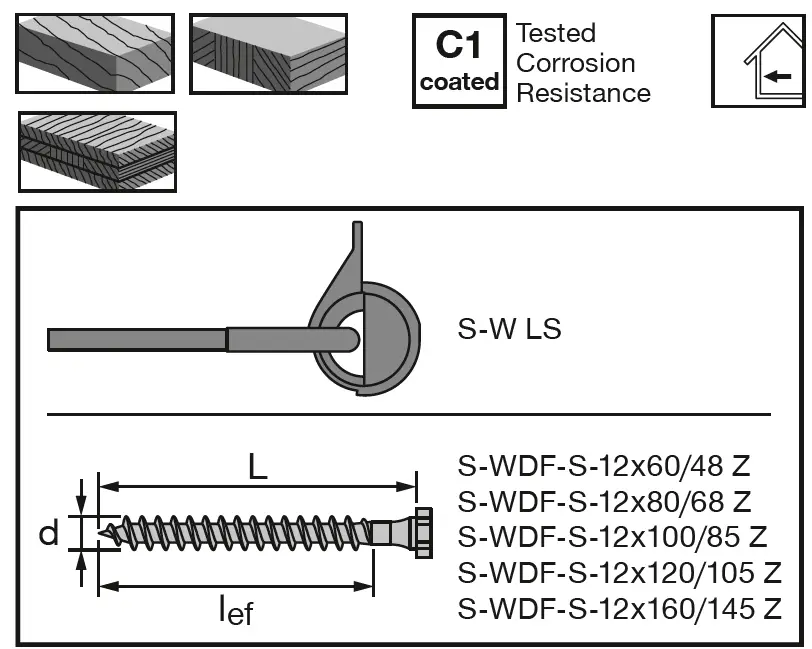

The product is a coated corrosion-resistant C1-tested material. It comes in various sizes and models: S-WDF-S-12×60/48 Z, S-WDF-S-12×80/68 Z, S-WDF-S-12×100/85 Z, S-WDF-S-12×120/105 Z, and S-WDF-S-12×160/145 Z. The maximum thickness of the material is 7 mm.

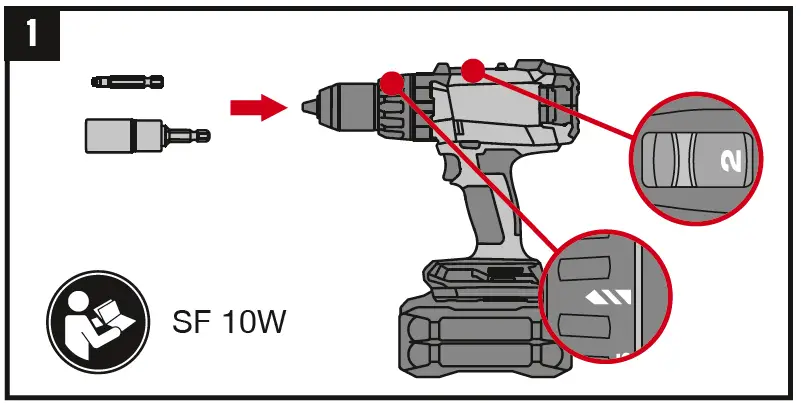

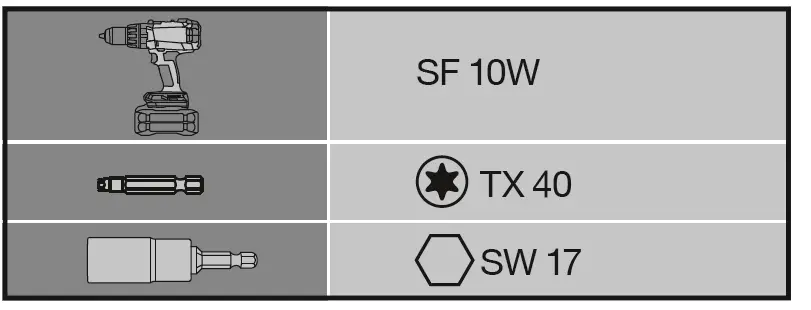

The product is designed for various applications and is compatible with SF 10W oil. It requires a TX 40 screwdriver and SW 17 wrench for installation.
Model Number: 2383902-02.2023
Product Usage Instructions
- Select the appropriate size and model of the product based on your requirements.
- Ensure the surface where the product will be applied is clean and free from any debris.

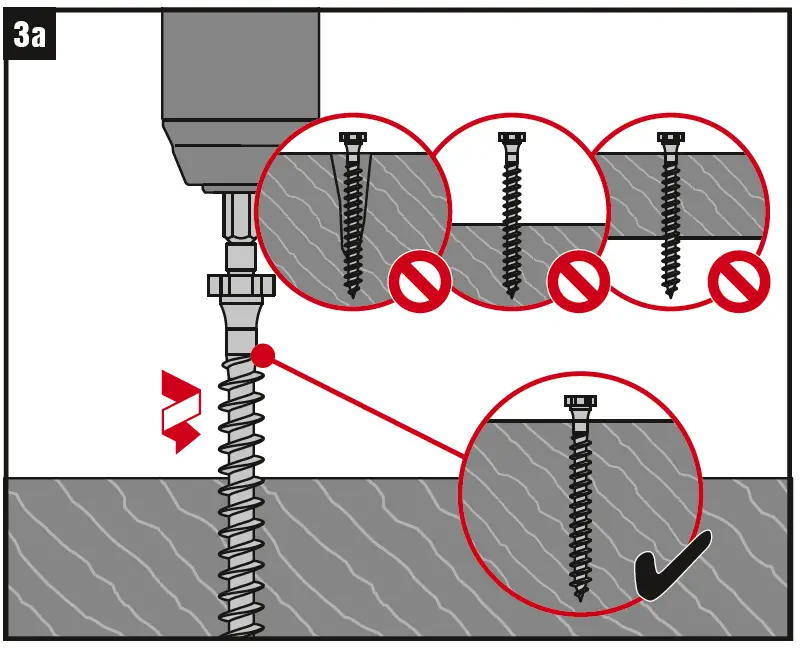

- Using a TX 40 screwdriver, secure the product in place by tightening the screws.
- Use a SW 17 wrench to ensure the screws are tightened securely.
- If using SF 10W oil, apply a thin layer on the product’s surface for additional protection against corrosion.

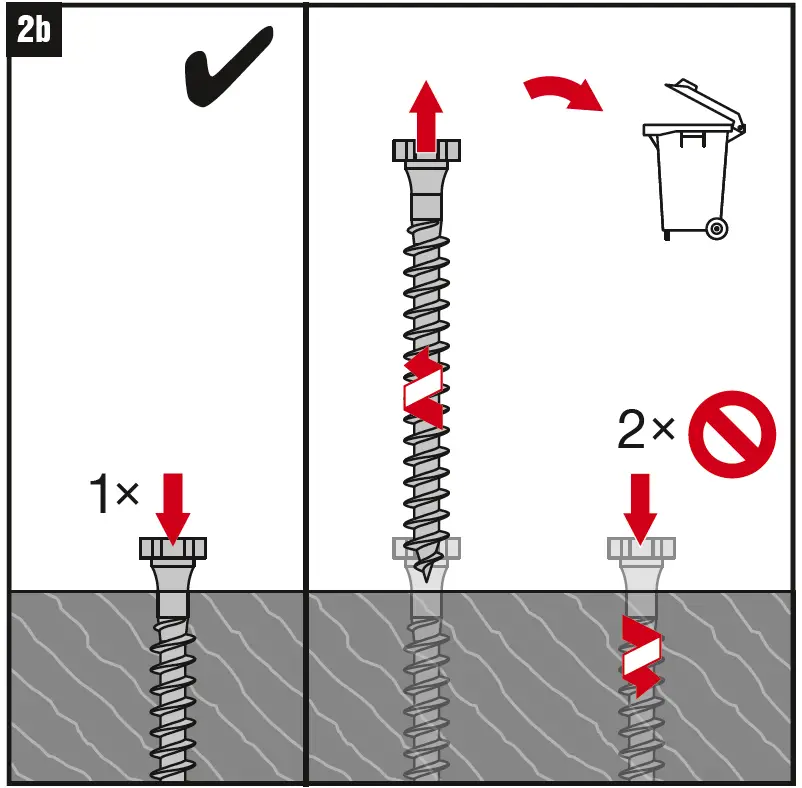

Screw Instruction
Dimensions
| Dimension | lef |  |
| d × L | [mm] | |
| ⌀ 12 × 60 mm | 48 | |
| ⌀ 12 × 80 mm | 68 | |
| ⌀ 12 × 100 mm | 85 | |
| ⌀ 12 × 120 mm | 105 | |
| ⌀ 12 × 160 mm | 145 |
Using Instructions
