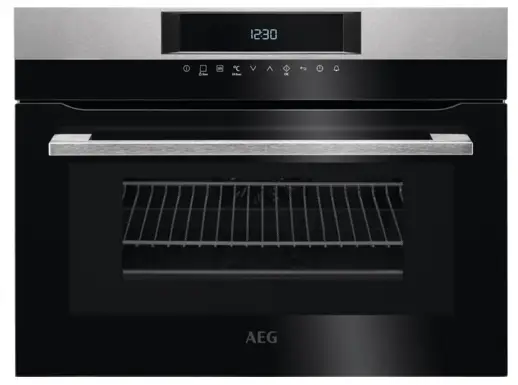

KMK365060M Built In Combination Microwave Oven
User Manual

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support
Register your product for better service: www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning/Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.

Contents hide

1 SAFETY INFORMATION AND INSTALLATION

2 PRODUCT DESCRIPTION

3 DAILY USE

4 CARE AND CLEANING

5 ENVIRONMENTAL CONCERNS

6 Documents / Resources

6.1 References

7 Related Posts

SAFETY INFORMATION AND INSTALLATION

WARNING!
Refer to the separate Installation Instructions booklet for Safety Information and Installation.
Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

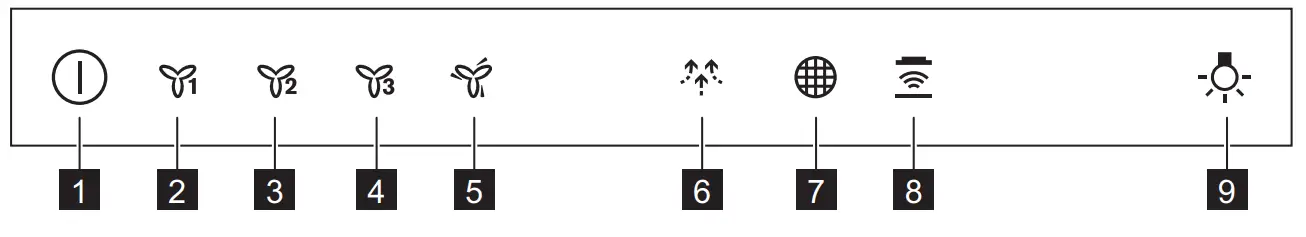

2.1 Control panel overview

	Function	Description
1	On / Off	Turns the hood on and off.
2	First speed	The motor switches to first speed level.
3	Second speed	The motor switches to second speed level.
4	Third speed	The motor switches to third speed level.
5	Maximum speed	The motor switches to maximum speed level.
6	Breeze	The hood operates on the lowest speed. After 60 minutes the appliance turns off.
7	Filter notification	Reminds to change or clean the charcoal filter and clean the grease filter.
8	Hob²Hood	Indicator of the function to control hood from hob.
9	Lamp	Turns the lights on and off.

DAILY USE

3.1 Using the hood
Check the recommended speed according to the table below.

	While heating up food, cooking with covered pots.
	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
	While boiling and frying big quantities of food without a lid, cooking on multi‐ ple cooking zones or burners.
	Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and de-activated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.
The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second.
To operate the hood:

Turn on the appliance by pressing the symbol.
You can now activate the functions.
To activate the function touch the symbol.
The hoods light works independently to other hood functions. To illuminate the cooking surface touch.
To turn off the appliance press the symbol again.

3.2 Hob²Hood function
It is an automatic function which connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually.
The function can be activated from panel of the hob.
For more information how to use the function refer to the hob user manual.

3.3 Activating Maximum Motor Speed
When you touch, the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.
When the function is turned on, additional touch on does not have any effects.

3.4 Filter notification
Filter alarm reminds to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on for 30 seconds if the grease filter must be cleaned. The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.
Refer to cleaning the grease filter in care and cleaning chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.
To reset the function touch for 3 seconds.

To activate or deactivate function:

Switch on the control panel. Make sure that the panel is on.
To activate function touch for 3 seconds.
If the function is activated, the filter icon flashes five times.
To deactivate function touch for 3 seconds.
If the function is deactivated, the filter icon turns on for 4 seconds.

CARE AND CLEANING

4.1 Notes on cleaning

Do not use abrasive detergents and brushes.
Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.
Clean stains with a mild detergent.

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.
Follow the instructions for cleaning the accessories when filter notification is on. Refer to Filter notification in daily use chapter.
Grease filters can be washed in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle.
The grease filter may discolour, it has no influence on the performance of the appliance.

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

4.2 Cleaning the grease filter
Filters are mounted with the use of clips and pins on the opposite side.
To clean the filter:

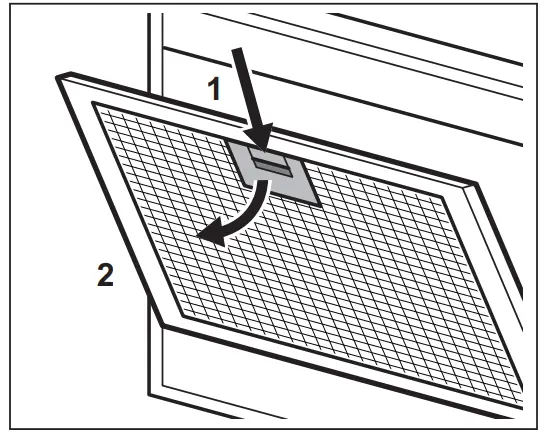

Press the handle of the mounting clip on the filter panel underneath the hood (1).
Slightly tilt the front of the filter downwards (2), then pull.
Repeat the first two steps for all filters.
Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
To mount the filters back follow the first two steps in reverse order.
Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter
WARNING!
The charcoal filter is nonwashable!
To replace the filter:

Remove the grease filters from the appliance.
Refer to “Cleaning the grease filter” in this chapter.

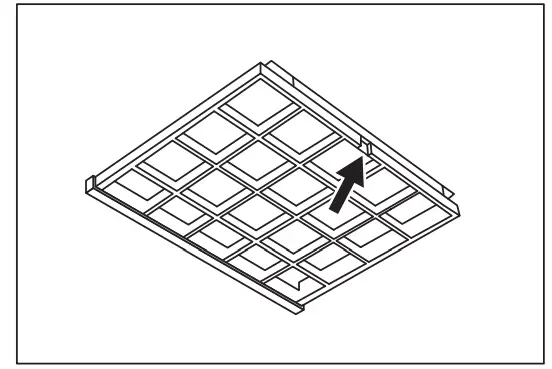

Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol.
Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbolwith the household waste. Return the product to your local recycling facility or contact your municipal office.
