L5G 4K Smart Laser TV
User Manual
Model: 120L5G-CINE120A

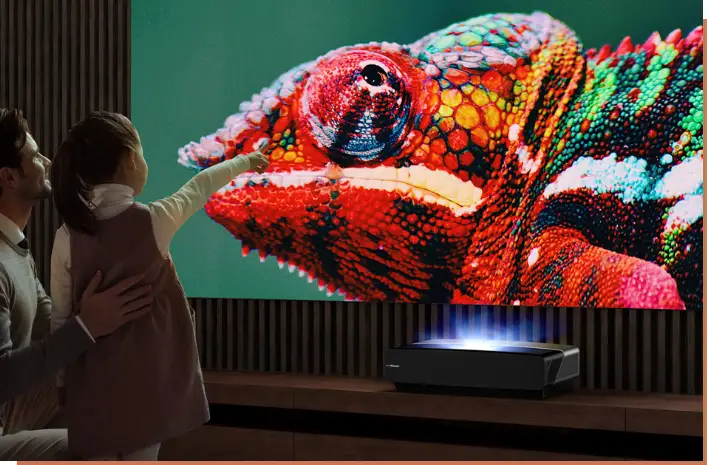

Big Screen. Big Entertainment.
Get movie theater immersion with the convenience of TV. The L5G’s ultra-short throw projection technology allows you to place the projector just inches from the screen and gives you a beautifully bright, 4K image that’s 4x bigger than a 55-inch TV. With built-in features like Dolby Atmos® sound, smart Android TV, Game Mode, Filmmaker Mode, and a 25,000 hour laser life, the L5G is an all-in-one, big screen upgrade you can enjoy for years to come.
- Ultra Short Throw Technology
- Ambient Light Rejecting Screen
- Dolby Atmos Sound
- Smart Android TV
- 25,000 Hour Life
- Smooth Motion & MEMC
- Game Mode with ALLM
- Filmmaker Mode

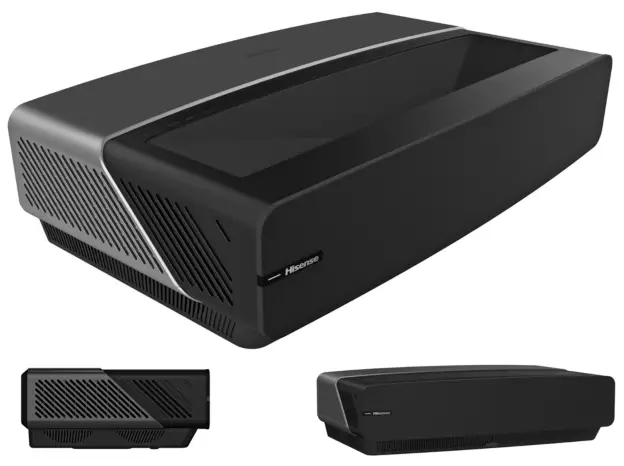

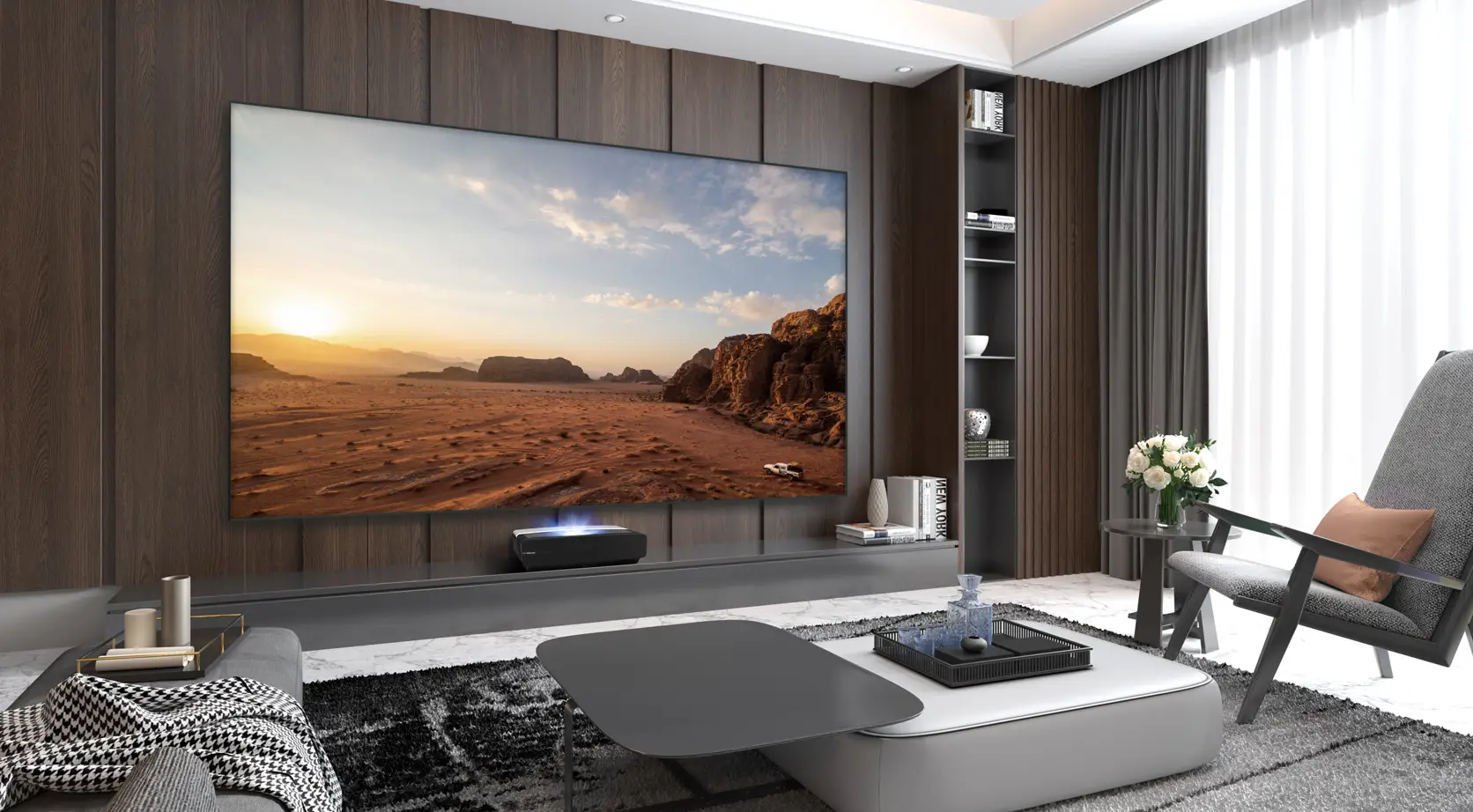

Ultra Short Throw. Ultra Convenient.
Big screen entertainment in a convenient package. No need for ceiling mounts or in-wall cable runs, simply place the L5G on a TV stand just 14 inches from the wall and get a massive 120-inch projection – that’s 4x more screen than a 55-inch TV.

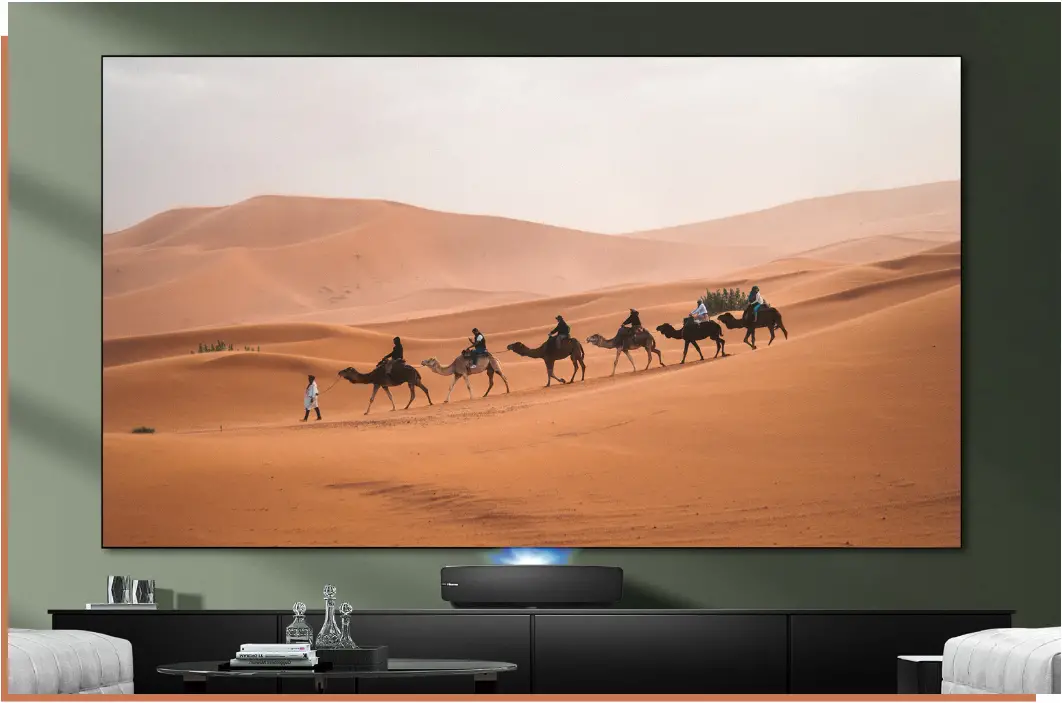

Ambient Light Rejecting Screen
The L5G comes with a perfectly paired Ambient Light Rejecting (ALR) screen to remove the guesswork from a UST projector setup. The UST ALR screen gives you a killer picture under any lighting condition without having to kill the lights.

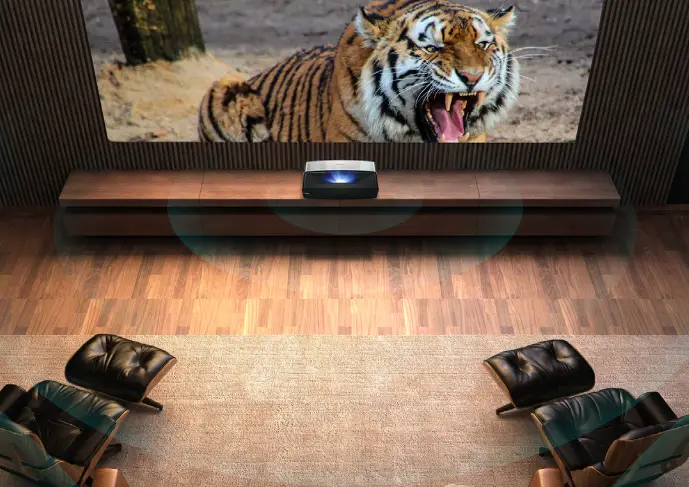

Cinematic Sound
With built-in 30W Dolby Atmos® sound, the L5G delivers cinematic sound that seemingly flows all around you. For the true audiophiles, the L5G’s eARC support means you get full signal pass-thru to your surround sound system.

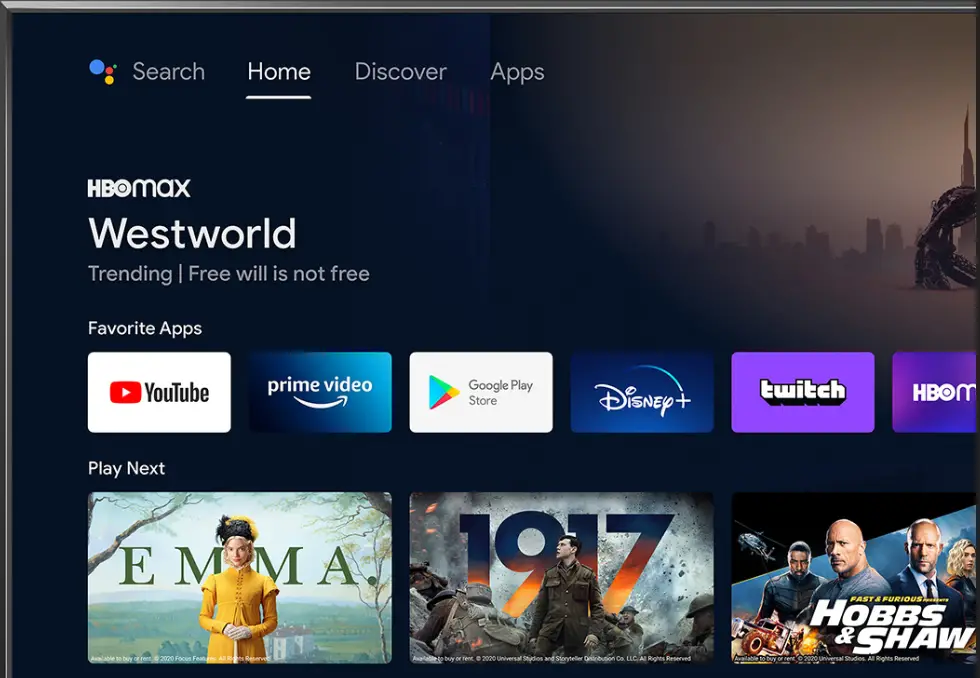

Smart TV Platform
The smart Android TV platform brings great content to the biggest screen in your home. Install apps from the Google Play Store and open your favorite streaming services for limitless entertainment.
4K Picture with HDR10
With 4K resolution, HDR10 support, and 2700 Lumens peak brightness, the L5G faithfully recreates a world of incredible color and detail. The fixed-focal length of the L5G delivers unmatched picture clarity and focus uniformity.

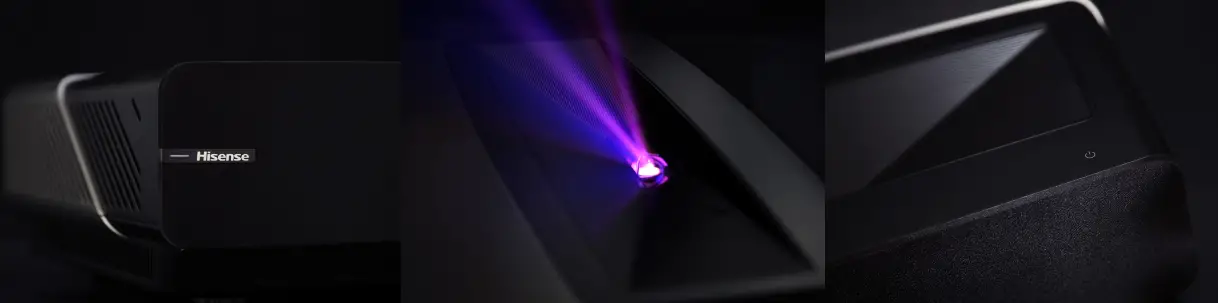

X-Fusion™ Laser Engine
Experience true-to-life color with impressive dynamic range that just doesn’t quit. The L5G’s X-Fusion™ Laser Engine exceeds the Rec.709 standard for UHD 4K and lasts long enough to enjoy more than 25,000 hours of content.
Smooth Motion and MEMC
The L5G has a mindbogglingly fast signal response time, delivering image motion that stays true to creative intent, whether that’s cinematic film or fast-paced first-person gaming. And when desired, Motion Estimation Motion Compensation (MEMC) options can help fast-moving scenes feel even more fluid.
Game Mode with ALLM
No need to manually change TV settings when you’re about to drop in. High-speed HDMI ports detect when a gaming console is the active input source and automatically adjusts picture and signal processing settings to optimize game performance.
Filmmaker Mode
Filmmaker Mode reads metadata from your content to automatically disable any post-processing motion settings on the Laser TV so you see video as the creators intended.
Smart Home Ready
With built-in Wi-Fi, Bluetooth, Google Assistant, Works with Alexa, the L5G and its included Voice Remote can be integrated with your smart home ecosystem to create automation to your heart’s desire.

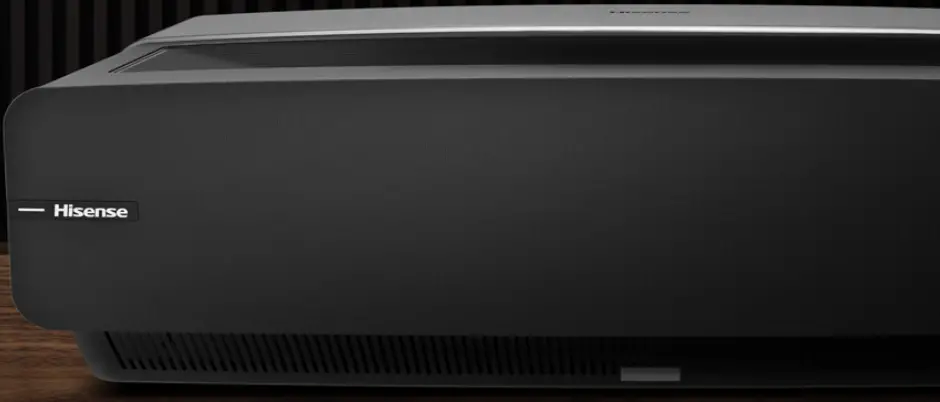

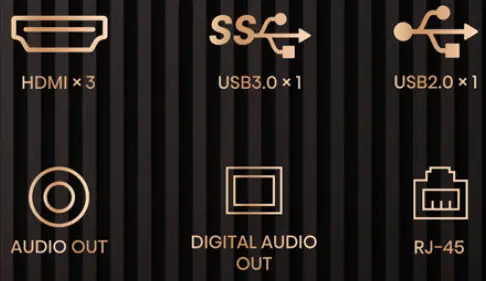

Ports and Connectivity
With multiple modern ports and wireless connectivity, easily connect your external video/audio sources to the Laser TV. It doesn’t get easier than this.
Tech Specs
Laser TV/120L5G
| Physical | Dimensions | 21.5” x 13.6” x 6.2” (L x W x H) |
| Weight | 24.3 lbs | |
| Packaged Dimensions | 69.3” x 26.6” x 21.2” (LTV + Screen) | |
| Packaged Weight | 121.3 lbs (LTV + Screen) | |
| Picture | Projection Size | 120” |
| Brightness | 2700 Lumens | |
| Resolution / Refresh Rate | 4k@60Hz | |
| Color Space | 83% DCI-P3 | |
| Contrast Ratio | 1,000,000:1 (dynamic) | |
| HDR | HDR10 | |
| Light Source | Blue Laser + Phosphor Color Filter | |
| Laser Life | 25,000+ Hours | |
| Throw Ratio | 0.25:1 | |
| Chipset | 0.47” DMD | |
| Audio | Audio Output Power | 30W (Stereo) |
| Surround Sound | Dolby Atmos, Dolby Digital | |
| Smart Features | Smart TV Platform | Android TV (Google Certified) |
| App Store | Google Play Store | |
| Streaming Services | Disney+, HBO NOW, Hulu, Prime Video, SHOWTIME, Pandora, Sling TV, YouTube | |
| Voice Assistant | Google Assistant | |
| Works With | Hey Google, Amazon Alexa | |
| Screen Mirroring | Chrome cast | |
| Connectivity | Wi-Fi | Yes, 802.11a/b/g/n/ac (Dual-Band) |
| Bluetooth | Yes | |
| Wired Ethernet | Yes | |
| Power | Power Consumption | 320W |
| Standby Consumption | <0.5W | |
| Power Supply | AC 120V, 60Hz |
| Ports | HDMI | 2x HDMI 2.1, 1x HDMI 2.0 |
| HDMI ARC, CEC | 1x (eARC on HDMI port 2) | |
| USB | 1x USB 3.0, 1x USB 2.0 | |
| RF Antenna | 1x | |
| Ethernet (LAN) | 1x | |
| Digital Audio Output | 1x Optical | |
| Analog Audio Output | 1x | |
| Other Features | Noise Reduction | Yes |
| Parental Controls | Yes | |
| Closed Caption | Yes | |
| Sleep Timer | Yes | |
| Eye Safety | Yes | |
| MEMC | Yes | |
| Remote Finder | Yes | |
| Accessories | Remote | Yes, voice remote with backlight |
| Quick Start Guide / Manual | QSG in box, Manual online | |
| Power Cable | Yes | |
| Cleaning Kit | Yes | |
| Warranty | 2 Years | |
| UPC | 888143012414 |
ALR Screen/CINE120A
| Screen Size | 120” diagonal |
| ALR Type | Lenticular |
| Dimensions | 106.2” x 60.4” x 1.4” (L x W x H) |
| Weight | 49.6 lbs |
| Gain | 0.4 |
| Viewing Angle | 150° |
| Assembly Required | Yes |

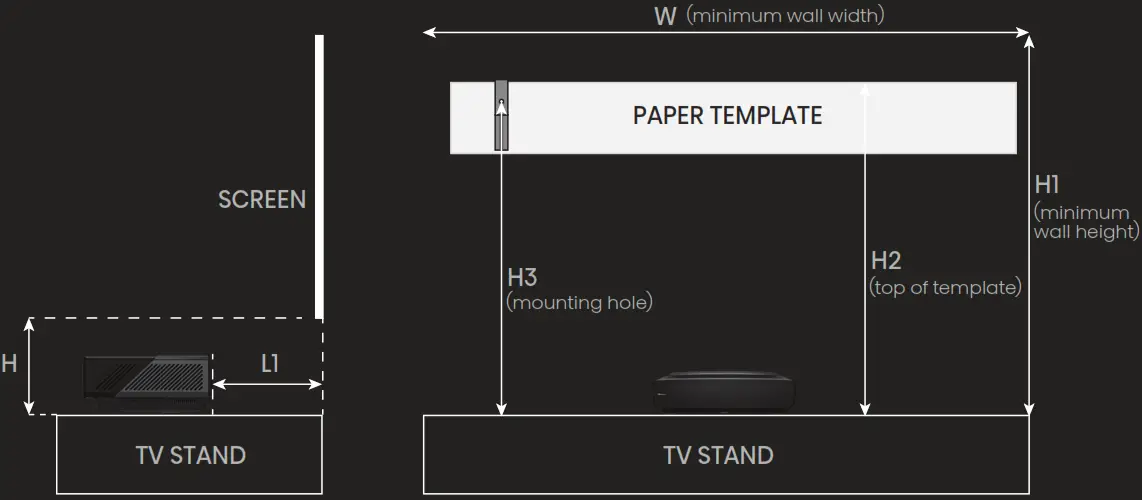

Setup Diagram
| H | 16 3/4“ |
| L1 | 14 5/8” |
| W | >118” |
| H1 | >78 3/4” |
| H2 | 74” |
| H3 | 71 1/4” |
All product, product specifications, and data are subject to change without notice to improve reliability, function, design or otherwise. Release 120121.
All trademarks and logos used herein are the property of their respective owners.
Copyright © 2021 Hisense USA, All rights reserved.
