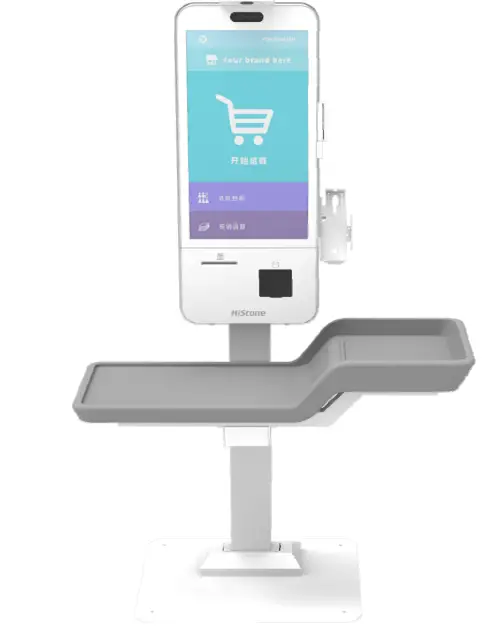

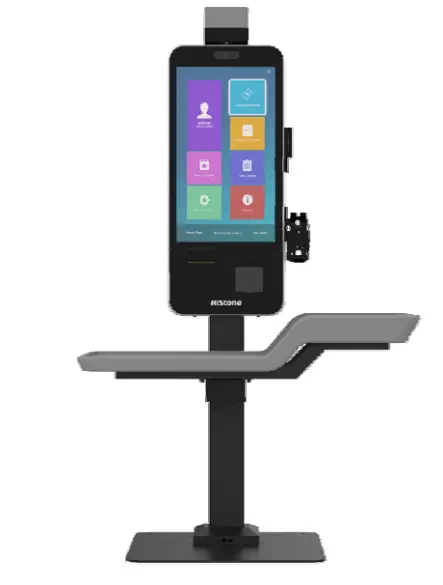

Self-service Kiosk | HS520M
Key Features
- 27″ True flat capacitive touch screen enhancing user experience

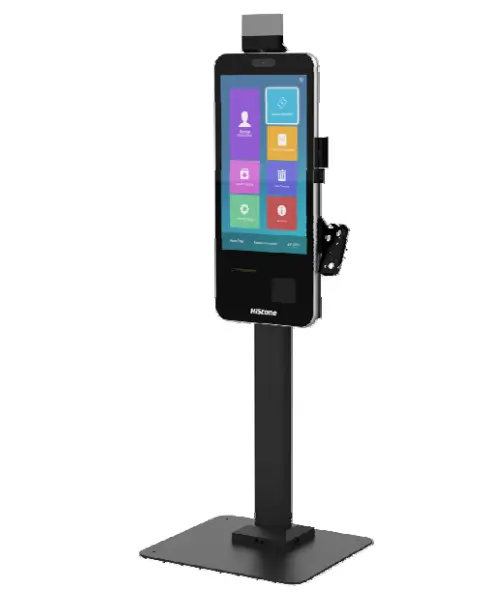

- Flexible operational scenarios; wall mount or floor stand
- Multi-modular design allowing for self-service or self checkout customization to suit a variety of retail or hospitality environments
- The host adopts aluminum
alloy frame, More beautiful and fashionable.
alloy frame, More beautiful and fashionable.
QINGDAO HISTONE INTELLIGENT COMMERCIAL SYSTEM CO.,LTD.
Wisdom Valley,NO.8 Shengshui Road, Laoshan District, Qingdao City,
China.
Tel: +86 (532) 66069168
[email protected] www.hics.histonetec.com
| MODEL | HS520M | ||
| Processor | Intel Skylake-U, Intel 6th generation CPU 13-6100U, SOC 2.3Ghz | ||
| Operating System | POSready7/Windows7/Windows 10/Linux | ||
| Memory | SO-DIMM DDR4 2166MHz 4GB,up to 16GB | ||
| Storage | SATA SSD 128GB, up to 256GB | ||
| Display Panel | 27inch TFT-LCD 16:9 Display resolution:1920*1080 | ||
| Touch Screen | True flat capacitive touch screen | ||
| Power Supply | 150W integrated power supply | ||
| Integrated Scanner | Single window, support 1 D/2D barcode | ||
| Integrated Printer | 80mm thermal printer | ||
| Speaker | 2*5W Speaker | ||
| MIC | MIC, Omnidirectional | ||
| I/O Ports | 1* RJ45 , 100M/1000M Gigabit LAN port | ||
| 4*USB 2.0 Ports | |||
| 2* Serial Ports | |||
| Dimensions (LxWxH) | 1690*1092*482mm | ||
| Weight | 57kg (Host + stand) | ||
| Optional Peripherals | Transaction camera | Face ID camera or Membership camera | |
| Alarm light | Security camera | ||
| Alarm light | |||
| Number plate | |||
| Card reader | MSR (only) | ||
| MSR +RFID | |||
| Fingerprint reader | Fingerprint Reader | ||
| Stand | Ground Stand | ||
| Big Metal plate(optional for no grounding screws) | |||
| Wall Mount | Wall mount bracket(for no stand) | ||
| Shelving Unit | Big shelving unit(metal /plastic) | ||
| Small shelving unit(metal /plastic) | |||
| Bracket | EFTPOS holder | ||
| External Fiscal Printer holder | |||
| Disinfectant bottle holder | |||
| Operating Voltage | 110V/240V AC, 50-60hz | ||
| Environment | Operating | 5°C – 40°C/40%-60% RH non-condensing | |
| Storage | -5°C – 50°C/30%-80% RH non-condensing | ||
| EMC and Safety | CE/ FCC Pending | ||
| Colour | Standard: White Optional: Black | ||
- Patented protection lock, printer anti-theft design to prevent accidental touch
- Front opening door for easier maintenance
- Big Shelving Unit or Small Shelving Unit optional
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, ifnot installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Ifthisequipment doescause harmfulinterference toradioor television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with minimum distance 20cm between the radiator&your body.
