SONY 158XS690GS 2 Way Speaker
Product Information

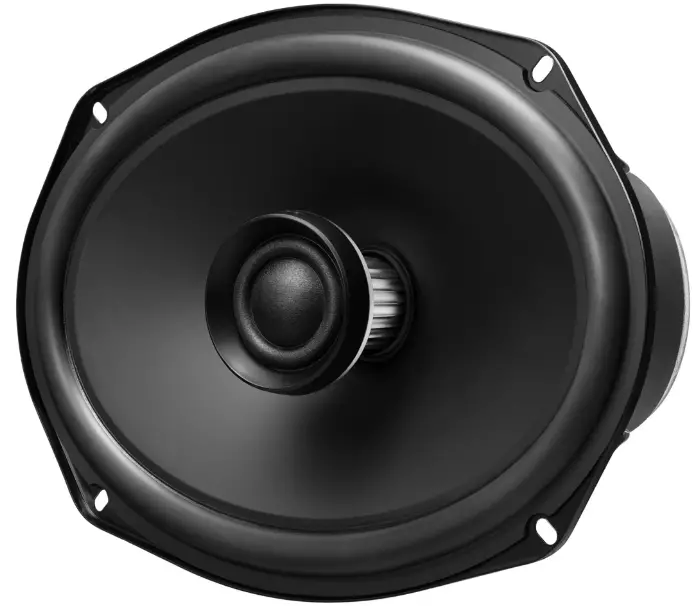

The Sony XS-690GS is a 2-Way Speaker made in Vietnam. It is designed to provide high-quality audio performance in vehicles. The speaker features a cone-type woofer and a 2.5cm dome-type tweeter, delivering a powerful and balanced sound experience. With a short-term maximum power of 420W and a rated power of 50W, the XS-690GS offers impressive audio output.
The speaker has a rated impedance of 4 ohms, an effective frequency range, and a mass of approximately 1,000g per speaker. The design and specifications of the XS-690GS are subject to change without notice.
Product Usage Instructions
Precautions:
If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.
Mounting:
Before mounting the XS-690GS, ensure that you have a minimum depth of at least 73mm (2 7/8 inches) available for installation.
Parts List:
- CD (x2)
- 04 (x8)
- Speaker cord (not supplied)
Note: When releasing the cables, push down on the catch firmly and release them carefully. Avoid using excessiveforce, as it may result in damage to the speaker or cable terminals.
For further assistance or troubleshooting, refer to the complete user manual provided by Sony or visit their official website at https://www.sony.net/.

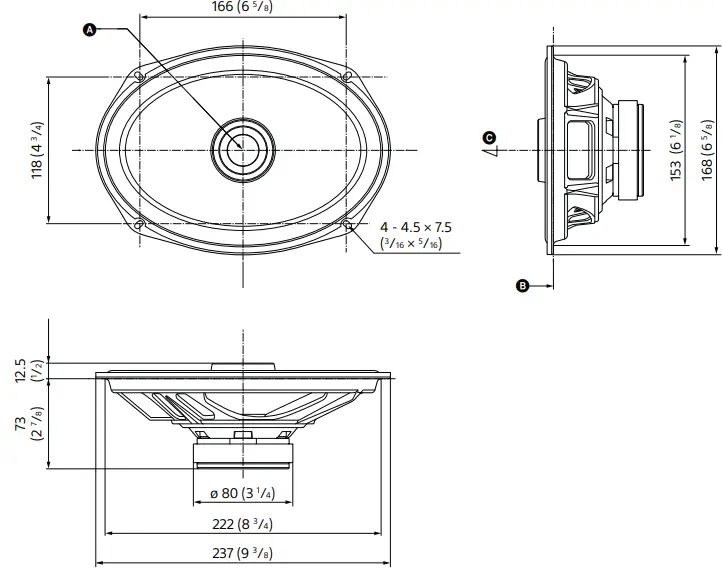

Dimensions
- Unit: mm (in)
- A: Reference Point
- B: Reference Plane
- C: Reference Axis
Precautions]
- Do not continuously use the speaker system beyond the peak power handling capacity.
- Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers.
- Please note the following when installing the units; otherwise malfunction and/or deterioration in sound quality may result.
- Do not touch the diaphragms and/or speaker cones by hand or with tools.
- Do not put your fingers through the holes of the frame.
- Do not drop foreign objects in the units.
- Do not place this product close to medical devices.
- This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.
If you cannot find an appropriate mounting location, consult your car dealer or your nearest Sony dealer before mounting.
Specifications
- Speaker Coaxial 2 way:
- Woofer 16 cm × 24 cm (6 in × 9 in)
- cone type
- Tweeter 2.5 cm (1 in) dome type
- Short-term maximum power*1 420 W*2
- Rated power 50 W*2
- CTA 2031 RMS Power 60 W
- Rated impedance 4 Ω
- Output sound pressure level 90 dB ± 2 dB (1 W, 1 m)*2
- Effective frequency range 40 Hz – 24 000 Hz*2
- Mass Woofer: Approx. 1 000 g
- (2 lb 3 oz) per speaker
- Supplied accessories Parts for installation
“Short-term maximum power” may also be referred to as “Peak Power”.
2 Testing Condition: IEC 60268-5 (2003-05)
Mounting
Before mounting
A depth of at least 73 mm (2 7 / sin) is required for flush mounting. Measure the depth of the area where you are to mount the speaker, and ensure that the speaker is not obstructing any other components of the car. Keep the followings in mind when choosing a mounting location:
- Make sure that nothing is obstructing around the mounting location of the door (front or rear) or the rear tray where you are to mount the speaker.
- A hole for mounting may already be cut out of the inner panel of the door (front or rear) or the rear tray. In this case, you need to modify the board only.
- If you are to mount this speaker system in the door (front or rear), make sure that the speaker terminals, frame or magnet do not interfere with any inner parts, such as the window mechanism in the door (when you open or close the window), etc.
- Also make sure that the speaker grille does not touch any inner fittings, such as the window cranks, door handles, arm rests, door pockets, lamps or seats etc.
- If you are to mount this speaker system in the rear tray, make sure that the speaker terminals, frame or magnetdo not touch any inner parts of the car, such as the torsion bar springs (when you open or close the trunk lid), etc.
- Also make sure that the speaker grille does not touch any inner fittings, such as seat belts, head rests, center brake lights, inner covers of the rear wipers, curtains or air purifiers, etc.
