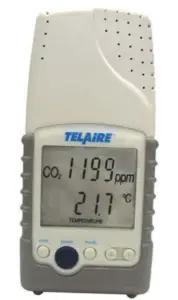

Telaire CO₂ and Temperature Monitor

Applies to this Telaire CO₂ and Temperature Monitor

This document provides instructions on connecting the Telaire CO2 and Temperature
Monitor listed above to each of the following:

• FlexSmart™ Analog Module used with HOBO H22 series data loggers
• Analog Sensor Port/Module option used with HOBO U30 and RX3000 series loggers
• Voltage adapter cables used with the U12, UX120-006M, MX1104, and MX1105 data loggers and ZW series data nodes

It also lists configuration values used by HOBO software to configure the logger for the monitor.
Note: For information on powering the monitor for long-term applications, and other monitor details, refer to the documentation provided by GE Sensing.

Required

• Telaire CO₂ and Temperature Monitor listed above
• Telaire Cable, Onset Part No. CABLE-2070 (not required for U12 or ZW series when recording CO₂ only)
• H22, U12, U30, UX120-006M, MX1104, MX1105, or RX3000 data logger, or HOBO ZW data node
• FlexSmart Analog Module, S-FS-CVIA (for H22 series); Analog Sensor Port/Module option (for U30 and RX3000 series); voltage adapter, CABLE-ADAP5 or CABLE-CO2 (for U12, UX120-006M, MX1104, MX1105, or ZW series)
• HOBOware® software, version 2.2.1 or higher for H22 or U12; 2.4.0 or higher for U30 series; 3.6 or higher for UX120-006M; HOBOware Pro 3.0 or higher for ZW series
• HOBOconnect™ for MX1104 and MX1105
• HOBOlink® for RX3000 series data loggers

Connecting the CO₂ and Temperature Monitor to the Analog Module or Port

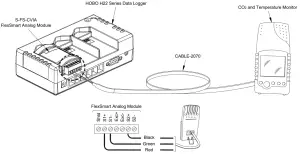

H22 Connection

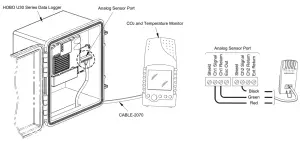

U30 or RX3000 Connection (U30 Shown)

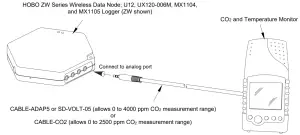

ZW, U12, UX120-006M, MX1104, and MX1105 Connection

CO₂ only

ZW, U12, UX120-006M, and MX1105 Connection

CO₂ and Temperature

Configuring the Data Logger for the CO₂ and Temperature Monitor using HOBO Software

Use the following recommended scaling values in the software:

Refer to the software documentation for more details on setting up scaling.
