FENIX DUO IP44
CEILING-/WALL LUMINAIRE
MOUNTING INSTRUCTIONS

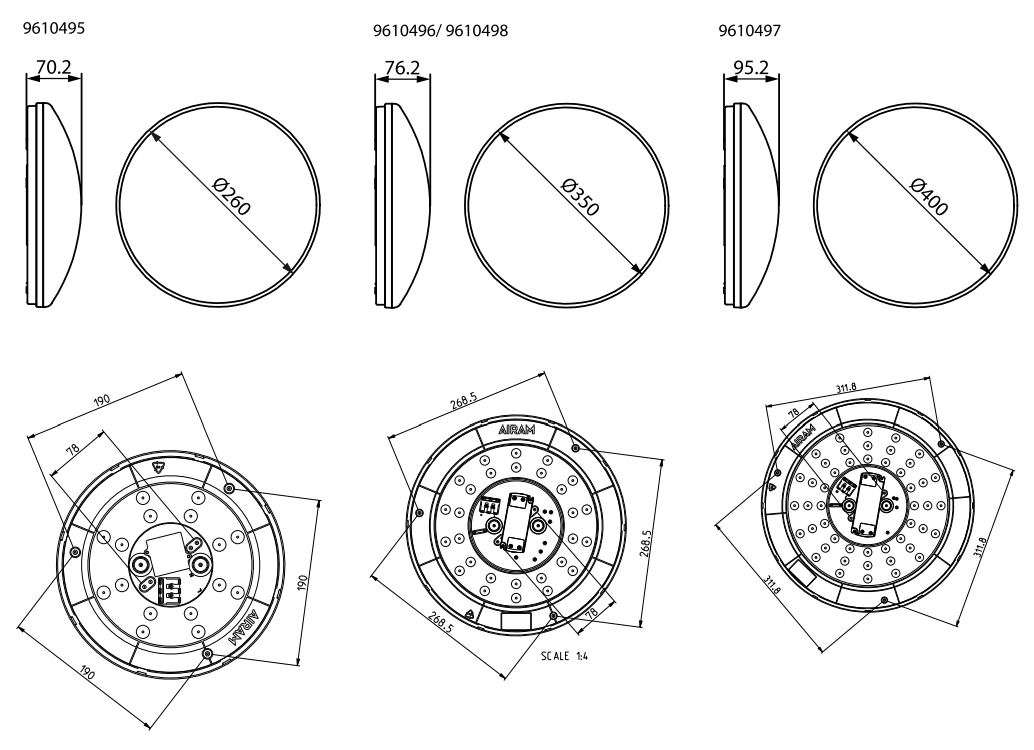

9610495 Fenix Duo 260 IP44 Ceiling Light
E=Continuity / termination of earth wires
This product contains a light source of energy efficiency class F.

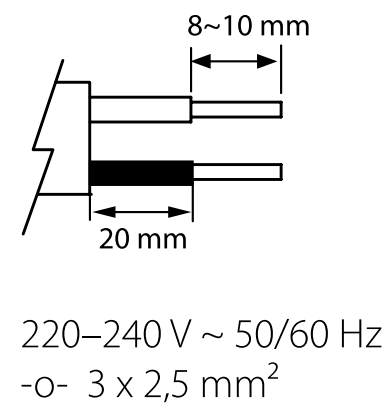

Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver.
Switch off the current before installation or service. This mounting instruction must be kept available during installation and for future maintenance. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.

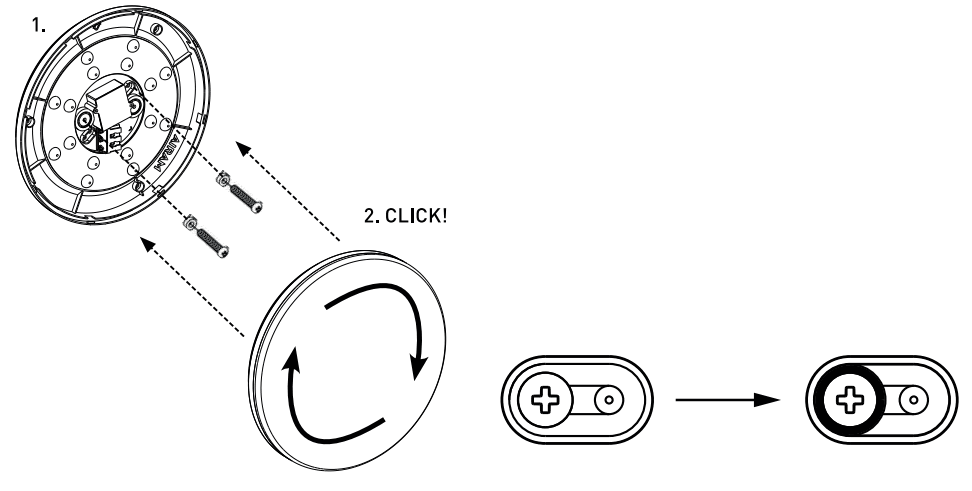

Fixing screw torque
The screw is tightened correctly when the black rubber washer placed under it slightly touches the edges of the screw hole. Note! Do not overtighten!
When choosing the place of installation pay attention to the following things:
- Radar sensor can detect movement through thin wall or glass
- The light fixture must be mounted on a stable foundation which doesn’t vibrate.
- Large metal surfaces can affect the size and shape of the detection area.
- The lux values are referential.

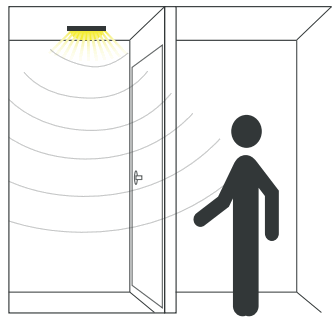

Radar sensor can detect movement through thin wall or glass.

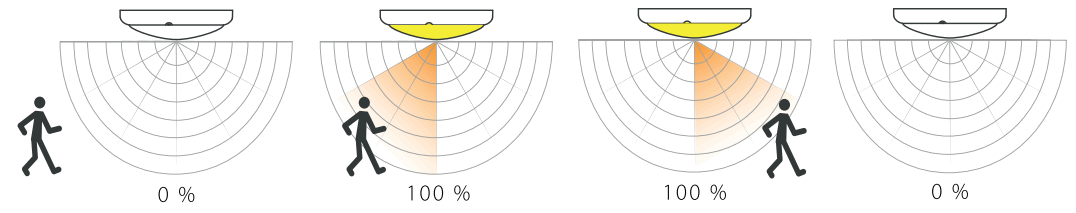

RADAR detection controls all lighting with on and off setting.

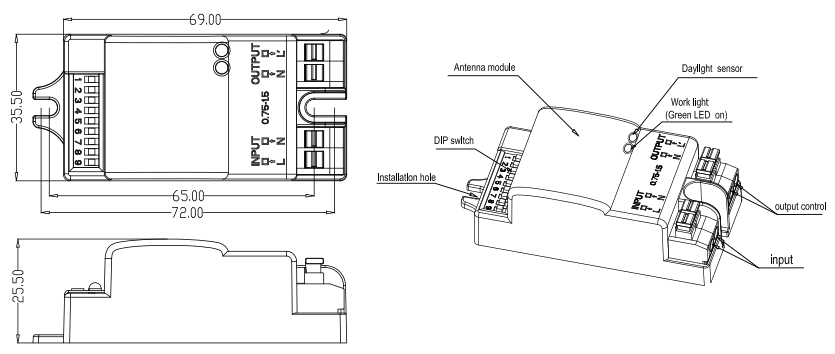

| Microwave sensor | |
| Operating voltage | 220 — 240 Vac, 50 Hz |
| Rated load | 400 W ( inductive) 800 W (resistive) |
| HF-system | 5,8 GHz ± 75 MHz ISM- wave band |
| Transmitting power | <0,5 mW |
| Power consumption | 40,5 W (standby) <1 W (operation) |
| Detection zone | Max. ID x H): 12 m x 6 m |
| Detection sensitivity | 10% 125 % 150 % 175 % 1 100 |
| Hold time | 5 s 130 s 190 s 13 min 120 min 130 min |
| Daylight sensor | 2 lux 110 lux 125 lux 150 lux disable |
| Mounting height | Max. 6 m |
| Motion detection | 0,5-3 m/s |
| Detection angle | 150° ( wall installation) 360° (ceiling installation) |
| Operating temperature | 0°C … 25°C |

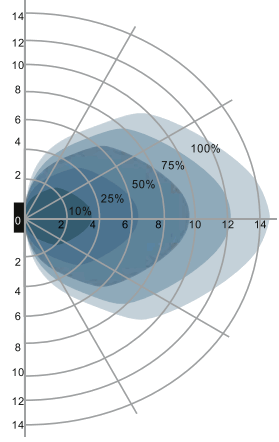

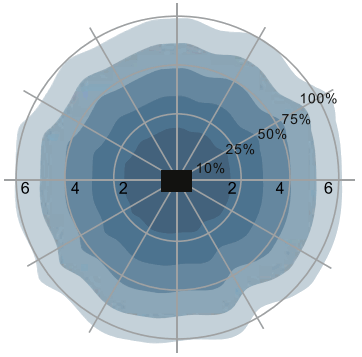

| Wall mounting pattern 1-7 m. | Ceiling mounting pattern. |
 |  |
Setting
By selecting the combination on the DIP switch, sensor data can be precisely set for each specific application.

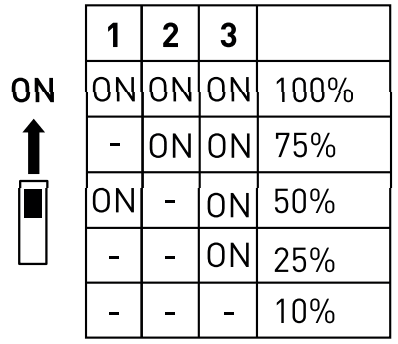

Detection area
Detection area can be altered by switching between different combinations to fit precisely for each application.

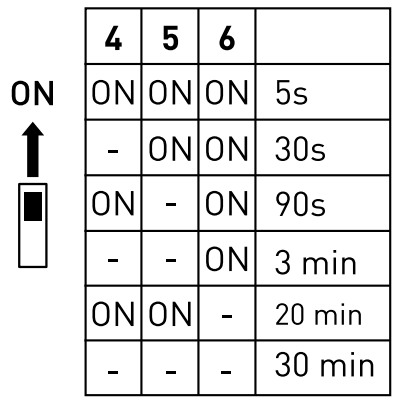

Hold time
Refers to the time period the lamp remains at 100% illumination after no motion detected.

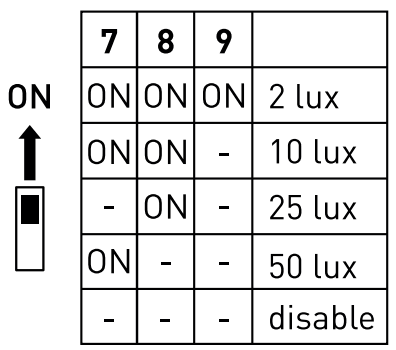

Daylight sensor
The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness treshold.
When set to Disable mode, the daylight sensor will switch on the lamp when motion is detectd regardless of ambient light level.
50 lux, 30 lux: twilight operation, 10lux, 2 lux: darkness operation only.
TROUBLESHOOTING
| Malfunction | Cause | Remedy |
| The load will not work | Wrong light-control setting selected. | Adjust setting. |
| Load faulty. | Change load. | |
| Main switch OFF. | Switch ON. | |
| The load work always. | Continuous movement in the detection zone. | Check zone setting. |
| The load work without any identifiable movement. | The sensor not mounted for detecting movement reliably. | Securely mount enclosure. |
| Movement occured but not identified by the sensor (movement behind the wall, movement of the small object in immediate lamp vicinity etc.). | Check zone setting. | |
| The load will not work despite movement | Rapid movements are being suppressed to minimize malfunctioning or the detection zone you have set is too small. | Check zone setting. |
Ai ram Electric Oy Ab, Sementtitehtaankatu 6, F1-04260 Kerava, Finland, www.airam.fi
04W2022Y
